Product Descriptions
This module uses XinYi Information Technology's XY1100 chip solution. This chip is currently the world's first Single Die integrated CMOS PA mass-produced NB-loT system single chip, which directly integrates the commercially available PA on the single Die. It is currentlythe world's most integrated NB-loT chip. The chip integrates a dual-core processor including ARM core and DSP core. The DSP core handles 3GPP protocol and ARM handles application protocol. It is equipped withdual-core processor of Huawei LiteOS operating system to work at the same time and run fast and stable. It supports different power consumption modes, such as deep sleep, normal sleep,standby,and low power consumption working modes, and the lowest power consumption can reach 0.7uA
Product Features
Work at B3 B5 B8 firequency band:
Support TCP, UDP, MQTT, COAP, LwM2M and other protocols,
Support Telecom Cloud CTWlNG, Huawei Cloud OceanConnect, Unicom Cloud, China Mobile Onenet Cloud PlatiormAlibaba Cloud, Baidu Cloud, and Ebyte Cloud transparent transmission;
The deep sleep state current is less than luA, the typical value is 0.7uA;Support 3GPP standards R13;
Support TCP/UDP transparent transmission,
Support SMS in PDU format.
Support FOTA remote upgrade of Onenet and CTWING.
Support registration packet, heartbeat packet;
Support Modbus RTU/TCP conversion:
Support PSM, eDRX:
Product Applications
Smart lighting
Smart Home
Smart fire protection
Smart meter reading
Smart parking
Smart buildings
Automatic data acquisition
Health sensor

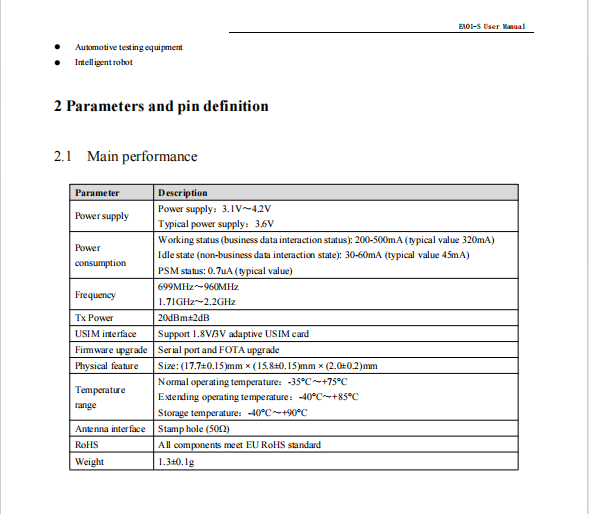

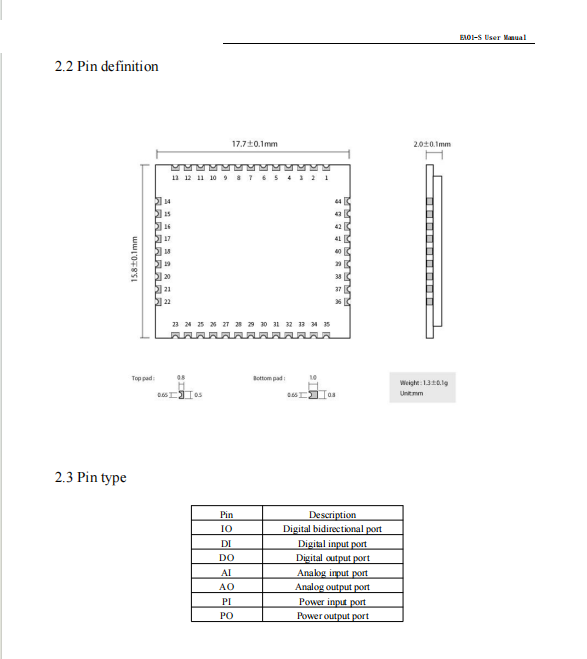

Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-EA01-S |
| Power supply | Power supply：3.1V～4.2V |
| Typical power supply：3.6V | |
| Power consumption | PSM typical power consumption：0.7uA |
| Frequency | B3 B5 B8 |
| Tx Power | 20dBm±2dB |
| USIM interface | For 1.8V/3V adaptive to USIM card |
| Firmware upgrade | Serial and fota upgrade |
| Physical feature | Size：(17.7±0.15)mm × (15.8±0.15)mm × (2.0±0.2)mm |
| Temperature range | Normal operating temperature：-35°C～+75°C |
| Extending operating temperature：-40°C～+85°C | |
| Storage temperature：-40°C～+90°C | |
| Antenna interface | Stamp hole（50Ω） |
| RoHS | All components meet EU RoHS 2.0 standard |
| Weight | 1.3±0.1g |
