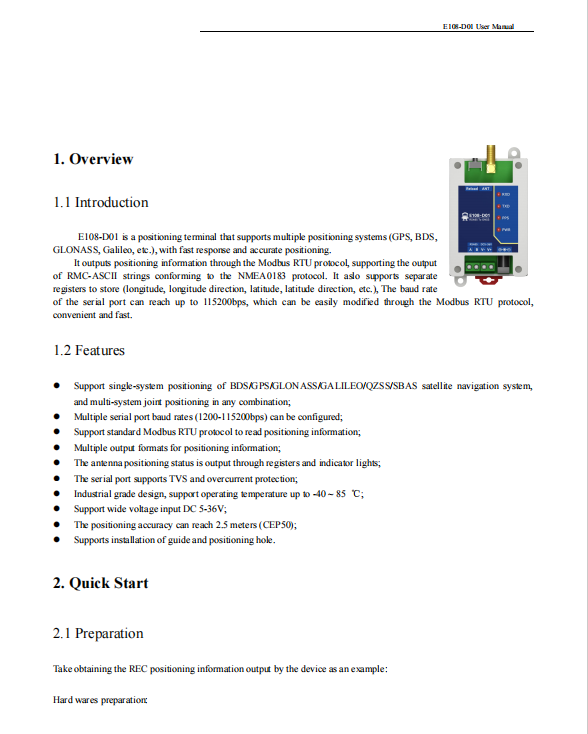

Product Descriptions

E108-D01 is a positioning terminal that supports multiple positioning systems (GPS, BDS, GLONASS, Galileo, etc.), with fast response and accurate positioning. It outputs positioning information through the Modbus RTU protocol, supporting the output

of RMC-ASCII strings conforming to the NMEA0183 protocol. It aslo supports separate registers to store (longitude, longitude direction, latitude, latitude direction, etc.), The baud rate of the serial port can reach up to 115200bps, which can be easily

modified through the Modbus RTU protocol, convenient and fast.

Product Features

 Support single-system positioning of BDS/GPS/GLONASS/GALILEO/QZSS/SBAS satellite navigation system, and multi-system joint positioning in any combination;

 Multiple serial port baud rates (1200-115200bps) can be configured;

 Support standard Modbus RTU protocol to read positioning information;

 Multiple output formats for positioning information;

 The antenna positioning status is output through registers and indicator lights;

 The serial port supports TVS and overcurrent protection;

 Industrial grade design, support operating temperature up to -40 ~ 85 ℃;

 Support wide voltage input DC 5-36V;

 The positioning accuracy can reach 2.5 meters (CEP50);

 Supports installation of guide and positioning hole.

Specifications

Actual product photos

Product Data Manual：

For more product information, please download the PDF
