Hot selling original stock sale NT1 Serial to Ethernet transmission module_Various types Modules

Product Features

 RJ45 adaptive 10M Ethernet interface;

 Support multiple working modes (TCP Server, TCP Client, UDP Server, UDP Client, HTTPC, MQTTC);

 Support three configuration methods: configuration tool, web page and AT command;

 Server mode supports multiple socket connections;

 Support multiple baud rates;

 Support multiple check (None, Odd, Even, Mark, Space);

 Support multiple serial flow control configurations (NONE,CTS/RTS, DSR/DTR, XON/XOFF);

 Support DHCP function;

 Support DNS (domain name resolution), and custom domain name resolution server;

 Support multiple Modbus gateways (simple protocol conversion, multi-host mode, storage gateway, configurable gateway, etc.);

 Supports quick access to Alibaba Cloud, Baidu Cloud, OneNET, Huawei Cloud, and standard MQTT servers of version 3.1;

 Support HTTP protocol (GET/POST request)

 Support virtual serial port;

 Support timeout restart function, time can be customized;

 Support short connection function, short connection interval time customization;

 Support heartbeat package and registration package function;

 Support serial port cache cleaning function;

 Support access to external network and local area network;

 Support hardware reset to factory settings;

 Support online upgrade function.

Attribute	Attribute value
ANSM-Part#	ANSM-NT1
Operating \bltage	DC 3.0 ~ 5V
current drain	Standby: 40mA @ 3.3V Peak: 300mA@3.3V Standby: 30mA @ 5V Peak: 250mA@5V
Interface	TTL(2.54 mm Pin) Ethernet port (RJ45)
Work Mode	TCP Server、TCP Client. UDP Server、UDP Client. HTTP Client. MQTT Client(default TCP Server)
Socket connection	Support 6-way client connection (TCP server mode)
Network protocol	IPv4、TCPUDP、HTTP、MQTT
How to get IP	DHCP、Static IP (default static IP)
DNS	Support
DNS server	Customizable (default 114.114.114.114)
Configuration method	Web pages, configuration tools, AT commands
IP address	Customizable (default 192.168.3.7)
local port	Customizable (default 8887)
subnet mask	Customizable (default 255.255.255.0)
gateway	Customizable (default 192.168.3.1)
target IP	Customizable (default 192.168.33)
destination port	Customizable (default 8888)
Serial port cache	1024Byte
Packaging mechanism	512 Byte
Serial port baud rate	1200 ~ 230400 bps (default 115200)
data bits	5、6、7、8 (default 8)
stop bit	1、2 (default 1)
Check Digit	None、Odd、Even、Mark, Space (defaultNone)
Flow Control	NONE. CTSRTS、DSRDTR、XONXOFF(defaultNone)
Product Size	35mm * 22mm * 21mm (lengthwidthheight)
product weight	9.0g ± lg
Working temperature and humidity	-40 ~ +85℃、5% ~ 95%RH (no condensation)
Storage temperature and humidity	-40 ~ +105℃s 5% - 95%RH (no condensation)

NT1

Product Data Manual：

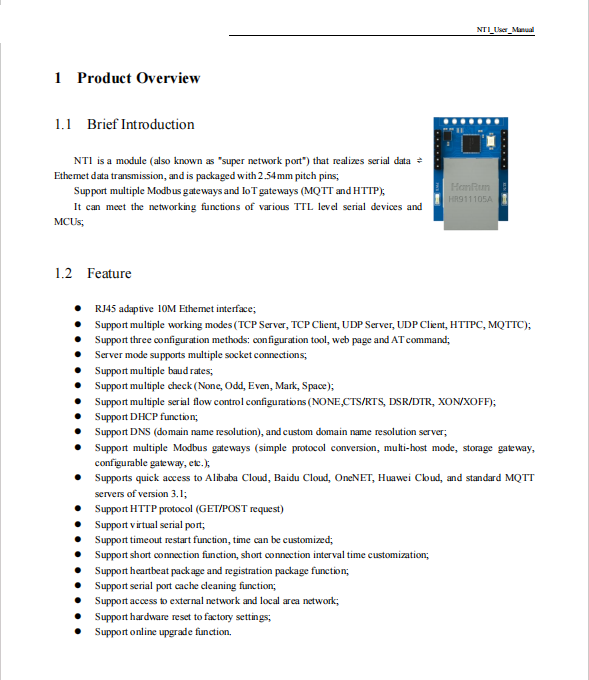

NT1详情1

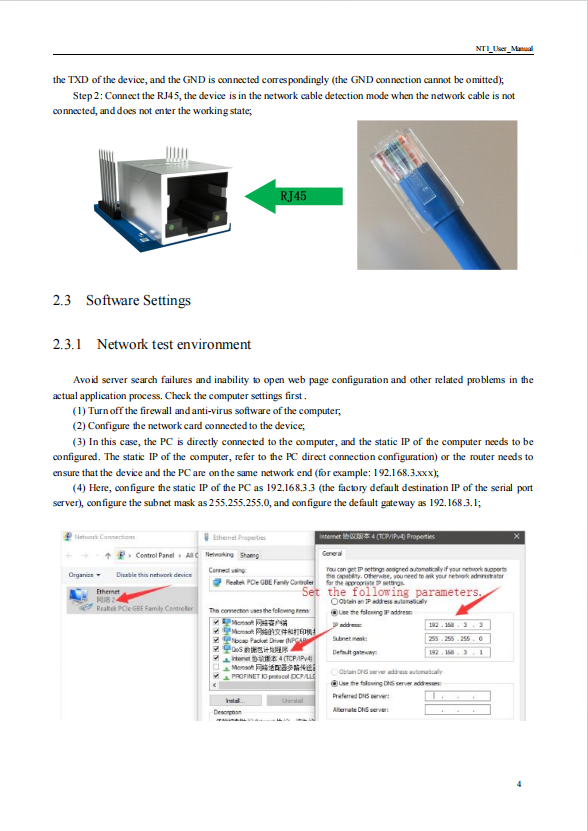

NT1详情2

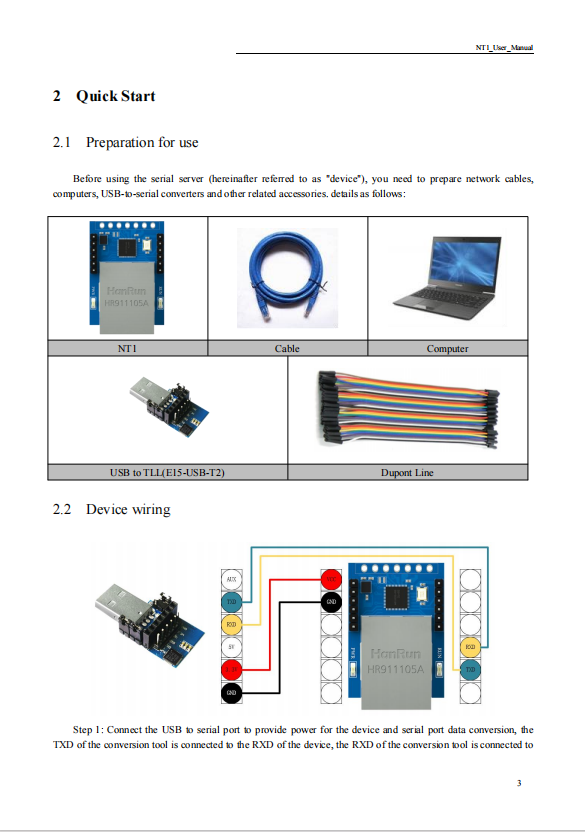

NT1详情3

For more product information, please download the PDF

详情8.1

详情页3.1

详情5.1

详情6.1

详情9
