Product Descriptions
NA611-S/NA611-SA is a high-performance and highly reliable WiFi serial server (RS485 ⇌ WiFi). Works in the 2.4G frequency band, realizes RS485 data to realize device networking data exchange through WiFi, supports IEEE802.11 b/g/n standard,
supports 4-way Socket connection; supports Alibaba Cloud, Baidu Cloud, OneNet, standard MQTT protocol; supports TCP/ UDP/HTTP/MQTT multiple network communication protocols.
Product Features
Support simultaneous TCP/UDP/HTTP/MQTT multiple network communication protocol communication;
Support up to 4 channels of Socket communication at the same time;
Support Alibaba Cloud, Baidu Cloud, OneNet, standard MQTT protocol;
Support Modbus protocol conversion (RTU and TCP);
Support modbus storage gateway / configuration gateway / multi-host gateway;
Support transparent transmission multiplex protocol transmission and broadcast transmission;
Support custom registration package, custom heartbeat package function;
Support host computer configuration (download from official website), support direct A interactive
configuration, support network interactive configuration;
Support disconnection and automatic reconnection;
High-speed continuous transmission
Support WIFI idle restart;
Support IEEE802.11 b/g/n standard;
Support 2.4G frequency band;
Support AP, STA working mode;
Support WPA2 WIFI security authentication method;
Support 3-way STA device connection (AP access point);
Support dynamic DNS, DHCP network service package;
Flexible power supply mode (DC/AC optional);
Support static IP address allocation;
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-NA611-SA |
| Operating Voltage | AC 85～265V |
| Communication Interface | RS485 |
| Working frequency | 2.412GHz ～ 2.472GHz |
| Maximum transmit power | 16dBm ～ 18.5dBm @2.412GHz |
| Emission current | 90mA @12V Instantaneous power consumption（2.412GHz） |
| receive current | 30mA @12V Average power consumption received（2.412GHz） |
| WiFi version | 802.11 b/g/n |
| Operating temperature | -40℃ ～ +70℃ |
| Product Size | 92 * 66 * 30 mm |
| Weight | 95 g ± 5 g |
Actual product photos

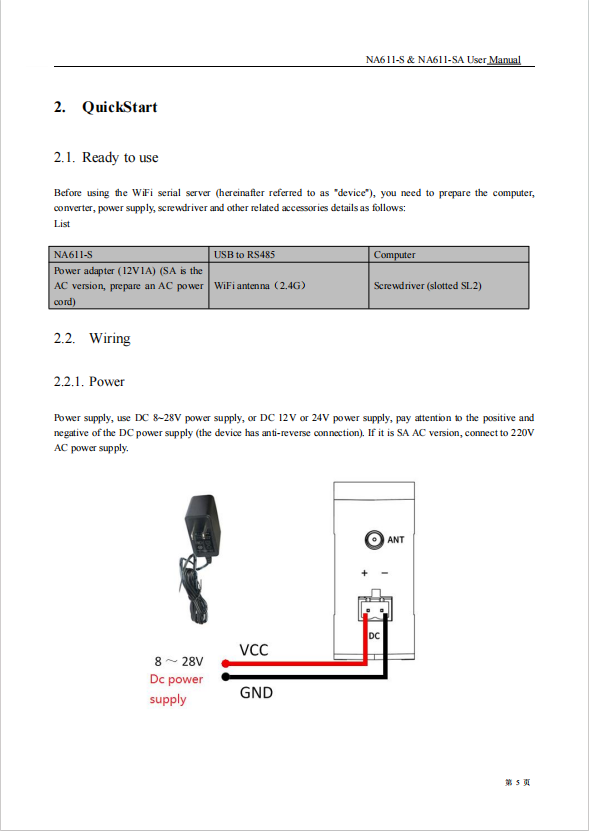

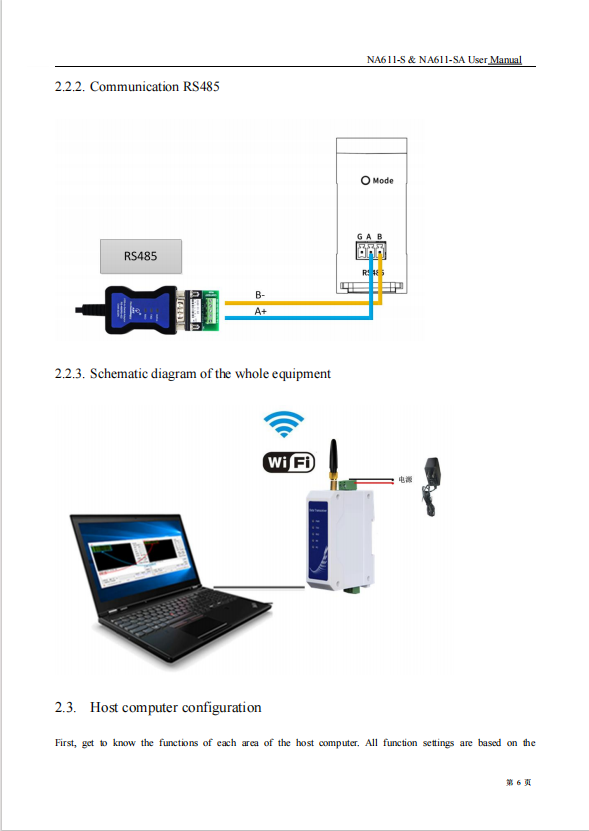

Product Data Manual：
For more product information, please download the PDF
