Hot selling E30-400MBL-01 E30 eries module test board SI4438/4463 Development Evaluation Kit USB interface pre welding interface

E30-400MBL-01

Model:E30-400MBL-01

Manufacturer:EBYTE

Package:module

Detail

Brief Introduction


MBL series evaluation kits are designed to help users quickly evaluate Ebyte's new generation of package-compatible wireless modules. Most of the pins on the board have been led out to pin headers on both sides, and developers can easily connect various peripheral devices through jumpers according to actual needs.


The kit provides complete software application examples to help customers quickly get started with wireless data communication development. According to customer needs, different types of Sub-1G wireless modules can be mounted on the board. Supported modules are available in pin-compatible packages for quick replacement.


Specifications


AttributeAttribute value
ANSM-Part#ANSM-E30-400MBL-01
Reference distance2.5KmTest condition:clear and open area, antenna gain: 5dBi,antenna height: 2.5m,air data rate: 1kbps
ModulationGFSK-
Communication InterfaceSPIMax. rate 10Mbps
PackageSMD-
Interface methodStamp Hole-
Size20*14mm-
AntennaIPEX/STAMP50 ohm impedance

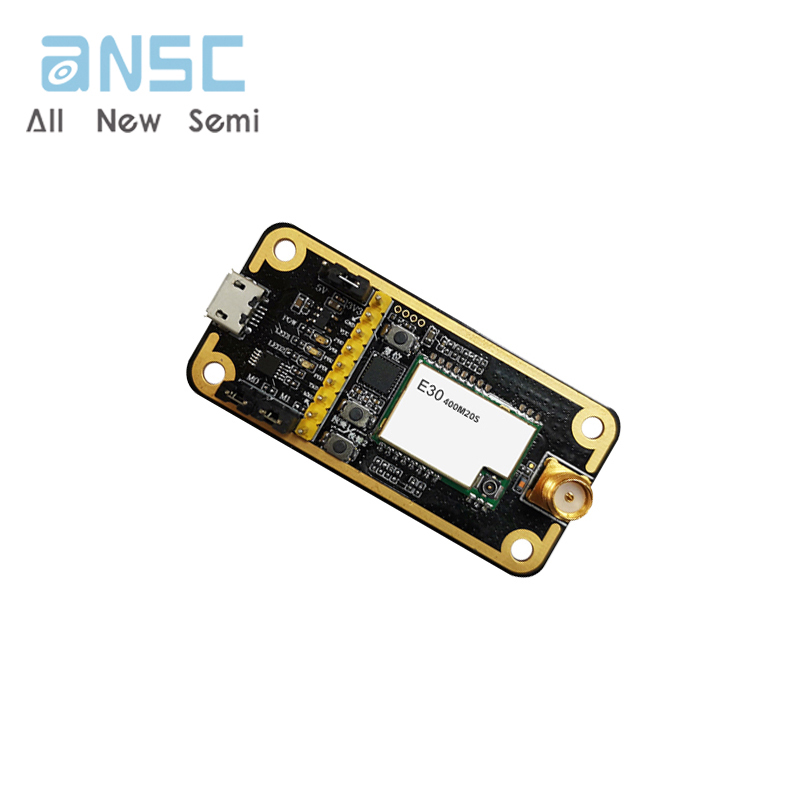

Actual product photos


E30-400MBL-01

E30-400MBL-01


Product Data Book:


搜狗高速浏览器截图20240803110903

搜狗高速浏览器截图20240803110909

搜狗高速浏览器截图20240803110916

搜狗高速浏览器截图20240803110922

搜狗高速浏览器截图20240803110927


For more product information, please download the PDF
