Product Descriptions

The xCORE-200TM USB family of devices (XU and XUF)  extends the popular xCORETM architecture to provide  increased performance, memory footprint and flexibility  for the most demanding applications.

xCORE-200 XU/XUF integrates up to two USB 2.0 PHYs  (host or device) and implements a dual-issue processor  pipeline to boost peak compute performance up to  4000MIPS and 2000MMACS.

Up to 1024KB on-chip SRAM memory is available. Each  member of the xCORE-200 family has an embedded flash  option for applications.

The flexible Hardware Response ports are bonded out to  I/O pins as 1bit, 4bit, 8bit, 16bit and 32bit ports, and  provide support for serialized and buffered data transfer.  Up to 176 general purpose I/O are available for user  configuration.

Unlike conventional microcontrollers, xCORE-200 multicore microcontrollers execute multiple real-time tasks simultaneously. The xCORE-200 XU/XUF family includes devices with 8, 10, 12, 16, 24 and 32 cores. Each logical core can  execute computational code, advanced DSP  code, control software (including logic decisions  and executing a state machine) or drive and  sample data on the I/O ports.

The devices include xTIME scheduling hardware  that performs functions similar to those of an RTOS, and hardware that connects the cores directly to  I/O pins, ensuring fast processing and extremely low latency. The xTIME scheduler eliminates the use  of interrupts and ensures deterministic operation.

The on-chip SRAM can be accessed in a single cycle, reducing shared memory requirements by  passing data directly between tasks executing on logical cores. Similarly the xCONNECT switch is a  high-speed network allowing all cores to communicate with each other.

xCORE-200 multicore microcontrollers include an area of one-time programmable memory with AES  support to allow the implementation of secure boot functionality.

Product Features

Multicore compute with up to 1000MIPS (8 core) and 4000MIPS  (32 core) performance.

Hardware ResponseTM ports provide flexible, high-performance  configurable I/O capability.

Integrated USB 2.0 PHY for high-and full-speed host and device  operation.

Up to 1024KB on-board memory for demanding applications.

Embedded flash option – up to  2048KB on-board.

Free software library support to  implement your exact mix of  peripherals.

Easy to use with our free  xTIMEcomposer Studio™ tools.

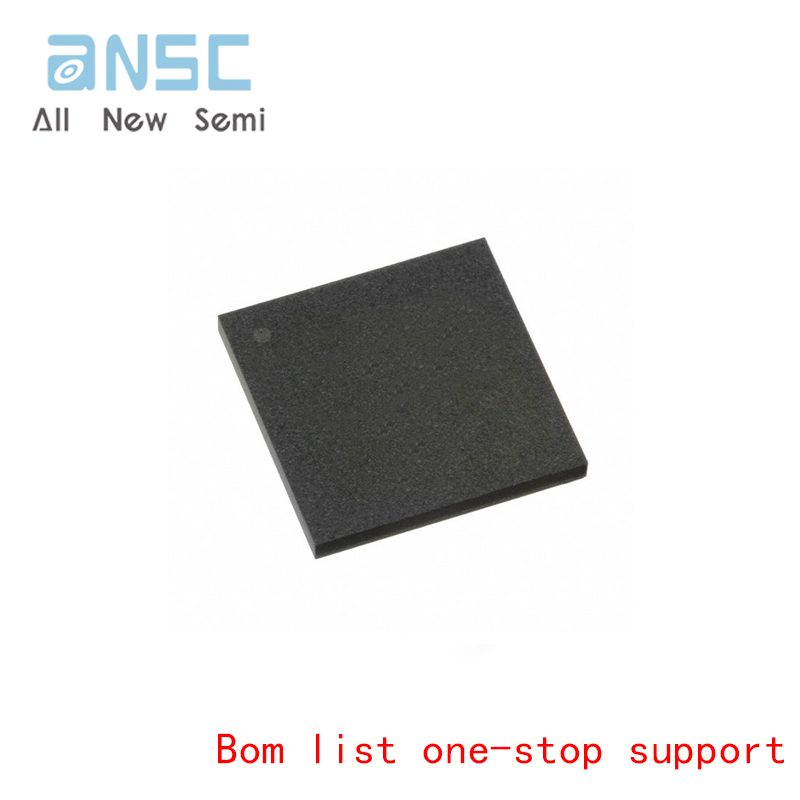

Actual product photos
