Product Descriptions

The NVIDIA® Jetson TX2 System-on-Module (SOM) redefines possibility; a combination of performance, power efficiency,  integrated deep learning capabilities and rich I/O remove the barriers to a new generation of products. The Jetson TX2 is ideal  for many applications including (but not limited to): Intelligent Video Analytics (IVA), Drones, Robotics, Gaming Devices, Virtual  Reality (VR), Augmented Reality (AR) and Portable Medical Devices. Superior performance, robust design and reduced complexity in system integration results in more advanced products getting to market faster.

The Jetson TX2 module integrates:

 256 core NVIDIA Pascal GPU. Fully supports all modern graphics APIs, unified shaders and is GPU compute capable. The GPU  supports all the same features as discrete NVIDIA GPUs, including extensive compute APIs and libraries including CUDA. Highly  power optimized for best performance in embedded use cases.

 ARMv8 (64-bit) Multi-Processor CPU Complex. Two CPU clusters connected by a high-performance coherent interconnect fabric  designed by NVIDIA; enables simultaneous operation of both CPU clusters for a true heterogeneous multi-processing (HMP)  environment. The Denver 2 (Dual-Core) CPU clusters is optimized for higher single-thread performance; the ARM Cortex-A57  MPCore (Quad-Core) CPU clusters is better suited for multi-threaded applications and lighter loads.

 Advanced HD Video Encoder. Recording of 4K ultra-high-definition video at 60fps. Supports H.265 and H.264 BP/MP/HP/MVC,  VP9 and VP8 encoding.

 Advanced HD Video Decoder. Playback of 4K ultra-high-definition video at 60fps with up to 12-bit pixels. Supports H.265, H.264,  VP9, VP8 VC-1, MPEG-2, and MPEG-4 video standards.

 Display Controller Subsystem. Two multi-mode (eDP/DP/HDMI) outputs and up to 8-lanes of MIPI-DSI output. Multiple line pixel  storage allows more memory-efficient scaling operations and pixel fetching. Hardware display surface rotation is also provided for  bandwidth reduction in mobile applications.

 128-bit Memory Controller.128-bit DRAM interface providing high bandwidth LPDDR4 support.

 8GB LPDDR4 and 32 GB eMMC memory integrated on the module

 1.4Gpix/s Advanced image signal processing: Hardware accelerated still-image and video capture path, with advanced ISP.

 Audio Processing Engine. Audio subsystem enables full hardware support for multi-channel audio over multiple interfaces.

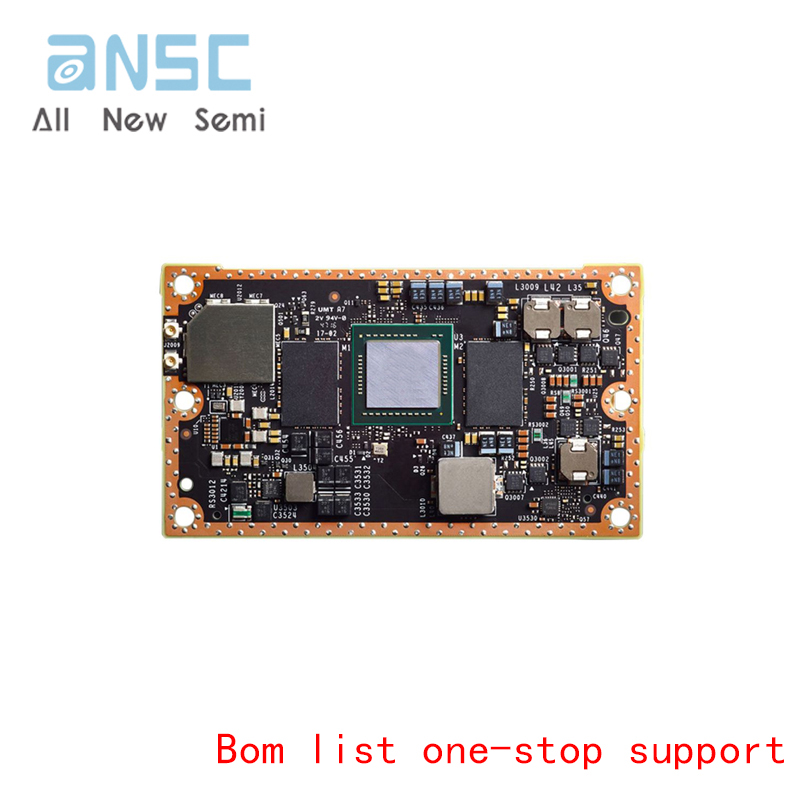

Actual product photos

Product Data Manual：

For more product information, please download the PDF
