Brief Introduction

A Sensor Shield V5.0 Sensor Expansion Board

The A Sensor Shield V5.0 sensor expansion board, which has been launched, retains the advantages of the V4.0 version while still using a stacked design and PCB gold plating process. The motherboard not only extends all the digital and analog interfaces of the ADuemilanove 2009 controller in the form of servo line sequence, but also has special IIC interface, 32 servo controller interface, Bluetooth module communication interface, SD card module communication interface, APC220 wireless RF module communication interface, RB URF v1.1 ultrasonic sensor interface, 12864 LCD serial and parallel interface, making it easier and more convenient to independently expand. For beginners of A, there is no need to worry about tedious and complex circuit connections. This sensor expansion board simplifies the circuit in a meaningful way and can easily connect commonly used sensors. A sensor only requires a universal 3P sensor connection cable (regardless of digital or analog connection cables). After completing the circuit connection, write the corresponding A program to download to the A Duemilanove controller to read sensor data or receive wireless module feedback data. After calculation and processing, you can easily complete your own interactive works.

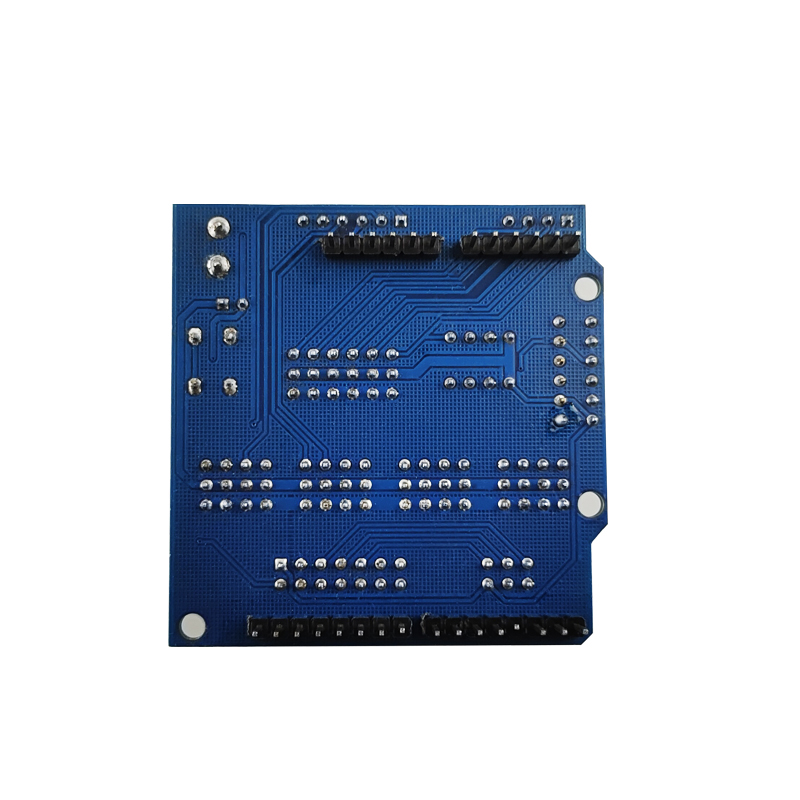

The PCB is processed with high-quality immersion gold

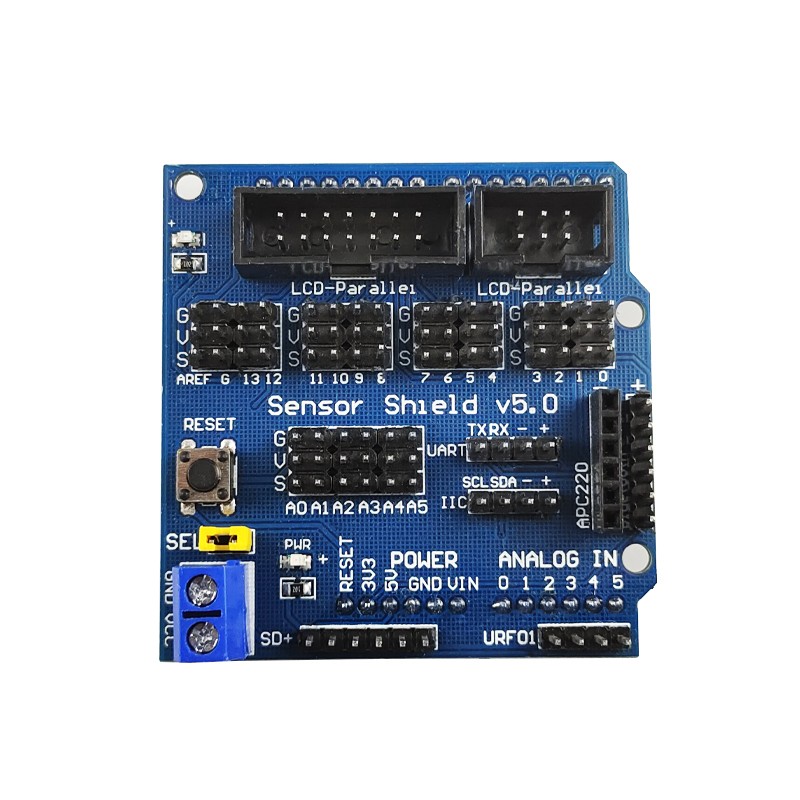

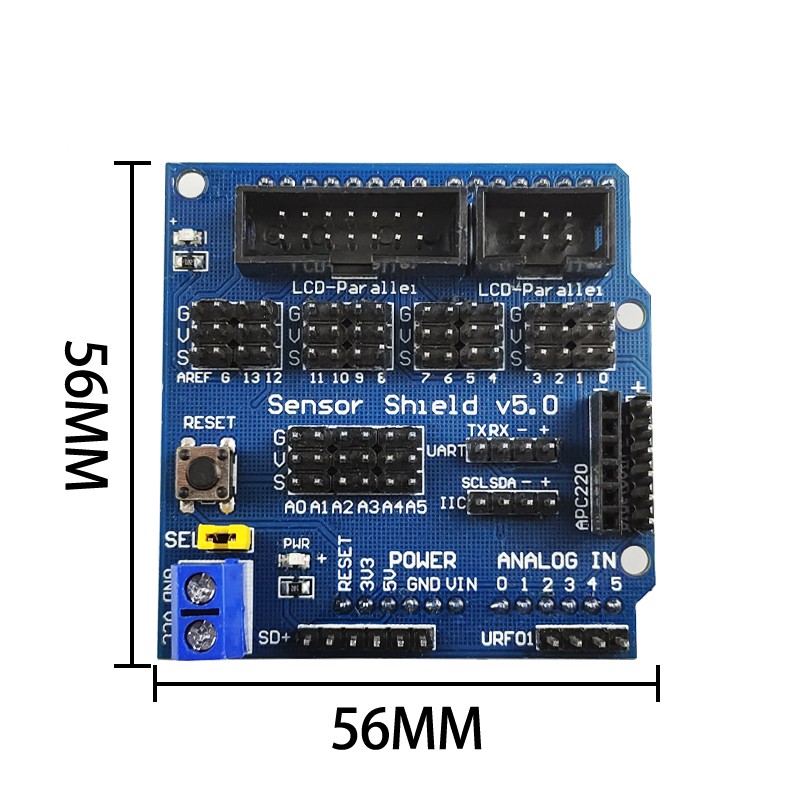

Actual product photos
