Brief Introduction

The Water Sensor is a simple and cost-effective water level/droplet recognition and detection sensor that measures the size of water droplets/water volume through a series of exposed parallel wire traces to determine the water level. Easily convert water volume to analog signal, and the output analog value can be directly read by the Arduino development board, achieving the function of water level alarm.

Specification parameters

Product Name: Water Level Sensor

Working voltage: DC3-5V

Working current: less than 20mA

Sensor type: Analog

Detection area: 40mm x 16mm

Production process: FR4 double-sided tin spraying

Working temperature: 10 ℃ -30 ℃

Working humidity: 10 to 90 degrees Celsius without condensation

Product weight: 3.5g

Product size: 62mm x 20mm x 8mm

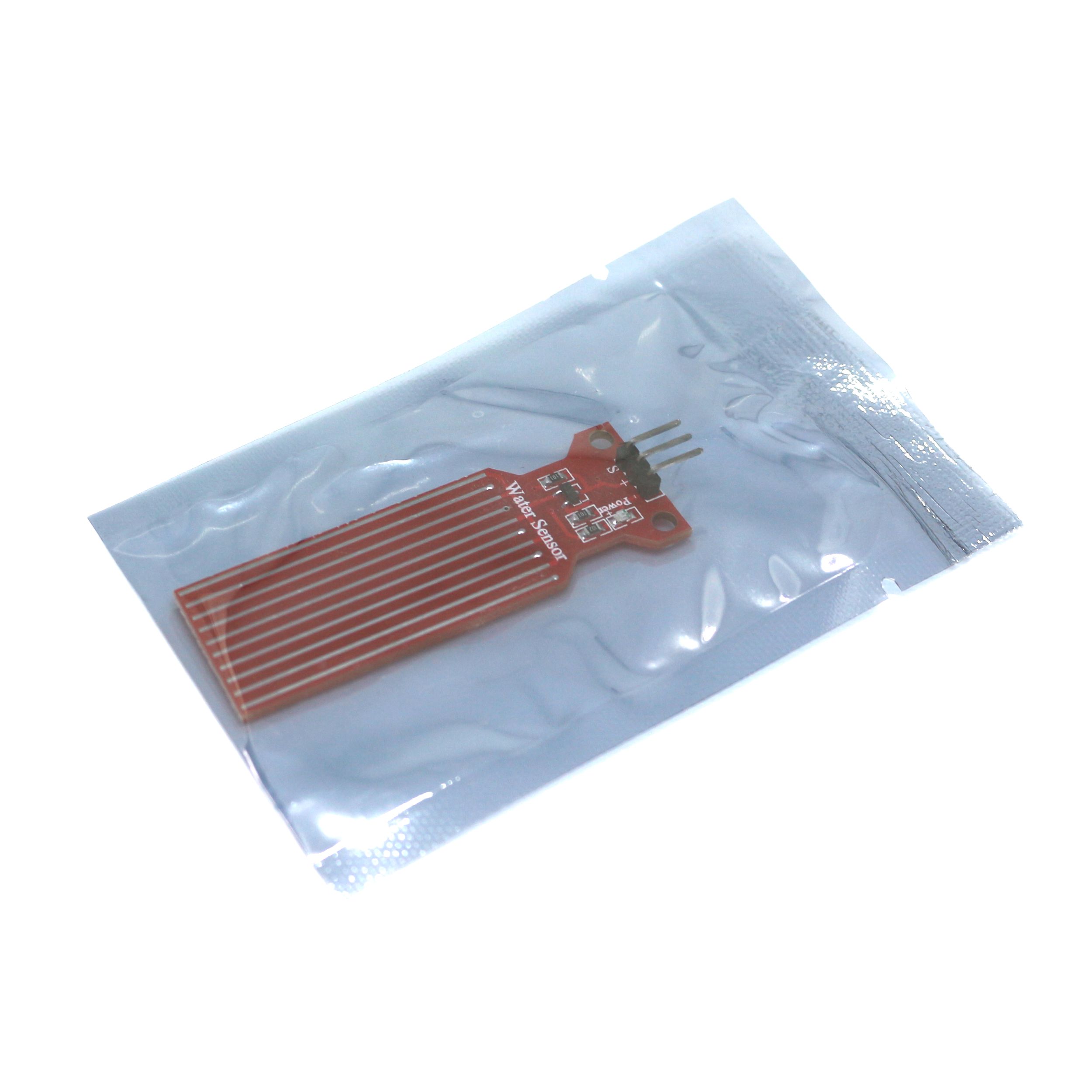

Packaging method: electrostatic bag sealed

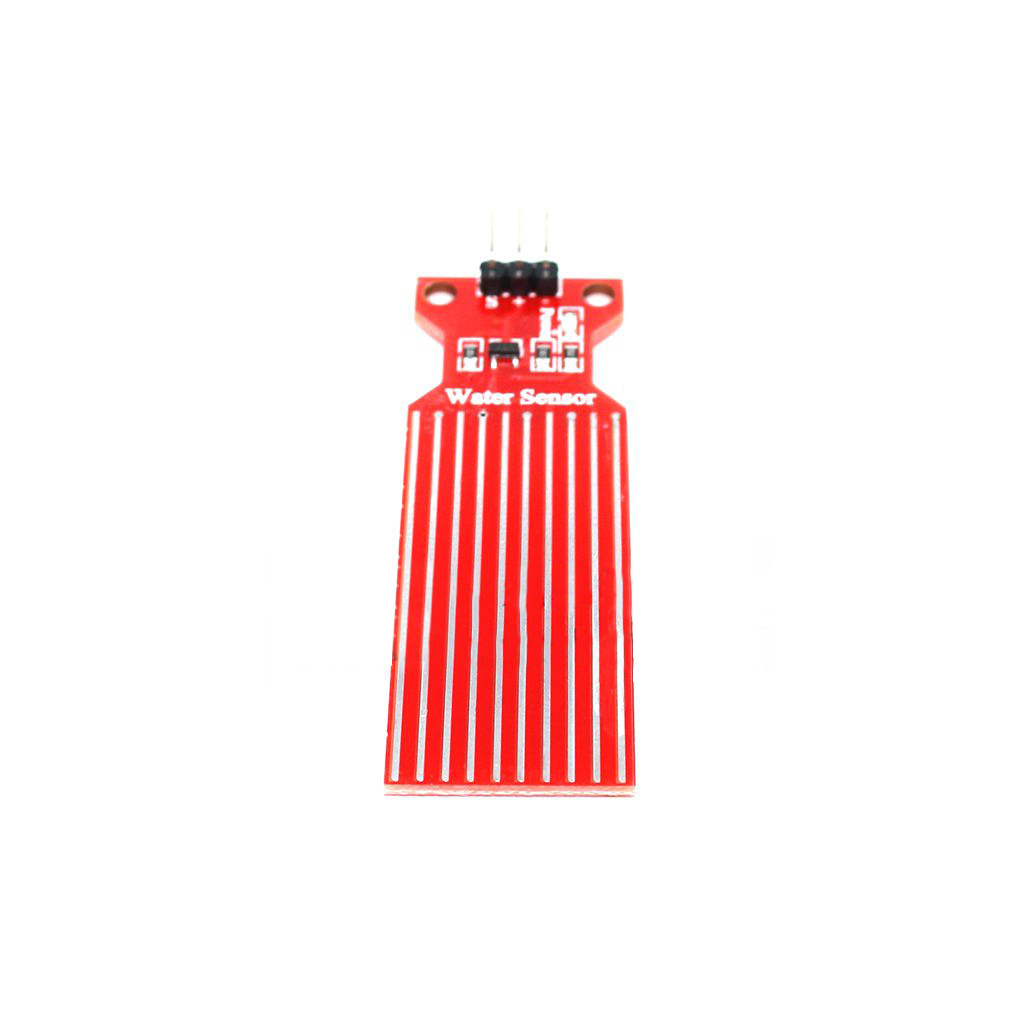

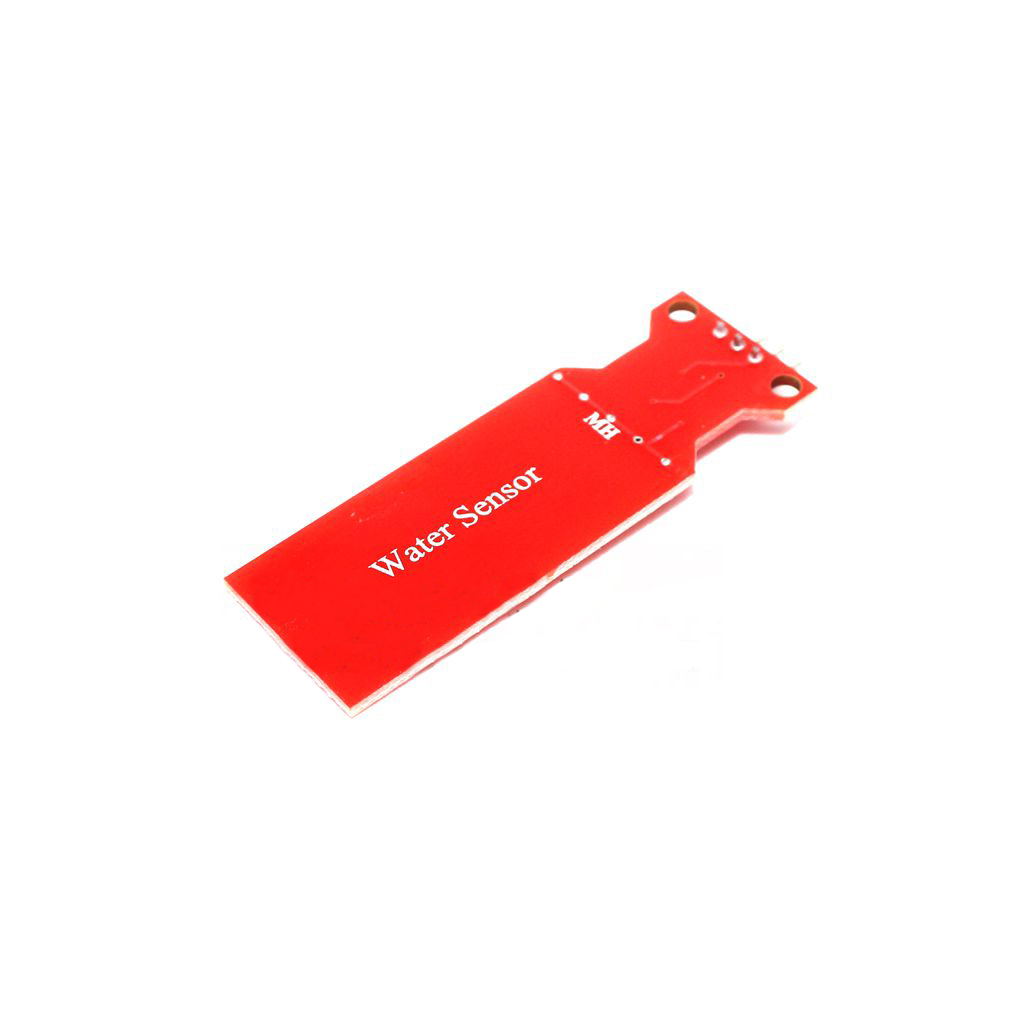

Actual product photos
