XH-M604 battery lithium battery charging control module battery charging control protection switch 6-60V

XH-M604

Model:XH-M604

Manufacturer:ANSC/OEM

Package:module

Detail

Product Descriptions


Product Name: CNC Charging Module


Product model: XH-M604


Control voltage: DC6-60V


Control current: ≤ 30A


Control accuracy: 0.1V


Output type: Direct output


Voltage error: ± 0.1V


Scope of application: Various types of lithium batteries


Appearance size: 81 * 54mm


Product Function


未标题-1

未标题-1-2

In the state of setting the voltage value, the start button plays the role of an up button, and the stop button plays the role of a down button.



Set startup voltage


Under normal display voltage status, press the start voltage button once to display the start charging voltage. Long press the start button, the number will flash, and set the starting charging voltage value through the start and stop buttons.



Set stop voltage


Under normal voltage display, press the stop voltage button once to display the stop charging voltage. Press and hold the stop button, the number will flash, and set the stop charging voltage value through the start and stop buttons.



Restore factory settings


Press and hold the start/stop button while powered on, and the digital display will show 888. This will restore the factory settings.


Usage method:


Connect the battery first (without the battery, there will be no display);


Start button: Press once to display the start value, long press to set the start value;


Stop button: Press and hold to display the stop value, long press to set the stop value;


When the startup value cannot be increased, please adjust the stop value first!

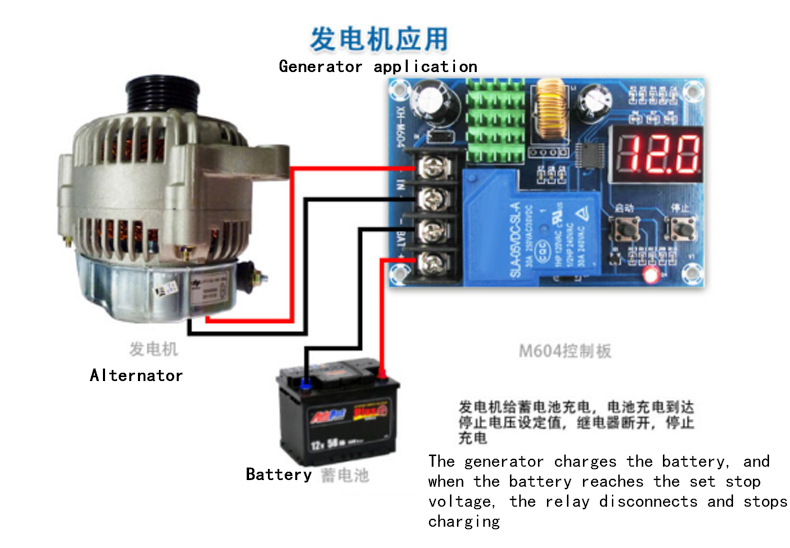

Product Applications


未标题-1-03


Product Show


主图-01

主图-02

主图-03

主图-04
