Product Name

ANSM-ANS-SP6KS

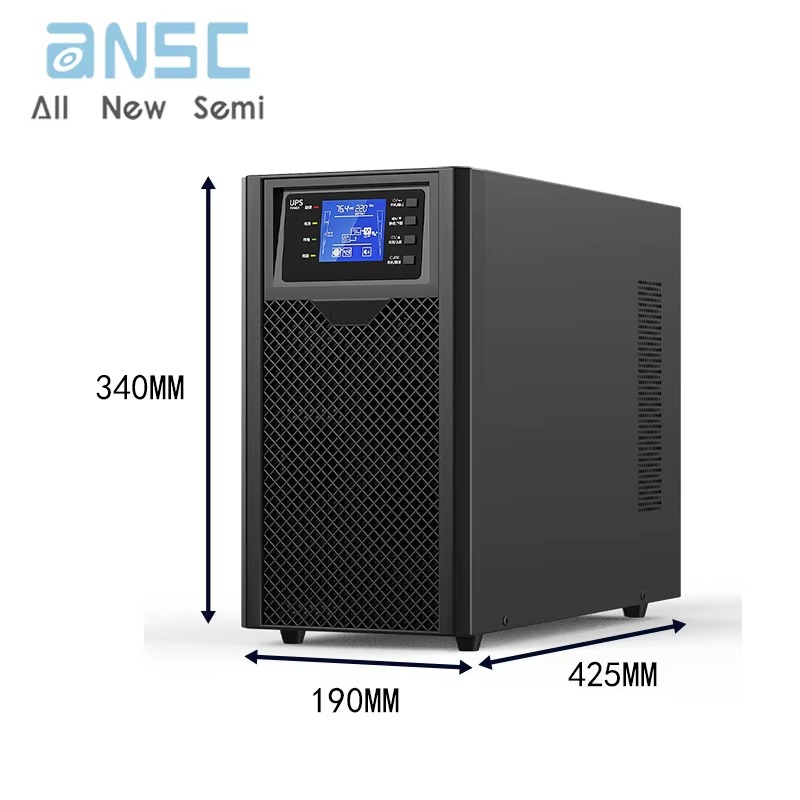

Appearance size

425x190x340(MM)

Battery pack voltage

192V

Regarding batteries

The battery needs to be purchased separately

Output waveform

Pure sine wave

Conversion time

0MS

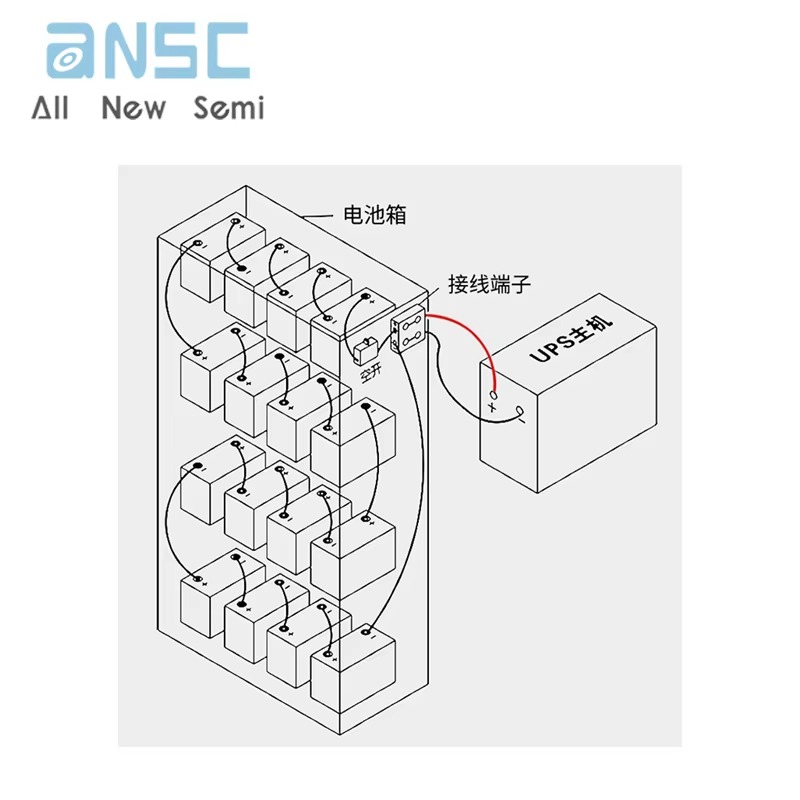

Number of battery cells

16 sections

Weight (net weight)

12.5KG

Capacity

6KVA/5400W

Input voltage

110-290VAC

Input frequency

46~54HZ或56~64HZ

Output voltage

220VAC ± 2% (inverter output)

Output power factor

0.8 (battery mode)

Charging voltage

218.4VDC士1%

Output frequency

46~54HZ or 56~64HZ (synchronous correction range) 50~60HZ ± 1% (battery mode)

Overload capacity

130% negative for less than 30 seconds, recovery point at 90% load

LED indicator light

Load indicator light, battery powered indicator light, UPS operation status indicator light, etc

Battery discharge

Every 4 seconds when the input voltage is cut off, and every 1 second when the battery is about to run out

Operating environment

Temperature 0 ℃ -40 ℃, humidity 20-90% (no frost)
