Product Description

16 Axes Multi-Axis Controller

Type Multi-Axis Controller

Mounting Type DIN Rail

Axes [Max] 16

Dependencies

CK3MPSMO, CK3MAXMO, NX Coupler Interface, NX Coupler Accessory, NX Digital IO,

NX Analog IO, NX Safety, NX Safety IO, NX Motion IO, ECTCABL

Cycle Time [Max] 50 μs

Program Capacity 1 GB

Motion and Input/Output (I/O) Real-Time Network EtherCAT

Programming Language G-Code/ANSI C/Native Programming Language

Programming Connection Ethernet

Product Features

CK3M programmable multi-axis controller

Local axes for nanometer precision

Ultra-high-speed synchronous control (50μs/5 axes)

Custom servo regulation algorithm

Flexible use of multi-vendor actuators and encoders

Flexible programming on G-code, ANSI C or original programming language

Flexible configuration via EtherCAT

Modular design and DIN rail mounting

Modular design

The modular design allows you to freely combine the CK3M with up to two axial interface units,

to realize various applications.

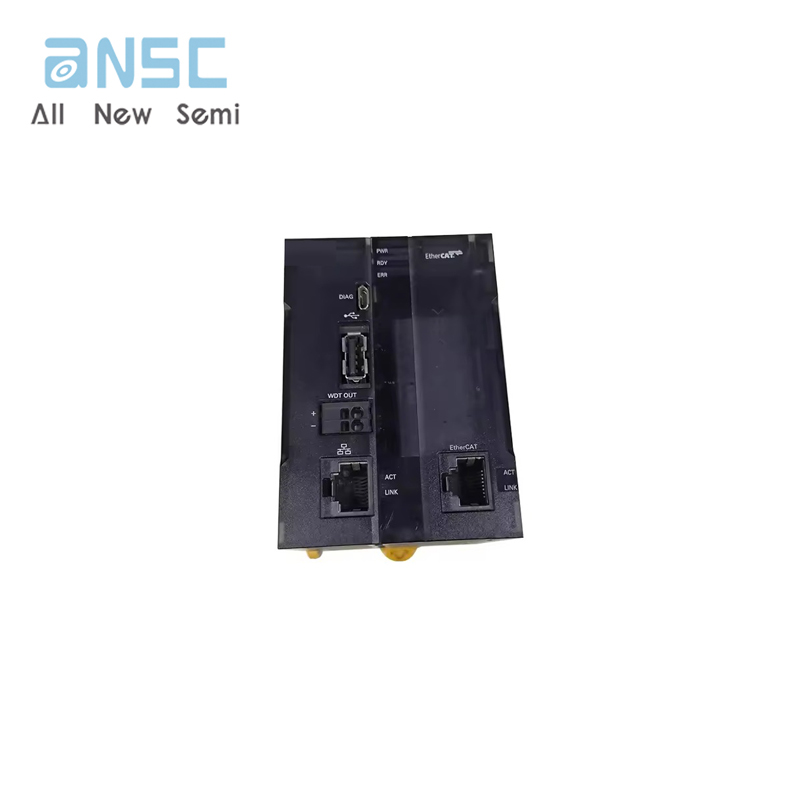

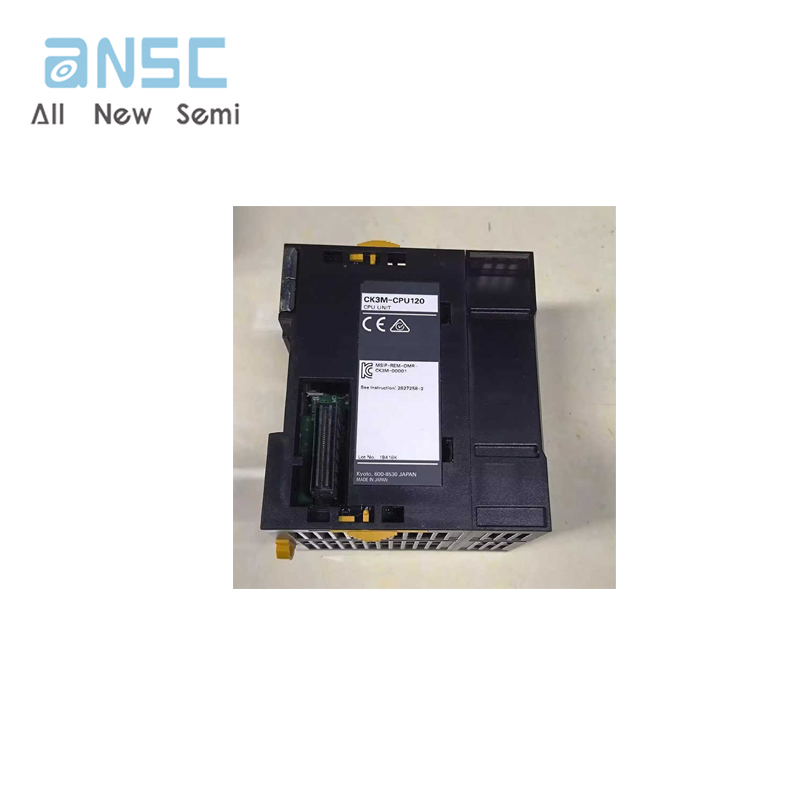

Product Photos
