Product Details
Features
• Pulse output for 4 axes. Advanced power for high-precision positioning control.
• High-speed counters. Differential phases for 4 axes.
Easily handles multi-axis control with a single unit.
• Eight interrupt inputs are built in. Faster processing of approximately 500 instructions speeds up the entire system.
• Serial communications. Two ports. Select Option Boards for either RS-232C or RS-485 communications.
• Ethernet Communications. Enabled by using an Option Board. Two ports can be used as an Ethernet port to
perform. Ethernet communications between the CP1H and a host computer.
• Built-in Analog I/O. XA CPU Units provide 4 input words and 2 output words.
• USB Peripheral Port. Another standard feature.
• The structured text (ST) language. Makes math operations even easier.
• Can be used for the CP1W series and CJ series Unit. The extendibility of it is preeminently good.
• LCD displays and settings. Enabled using Option Board.
Product Description
Type | Description |
|---|---|
| Part# | CJ1W-SCU21-V1 |
Category | Industrial Automation and Controls Controllers PLC Modules |
Manufacturer | / |
Series | CJ1W |
Packaging | Bulk |
Part Status | Obsolete |
Type | Communications Module |
For Use With/Related Products | CJ Series |
Number of Inputs and Type | - |
Number of Outputs and Type | - |
Voltage - Supply | - |
Mounting Type | DIN Rail |
Termination Style | D-Sub |
Features | - |
Operating Temperature | - |
Ingress Protection | - |
Approval Agency | CE, cULus, Lloyd, NK |
Weight | 0.243 lb (110.22 g) |
Base Product Number | CJ1W |

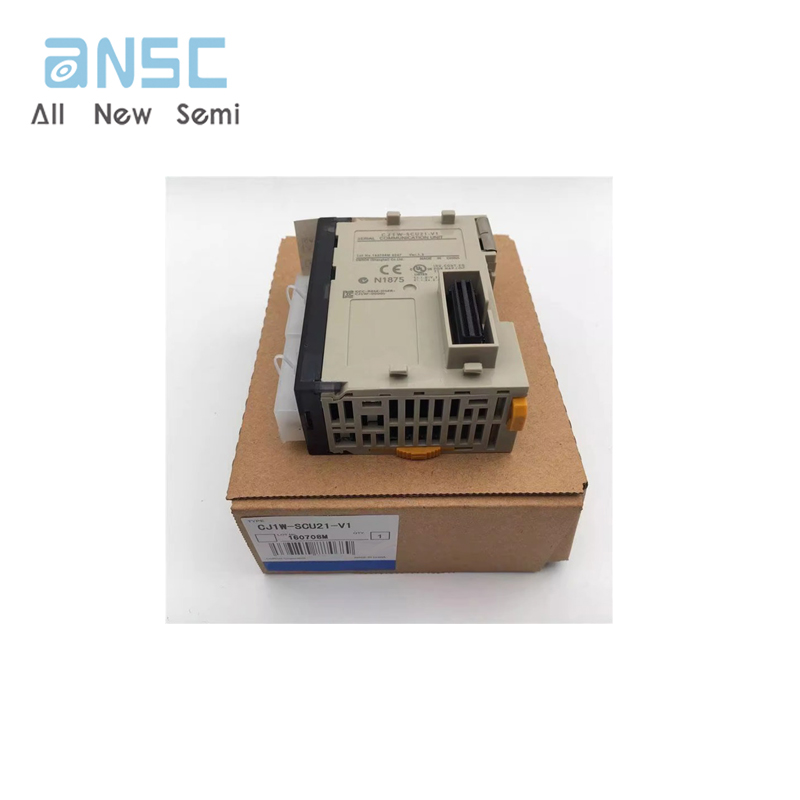

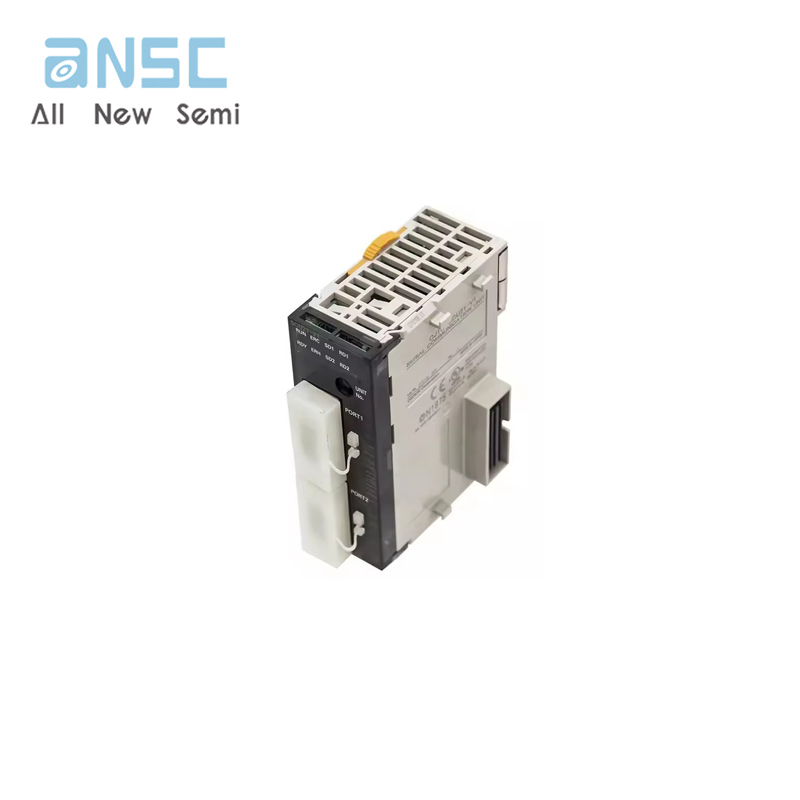

Actual image of the product

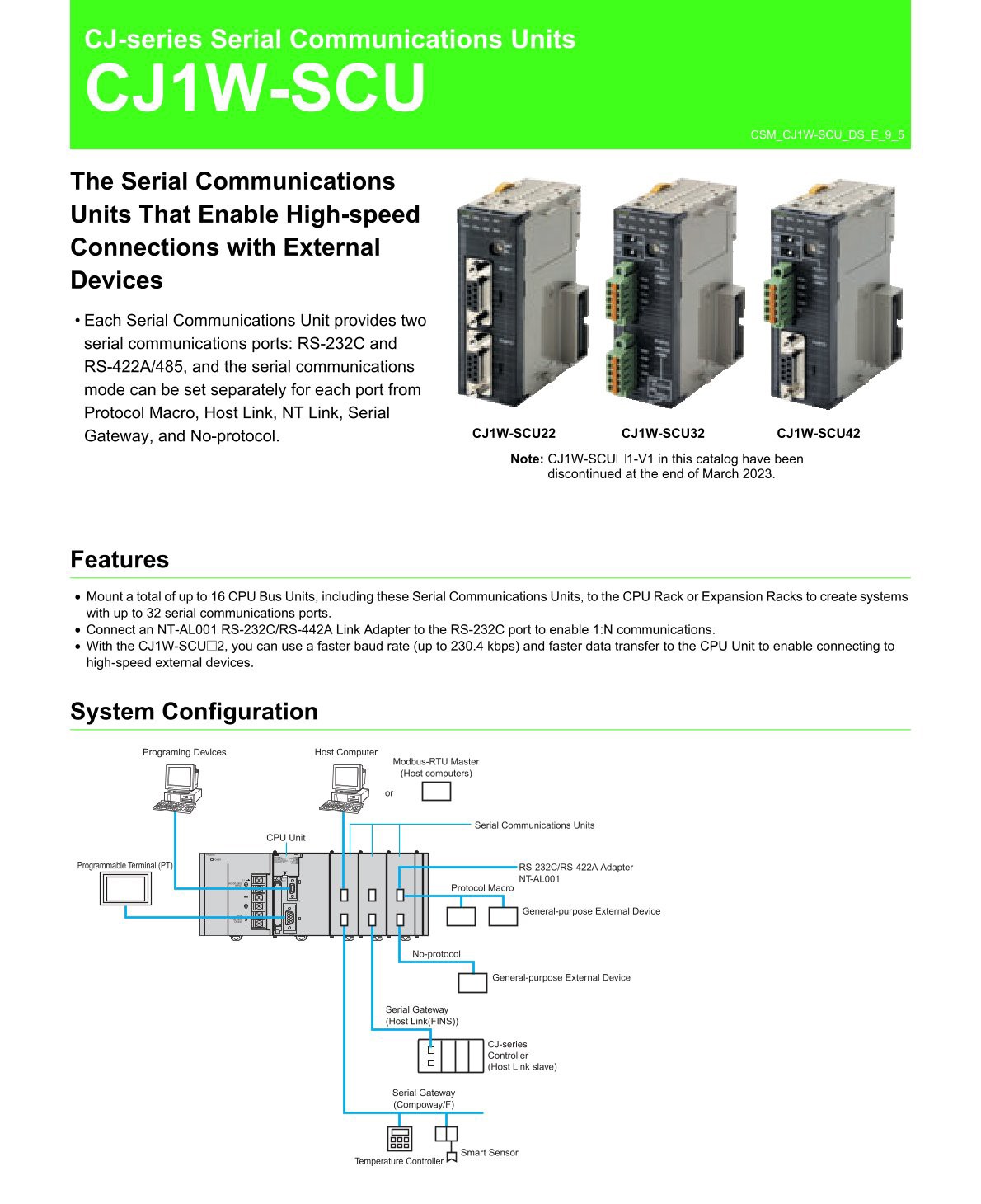

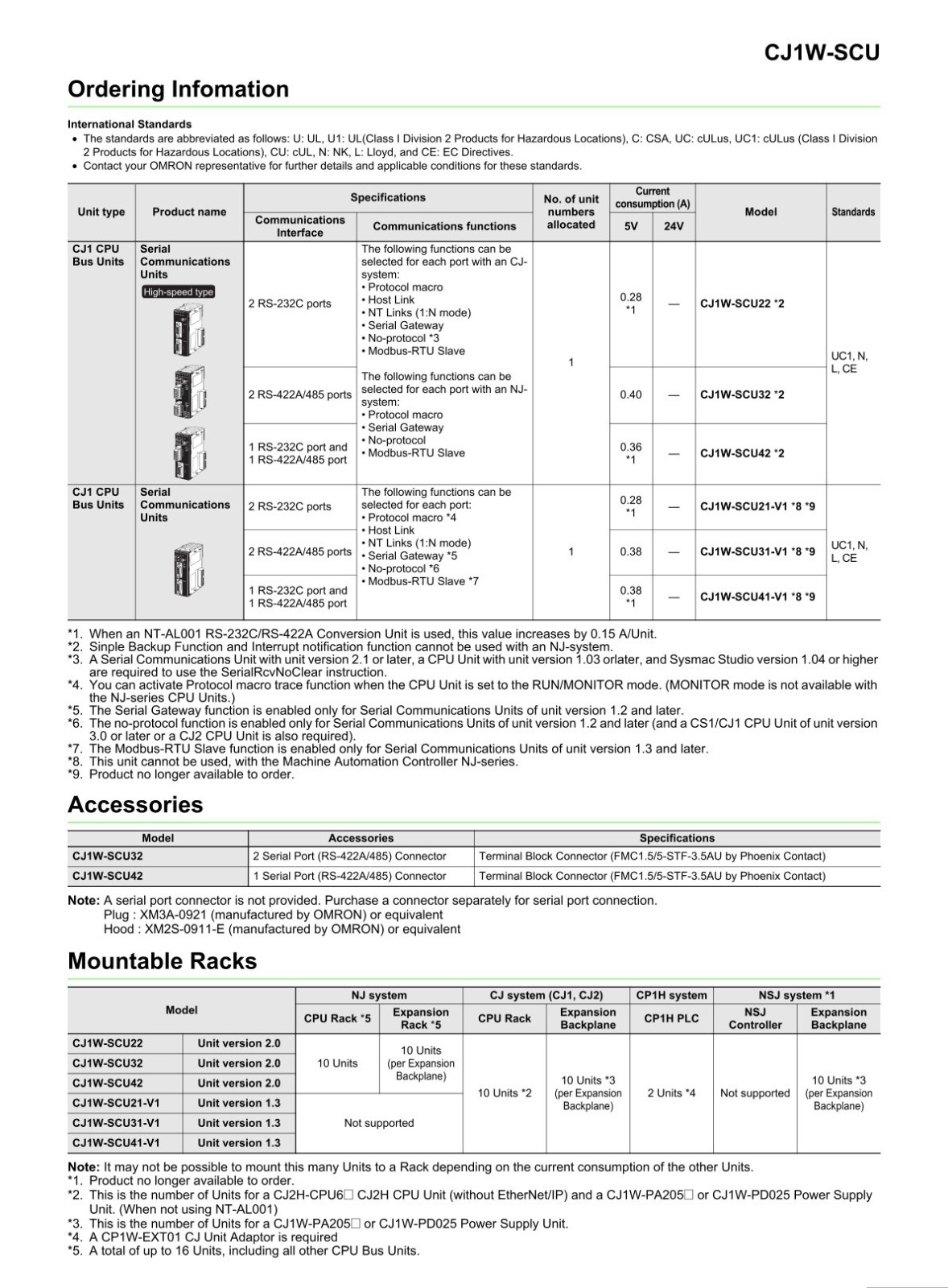

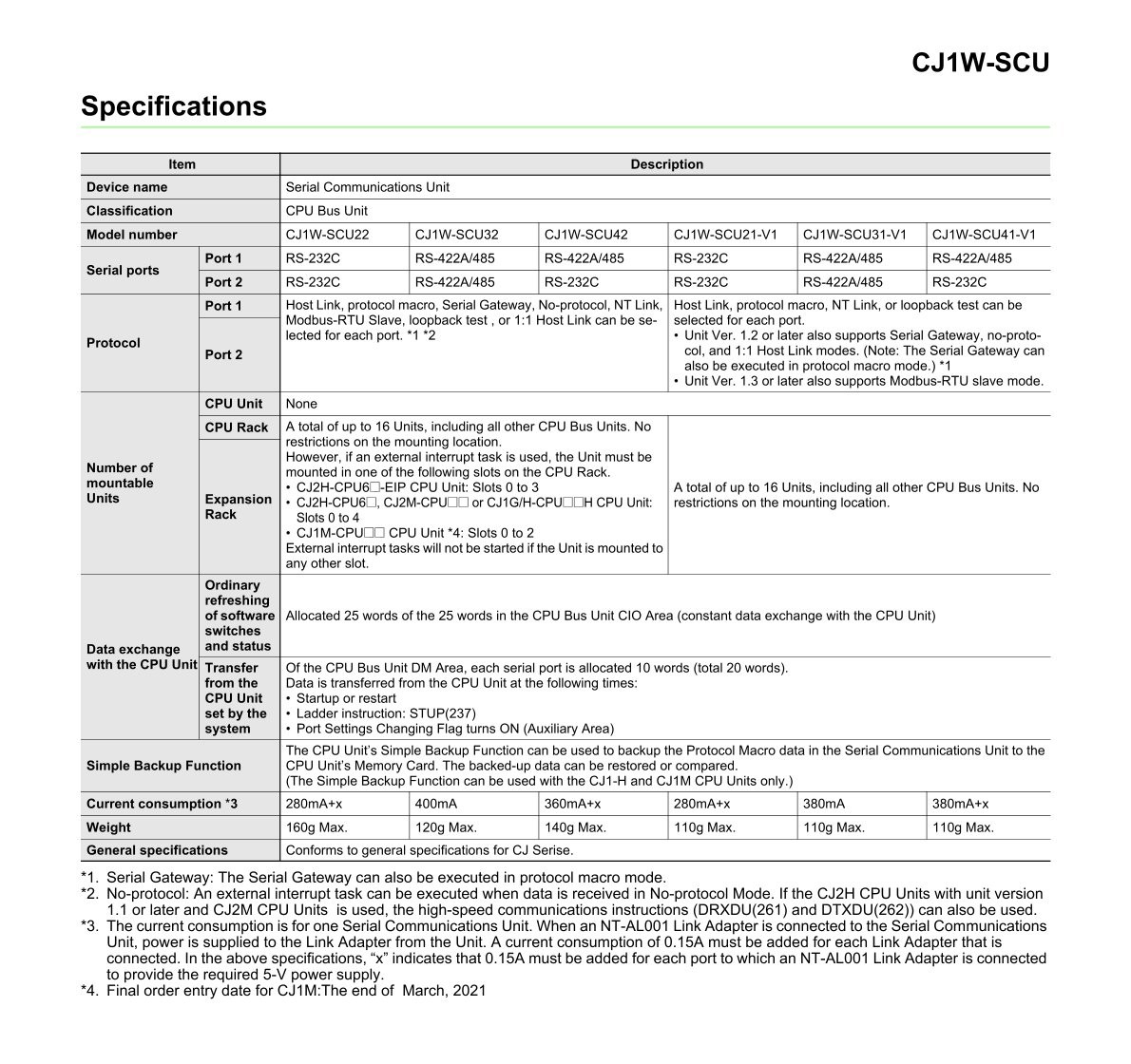

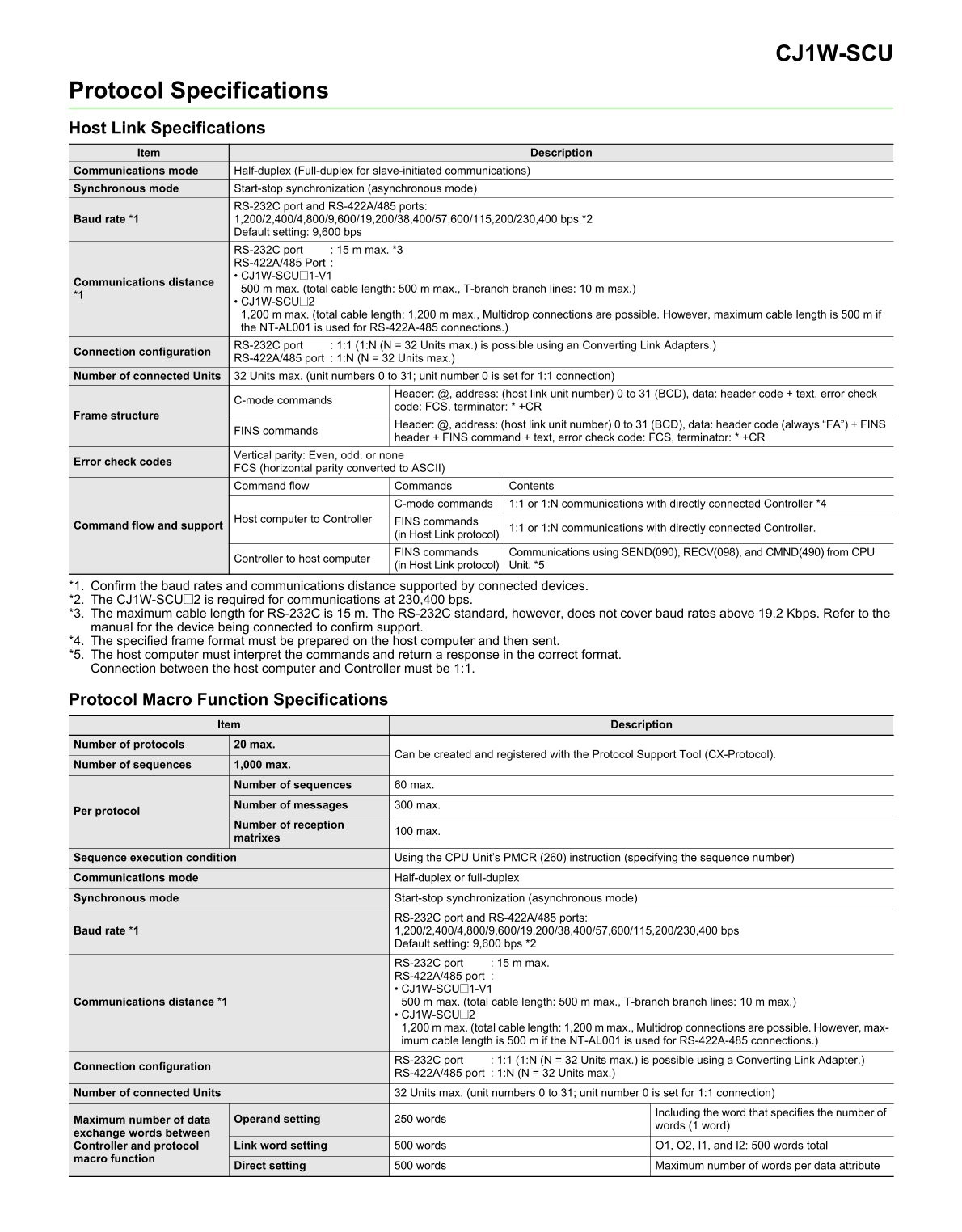

Product datasheet
For more information, please download
