Product Description
Product selling points:
1. Use high-quality materials with guaranteed quality
2. Wide input voltage range, input DC voltage of 5-30V, can stably output QC DC voltage
3. High conversion efficiency, up to 95%
4. USB female output, capable of charging digital products, industrial grade temperature range: -40 ° C~+85 ° C
5. This product is mainly used in solar foldable bags and solar chargers, and can be used for mobile phones MP3、MP4、 Charging of digital products such as power banks
Parameters:
Color: Black
Material: ABS
Input: 5-30V 3A (maximum)
Output:
USB1:5V 3A、9V 2A、12V 1.5A
USB2: 2.4A (maximum)
Interface: Dual USB
|

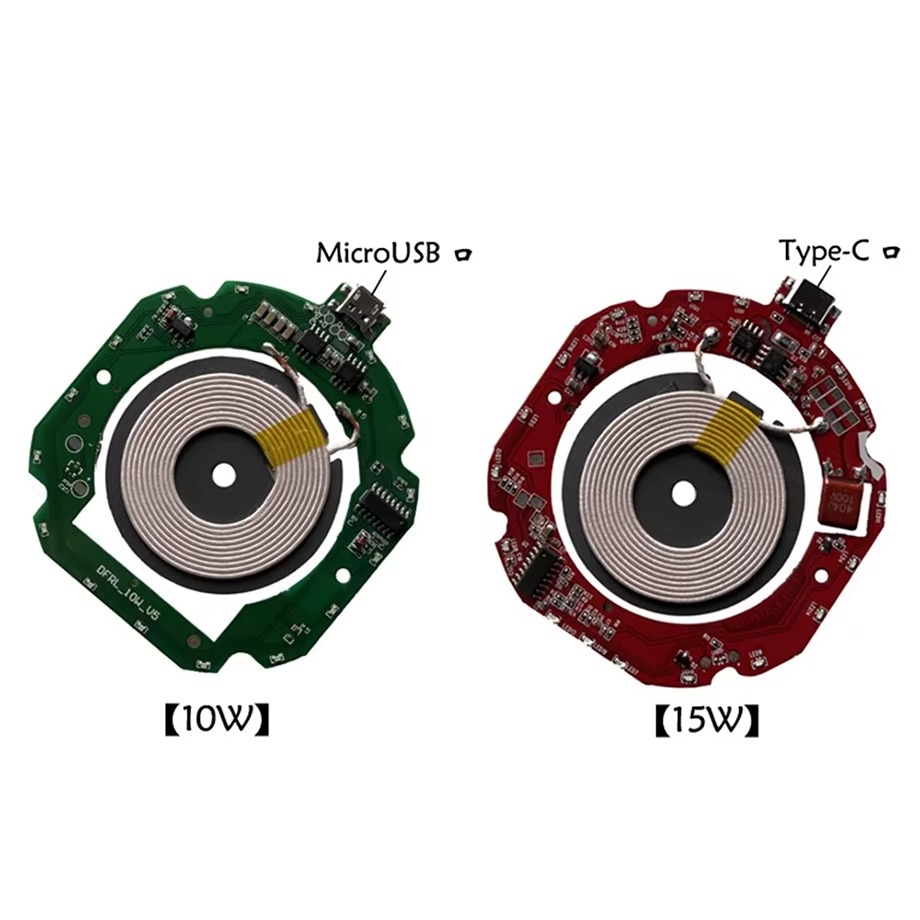

10W |
15W |
|
|
Input power supply |
5V/9V |
5V/9V/12V |
|
Output power |
5W/7.5W/10W |
5W/7.5W/10W/15W |
|
Transmission distance |
3mm partition, 8mm partition |
5mm partition, 10mm partition |
|
Product specifications |

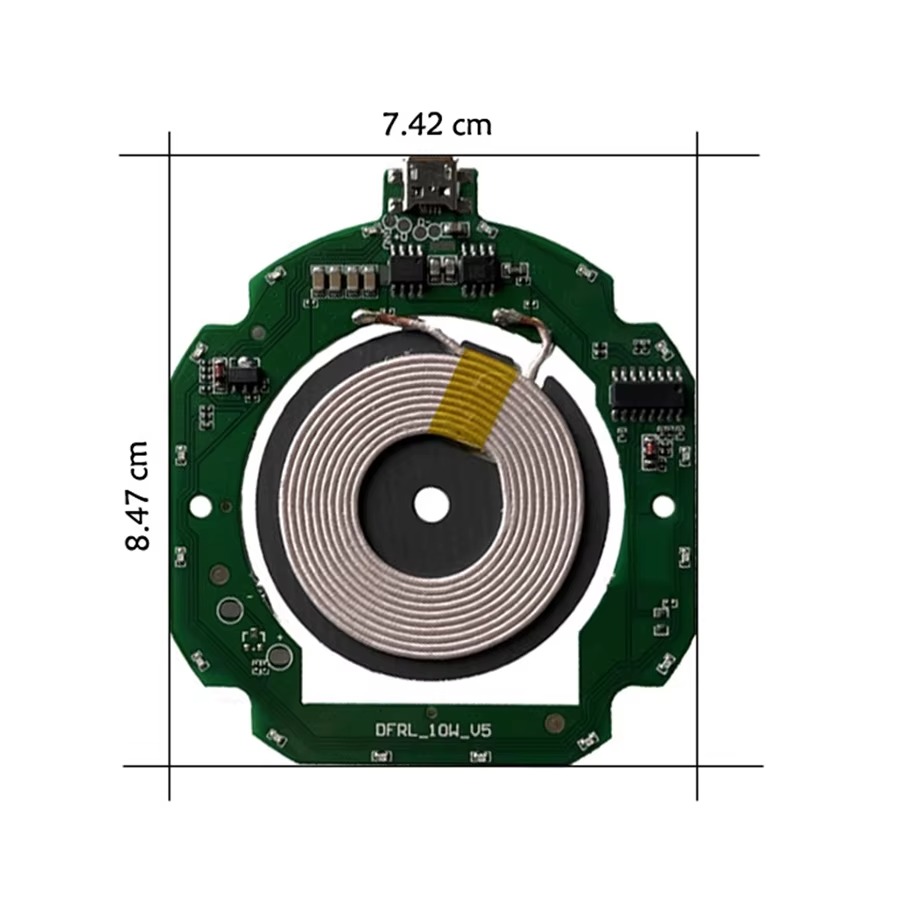

As shown in the following figure |
|
|
Product weight Charging |
0.03KG |
|
|
Efficiency Charging |
≥75% |
|
|
Protocol Product |
standard |
|
|
Certification |
CE/FCC/RoHS |
|
FAQ
1、Q: Is the coil divided into front and back sides? How is the correct placement? Answer: The transmitting coil is facing the receiving end of the phone (placed on the back)
2、Q: What is the charging speed of 5V input? Answer: The 5V input is the 5W output, and fast charging is only available for 9/12V input. In addition, the USB port voltage of the car is 5V, and an on-board fast charging head needs to be added to enable fast charging
3、Q：Can the black porcelain chip on the back of the wireless charging coil be removed? Answer: No, the black porcelain plate on the back of the coil is a magnetic separator. Removing it will cause the wireless charger to malfunction. Micro cracking of ceramic tiles does not affect charging
