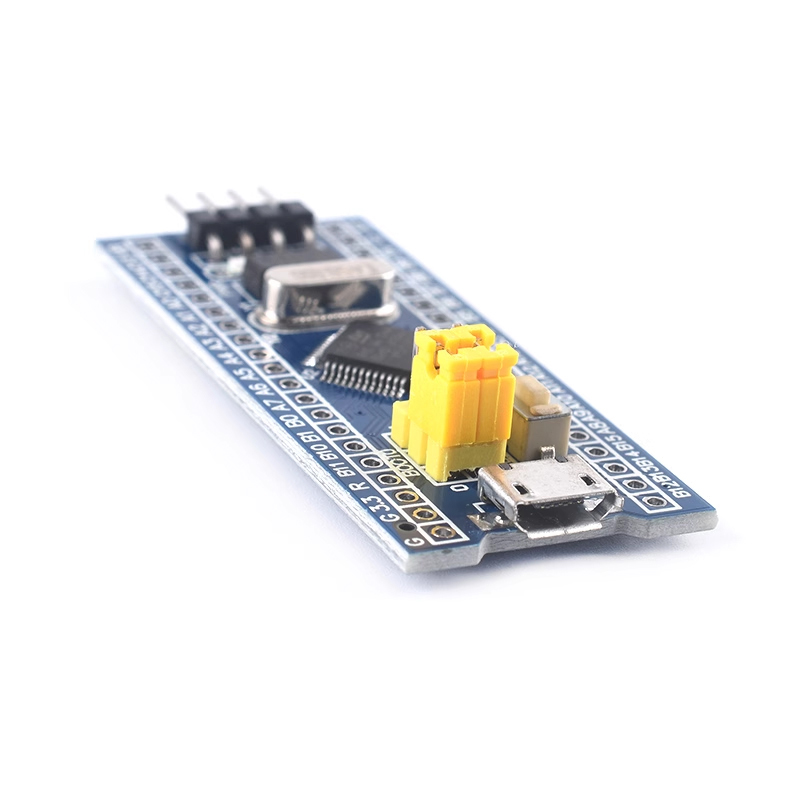

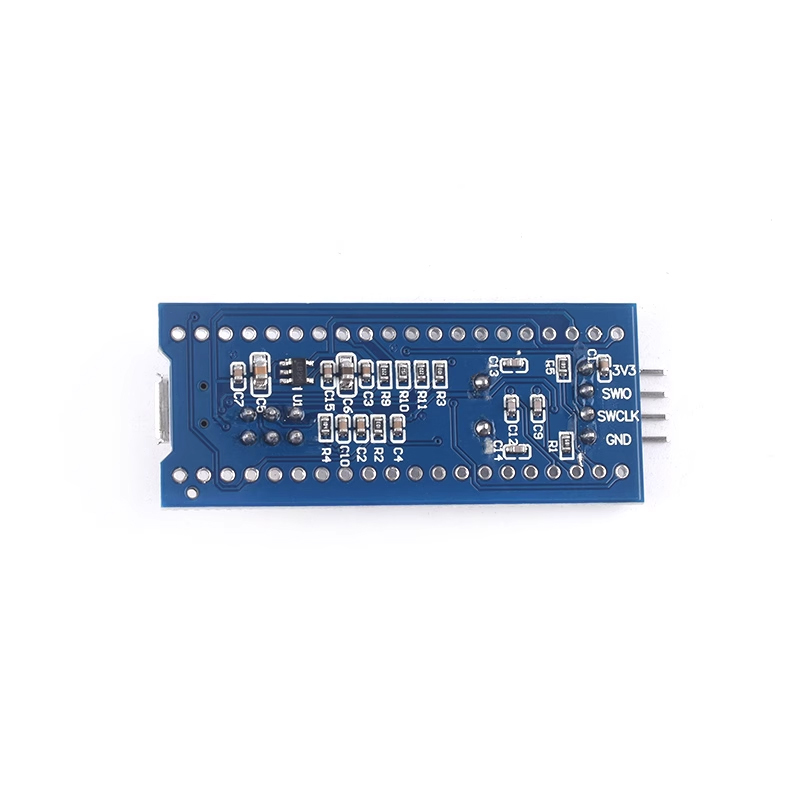

Product Introduction

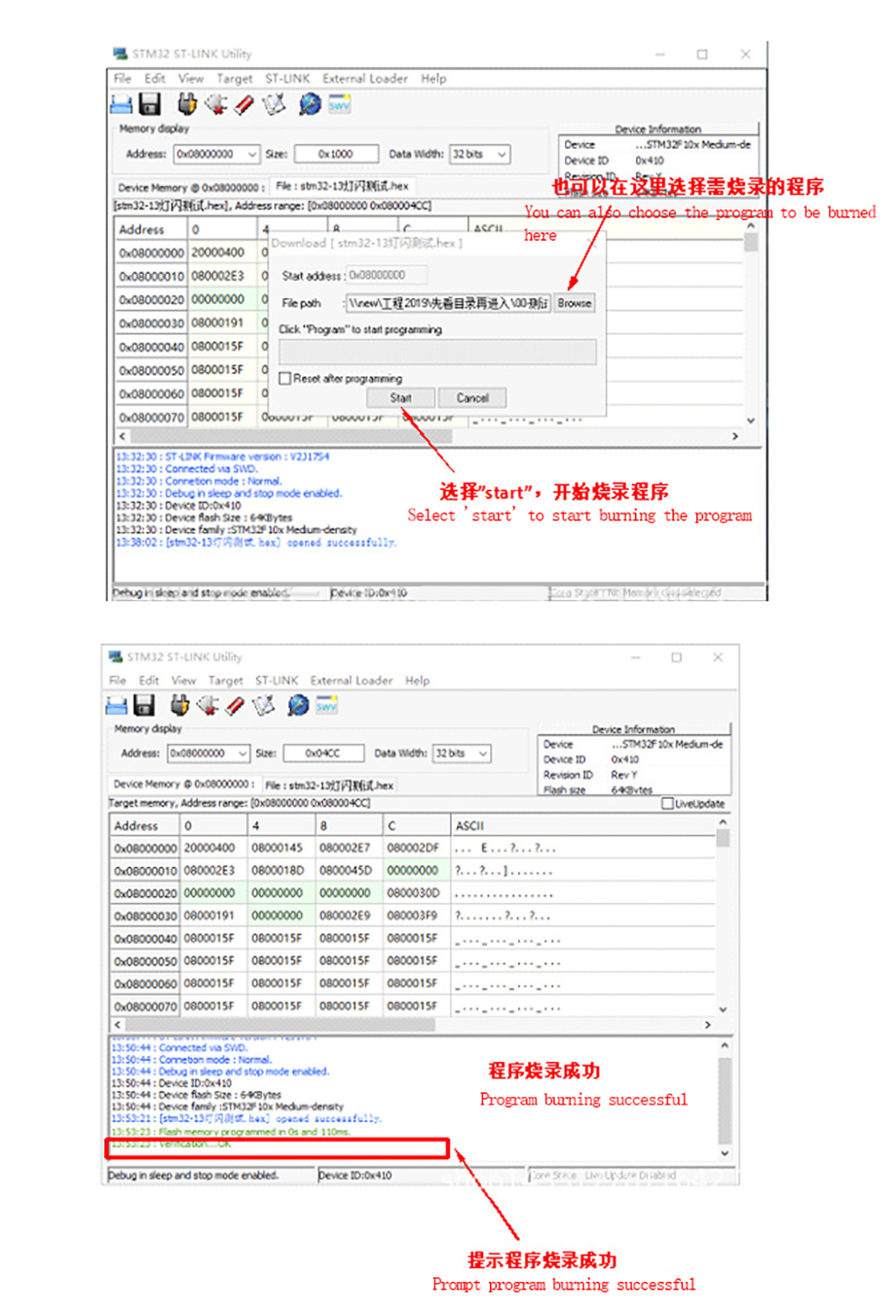

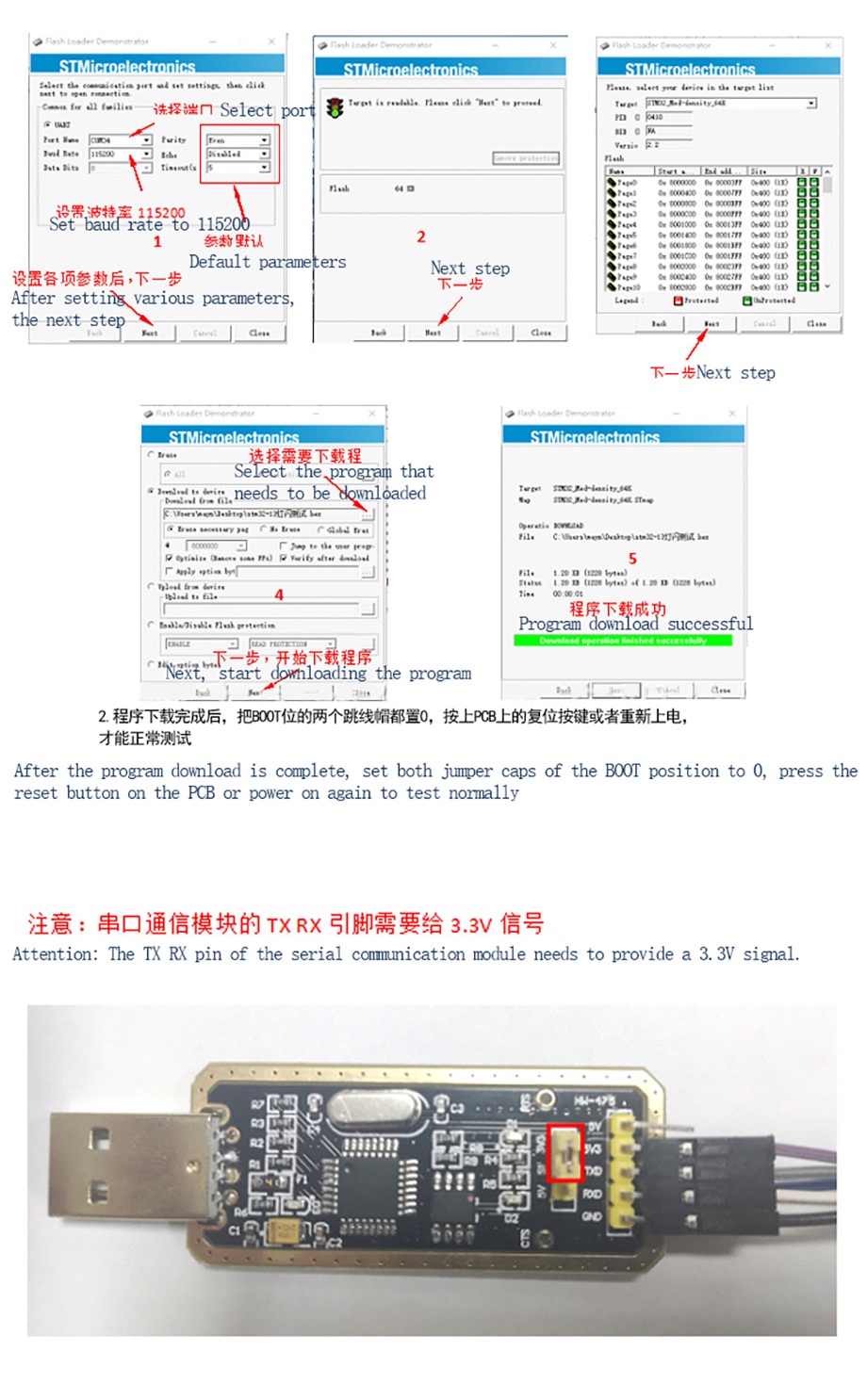

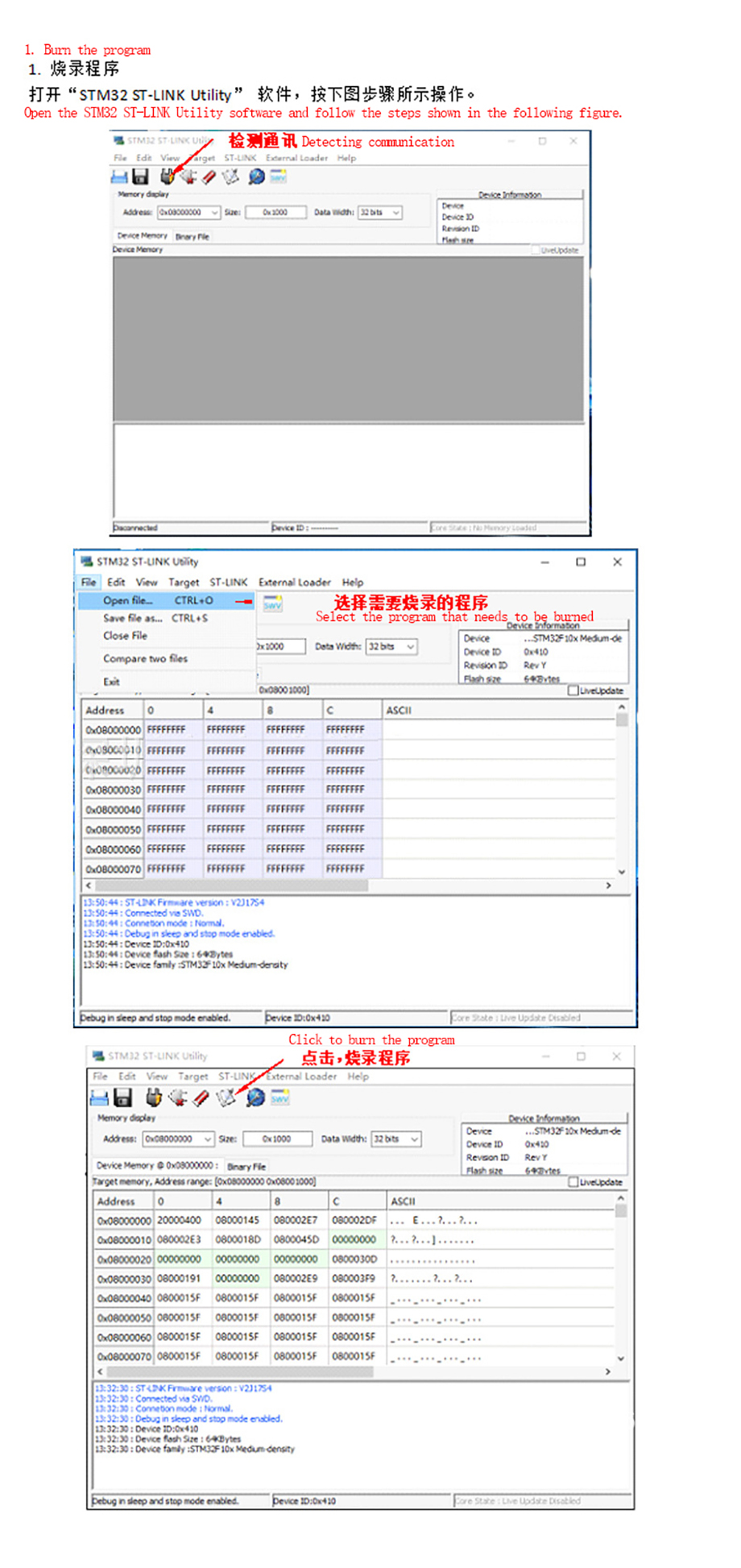

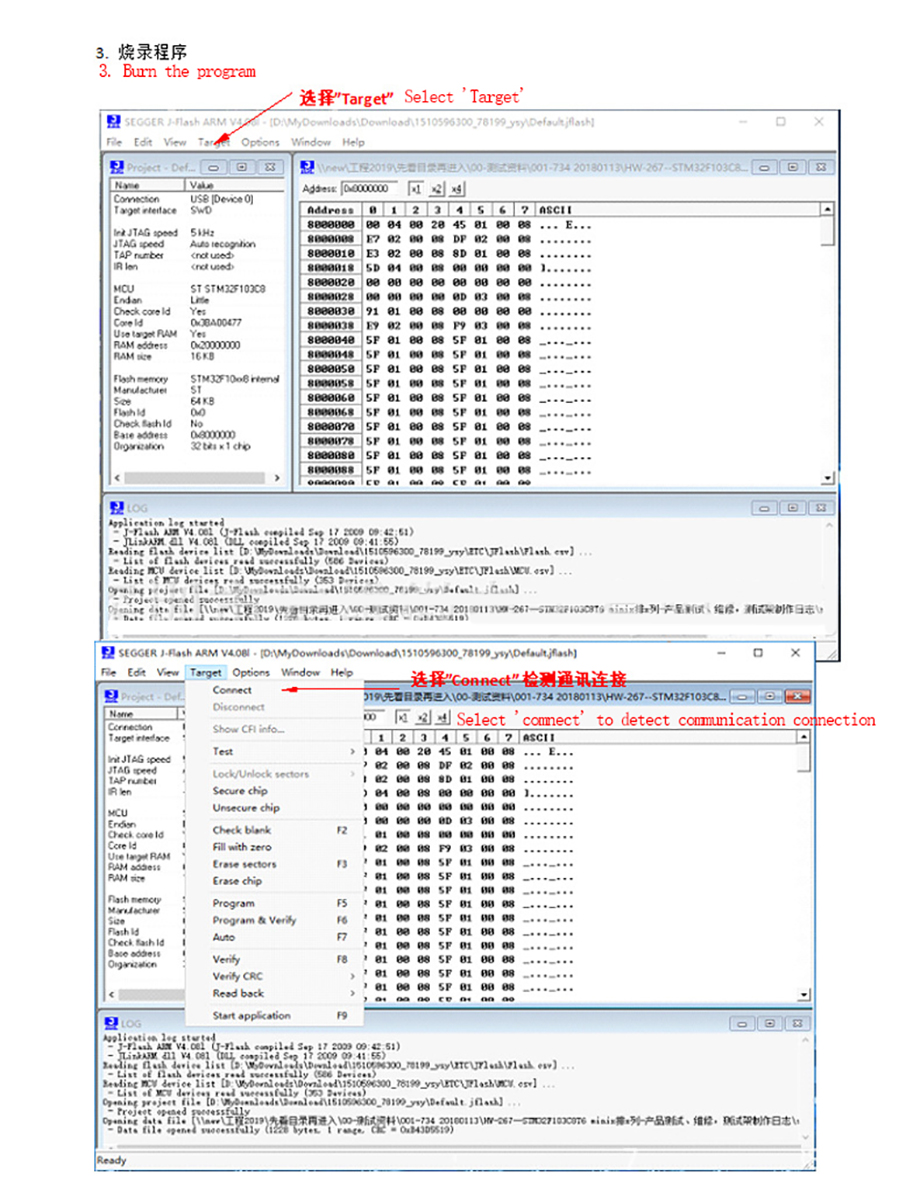

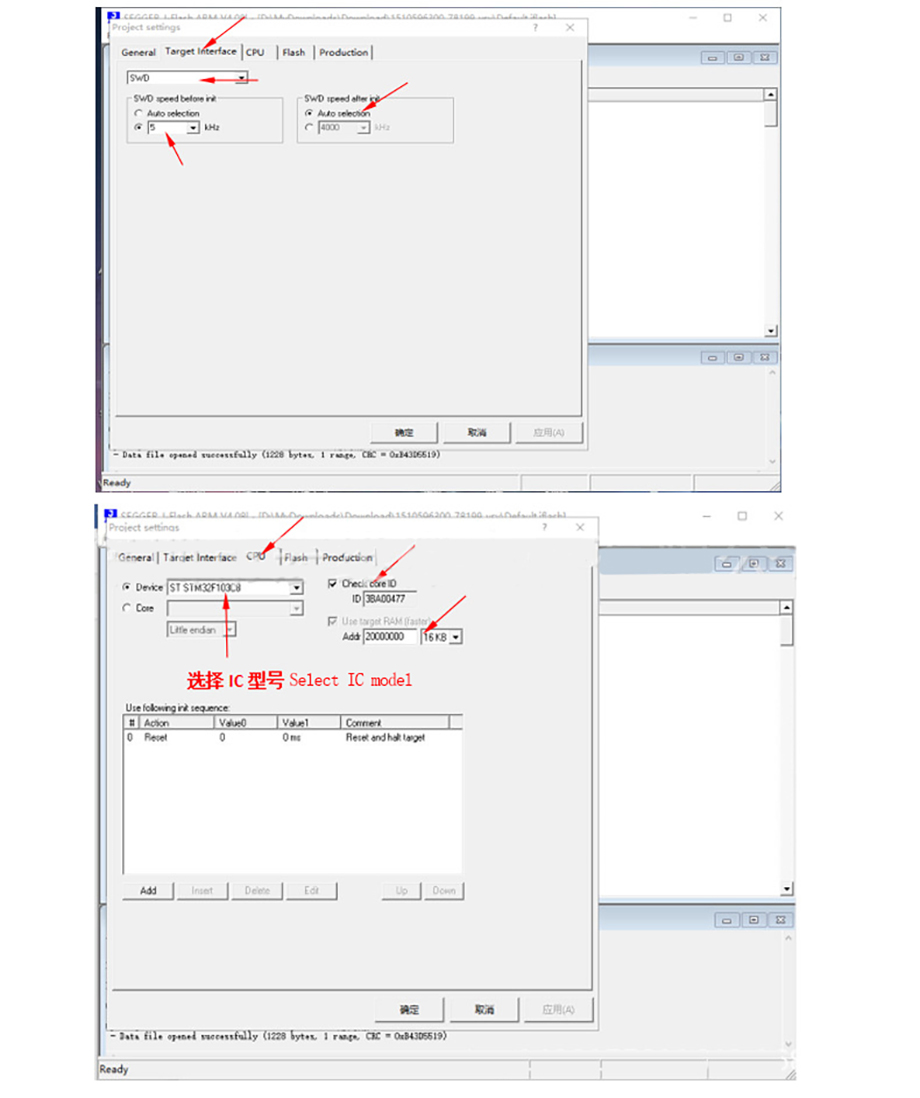

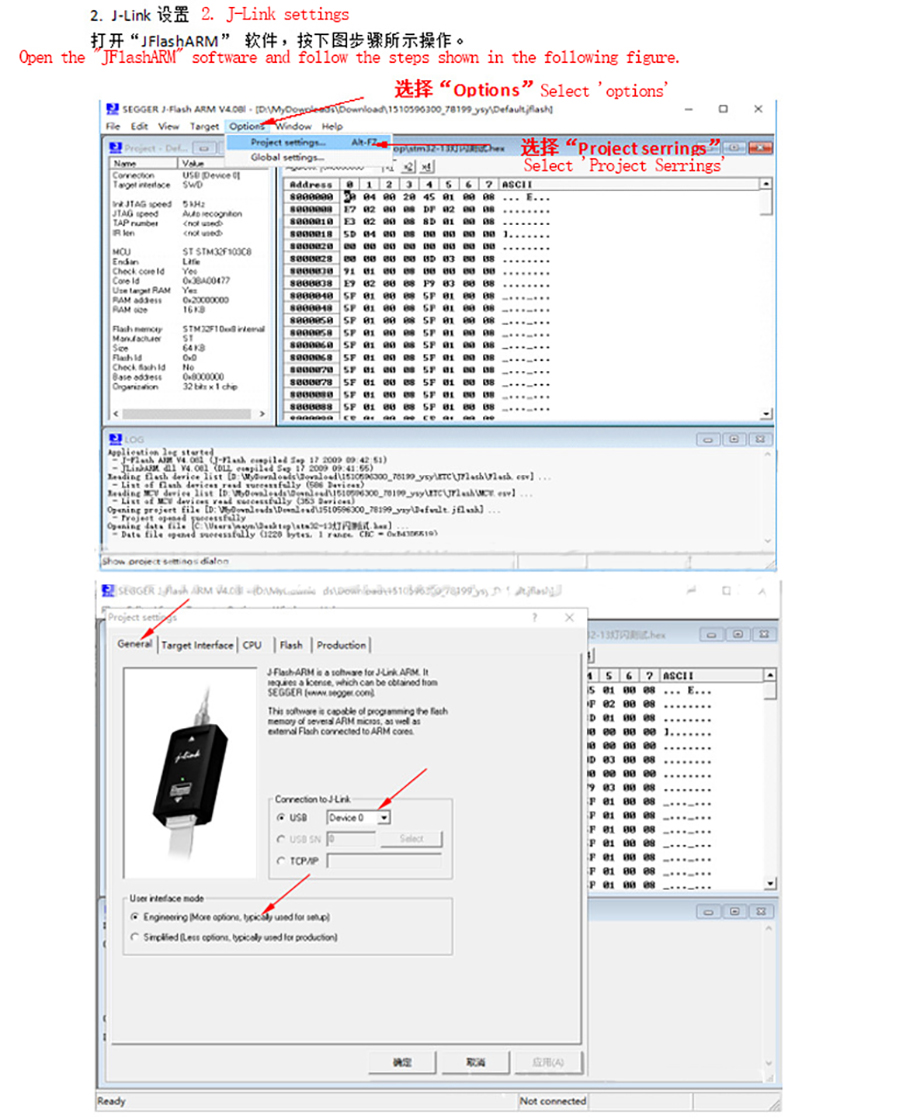

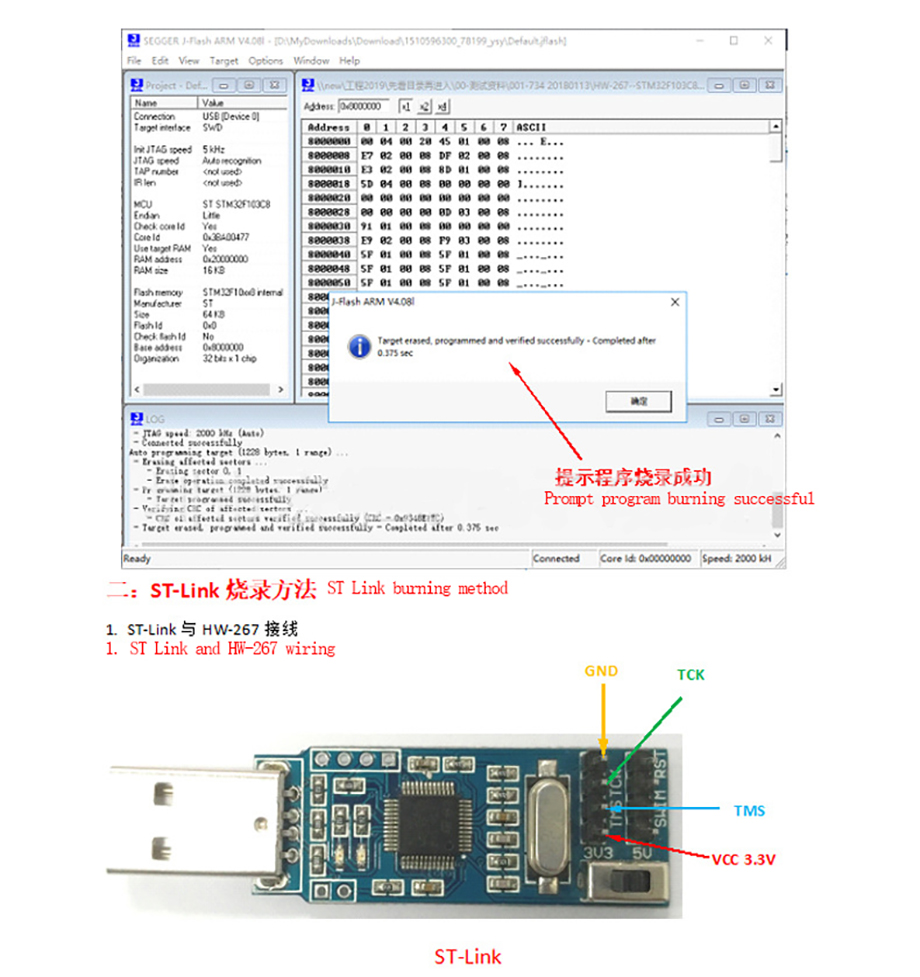

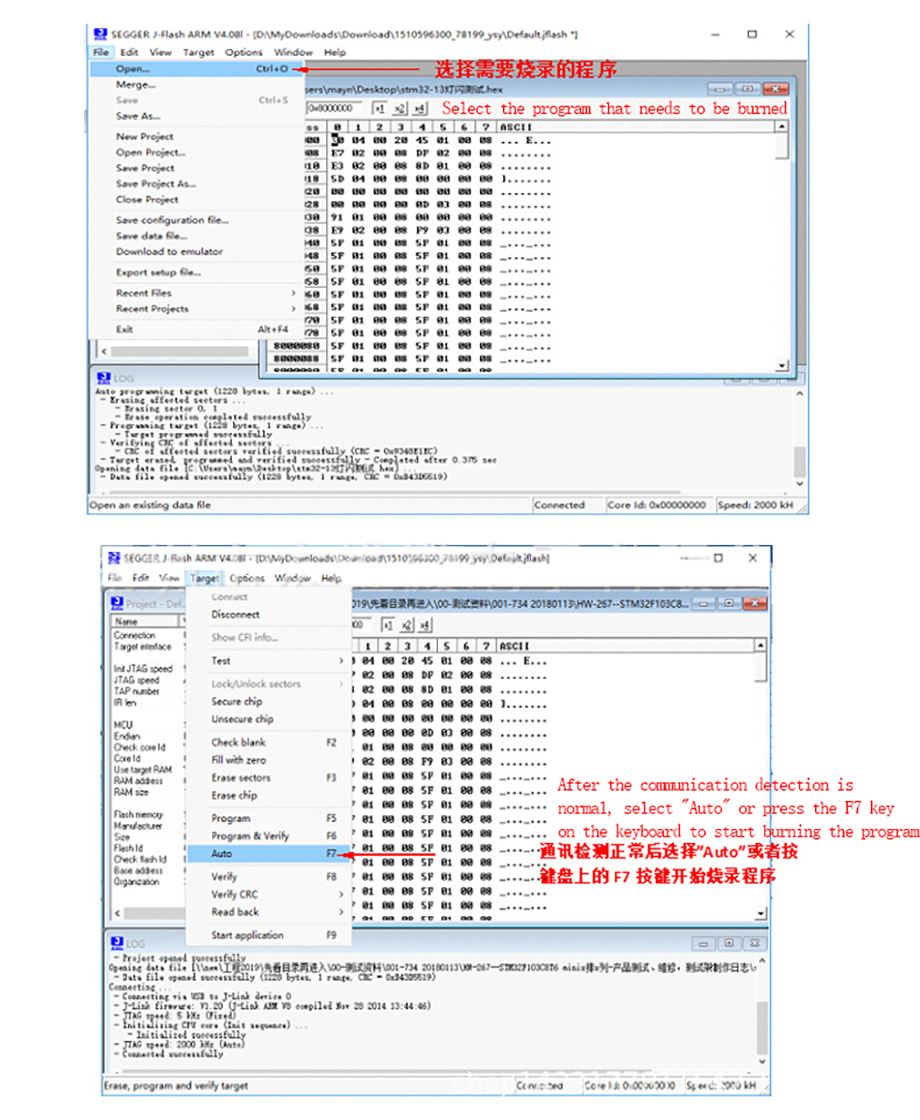

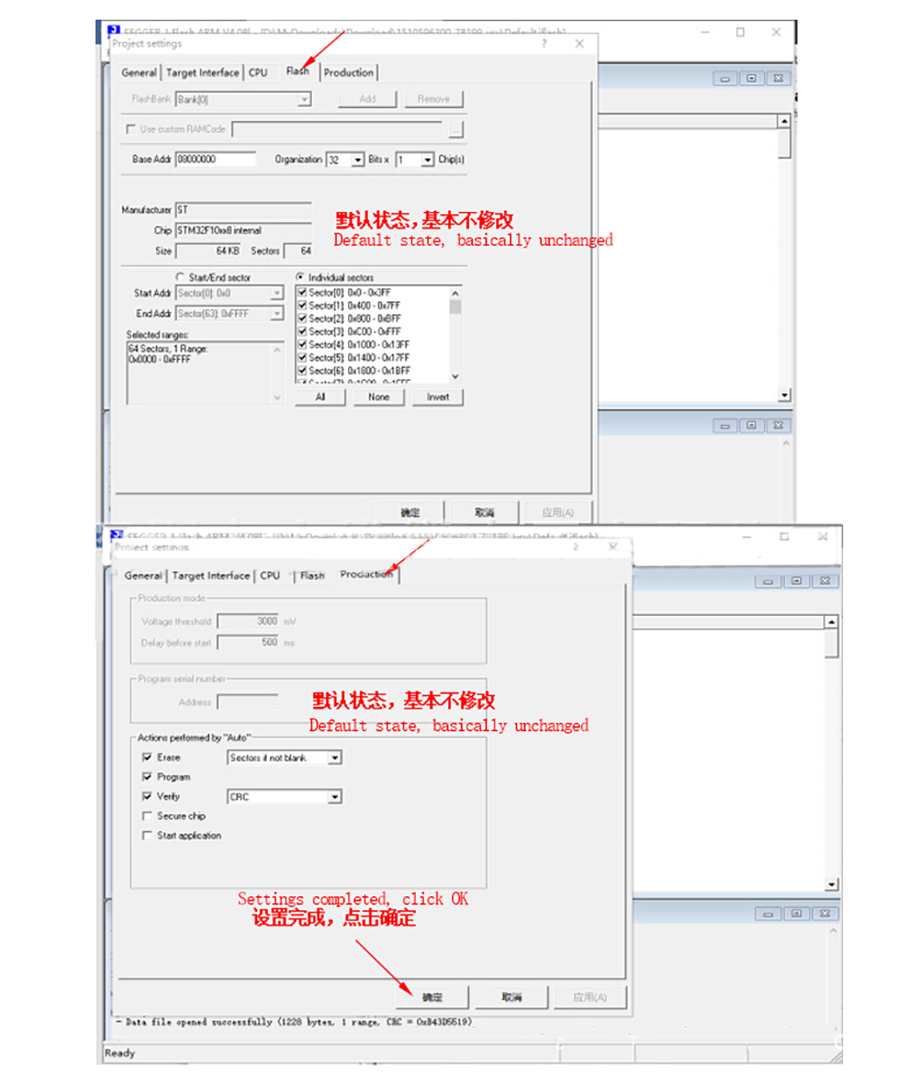

This product is an STM32F103C8T6 microcontroller development board equipped with an RT9193-33PB voltage regulator chip, which can provide a maximum current of 450mA and convert 5V USB power supply into 3.3V voltage for chip power supply; The development board comes with a Micro USB interface, which can provide power to modules and also has communication capabilities; Support the use of "- LINK" and "ST-LINK" to download programs; Reserved serial port download interface for easy connection with 5V USB to serial port module, allowing for program download using the serial port; Reserve B00T selection port, which can be configured and selected using jumper caps. A large number of I/O port needle sockets are reserved on the board and equipped with corresponding silk screen instructions, providing convenience for developers to use.

Product parameters

Working voltage of the development board: 3.3V

USB port power supply voltage: 5V

Processor: STM32F103C8T6 microprocessor

Interface type: MICRO USB

Working temperature: 0~85 ° C

Support platform: WINDOWS，MACOS

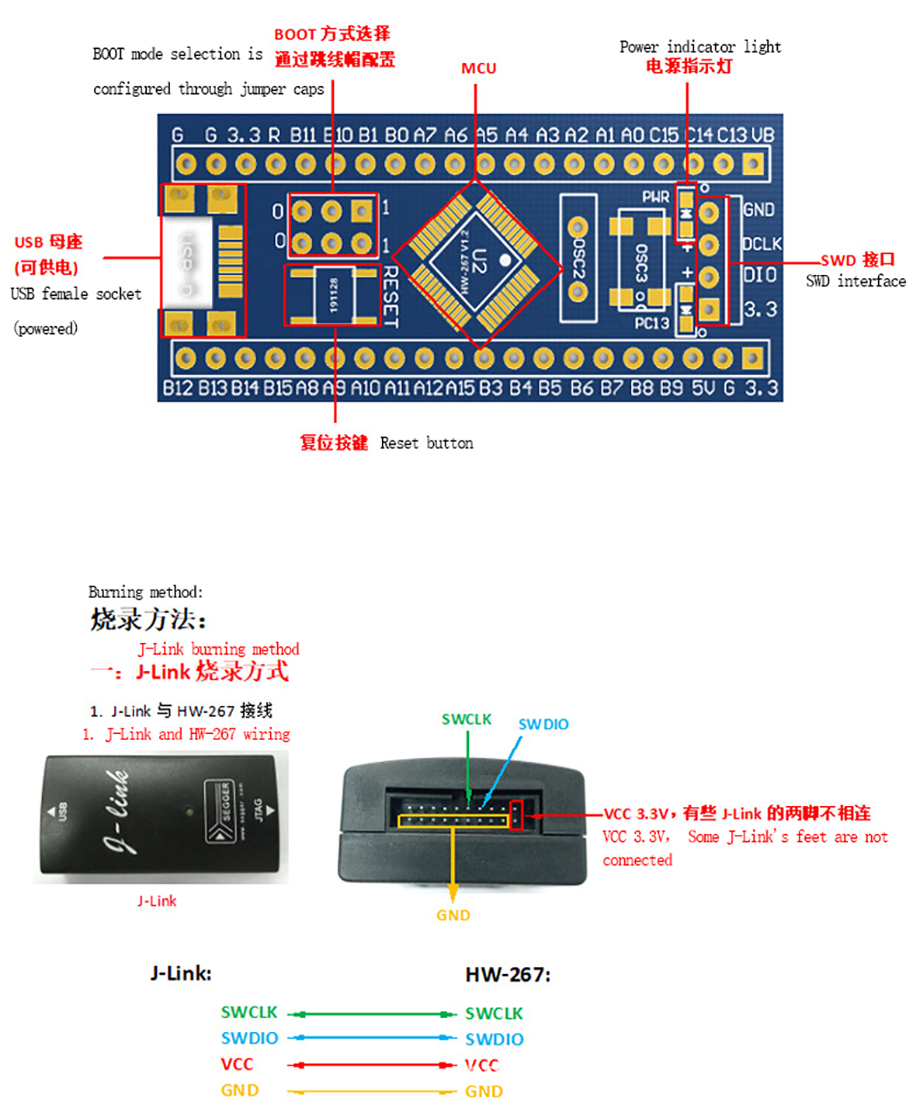

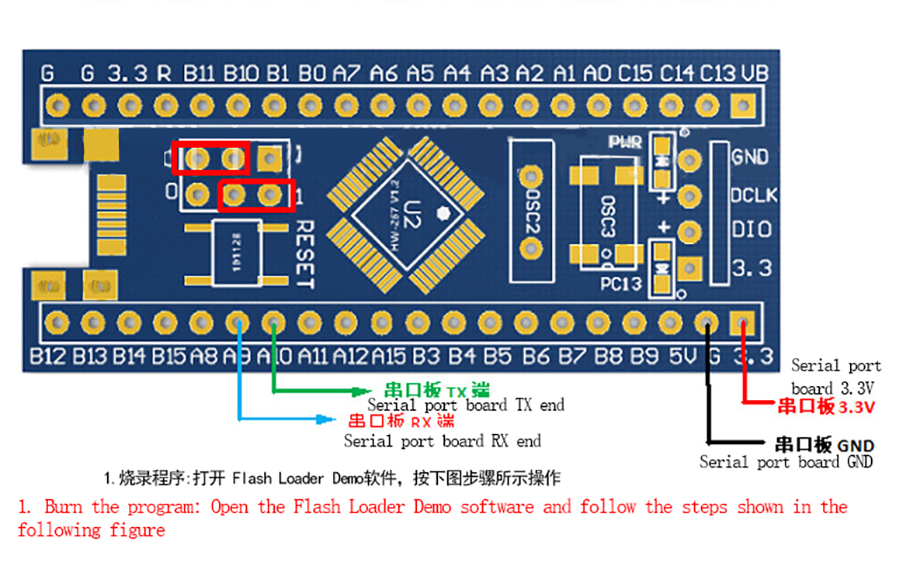

Interface Description

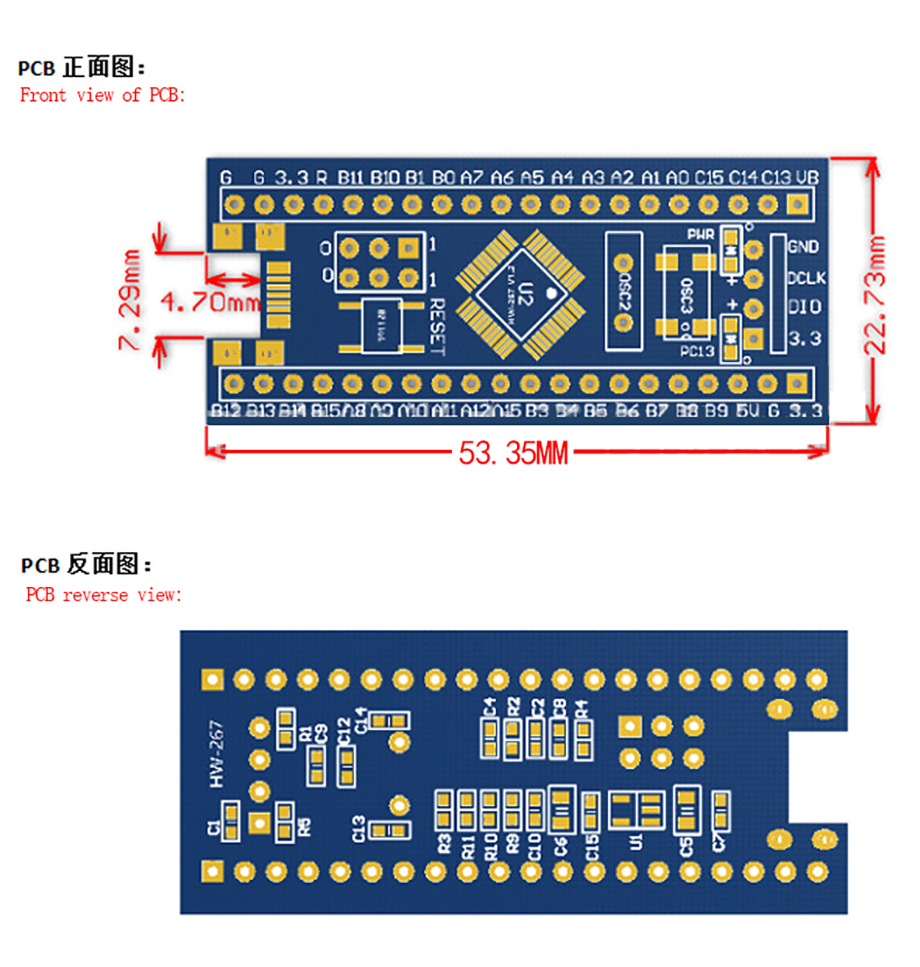

Product Size

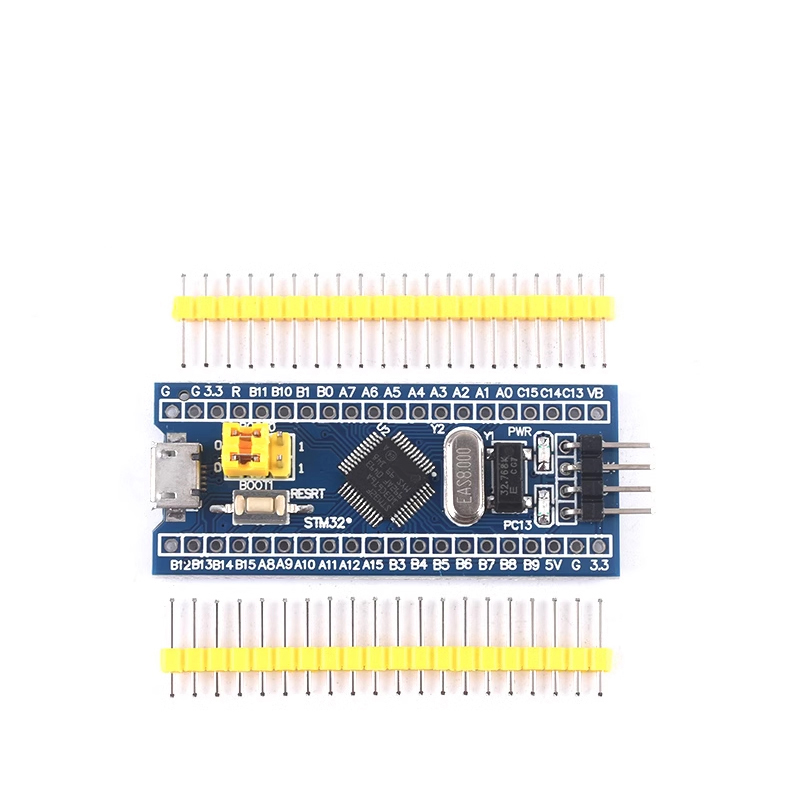

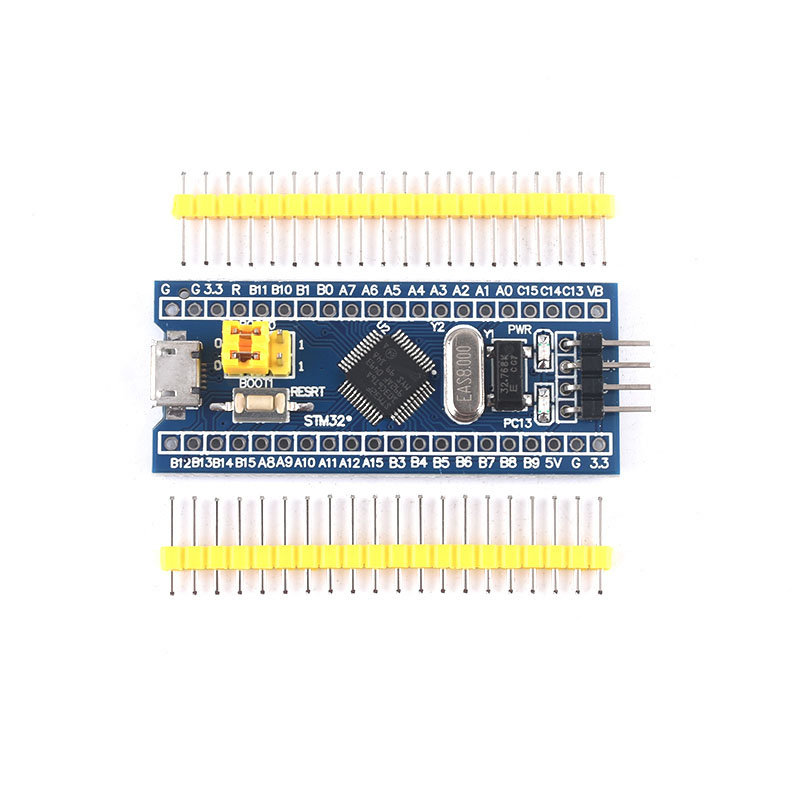

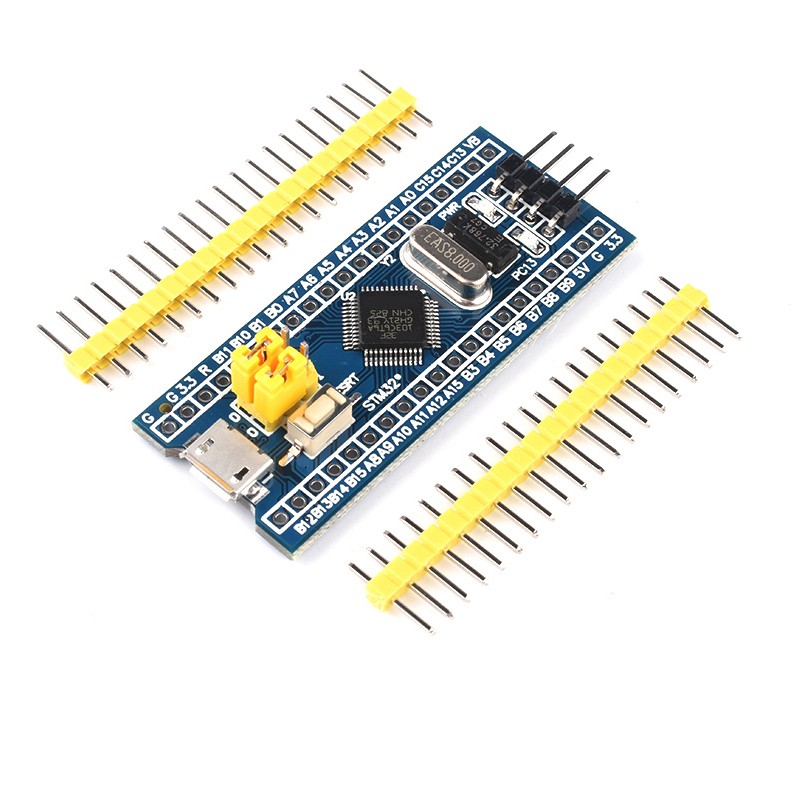

Product Show

Payment&Transportation

Official Certificate&Certificate

Multiple product supply

Company office environment

Warehouse Real Shot

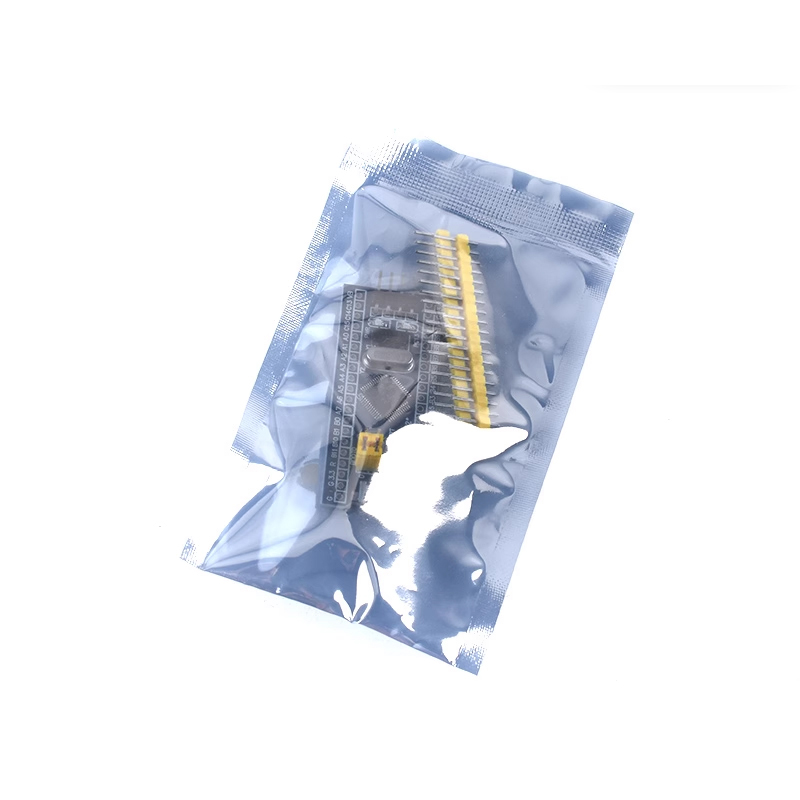

Standard packaging
