Product Introduction

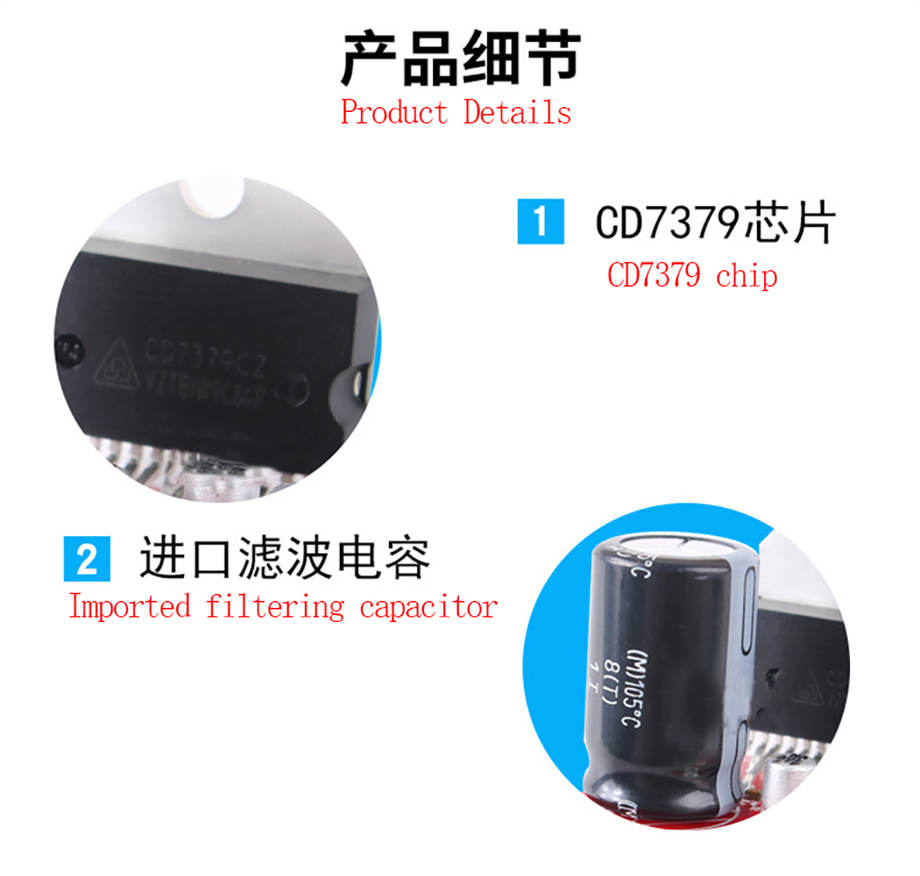

This amplifier board uses the original CD7379 amplifier chip and has high fidelity stereo sound quality; Supports APE, FLAC, MP3, WAV, WMA and other formats. The input power of the amplifier is DC9~17.5V, with dual channel output, output impedance of 4~8 Ω, and maximum power of 39W * 2; Made using surface mount technology, with an ultra small volume. Use imported filtering capacitors and imported non-polar coupling capacitors.
Product parameters
1. Use high-quality materials that are durable and long-lasting
2. Adopting surface mount technology
3. Ultra small size, easy to use
4. New CD7379 amplifier chip
5. Wide range of applications
Working voltage: DC9V-17.5V
ZD output power: 38+38W
Board size: Length: 33.3mm Width: 25mm
| 产品名称:双声道功放板 Product Name: Dual Channel Amplifier Board | 输入电压: DC9-17.5V Input voltage: DC9-17.5V |
| 产品型号:009781 Product model: 009781 | 输出功率:2*39W Output power: 2 * 39W |
| 芯片型号:CD7379 Chip model: CD7379 | 输出阻抗:4-8Ω Output impedance: 4-8 Ω |
| 音频输入:3P音频线 Audio input: 3P audio cable | 外观尺寸:33.5*25*25mm Appearance size: 33.5 * 25 * 25mm |
| 声道数:双声道 Number of channels: Dual channel | 产品重量:12.8g Product weight: 12.8g |
| 电压接口:焊接 Voltage interface: Welding |

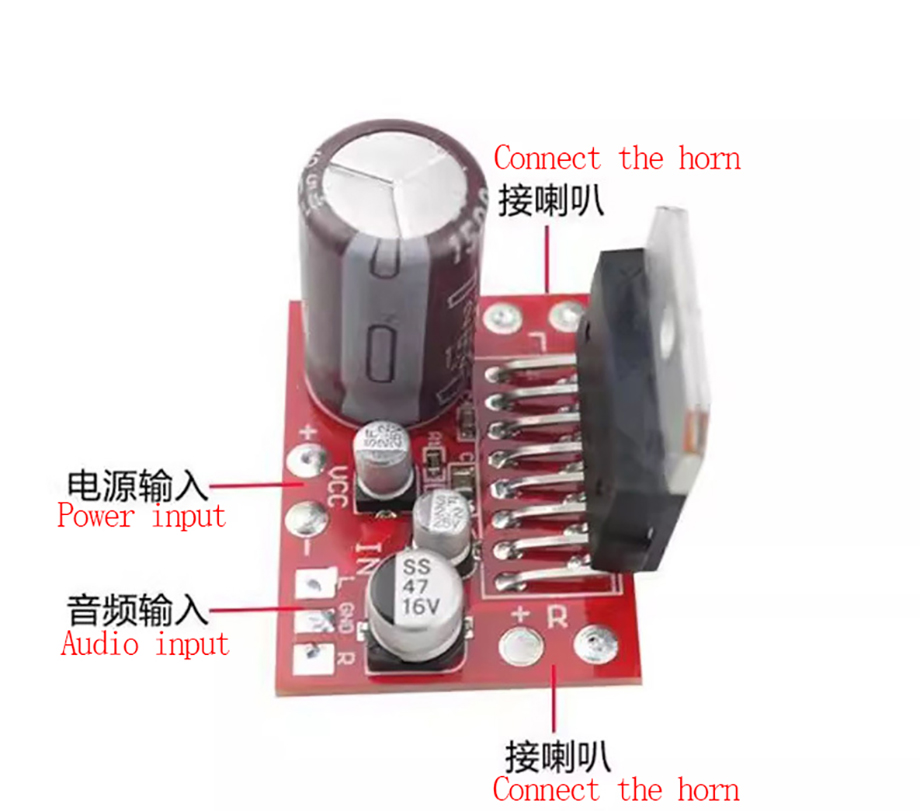

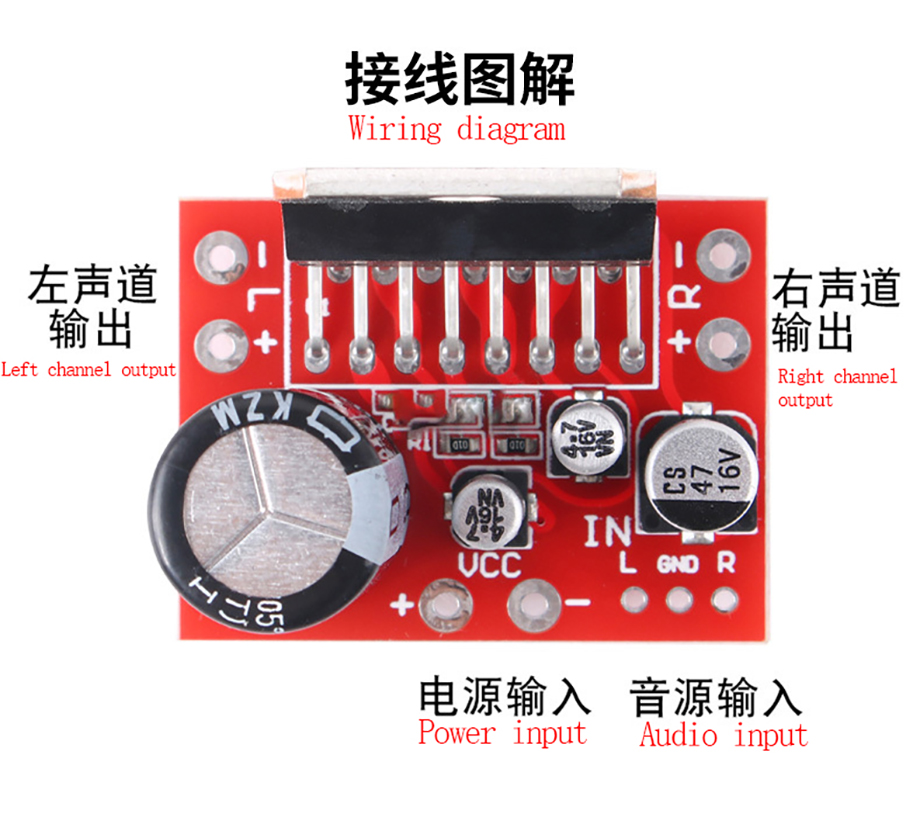

Interface Description

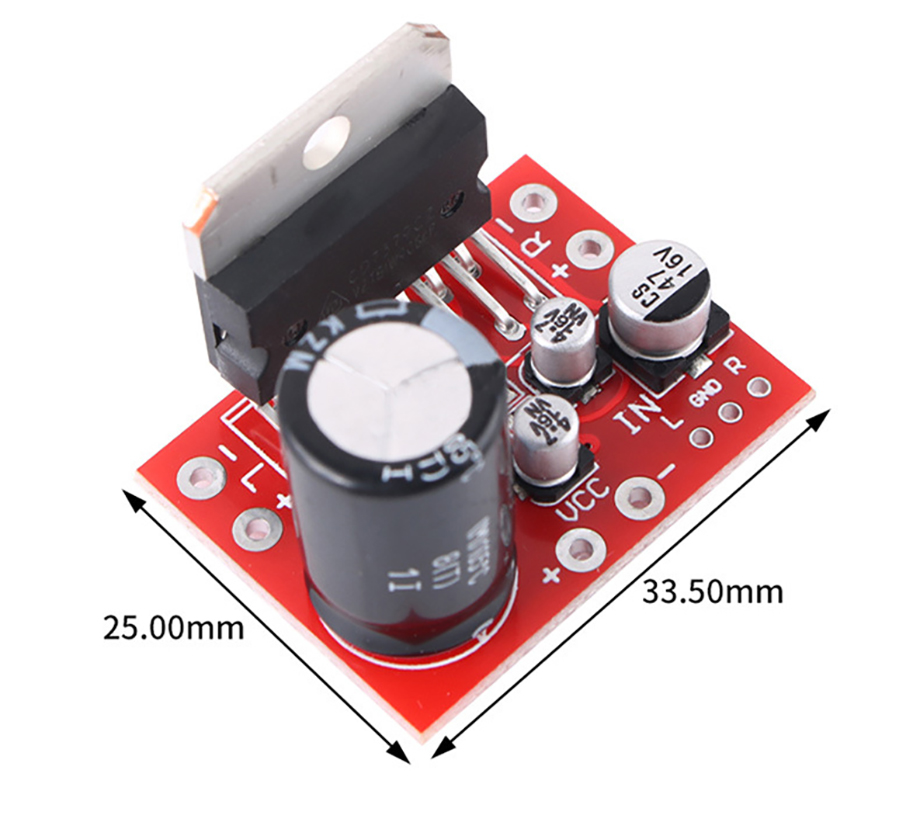

Product Size

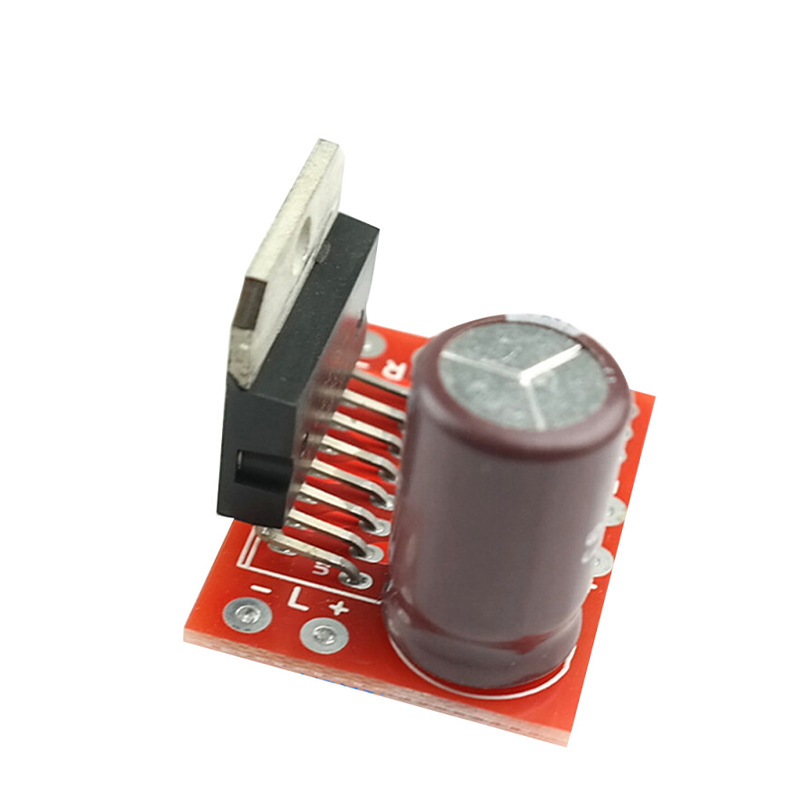

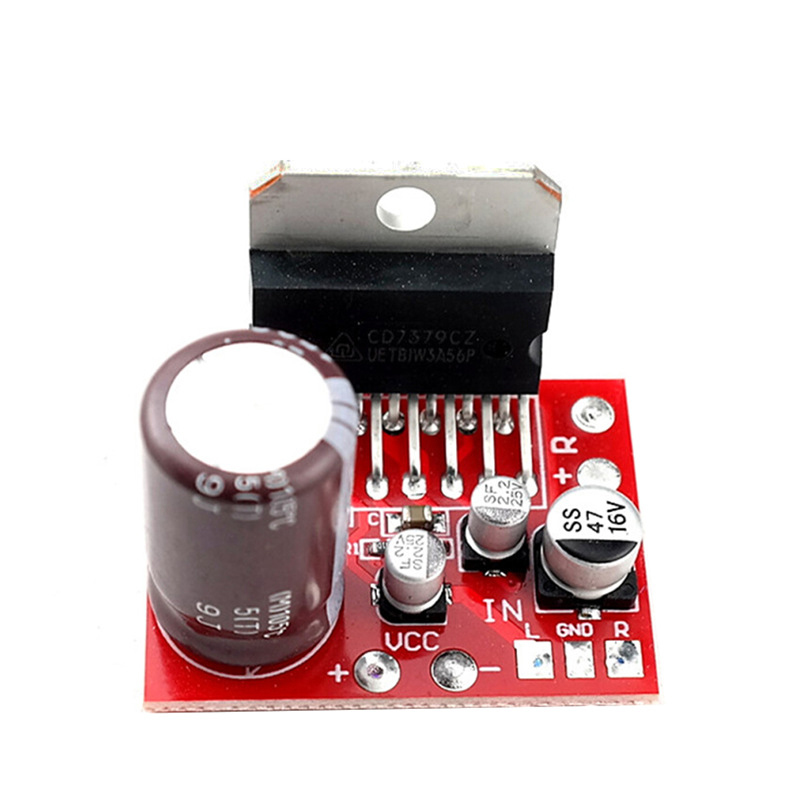

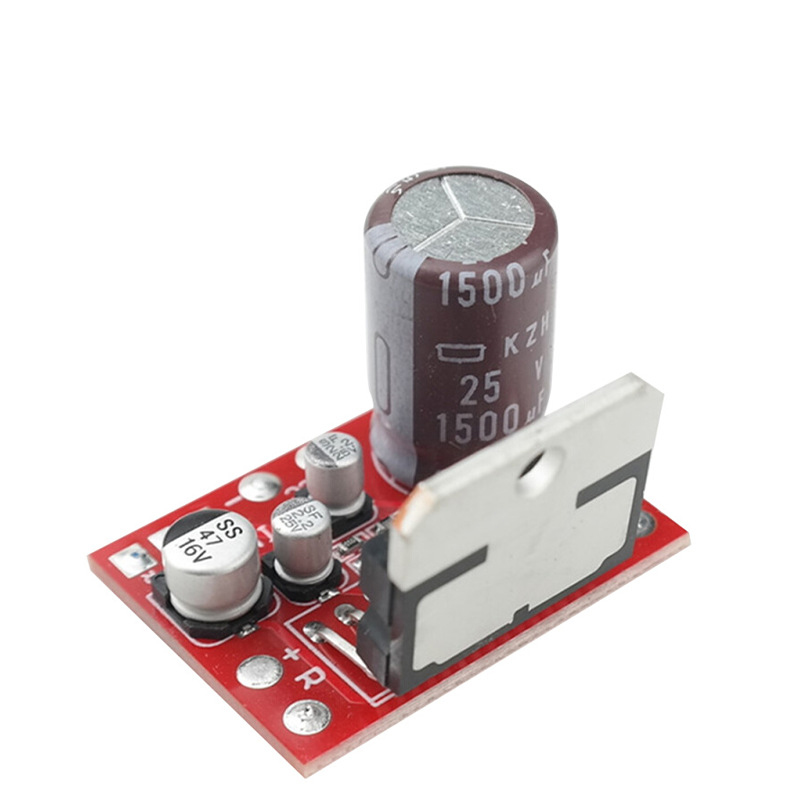

Product Show
Payment&Transportation
Official Certificate&Certificate
Multiple product supply
Company office environment
Warehouse Real Shot
Standard packaging
