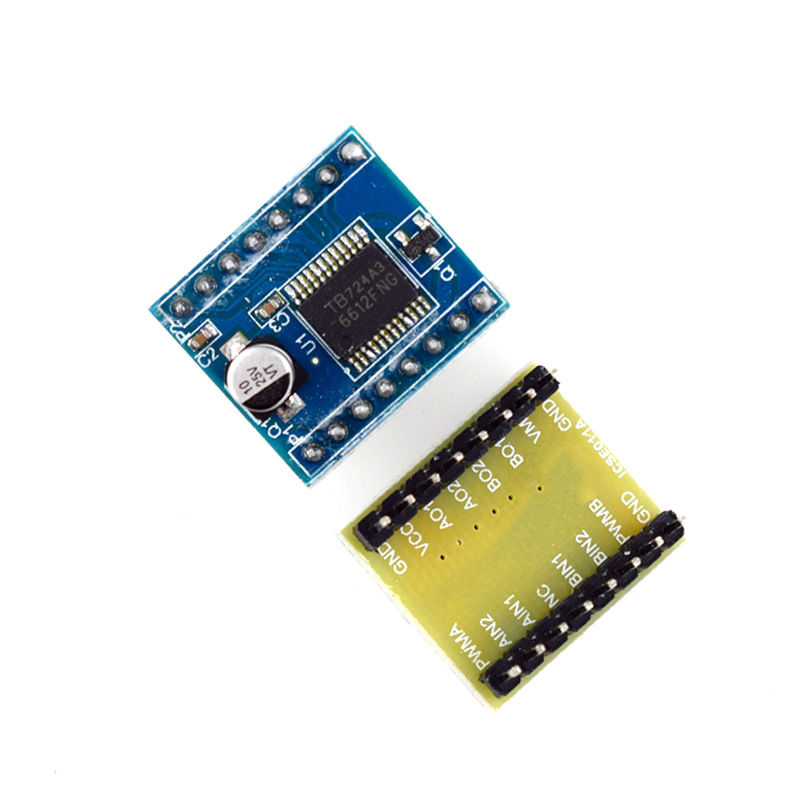

TB6612FNG motor drive board module dual wheel self balancing small car dual wheel balancing

TB6612FNG

Model:TB6612FNG

Manufacturer:ANSC/OEM

Package:module

Detail

Product Descriptions


The TB6612FNG small volume motor drive board is equipped with two H-bridges, which can control up to two DC motors. Each channel outputs a continuous driving current of up to 1.2A (with a peak starting current of 2A/3.2A). The AIN BIN signal can be used for four modes to control the motor's forward/reverse/braking/stopping. The motor can rotate at any speed through PWM signal input, with a frequency of up to 100kHz for PWM signal control


Interface Description

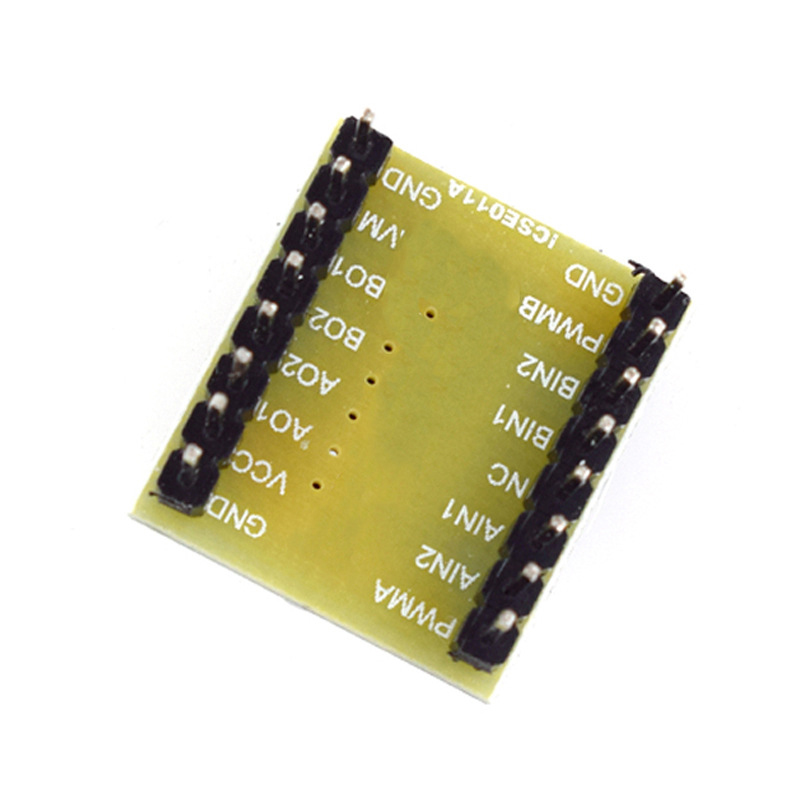

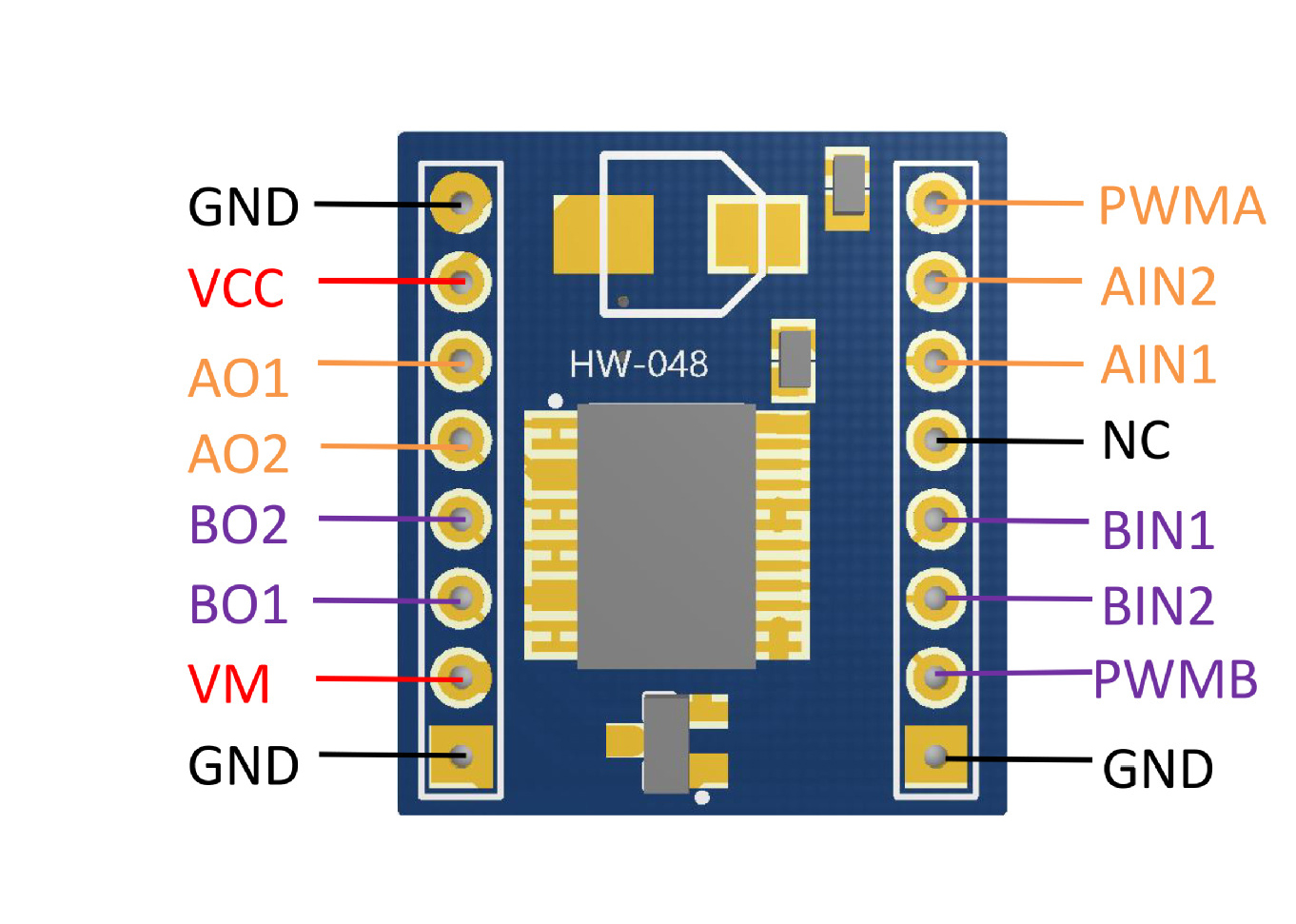

The motor drive board has 16 pins


Power Supply (VCC): 5V


Motor drive voltage (VM): 5V~13.5V


GND: Grounding, in this module, three GND pins are connected to each other

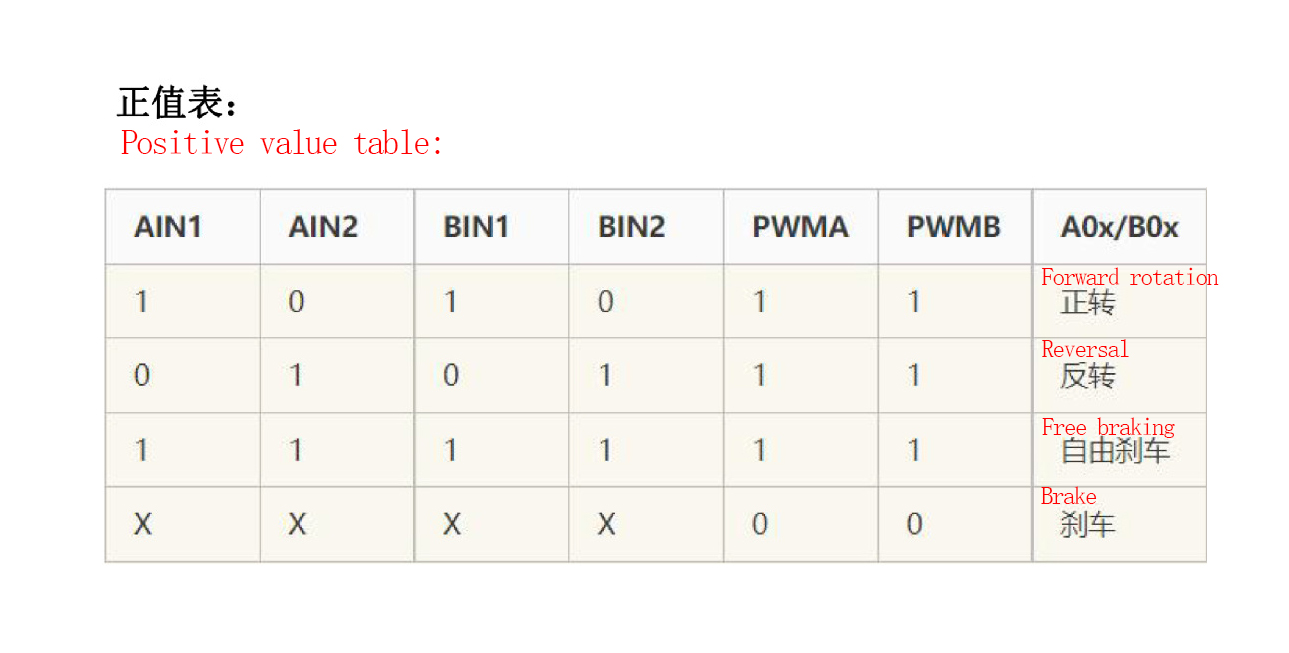

AIN1, AIN2, BIN1, BIN2 to control forward and reverse rotation


A01 A02: Connect motor 1


B01 B02: Connect motor 2


PWMA PWMB: Signal input is used for PWM control of motor speed


NC: Hanging in the air

详情-01

详情-02

详情-03

详情-04

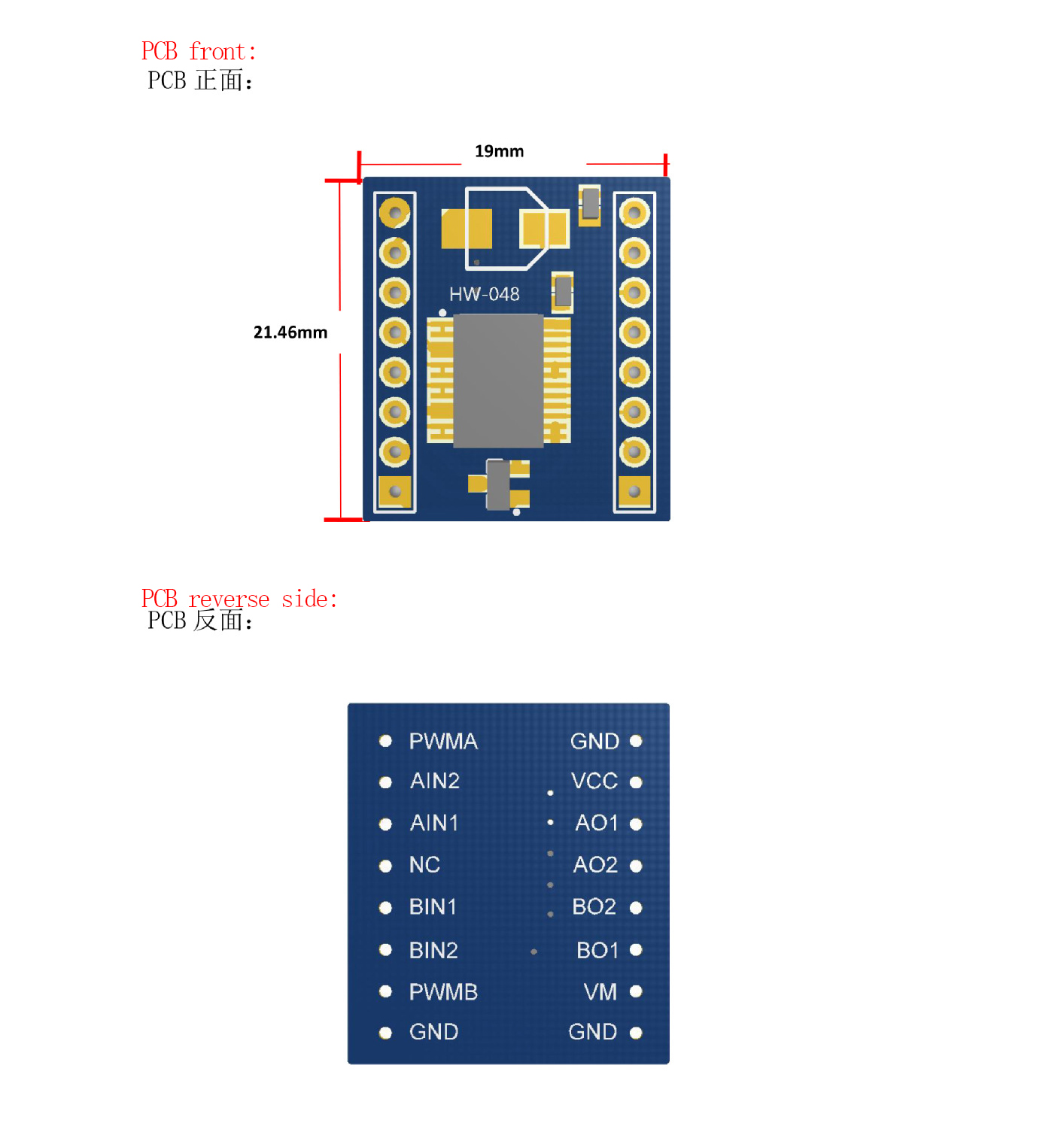

Product Size
