Wireless module 433M/CC1101/data transmission/transceiver/SI4432 industrial grade RF serial communication transparent transmission

M268

Model:M268

Manufacturer:ANSC/OEM

Package:module

Detail

Product Description


The product adopts the chip CC1101, which can be widely used in various occasions such as the Internet of Things, industrial control, medical, security alarm, data acquisition, smart home, water, electricity and gas meter reading, etc.


Product features: Low power consumption, high sensitivity, simple network structure, small size, and wireless wake-up function.


Product specifications


Color: Red


Chip: CC1101


Center frequency: 433MHz


Maximum power: 10mW


Transmission power: 10dBm (approximately 10mw)


Supply voltage: 1.8V-3.6VDC


Emission current: 29.2mA@10ddBm (The power supply capacity must be greater than 100mA)


Receiving sensitivity:- 116dBm/0.6kbps


Remote control distance: 1000m (theoretical value)


Total length of product: 46mm (including antenna)


Needle hole spacing: 1.27mm


Product Performance


1. Open transmission distance of 300 to 500 meters


2. Support automatic channel access cleaning (CCA) before transmission, i.e. carrier sense system


3. Efficient SPI serial programming interface, capable of simulating SPI timing with 10 ports or using MCU's SPI interface

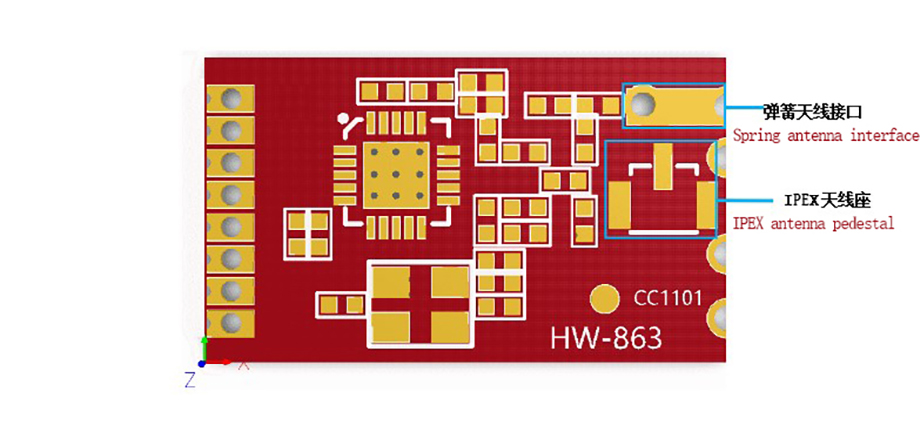

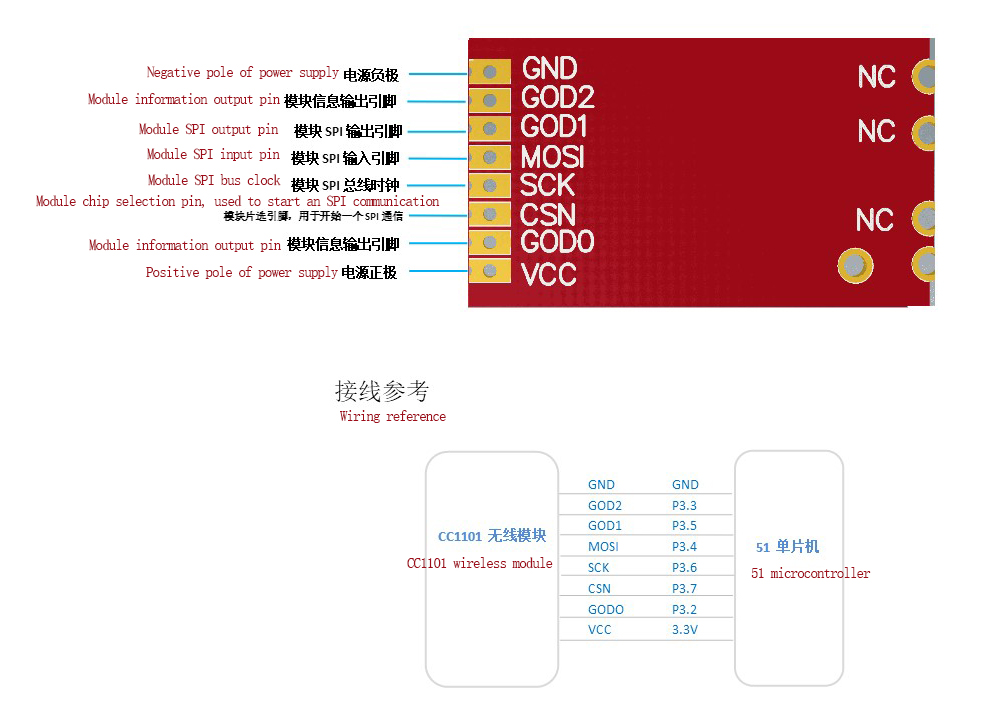

Product Features


详情-03

详情-04

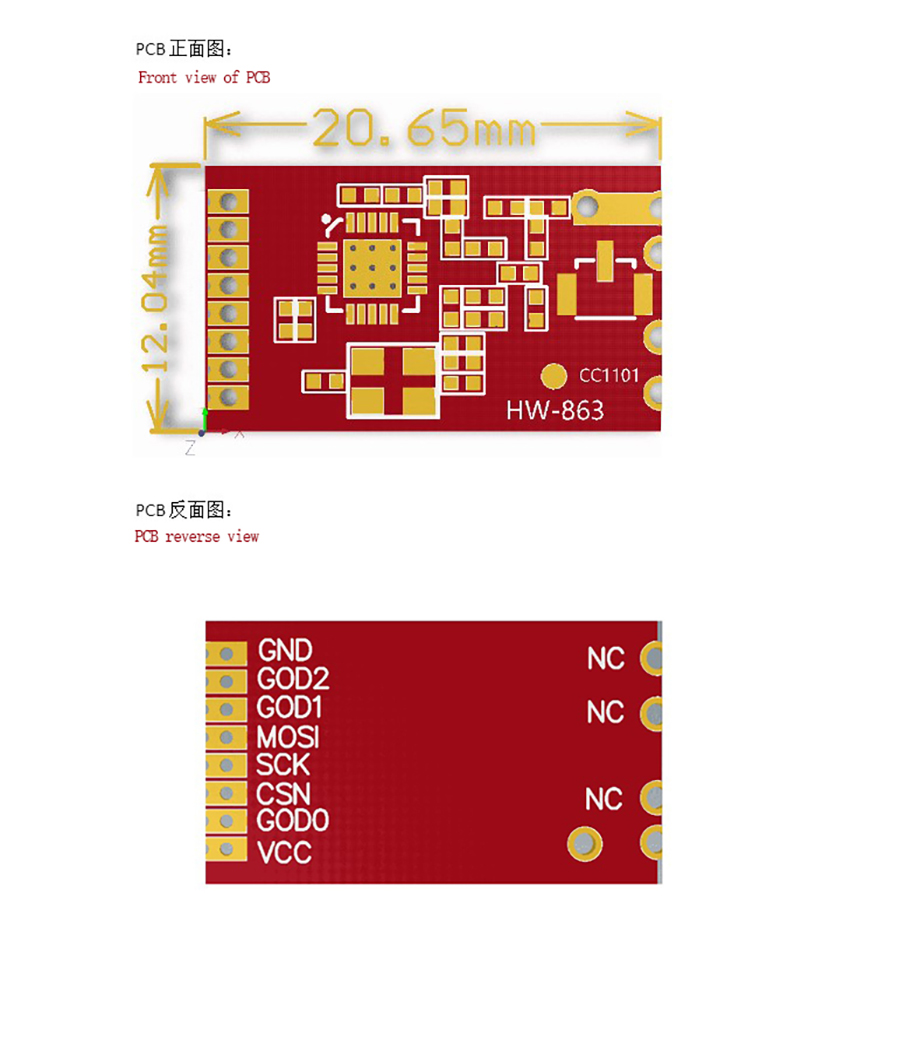

Product Size


详情-05

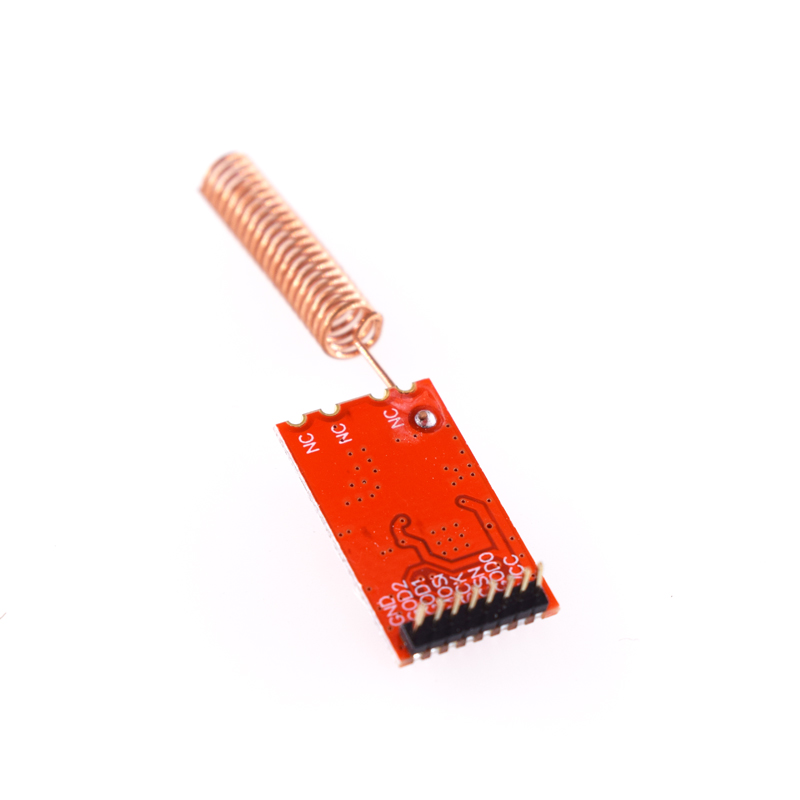

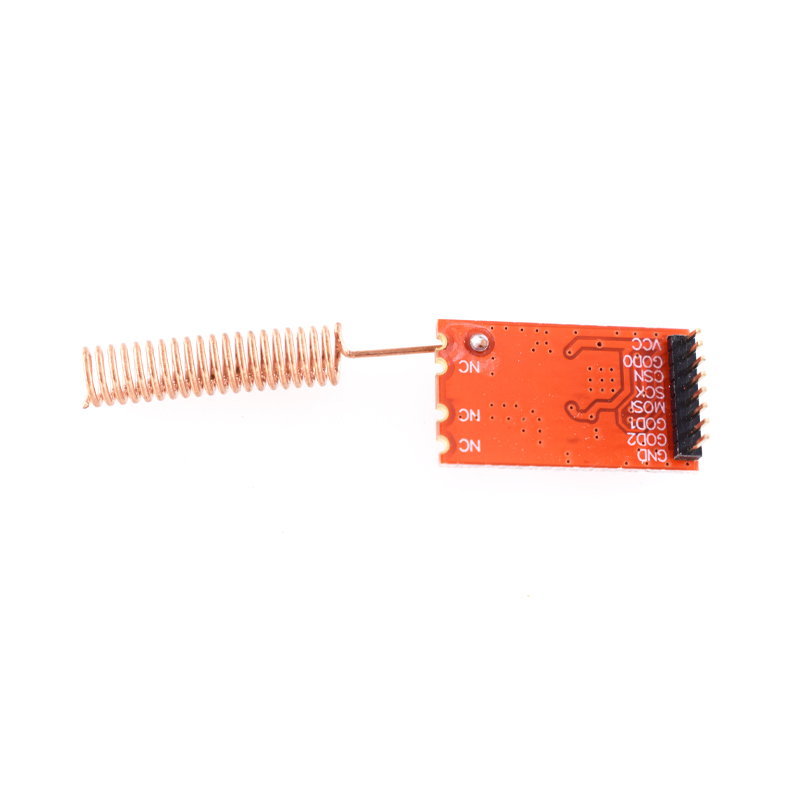

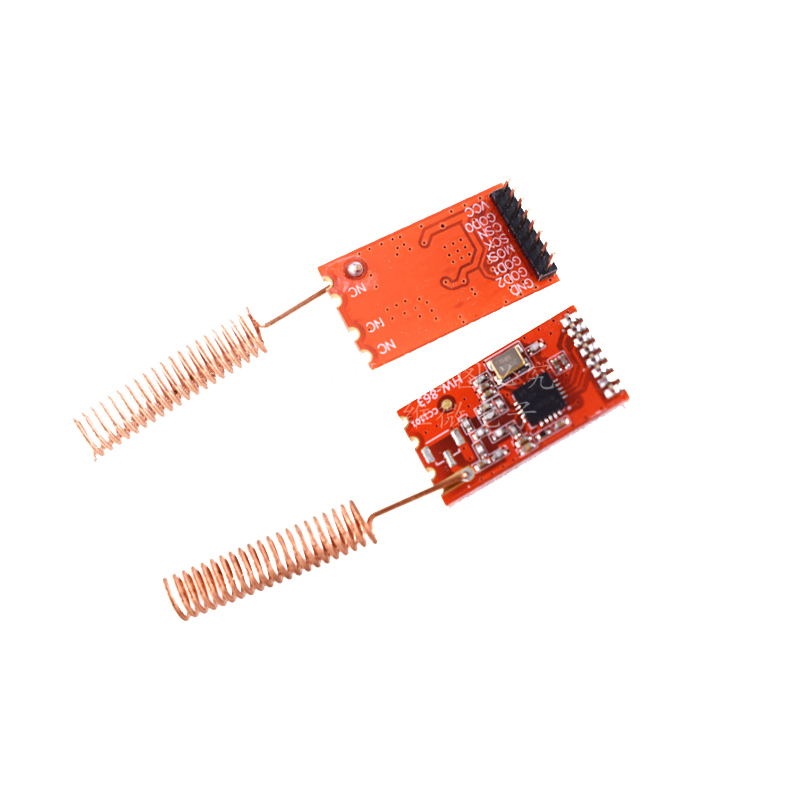

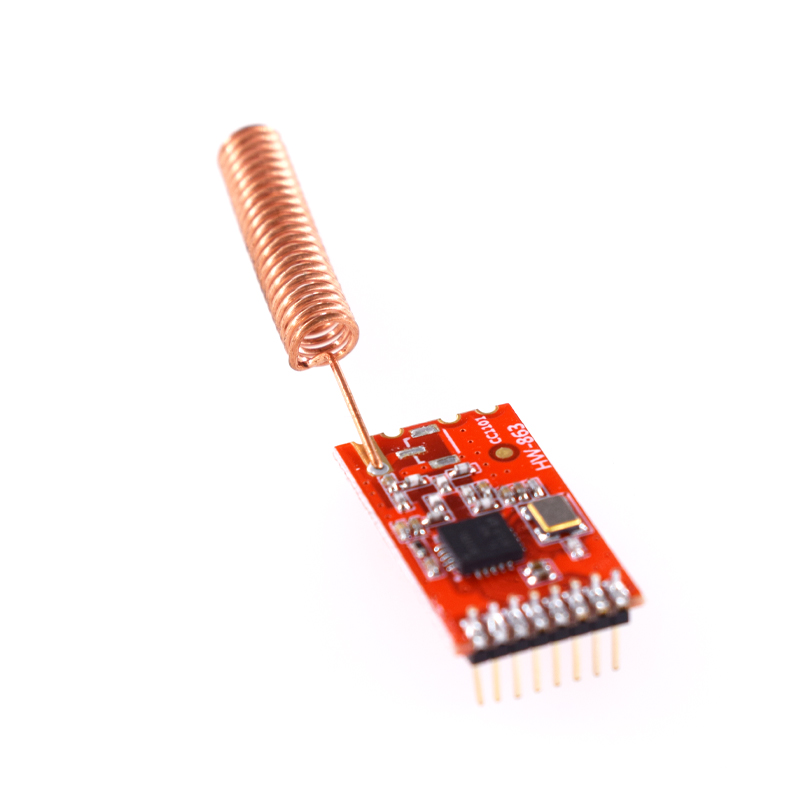

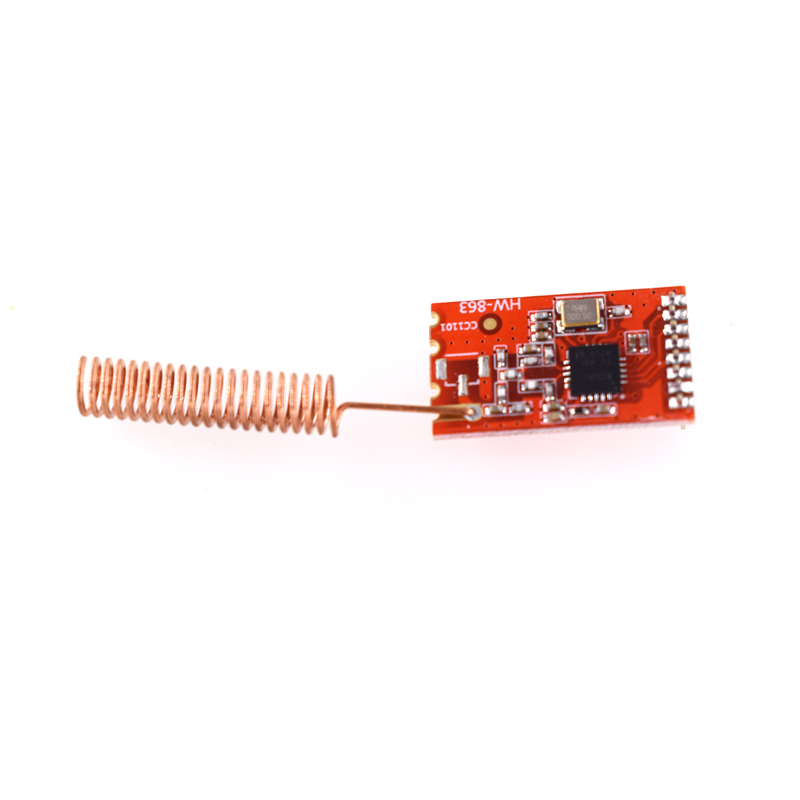

Product Show


主图-00

主图-01

主图-02

主图-03

主图-04
