Module Parameter

Input voltage: DC5V

Working voltage: ≤ 5MA

Detection range: AC:25ADC:+35A

-A:2.5V~0.3V

Output method: Analog signal:+ A:2.5V~4.7V

Level signal: High level (H): 5V

Low level (L): 0. V

Working temperature:- 10~60°C

Working humidity: 0~100% RH

Storage temperature:- 20~65°C

Storage humidity: 0~100% RH

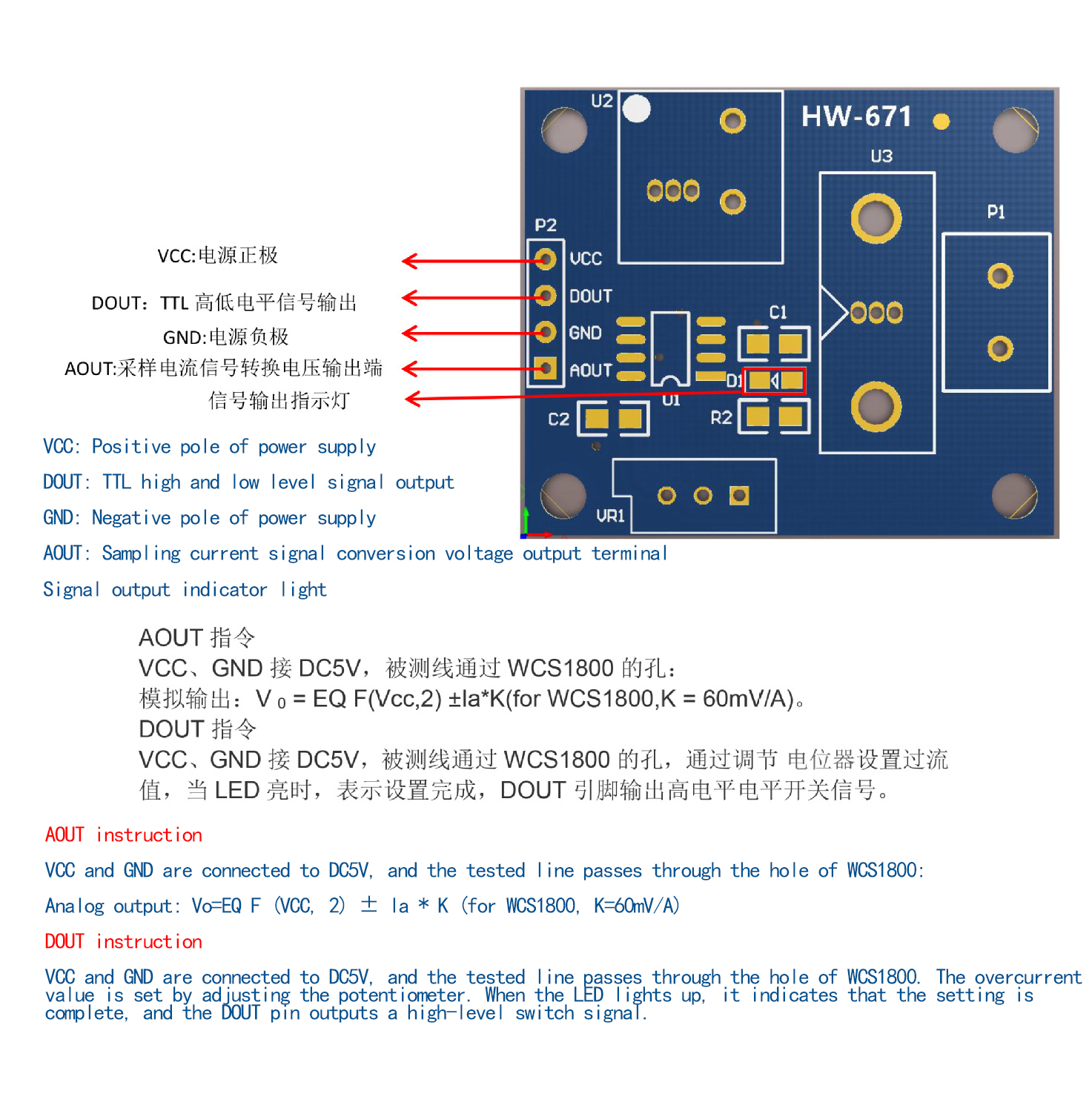

Convert the sampled current into an analog voltage signal output, which can be connected to an ADC; TTL level signal output, can be connected to microcontroller I/O

Brief Introduction

The WCS1800 current sensor has two main functions. The first function is to output an analog signal that can be used for A/D conversion; The second function is to output a switch signal, and the overcurrent value can be pre-set. When the actual current value is greater than the preset current value, the switch signal goes from low to high and is indicated by an LED. Easy to use.

Product Features

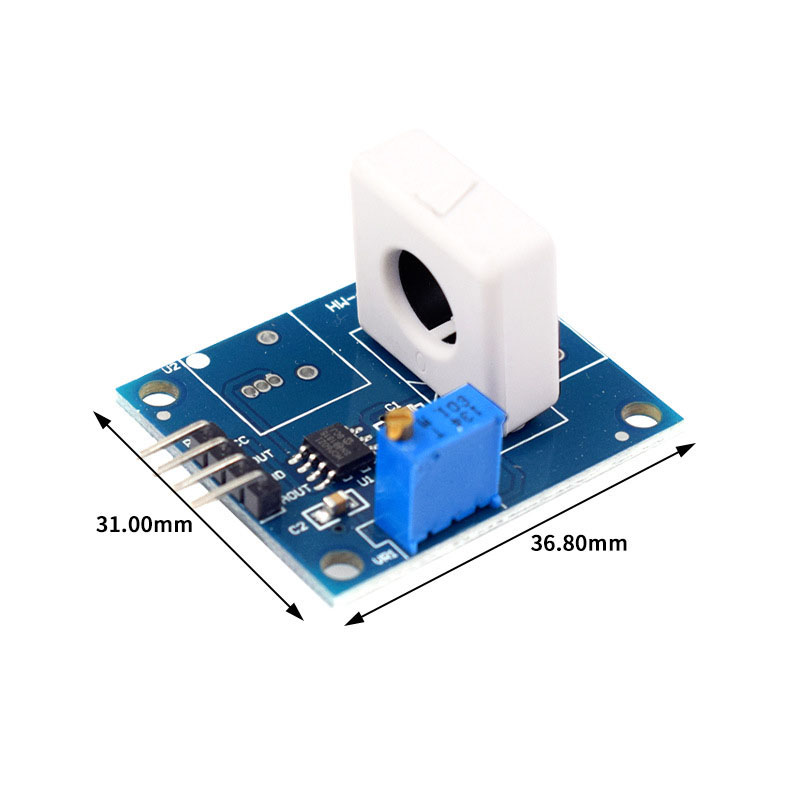

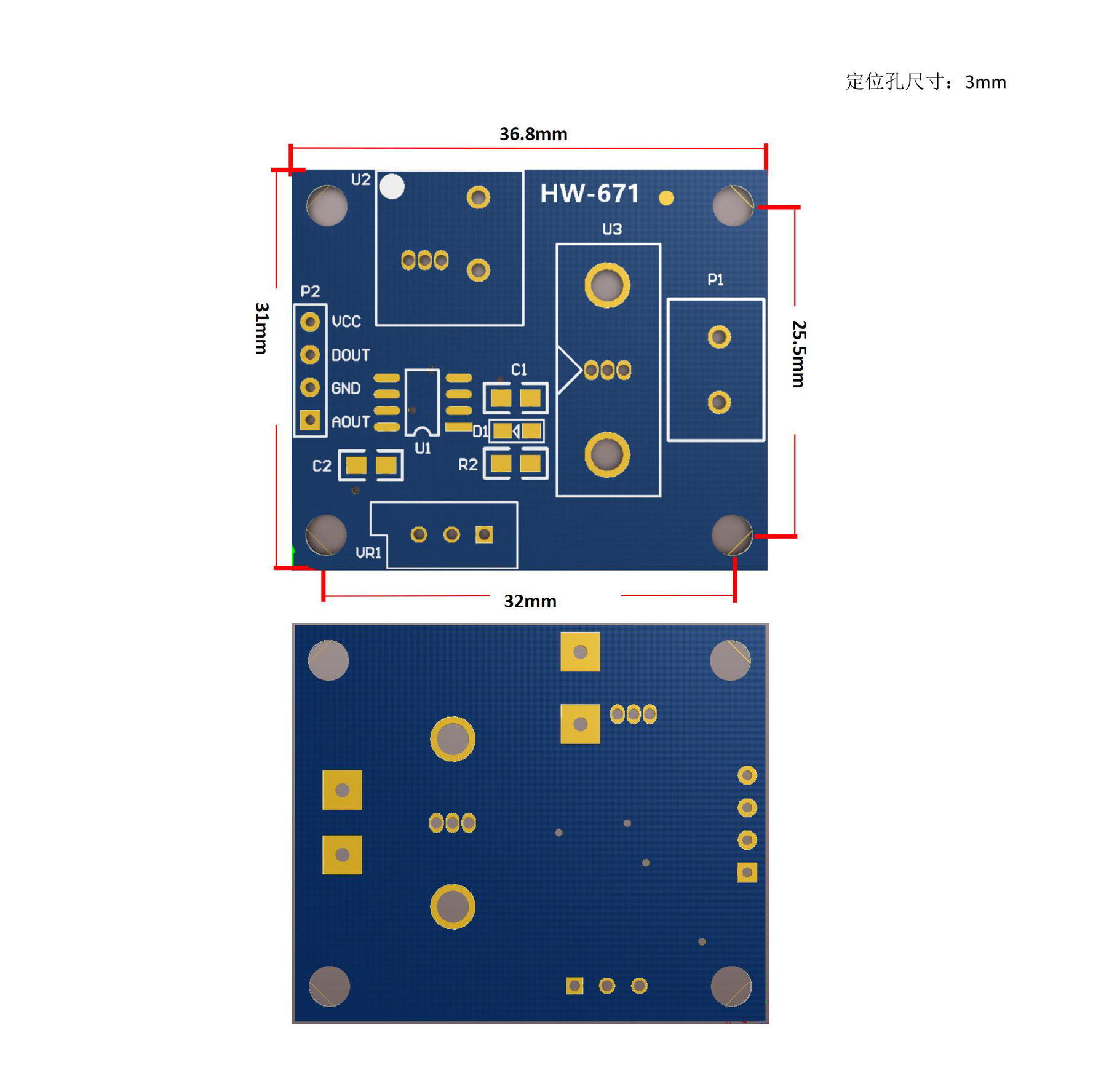

Product Size

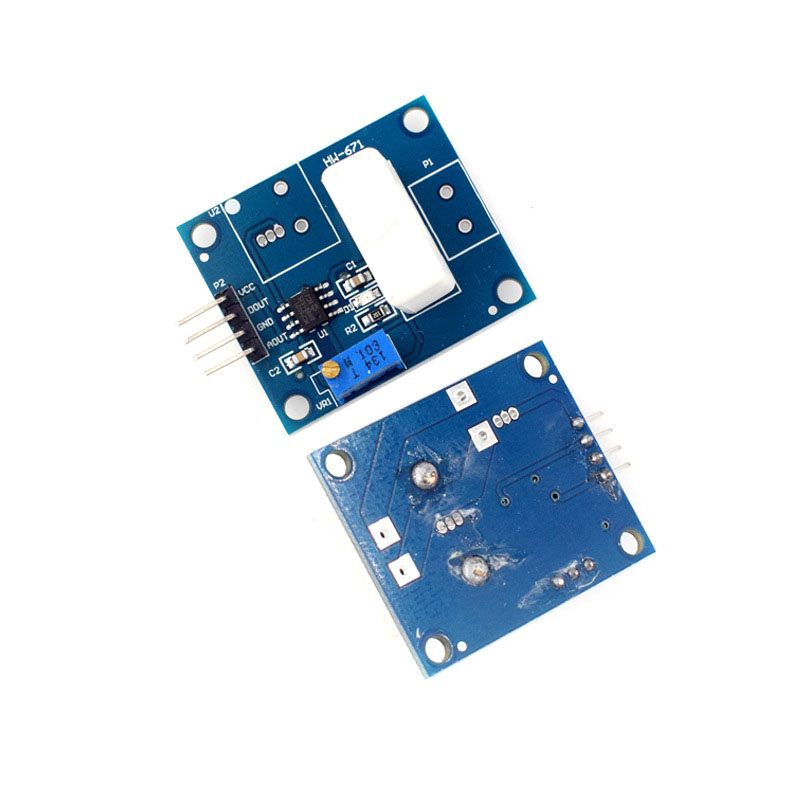

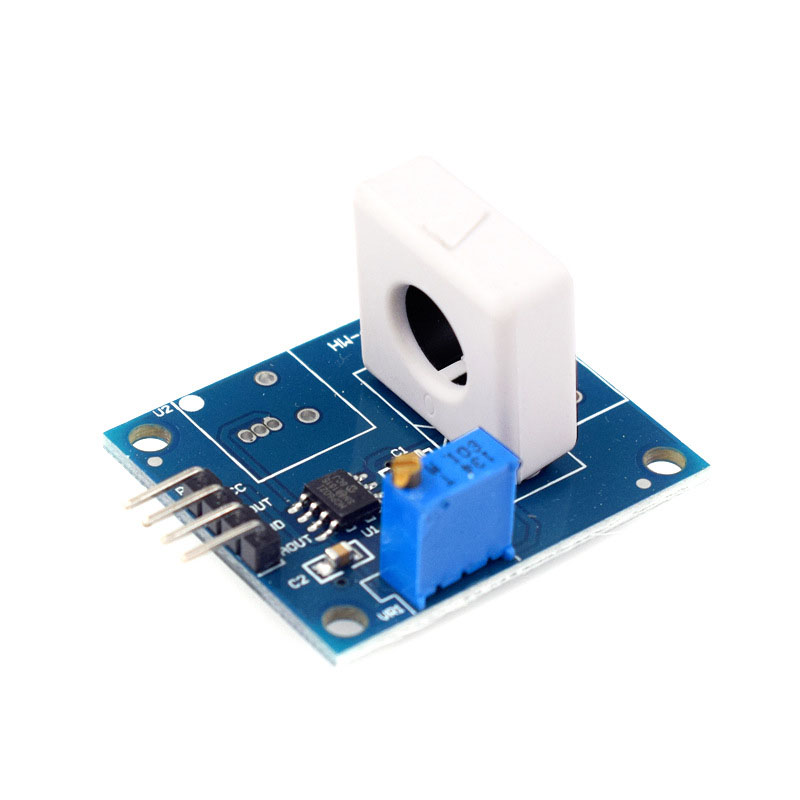

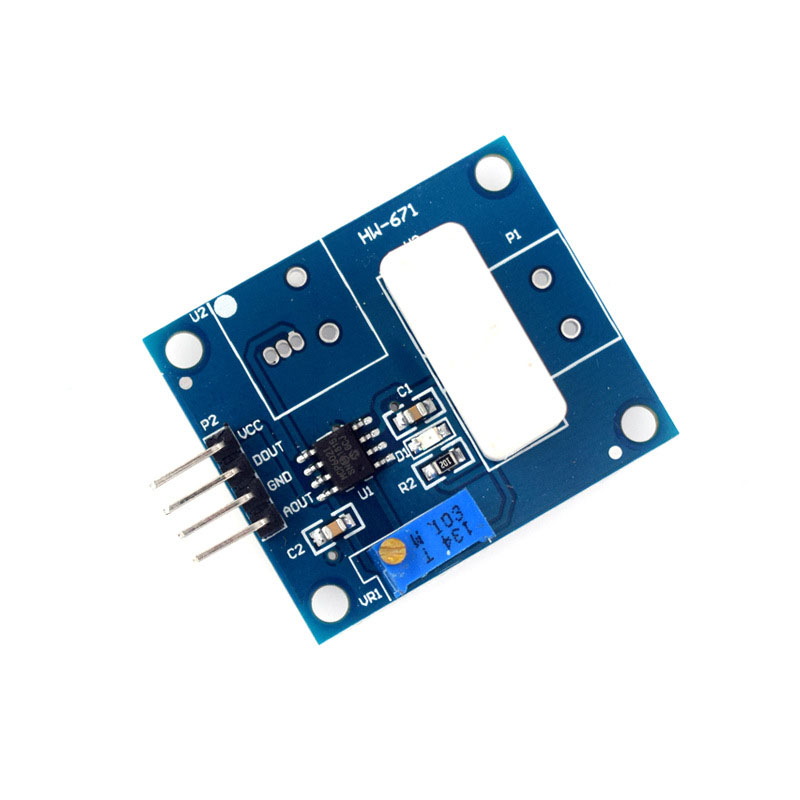

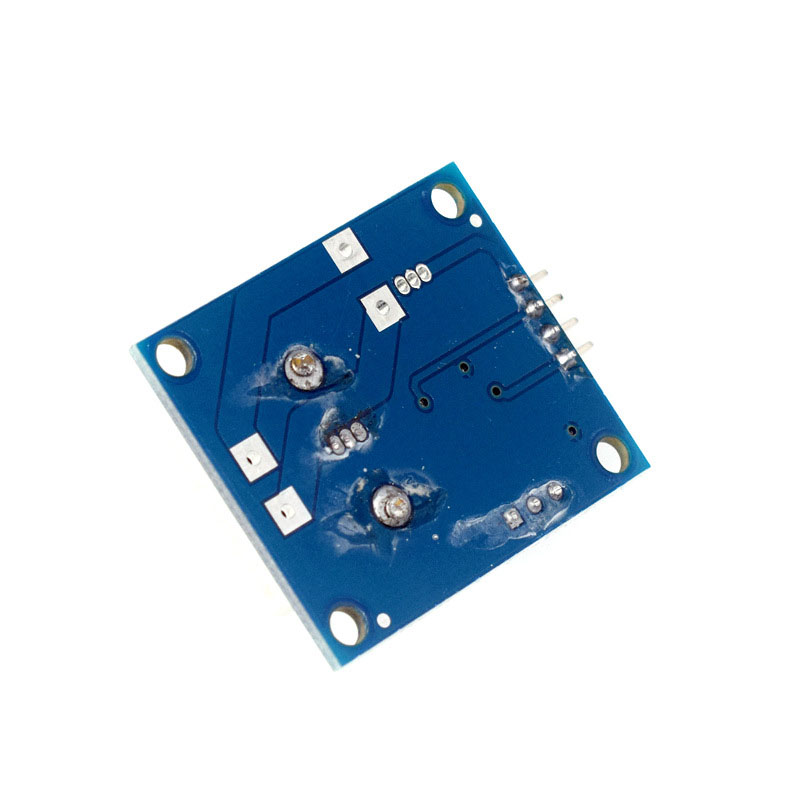

Product Show
