3D printer motherboard accessories TMC2100 stepper motor wrinkle remover LV8729V controller motor driver

TMC2100

Model:TMC2100

Manufacturer:ANSC/OEM

Package:module

Detail

Product Descriptions


This board provides a flyback diode for the motor, allowing it to resist induced voltage even in the absence of power supply in the driver program. Protect the stepper motor drive. The V2 protector also includes a diode from the logic voltage (anode) to the motor voltage (cathode) to ensure the power supply sequence of all silent stepper bars.


This product mainly targets the vibration patterns generated during parallel structure 3D printing, especially when using TMC2100 drive and motors with low resistance. It can effectively eliminate low-speed motors and smooth signal waves at low speeds, achieving a relatively smooth signal wave effect. The most obvious effect is in the TMC2100 driven 24V power delta model, where the wave cancellation effect varies depending on the machine.


Applicable to: DVR8825、A4988、TMC2100、LV8729V、 And any two-phase four wire stepper motor.

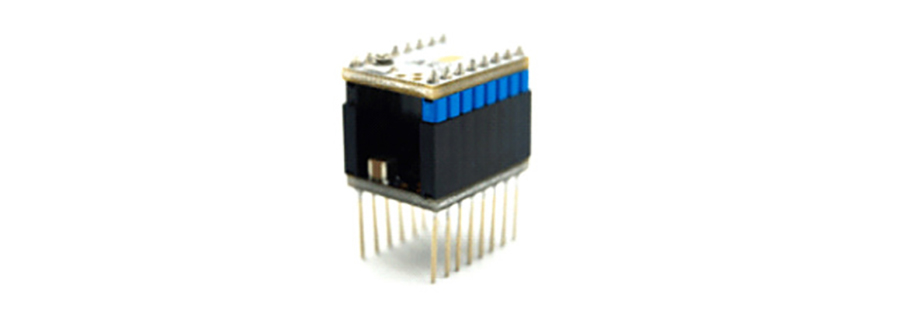

Usage: Insert the corresponding pins of the driver module into the wrinkle remover in sequence (as shown in the figure below)

2

1

详情-04

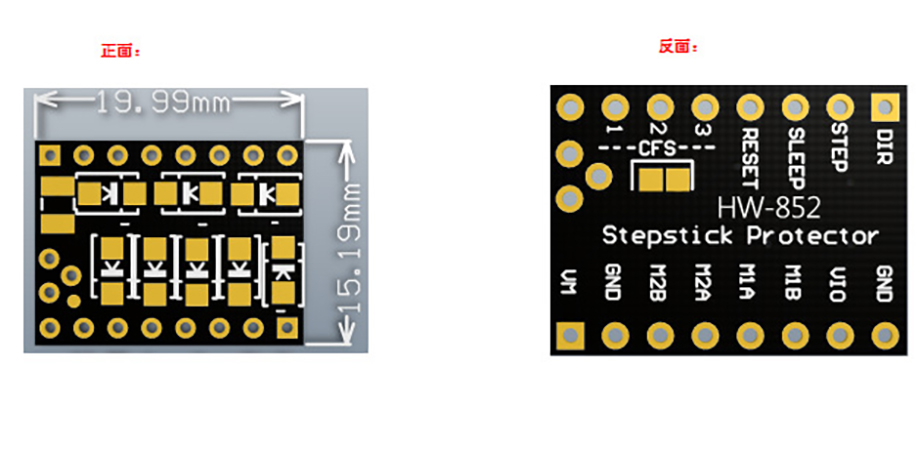

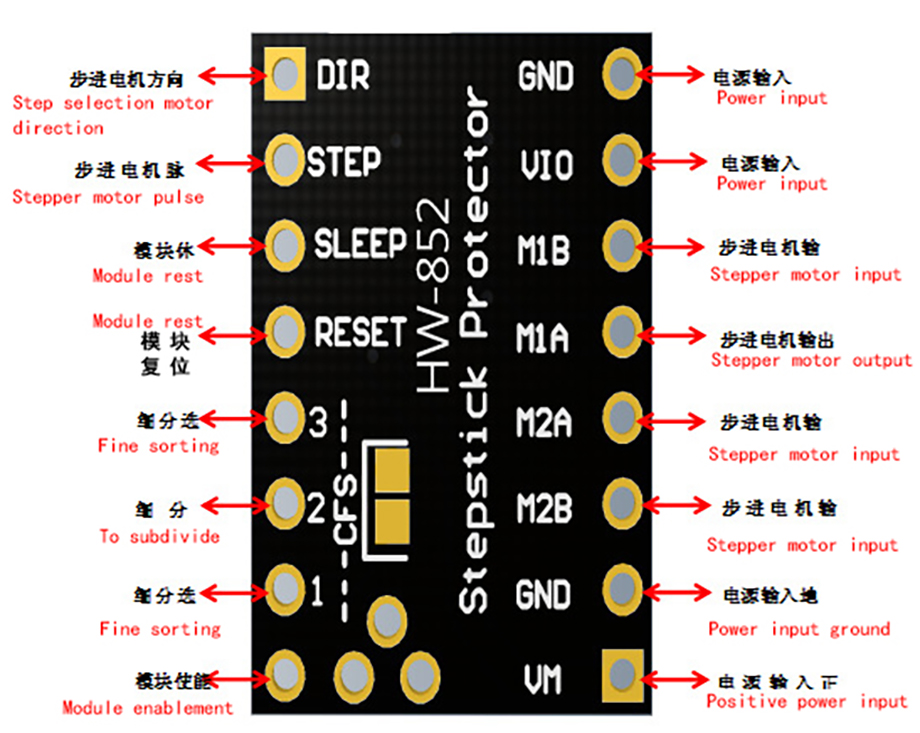

Product Size
