Product Description
Description:
WAVGAT SX1308 booster module carrying SX1308 chip, its packagnig is small, and high efficiency.
The output power can be adjust, maximum can arrive 28V and its interior integrate the lowest
RDS internal resistance 100mΩ metal oxide semiconductor field effect transistor (mosfet),
which can realize large current output of up to 2A. It widely used in 3G network products,
digital products, mobile power supply,battery power supply, equipment, etc.
Features:
Oscillation frequency 1.2MHz
Efficiency is as high as 95%
Circuit has short circuit protection, overheating protection function
10k to adjust potentiometer, adjust the output voltage
Parameters:
Maximum input voltage: DC 2-24V
Maximum output voltage: DC 2-28V
Switching frequency: 1.2MHz
Maximum current output: 2A
Product Parameters
| Type# | Description |
| PART# | 2A SX1308 |
| Place of Origin | China |
| Brand Name | Original |
| Functional Application | More |
| Maximum input voltage | DC 2-24V |
| Maximum output voltage | DC 2-28V |
| Switching frequency | 1.2MHz |
| Maximum current output | 2A |
| Package Weight | 0.043kg (0.09lb.) |
| Package Size | 15cm x 10cm x 3cm (5.91in x 3.94in x 1.18in) |
| Type: | Drive IC |

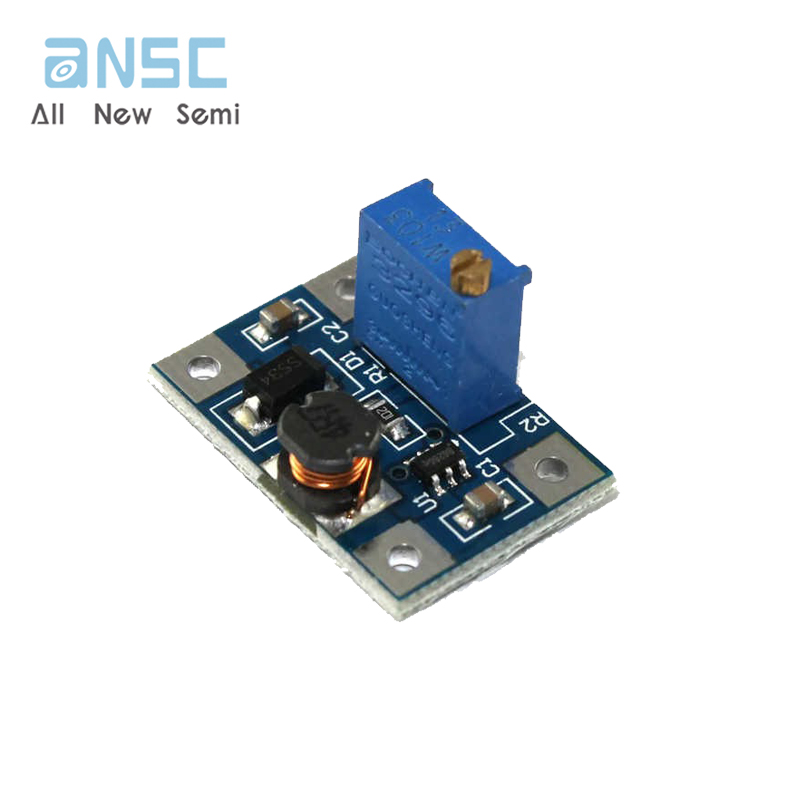

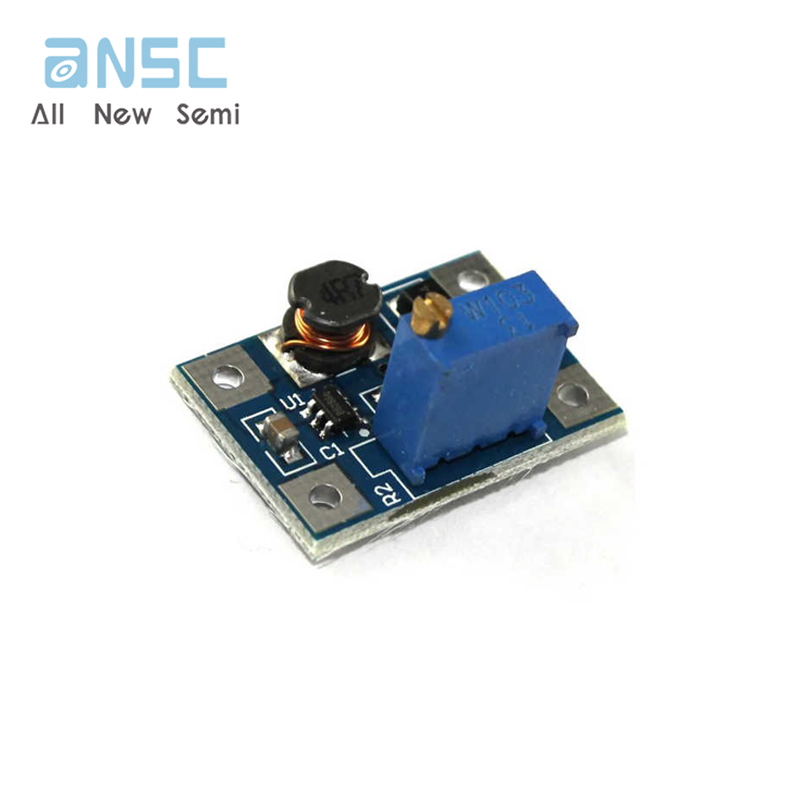

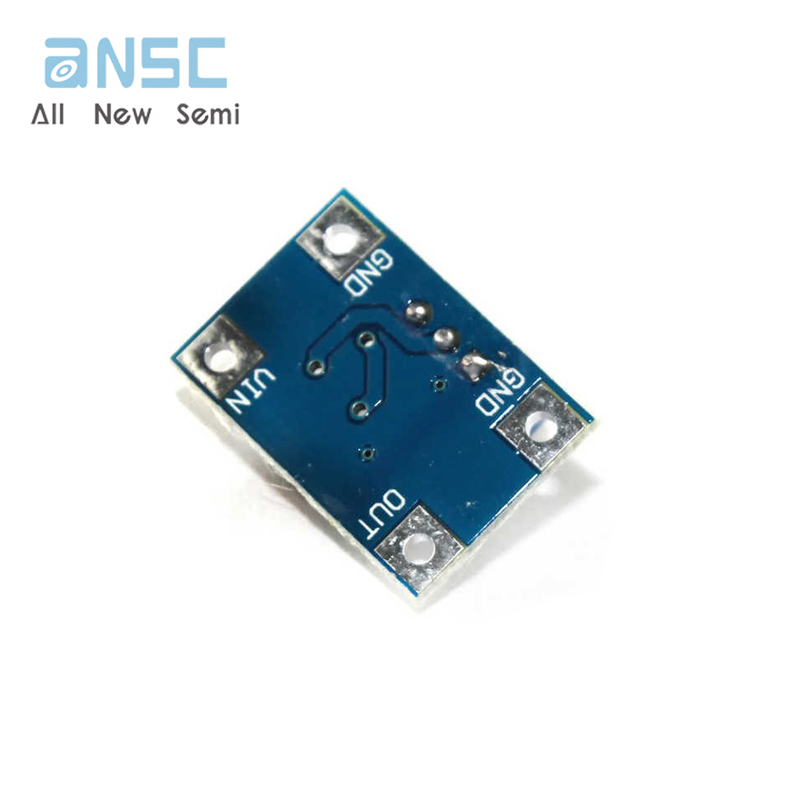

Actual image of the product
