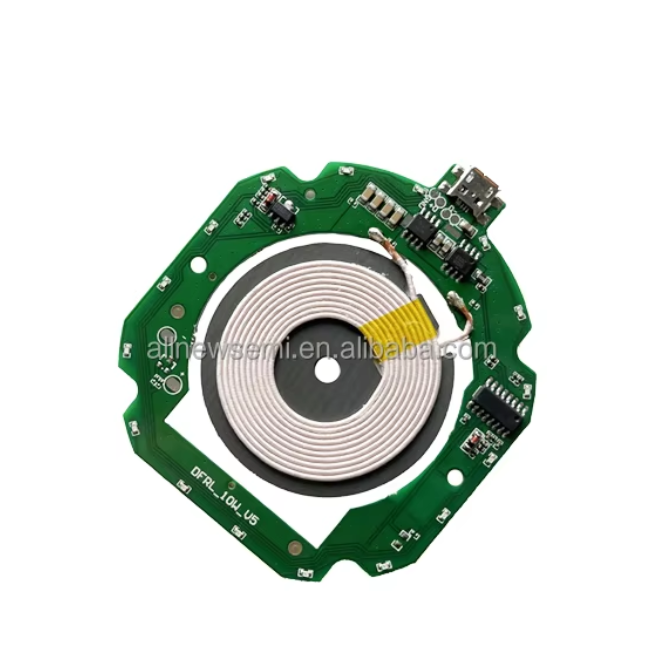

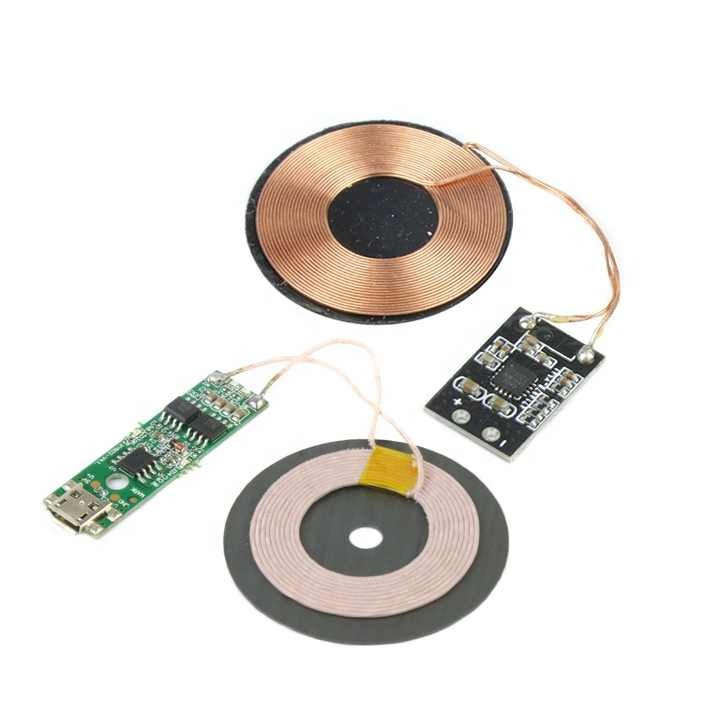

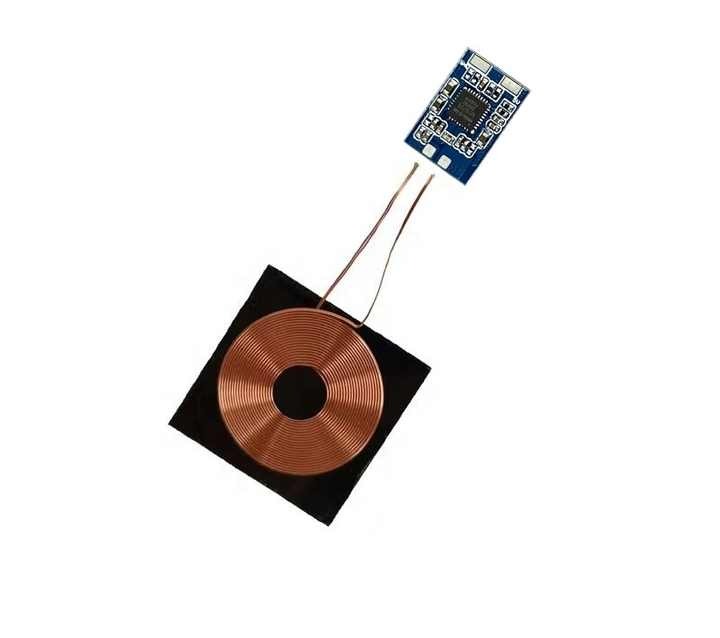

3W wireless isolated charger transmitter/receiver module 5V 600mA circuit board PCBA circuit board

ARMQ 3W

Model:ARMQ 3W

Manufacturer:Original

Package:Module

Detail



Product name:

Wireless charging receiving module

Product standard:

standard

Output voltage:

5 V

Output current:

600mA(max)

Charging power:

3W peak (can match different coils)

Charging efficiency:

75%

Sensing distance:

≤ 8mm

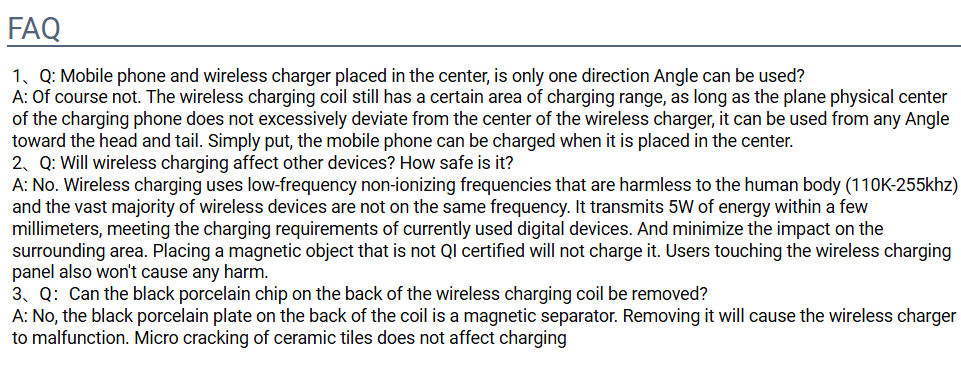

FAQ

1、Q: Mobile phone and wireless charger placed in the center, is only one direction Angle can be used?

A: Of course not. The wireless charging coil still has a certain area of charging range, as long as the plane physical center of the charging phone does not excessively deviate from the center of the wireless charger, it can be used from any Angle toward the head and tail. Simply put, the mobile phone can be charged when it is placed in the center.

2、Q: Will wireless charging affect other devices? How safe is it?

A: No. Wireless charging uses low-frequency non-ionizing frequencies that are harmless to the human body (110K-255khz) and the vast majority of wireless devices are not on the same frequency. It transmits 5W of energy within a few millimeters, meeting the charging requirements of currently used digital devices. And minimize the impact on the surrounding area. Placing a magnetic object that is not QI certified will not charge it. Users touching the wireless charging panel also won't cause any harm.

3、Q:Can the black porcelain chip on the back of the wireless charging coil be removed?

A: No, the black porcelain plate on the back of the coil is a magnetic separator. Removing it will cause the wireless charger to malfunction. Micro cracking of ceramic tiles does not affect charging
