Product Description
| Product Introduction: EG8010 is a digital and fully functional pure sine wave inverter chip with built-in dead zone control. It is applied to DC-DC-AC two-stage power conversion architecture or DC-AC single-stage power frequency transformer boost conversion architecture with an external 12MHz crystal oscillator. It can achieve high-precision, distortion free and harmonic free pure sine wave 50Hz or 60Hz inverter dedicated chips. The chip adopts CMOS technology and integrates functions such as dead time control circuit of S PWM sine generator, amplitude factor multiplier, soft start circuit protection circuit, RS232 serial communication interface, and 12832 serial LCD driver module. |
| Product Features: 1. 5V single power supply 2. Pin settings: 4 pure sine wave output frequencies: 50Hz pure sine wave fixed frequency 60Hz pure sine wave fixed frequency 0-100Hz pure sine wave frequency adjustable 0-400Hz pure sine wave frequency adjustable 3. Monopolar and Bipolar Modulation Modes 3. Monopolar and Bipolar Modulation Modes 4. Comes with dead zone control, with 4 types of dead zone time settings on the pins: 300nS dead zone time, 500nS dead zone time, 1.0uS dead zone time, 1.5uS dead zone time 5. External 12MHz crystal oscillator 6. PWM carrier frequency 23.4KHz 7. Real time processing of voltage, current, and temperature feedback 8. Overvoltage, undervoltage, overcurrent, and overheat protection functions 9. Pin setting soft start mode 1S response time 10. Serial communication settings output voltage, frequency, and other parameters 11. External serial port 128 * 32 LCD display module displays the voltage of the inverter Frequency and temperature |
| Product Application: 1. Single-phase pure sine wave inverter 2. Photovoltaic Inverter 3. Wind Power Inverter 4. Uninterruptible Power Supply (UPS) System 5. Digital Generator System 6. Medium-frequency power supply 7. Single-phase Motor Speed Controller 8. Single-phase frequency converter 9. Sinusoidal dimmer 10. Sine Wave Voltage Regulator 11. Sine Wave Generator |

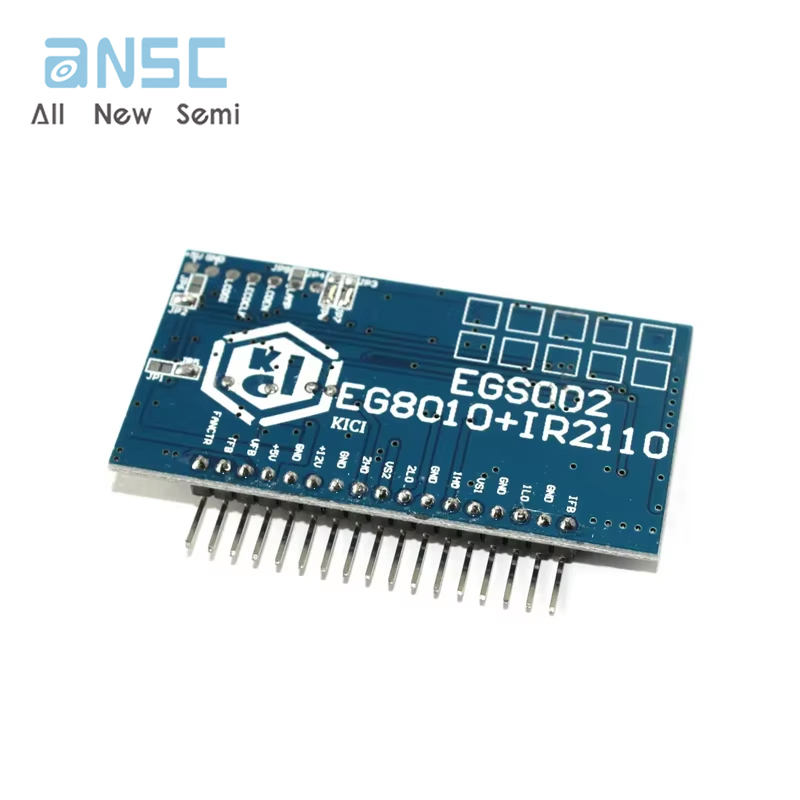

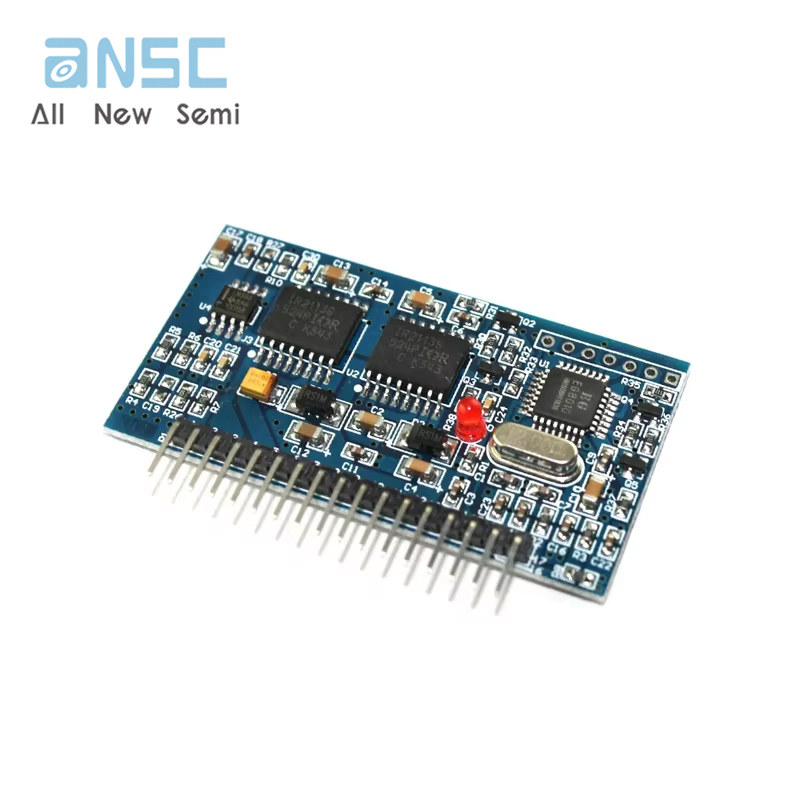

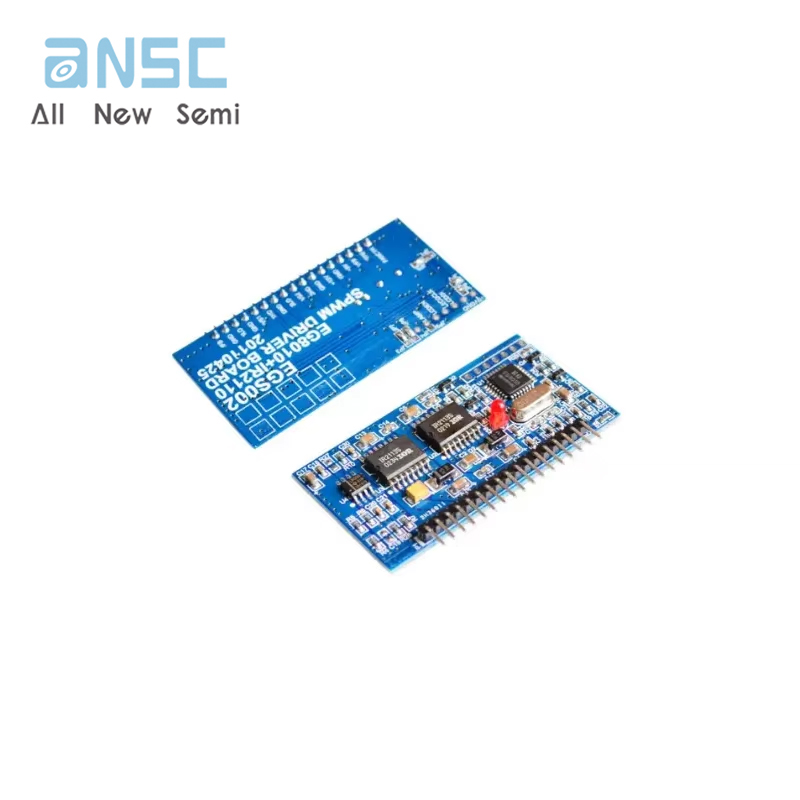

Actual image of the product
