Product Description
Type | Description |
|---|---|
PART# | 4414FNN |
Category | Fans, Blowers, Thermal Management Fans DC Brushless Fans (BLDC) |
Mfr | / |
Series | 4400FN |
Packaging | Box |
Part Status | Active |
Voltage - Rated | 24VDC |

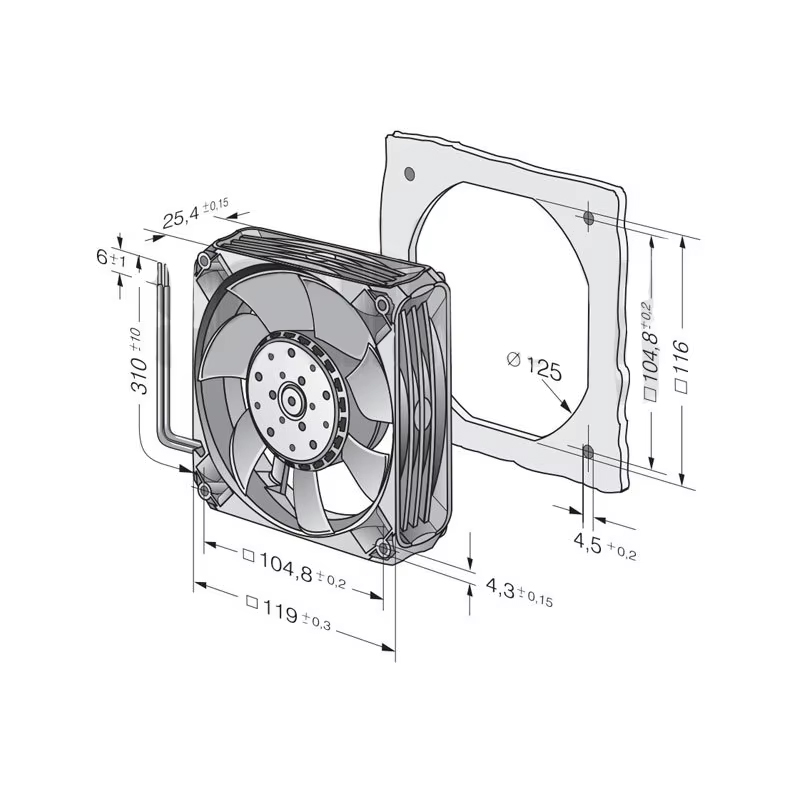

Size / Dimension | Square - 119mm L x 119mm H |
Width | 25.40mm |
Air Flow | 117.7 CFM (3.30m³/min) |
Static Pressure | - |
Bearing Type | Ball |
Fan Type | Tubeaxial |
Features | - |
Noise | 52.0dB(A) |
Power (Watts) | 8.5 W |
RPM | 4850 RPM |
Termination | 2 Wire Leads |
Ingress Protection | - |
Operating Temperature | -4 ~ 158°F (-20 ~ 70°C) |
Approval Agency | - |
Weight | 0.529 lb (239.95 g) |
Current Rating (Amps) | - |
Voltage Range | 14 ~ 28VDC |
Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
Material - Blade | Polyamide (PA), Nylon, Fiberglass Reinforced |
Lifetime @ Temp. | 60000 Hrs @ 40°C |
Base Product Number | 4414 |

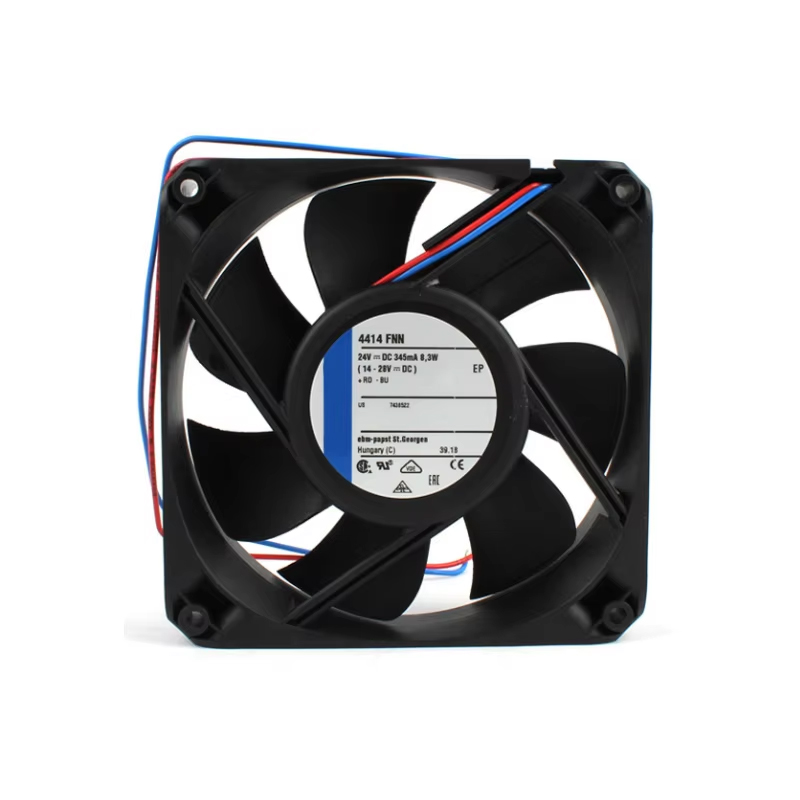

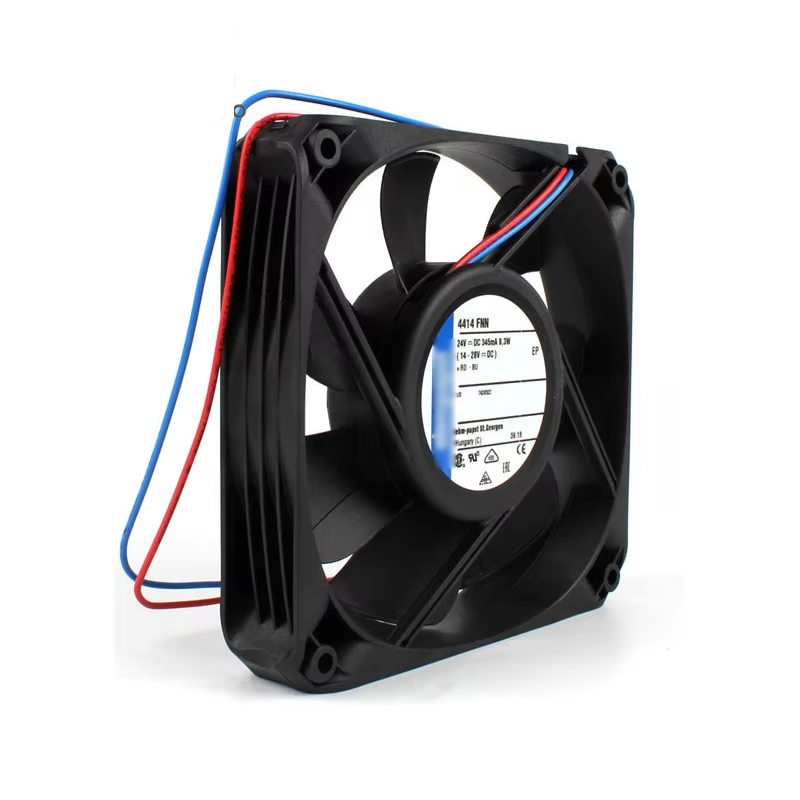

Actual image of the product
