Image is only a reference

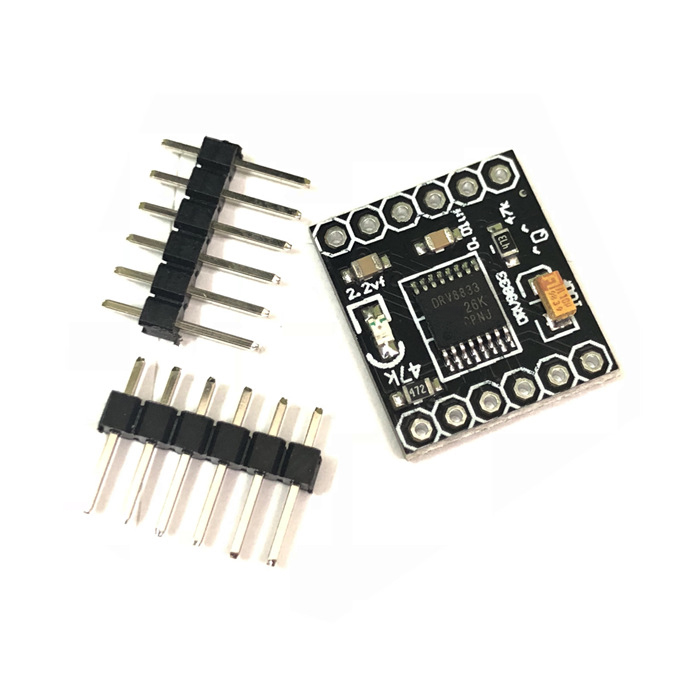

DC motor drive board 2-channel motor drive module DRV8833 motor drive module small volume

DRV8833

Model:DRV8833

Manufacturer:ANSC/OEM

Package:module

Detail

Product Parameter


Input voltage: 3~10 V


Output current: 1.5A


Overcurrent protection: Yes


Short circuit protection: Yes


Undervoltage lockout: Yes


Overheating protection: Yes


Equipped with low-power sleep mode


Can drive two DC motors below 1.5A or a 4-wire stepper motor


Equipped with a red power indicator light, the red LED light flashes when driving the motor


Product Introduction


DRV8833 is a dual drive system, which means it can drive two motors. The STBY port, which controls the IO ports of the two motors, is connected to the IO port of the microcontroller. The motor stops completely and is reset to 1 through AIN1, AIN2, BIN1, and BIN2 to control forward and reverse rotation.


Product Features

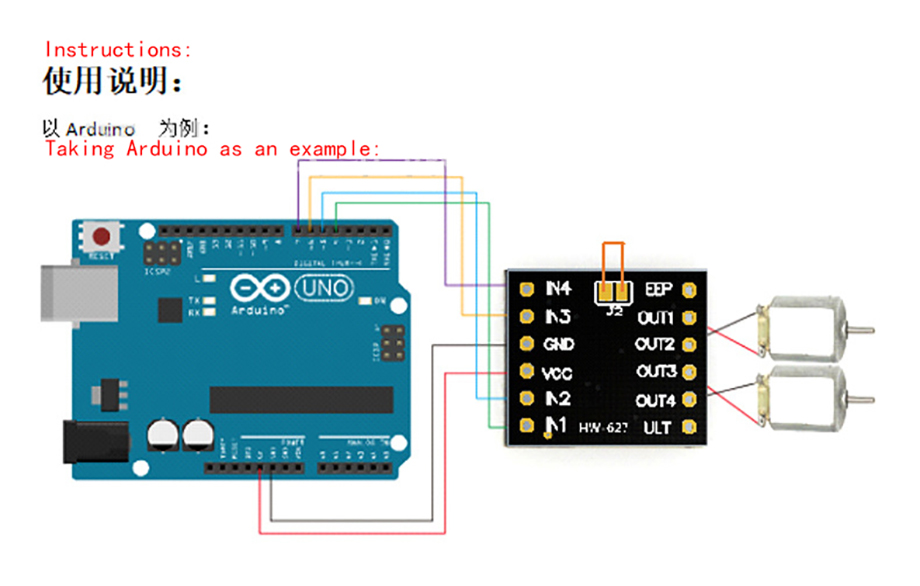

详情-02

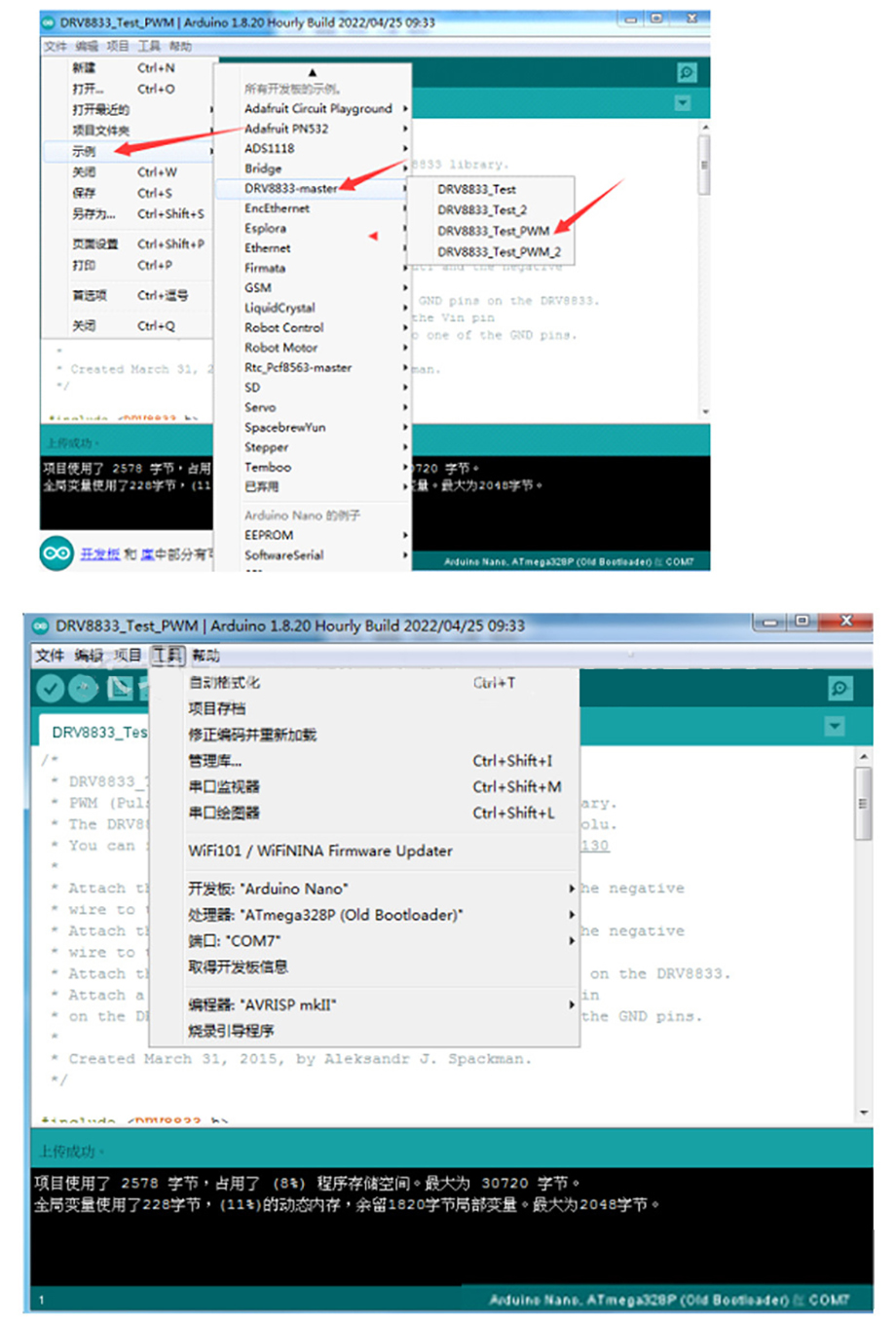

详情-03

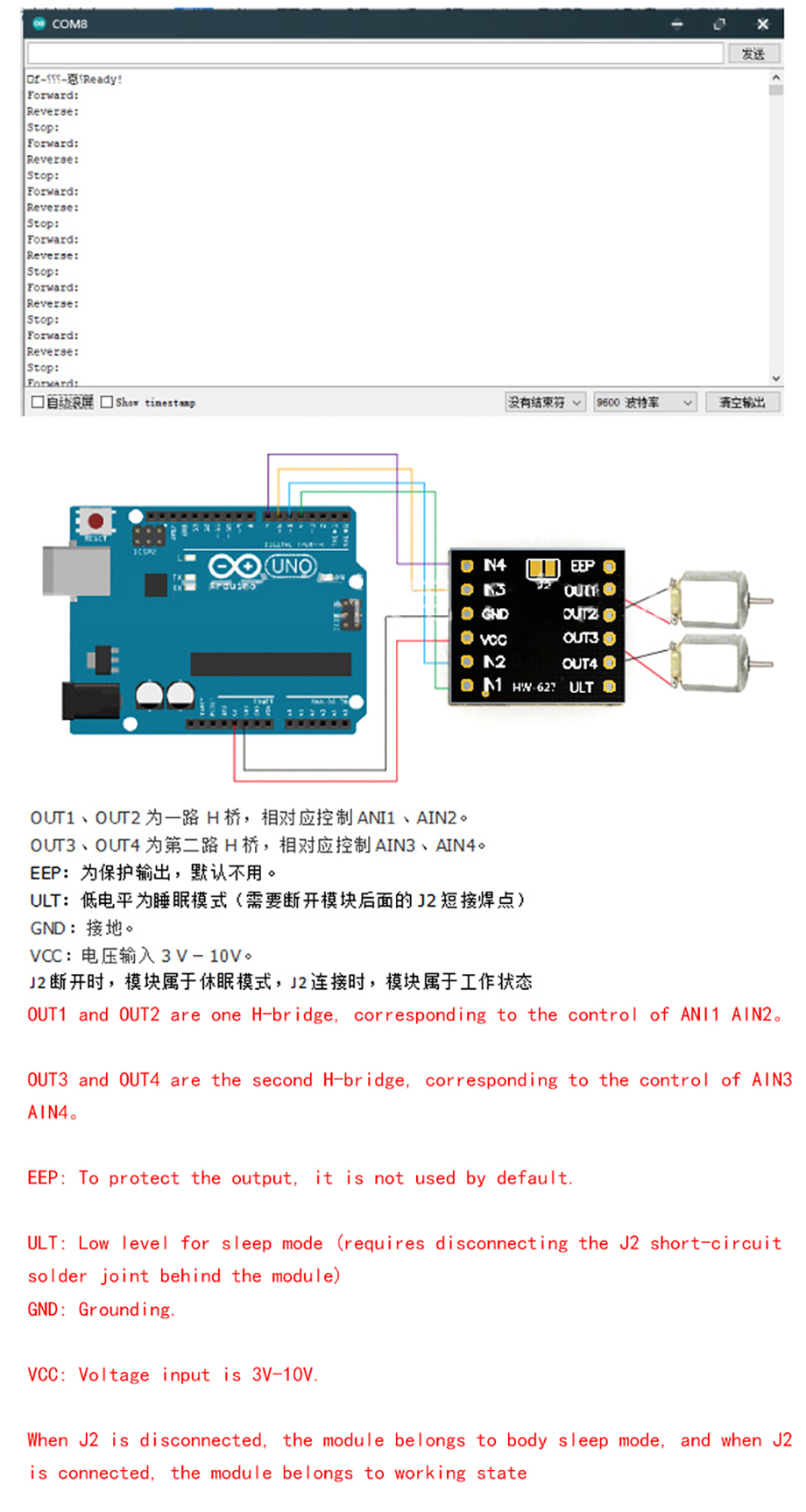

详情-04

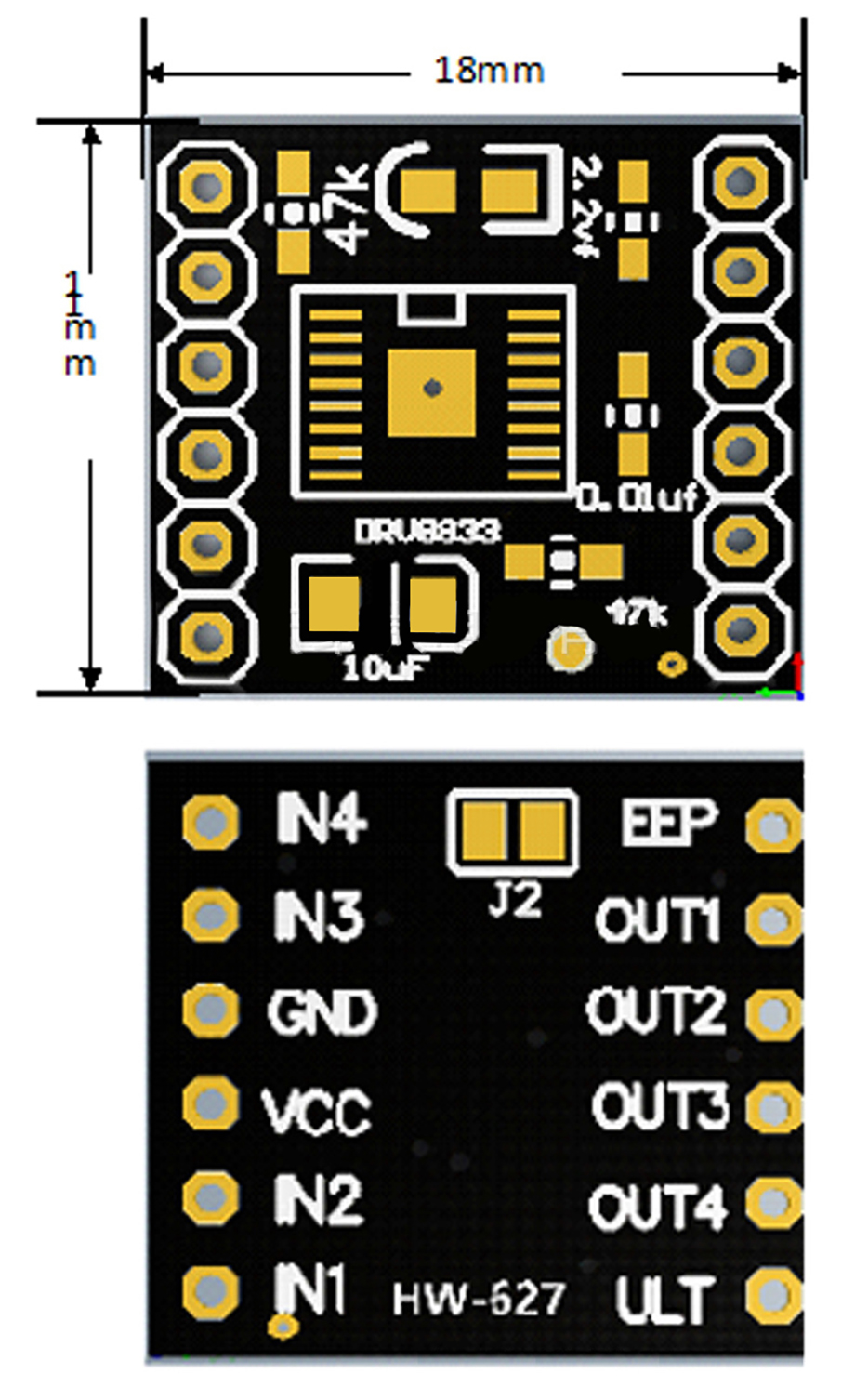

Product Size


详情-05

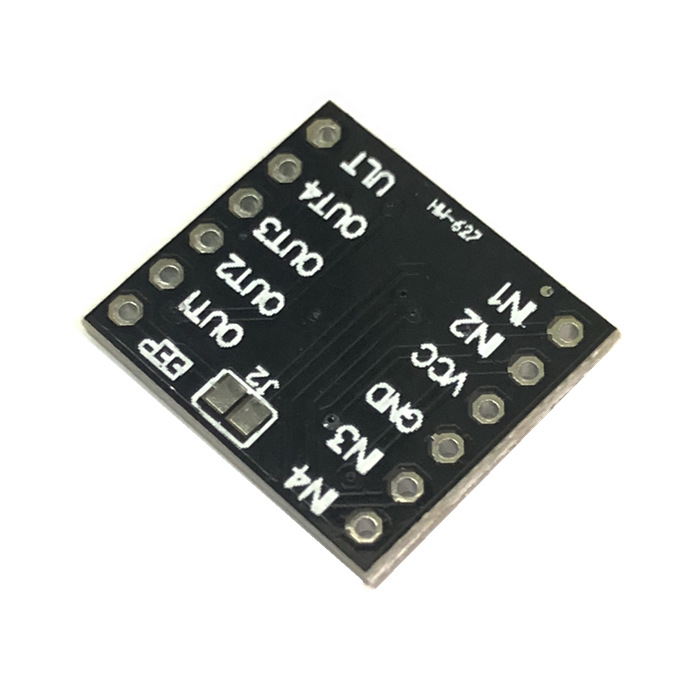

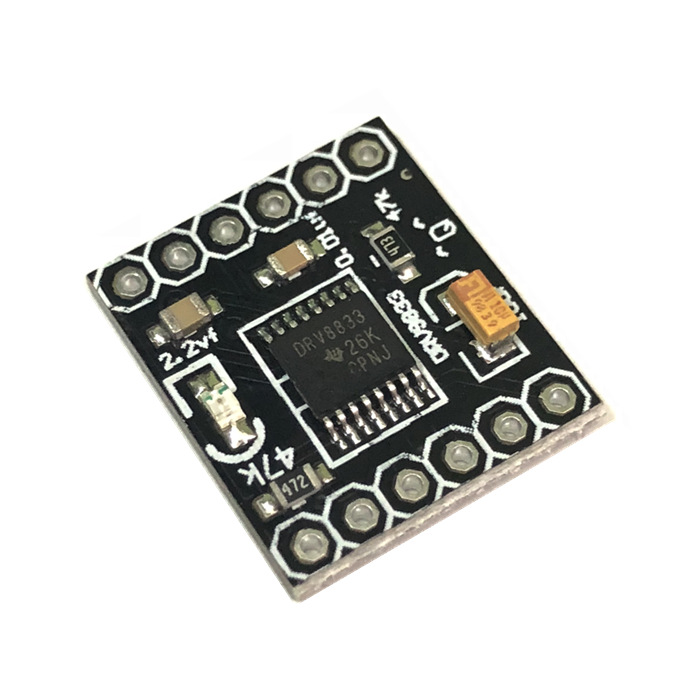

Product Show


主图-00

主图-01

主图-02
