MAX30102 heart rate and blood oxygen sensor module heart rate and blood oxygen sensor heart rate module

MAX30102

Model:MAX30102

Manufacturer:ANSC/OEM

Package:module

Detail

Product Parameter


Supply voltage: DC 3.3V;


Communication method: Standard IIC communication;


Check signal type: Light Reflection Signal (PPG);


Equipped with work indicator light: sensor integrated with red LED;


Product Description


The module adopts MAX30102, which integrates pulse oximeter and heart rate monitoring sensor. It integrates a red LED and an infrared LED, a photodetector, optical components, optimized optical components, and a low-noise analog signal processor to monitor pulse oximetry and heart rate signals. The module has a standard I2C communication interface, which can transmit the collected data to STM32, 51, Arduino and other microcontrollers for heart rate and blood oxygen calculation.


Product Application:


Medical monitoring equipment, fitness aids, wearable devices.


Product Hot tip

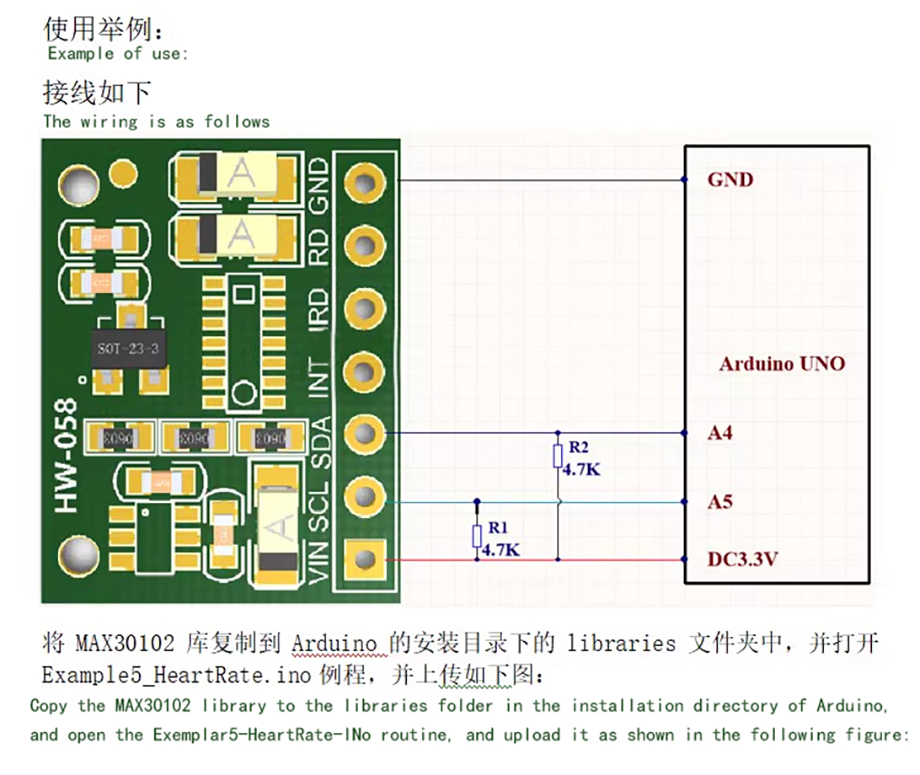

Attention: SCL and SDA need to be pulled up through resistors for voltage level:

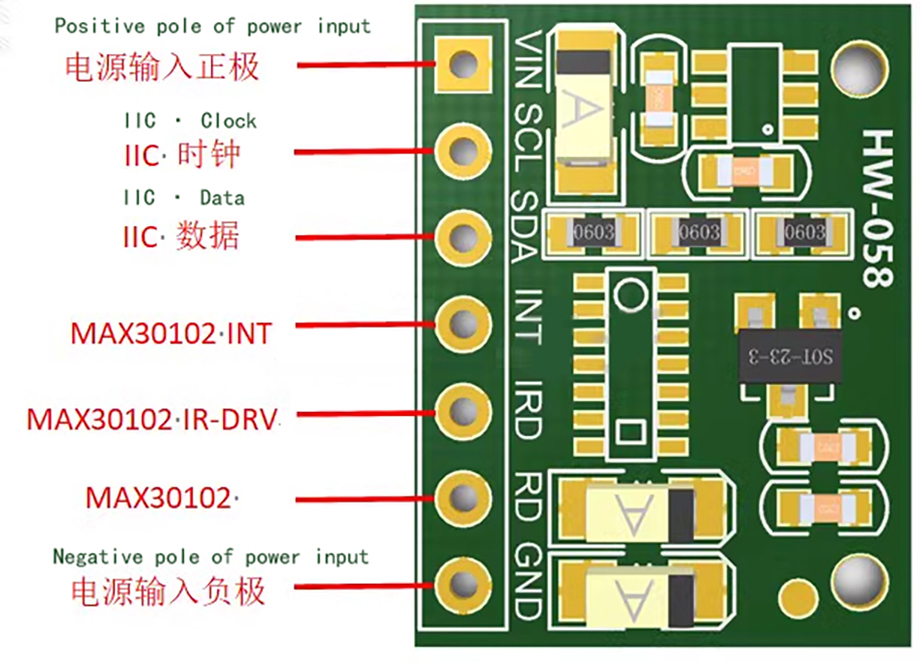

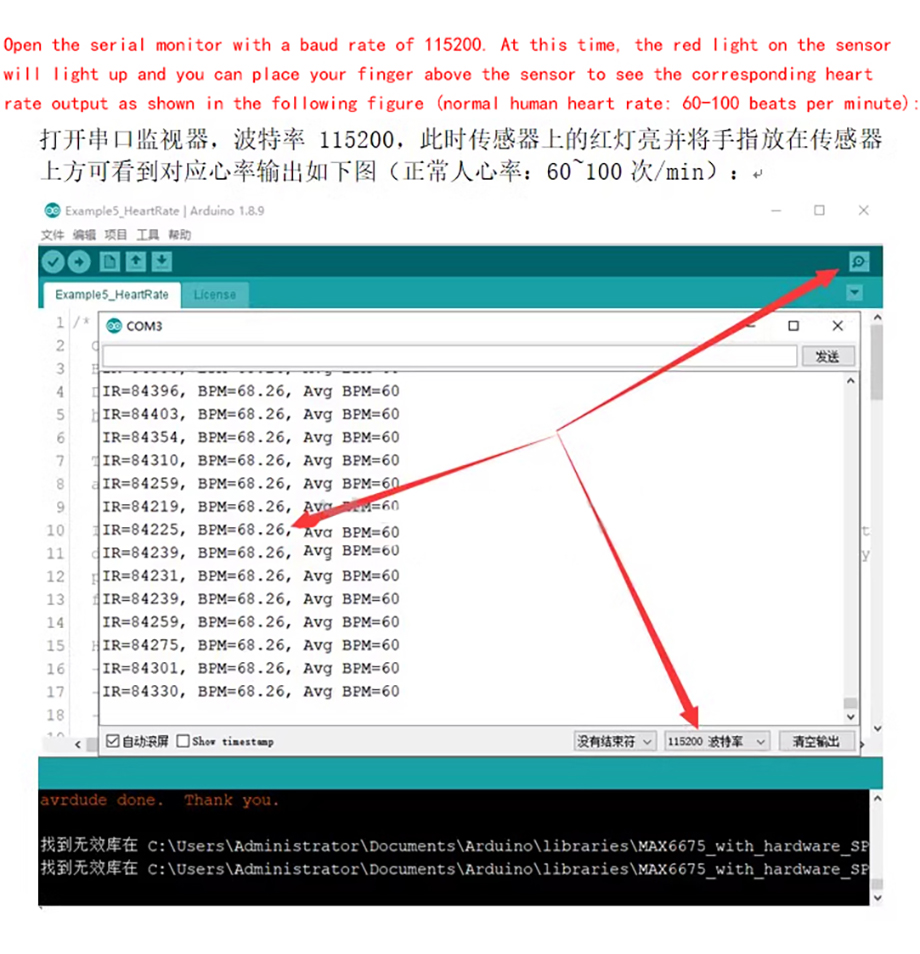

Product Features


详情-03

详情-04

详情-05

详情-06

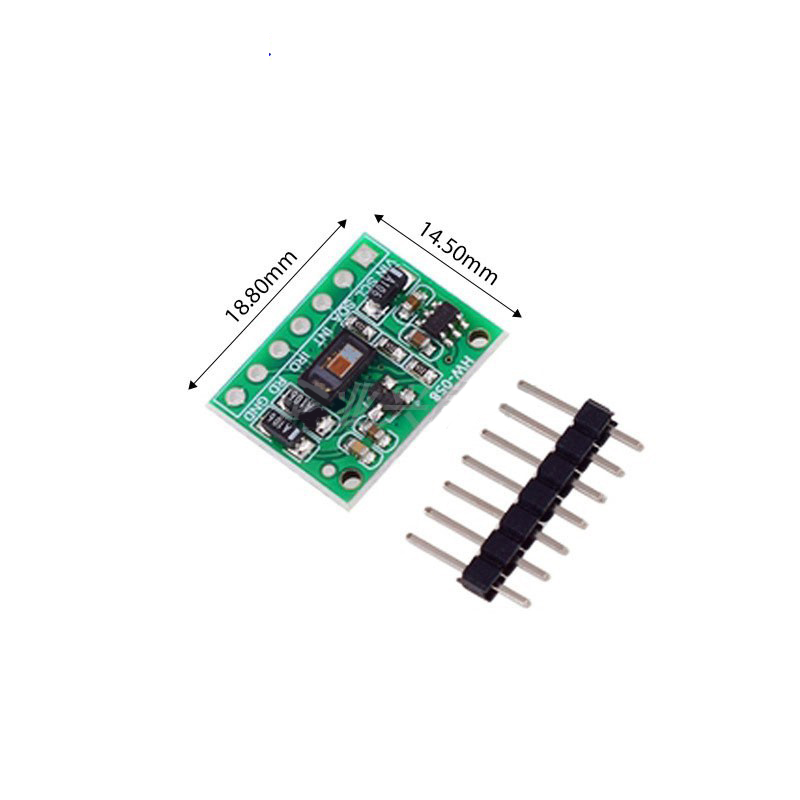

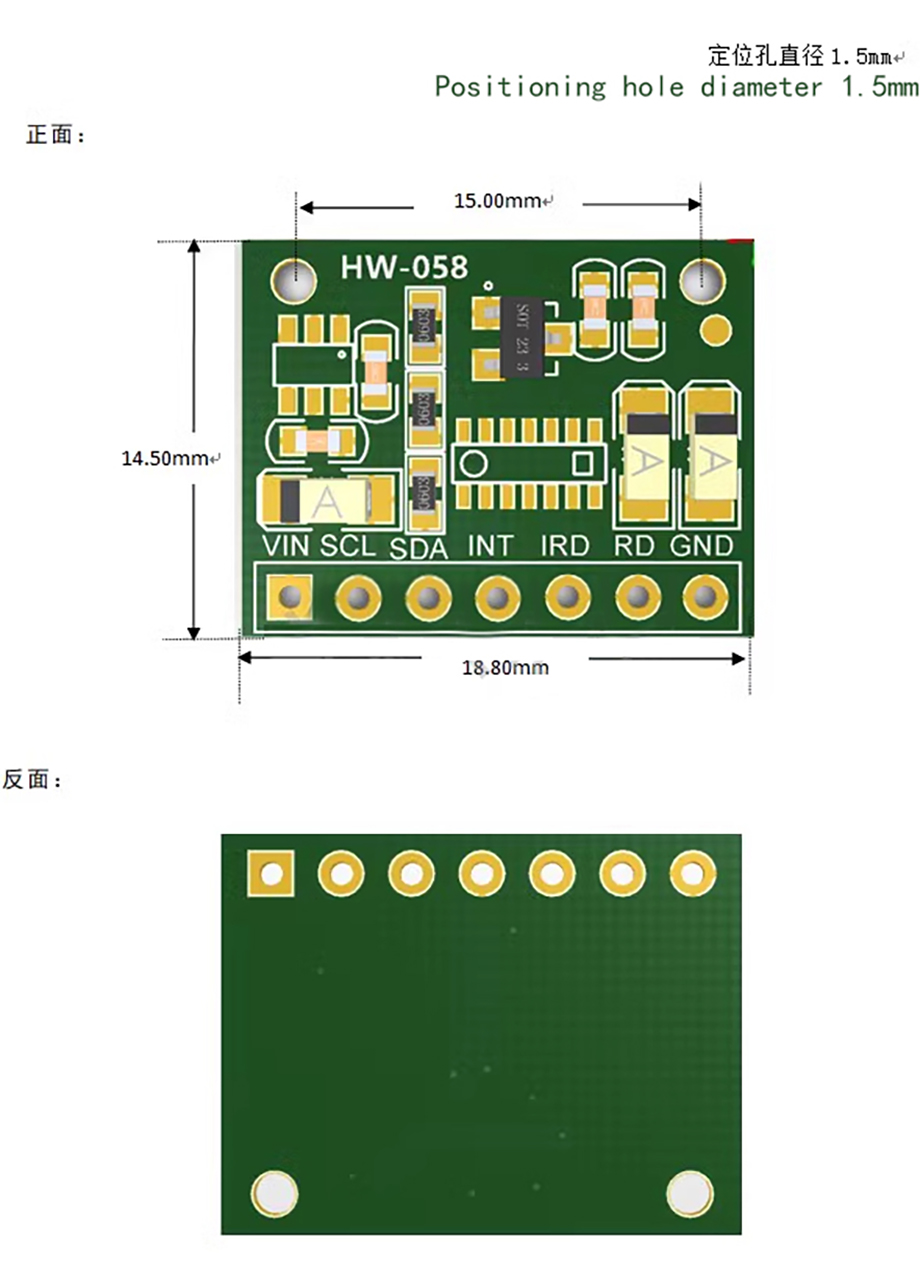

Product Size


详情-07

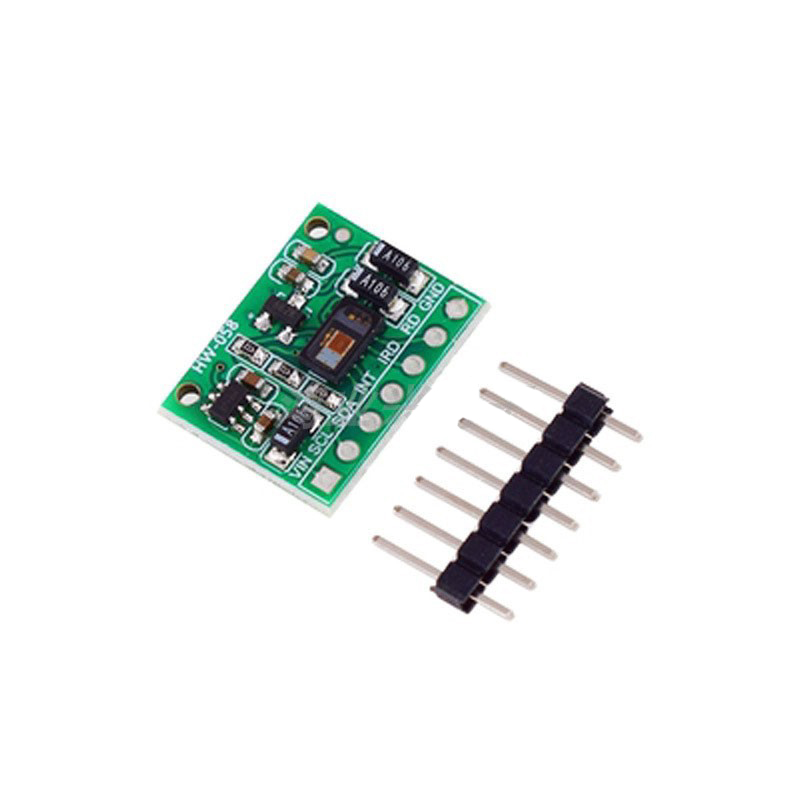

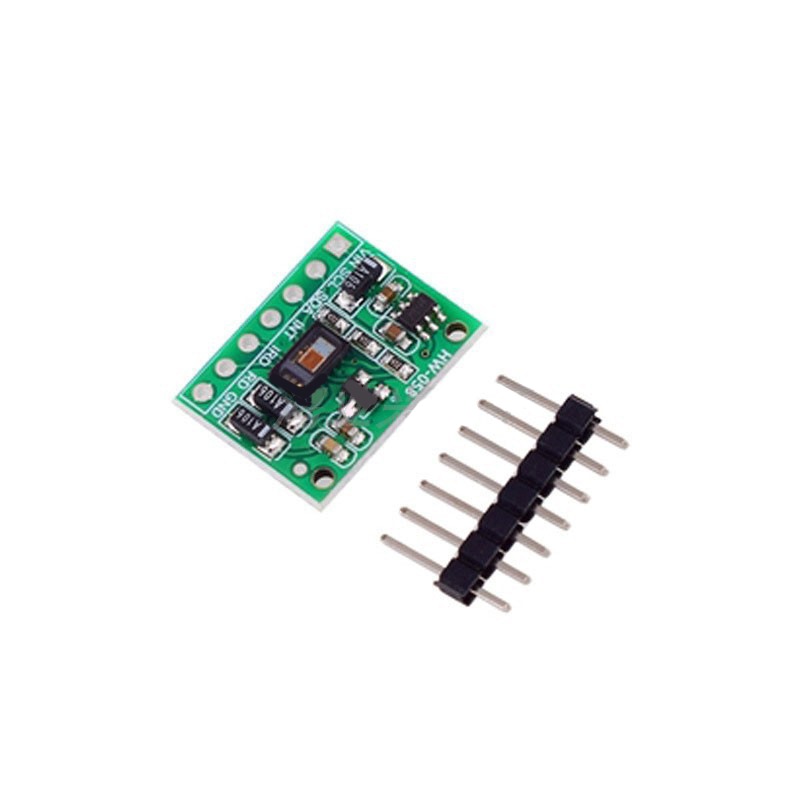

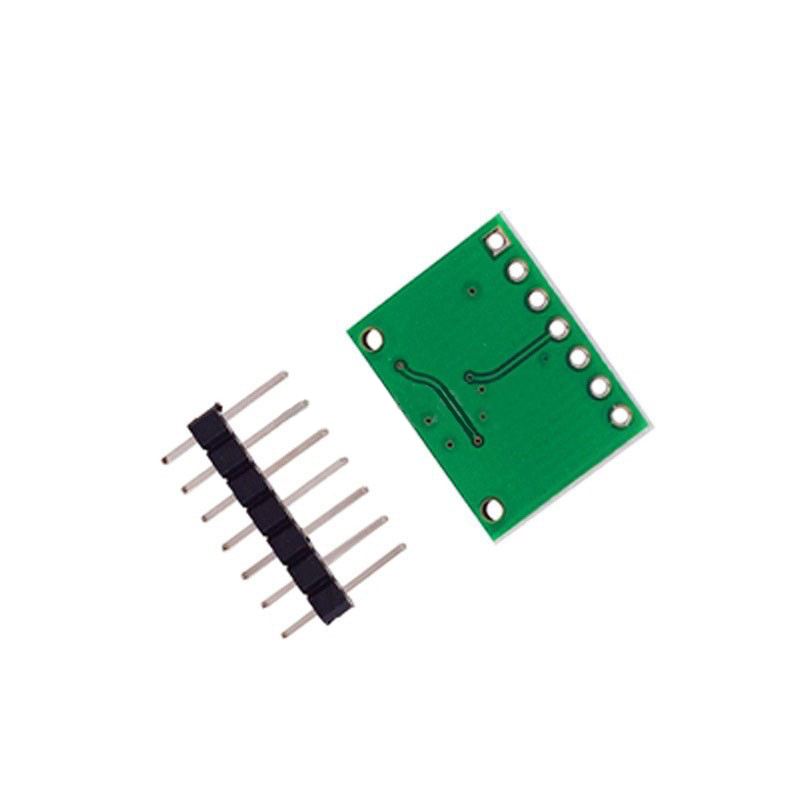

Product Show


主图-00

主图-01

主图-02

主图-03
