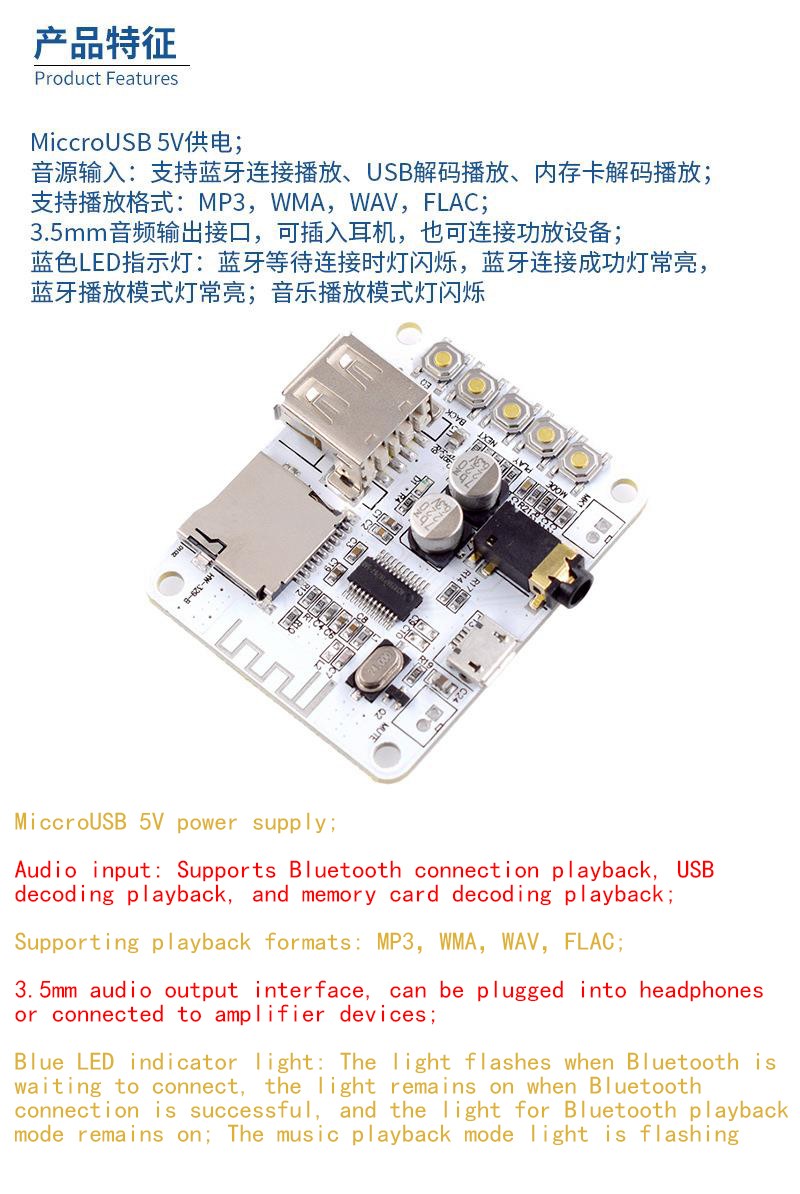

Product Parameters
MICCROUSB 5V power supply;
Audio input: Supports Bluetooth connection playback, USB decoding playback, and memory card decoding playback;
Supporting playback formats: MP3,WMA,WAV,FLAC;
3.5mm audio output interface, can be plugged into headphones or connected to amplifier devices:
Blue LED indicator light: The light flashes when Bluetooth is waiting to connect, and the light remains on when Bluetooth connection is successful
The Bluetooth playback mode light is always on; The music playback mode light is flashing
Product Features
1. Button description:
MODE button: Input mode switch
PLAY button: play/pause
NEXT button: Short press one song/Long press volume up
BACK button: Short press the previous track/Long press to decrease volume
EQ button: Audio mode switching (providing multiple sound effects)
2. Audio playback mode description:
A、 Mode control
When the decoding board is not plugged in with a USB flash drive or TF card, the module defaults to Bluetooth playback mode when powered on,
When the decoding board is plugged into a USB flash drive or TF card, the module defaults to memory card playback mode when powered on;
B、 Bluetooth playback mode
Powered by a USB cable, the blue indicator light flashes and enters Bluetooth mode; When hearing the voice broadcast 'The Bluetooth device is ready to pair', it means entering Bluetooth mode and waiting for pairing; After searching for "H-BT" (decoded device name) on your phone's Bluetooth, click on "Connect". When you hear the voice broadcast "The Bluetooth device is connected successfully", it means that the decoding board has been successfully connected to the phone. At this time, the blue indicator light stays on, and when playing music, the blue indicator light flashes.
Bluetooth memory connection, successful Bluetooth pairing for the first time, and automatic connection in the later stage.
c、 Memory card playback mode
When inserting a USB flash drive or TF card, music files stored inside can be played
