Product Introduction

DC-DC adjustable boost and buck module, with a wide input voltage range and high conversion rate. The output voltage can be changed by adjusting the blue adjustable resistor on the module. Short circuit protection function. If there is an output short circuit, it will lock the output to 0, eliminate the short circuit, and power on again to restart the output

Product Parameters

Module nature: Non isolated automatic voltage rise and fall: (SEPIC)

Rectification method: asynchronous rectification

Input voltage: 3V-15V

Output voltage: 0.5V-30V

Output current: 3A (large)

Conversion efficiency: 95% (high) (the larger the pressure difference, the greater the consumption, and the lower the conversion efficiency)

Switching frequency: 150KHZ

Output ripple: 40MV (large)

Load adjustment rate: 0.5%

Voltage regulation rate: ± 2.5%

Working temperature:- 40 ° C to+85 ° C

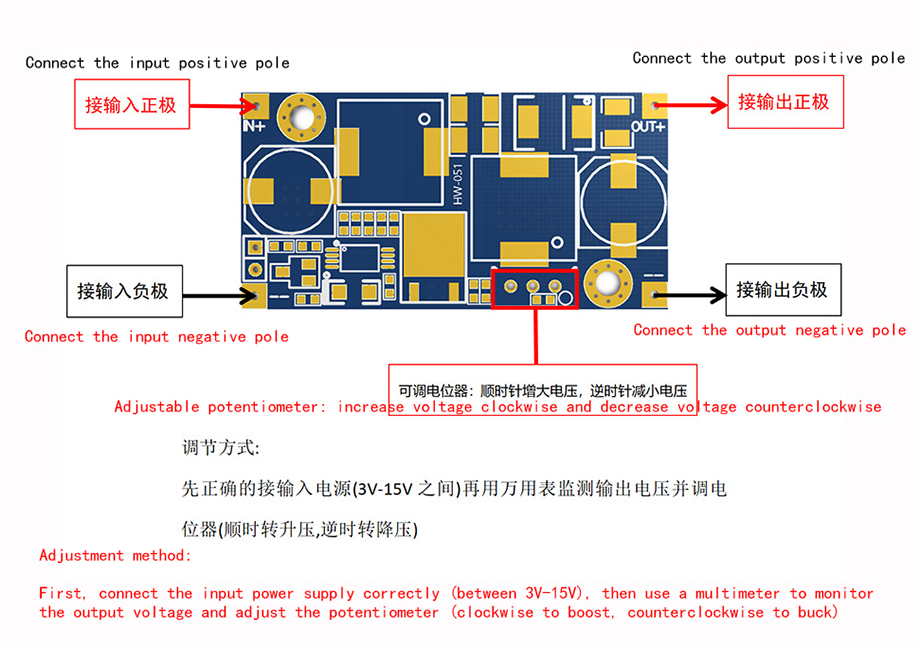

Product Functions

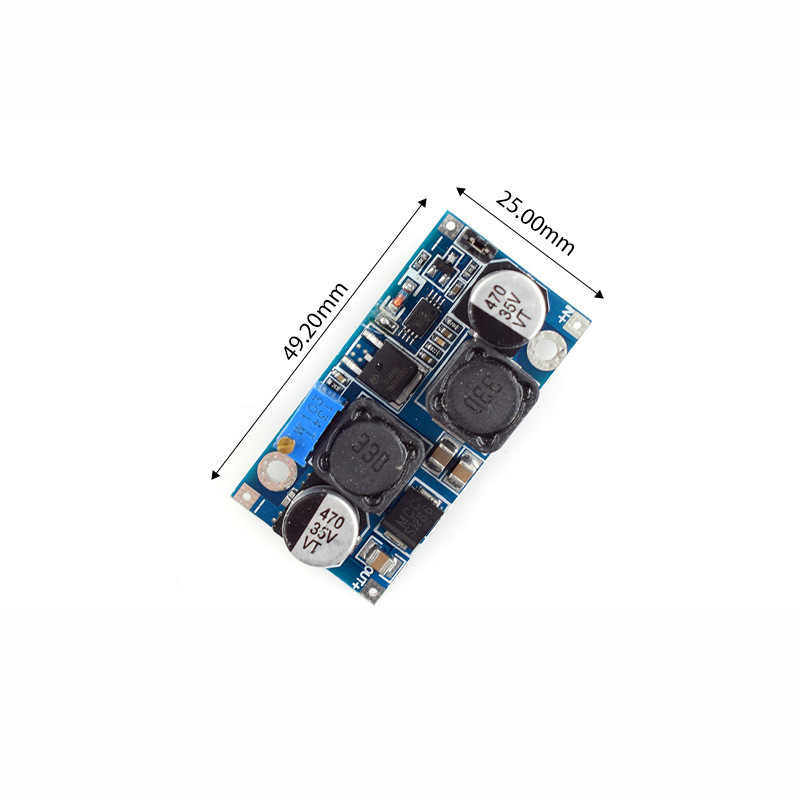

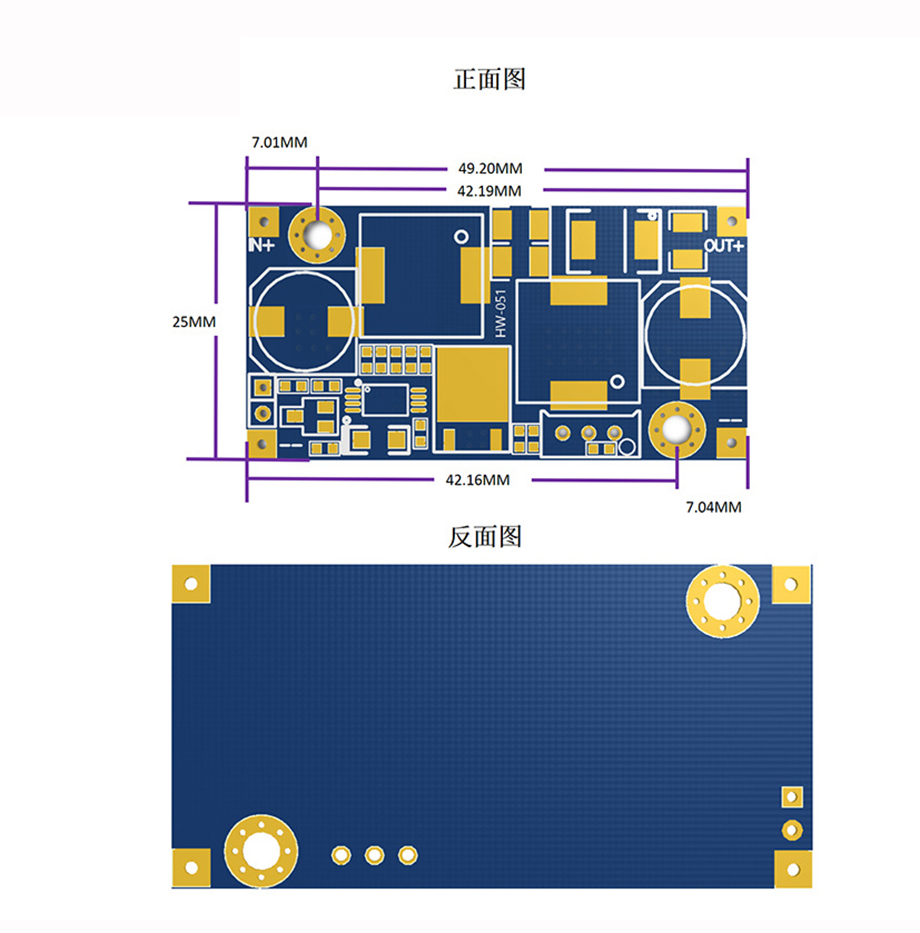

Product Size

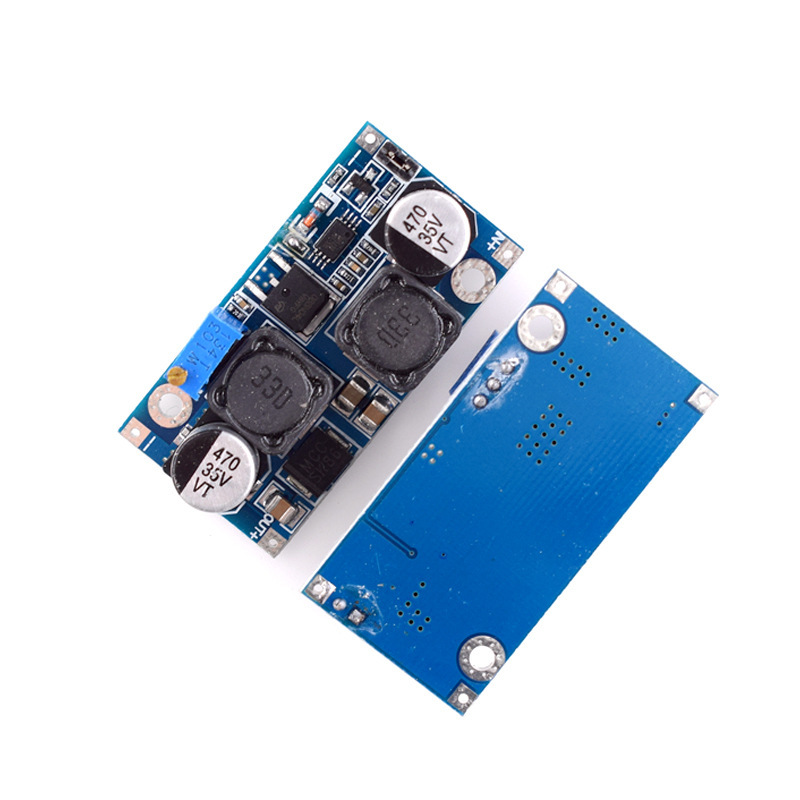

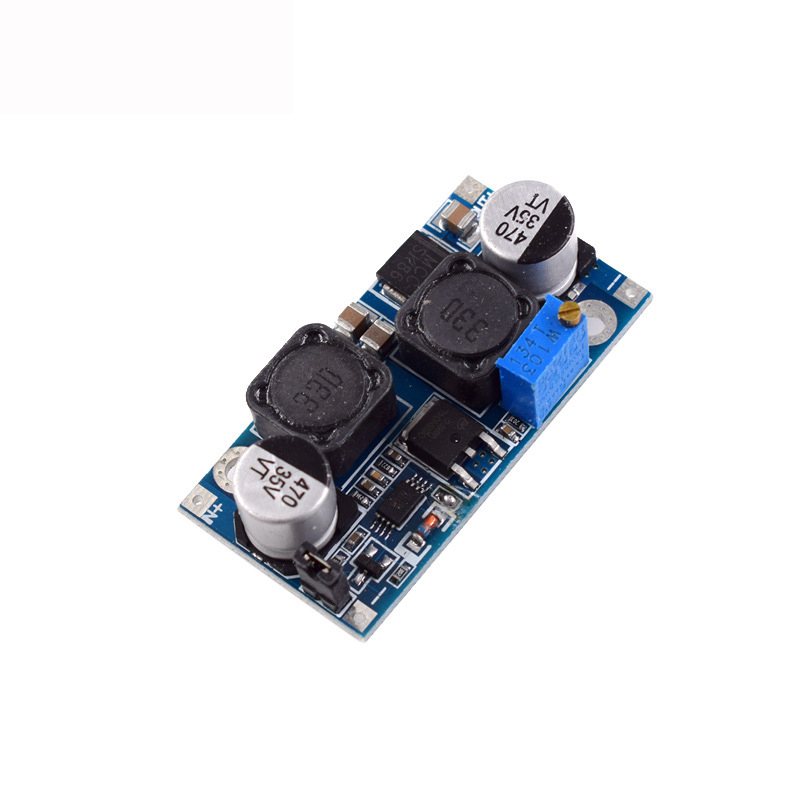

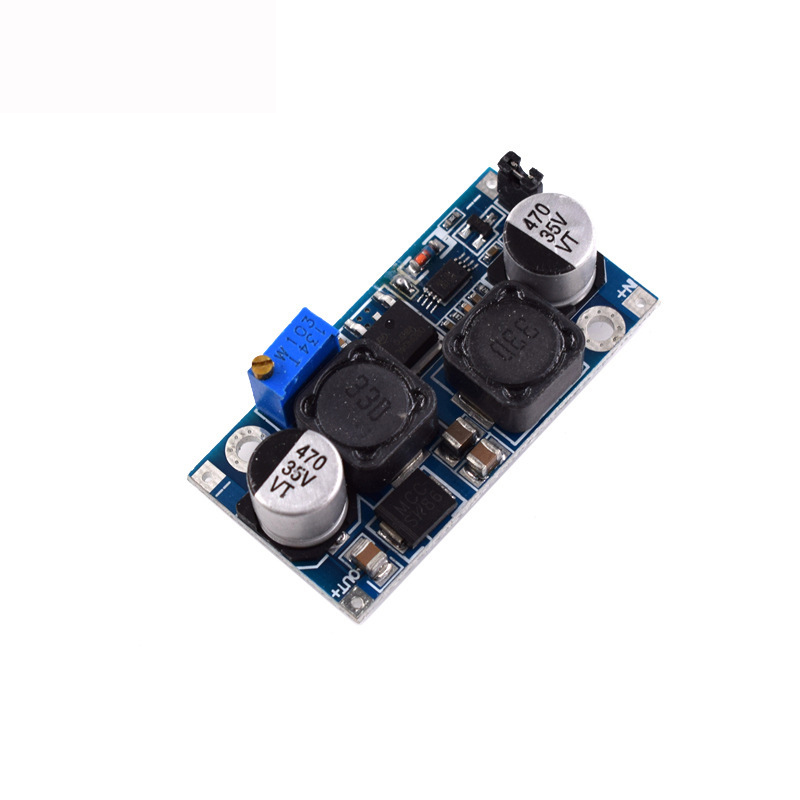

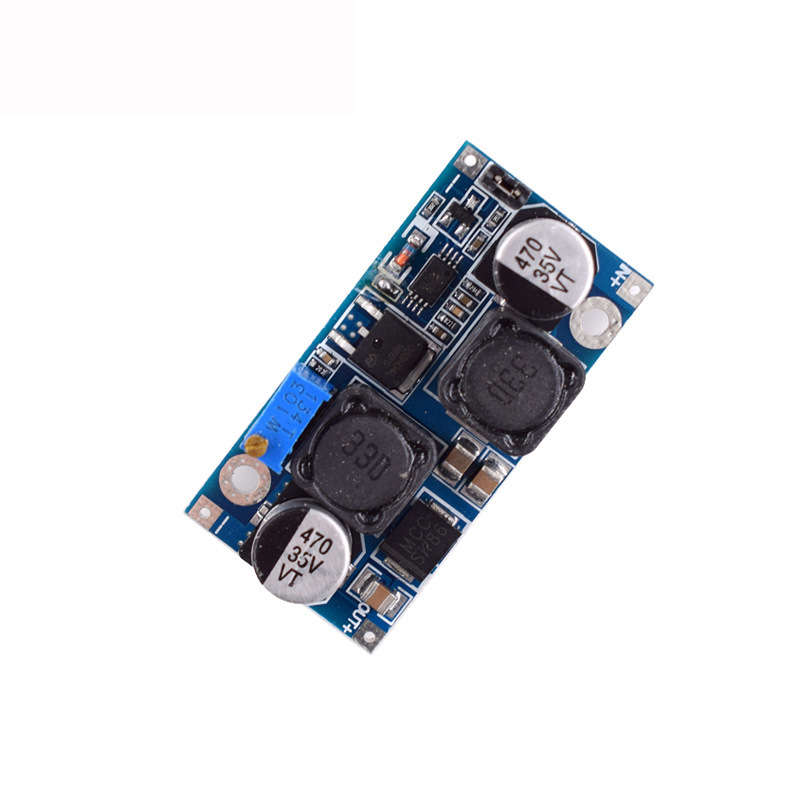

Product Show

Payment&Transportation

Official Certificate&Certificate

Multiple product supply

Company office environment

Warehouse Real Shot

Standard packaging
