Product Parameters

Power supply voltage: DC-12V-22V

Chip voltage range: DC8V-26V

Rated power: 20W+20W

Output impedance: 4-8 ohms

Peak power: 35W+35W

Maximum dynamic current: 4A

Static current: Gain: 35db

Output impedance: approximately 20K ohms

PCB size: Length 38mm * Style 20mm * Thickness 2.8mm

Pin: Width: 2.54 * 12, Length: 4mm

Product Introduction

This amplifier module adopts the chip design of TI company in the United States, with perfect protection functions such as undervoltage, overcurrent, output short circuit, etc., and excellent sound quality! Through 100 full power output short-circuit tests, quality assurance!!!

In the design, ports such as shutdown control and mute control are reserved, and there is an output fault report output, which is more convenient for applications in secondary development!

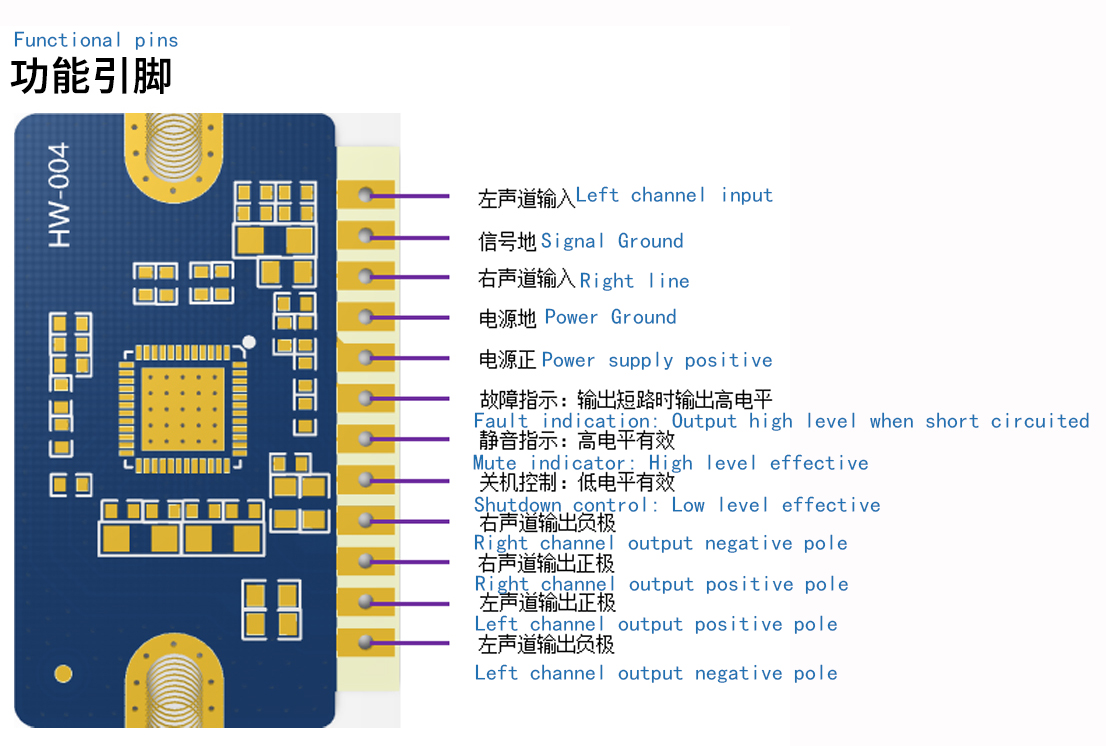

Product Functions

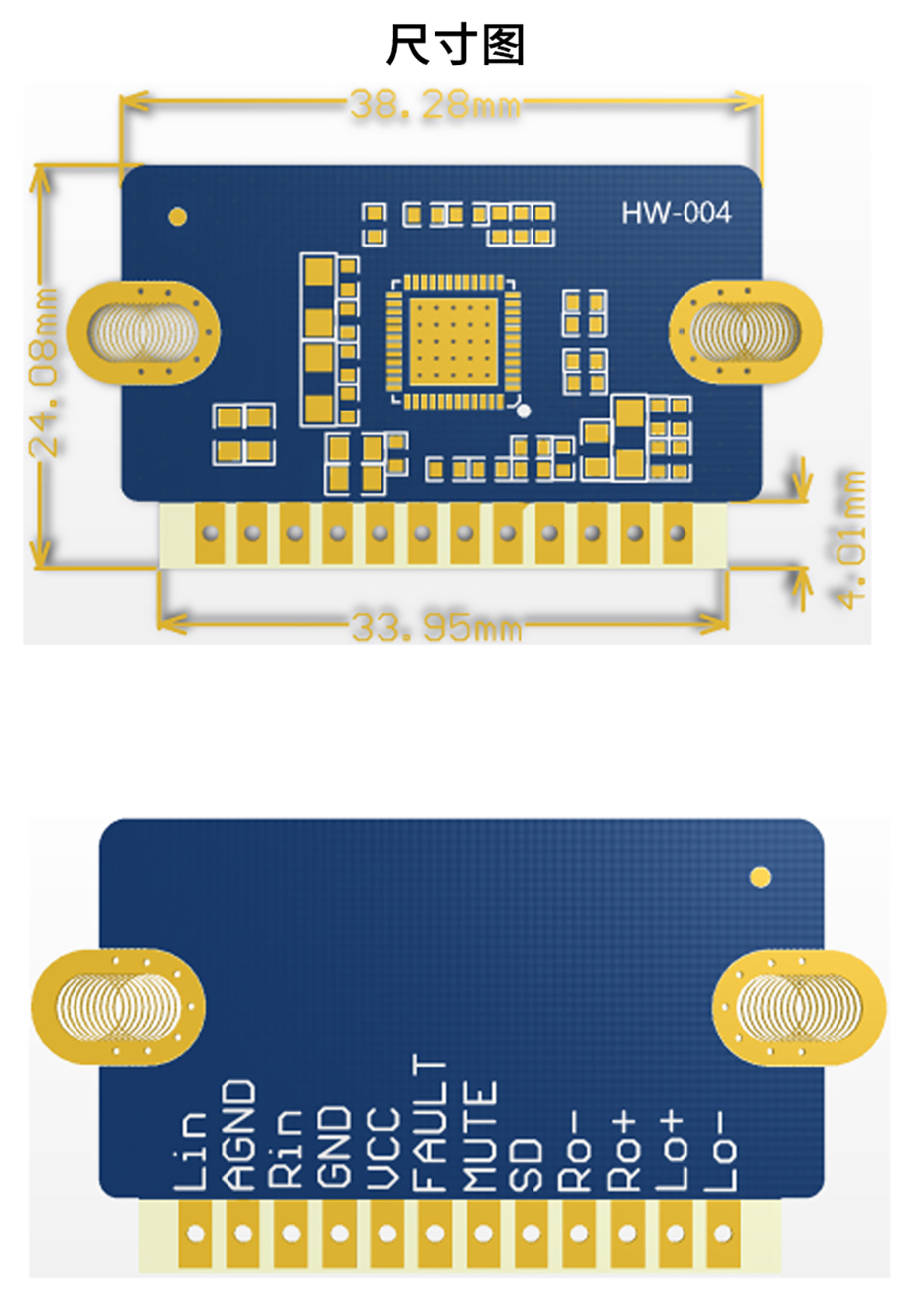

Product Size

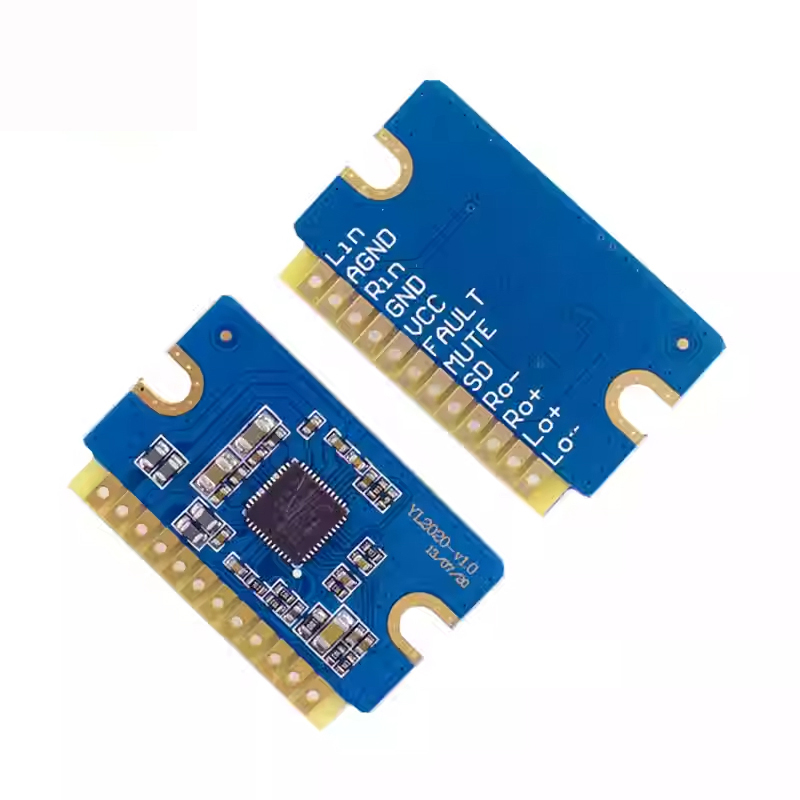

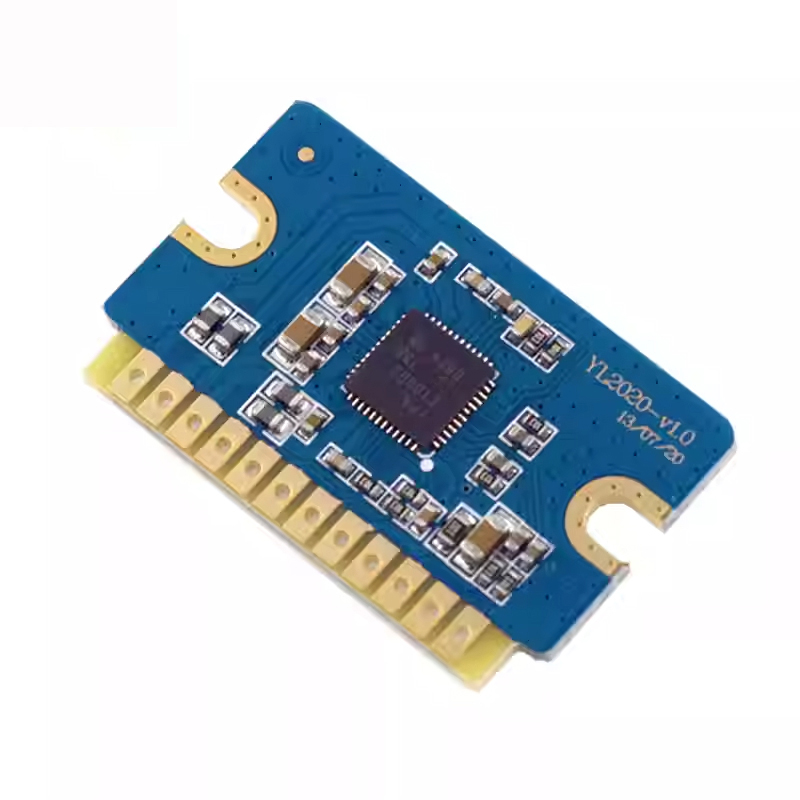

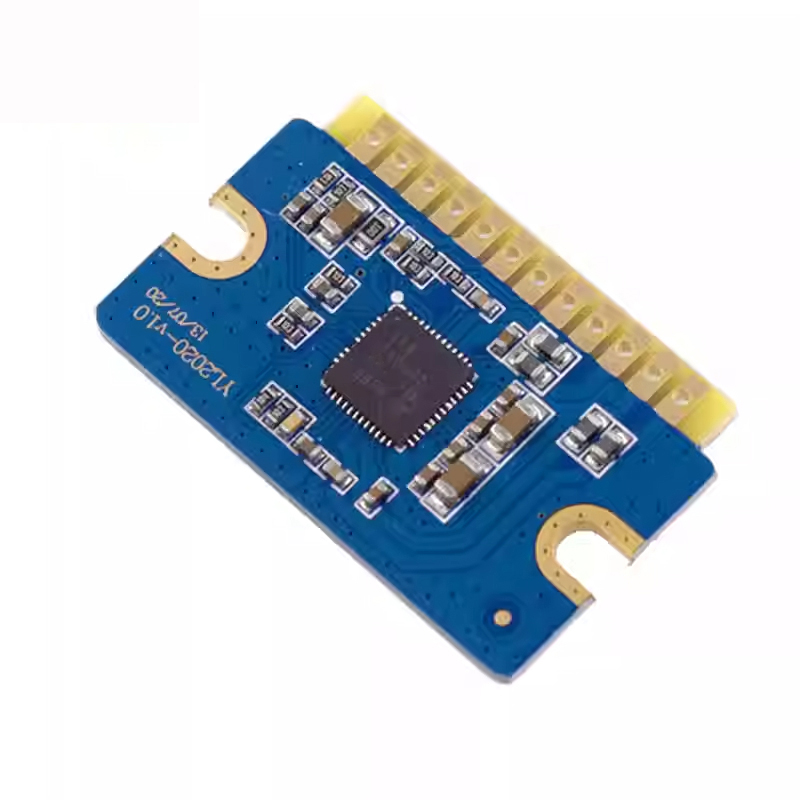

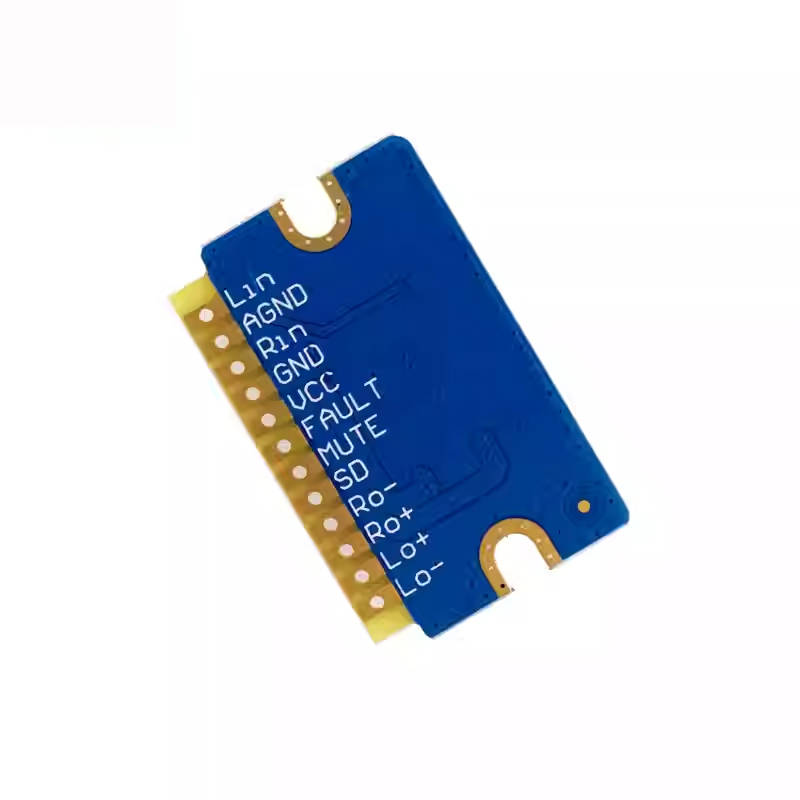

Product Show
