Product Description
| Type | Description |
| Part# | IQG48025A120V-101-R |
| Category | Power Supplies - Board Mount DC DC Converters |
| Mfr | / |
| Series | iQG (300W) |
| Packaging | Bulk |
| Part Status | Active |
| Type | Intermediate Bus Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Current - Output (Max) | 25A |
| Power (Watts) | 300 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | Remote On/Off |
| Operating Temperature | -40°C ~ 125°C |
| Efficiency | 94% |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP Module, 1/4 Brick |
| Size / Dimension | 2.28" L x 1.45" W x 0.52" H (57.9mm x 36.8mm x 13.2mm) |
| Control Features | Enable, Active Low |
| Base Product Number | IQG48025 |

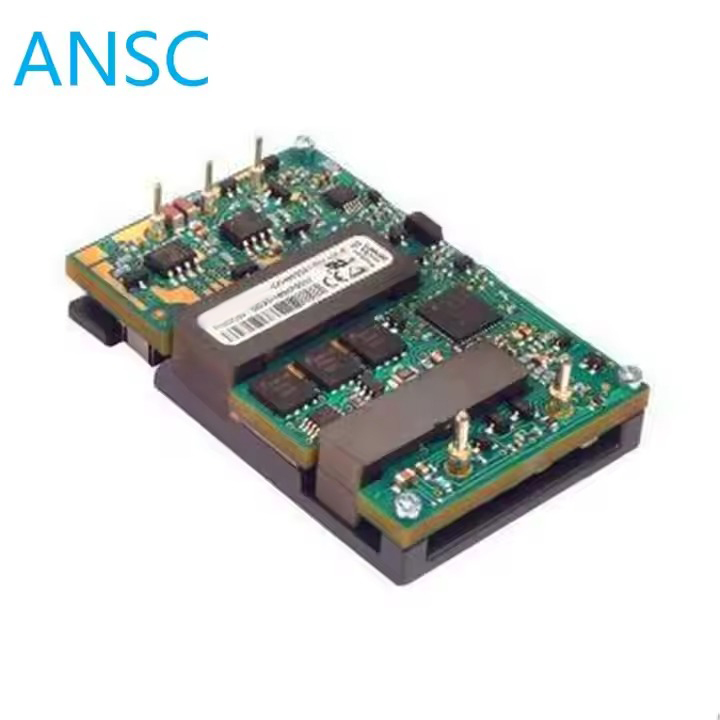

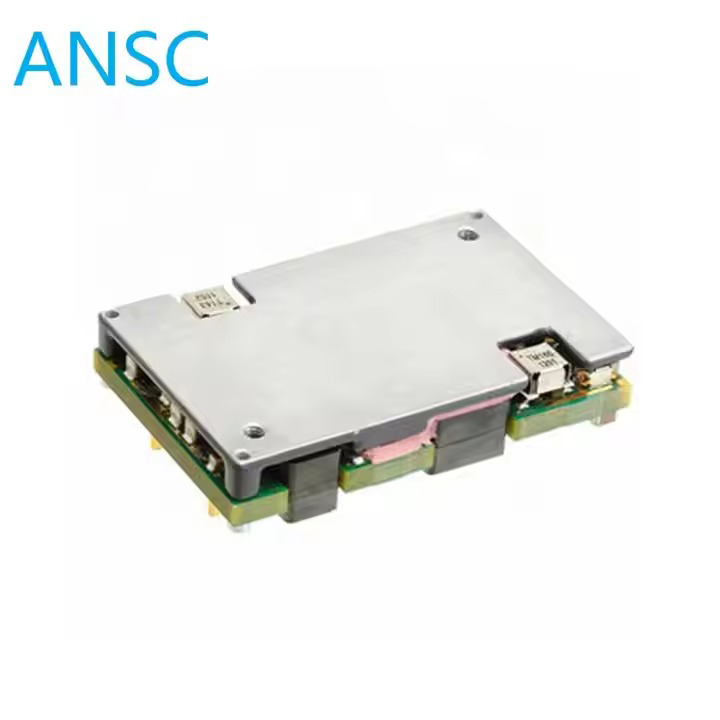

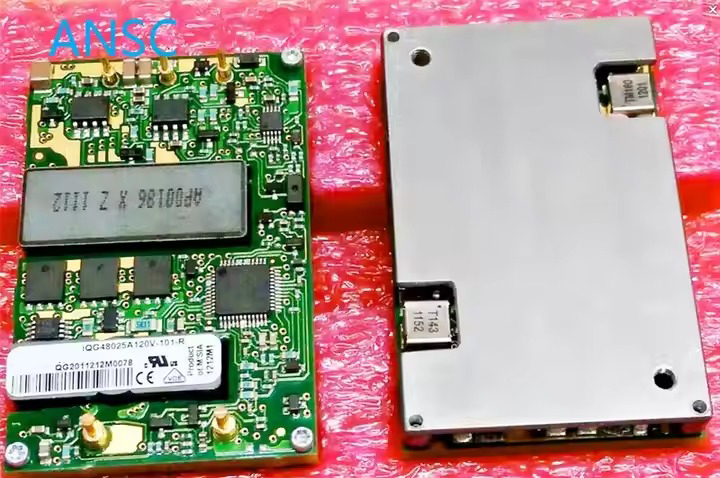

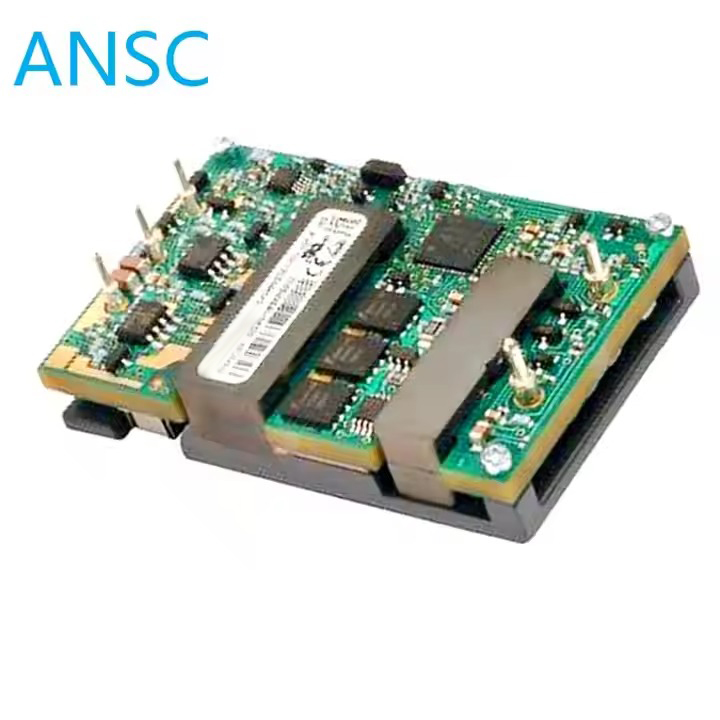

Actual image of the product

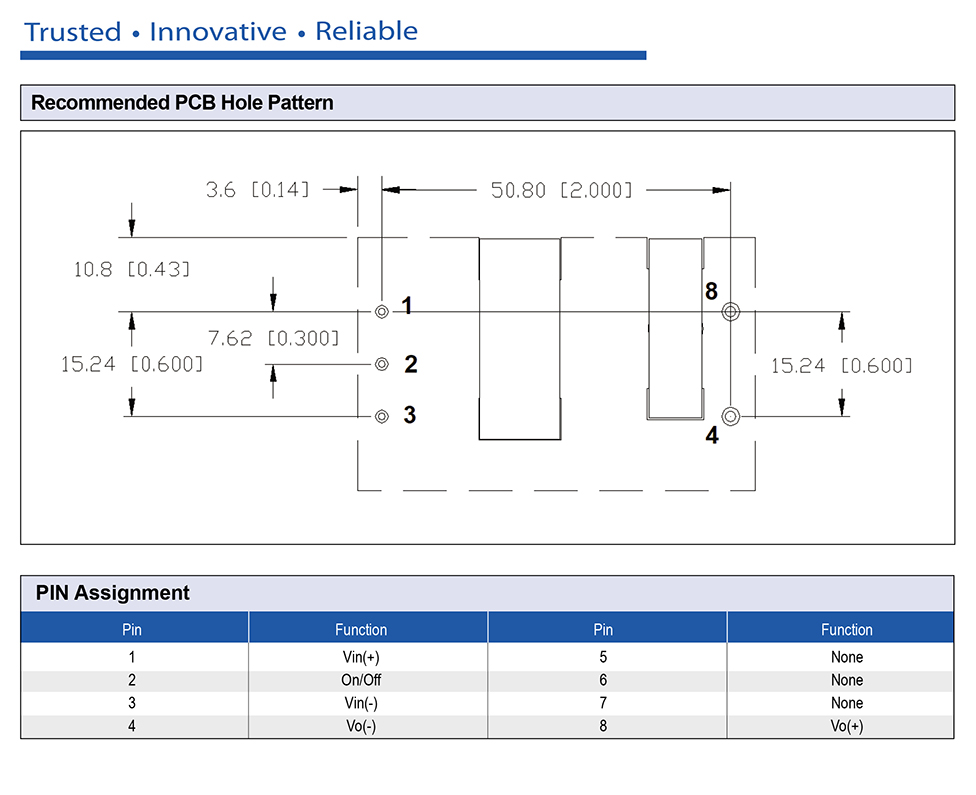

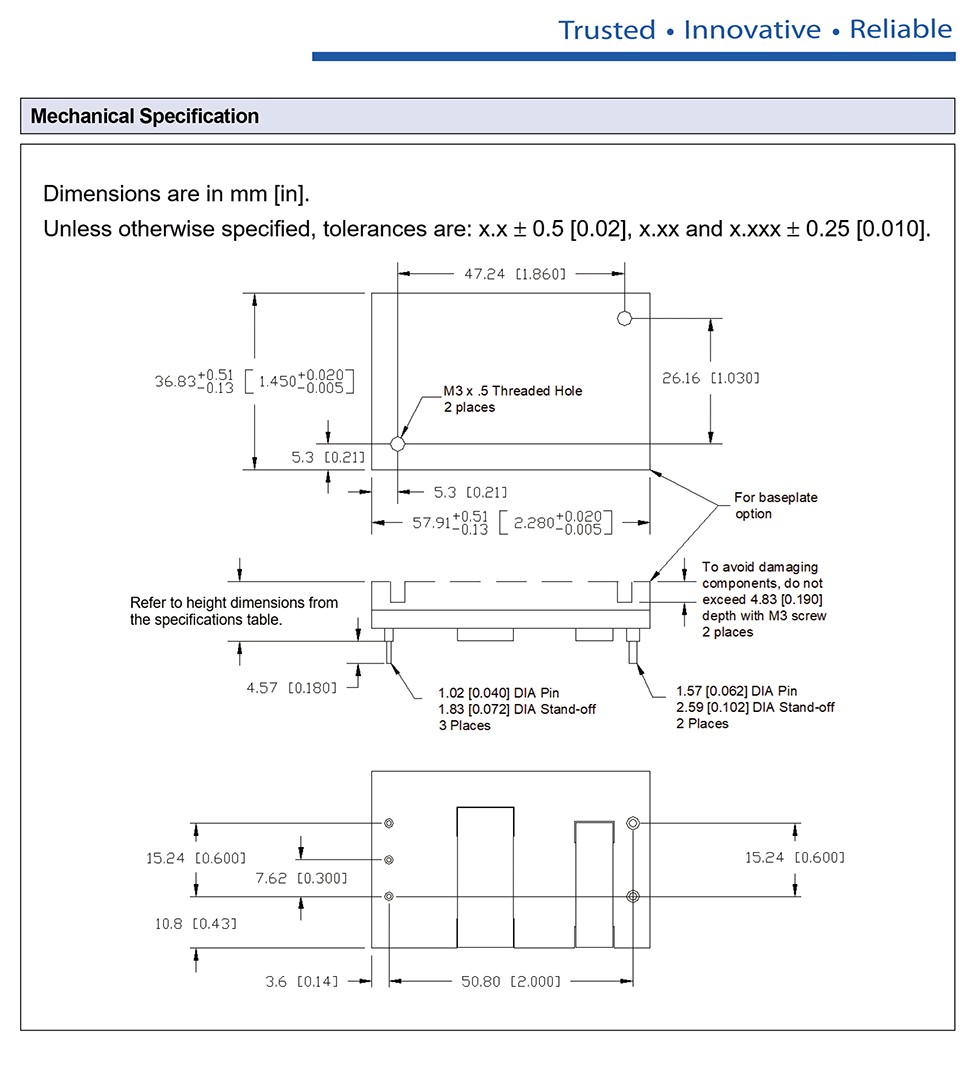

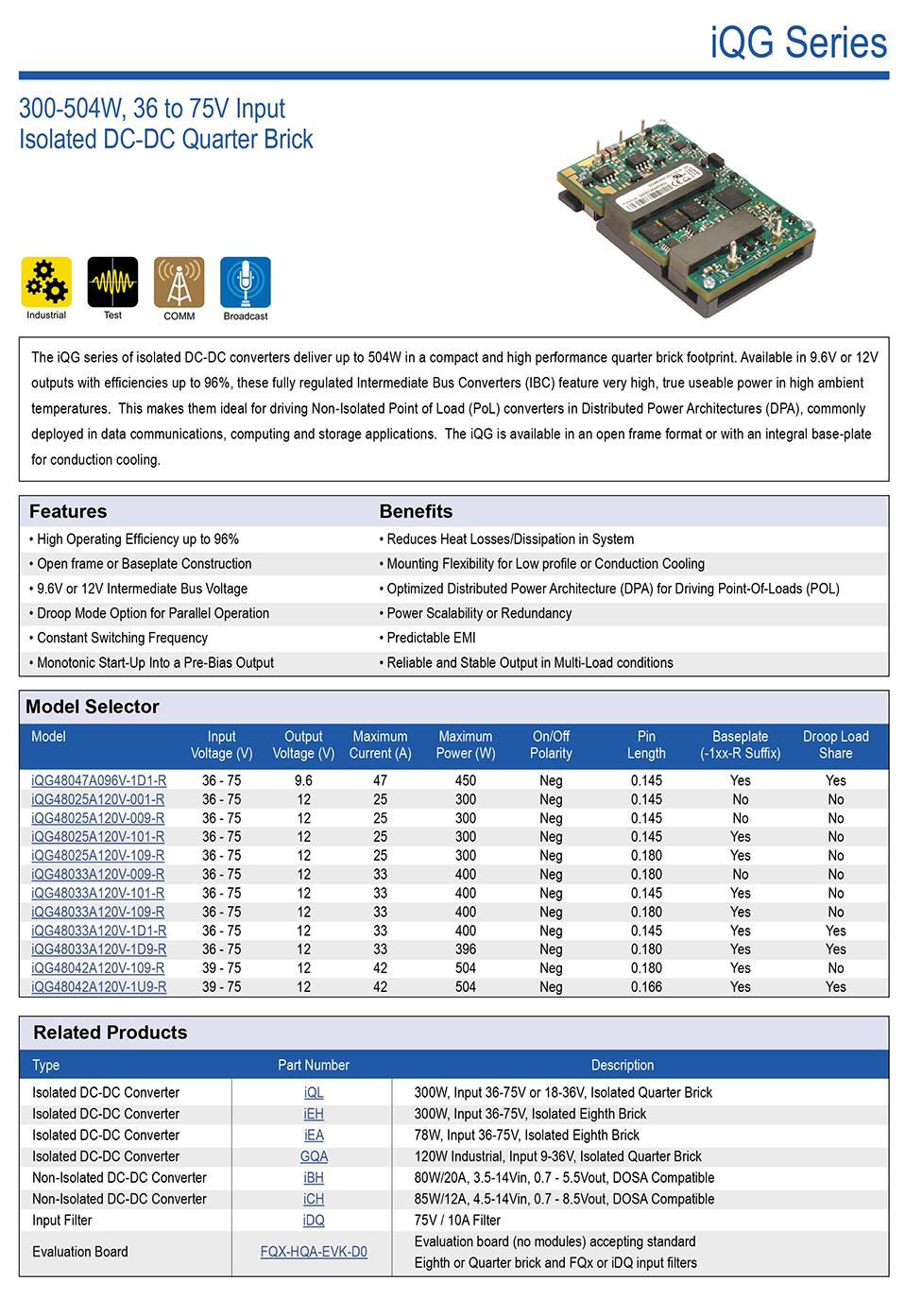

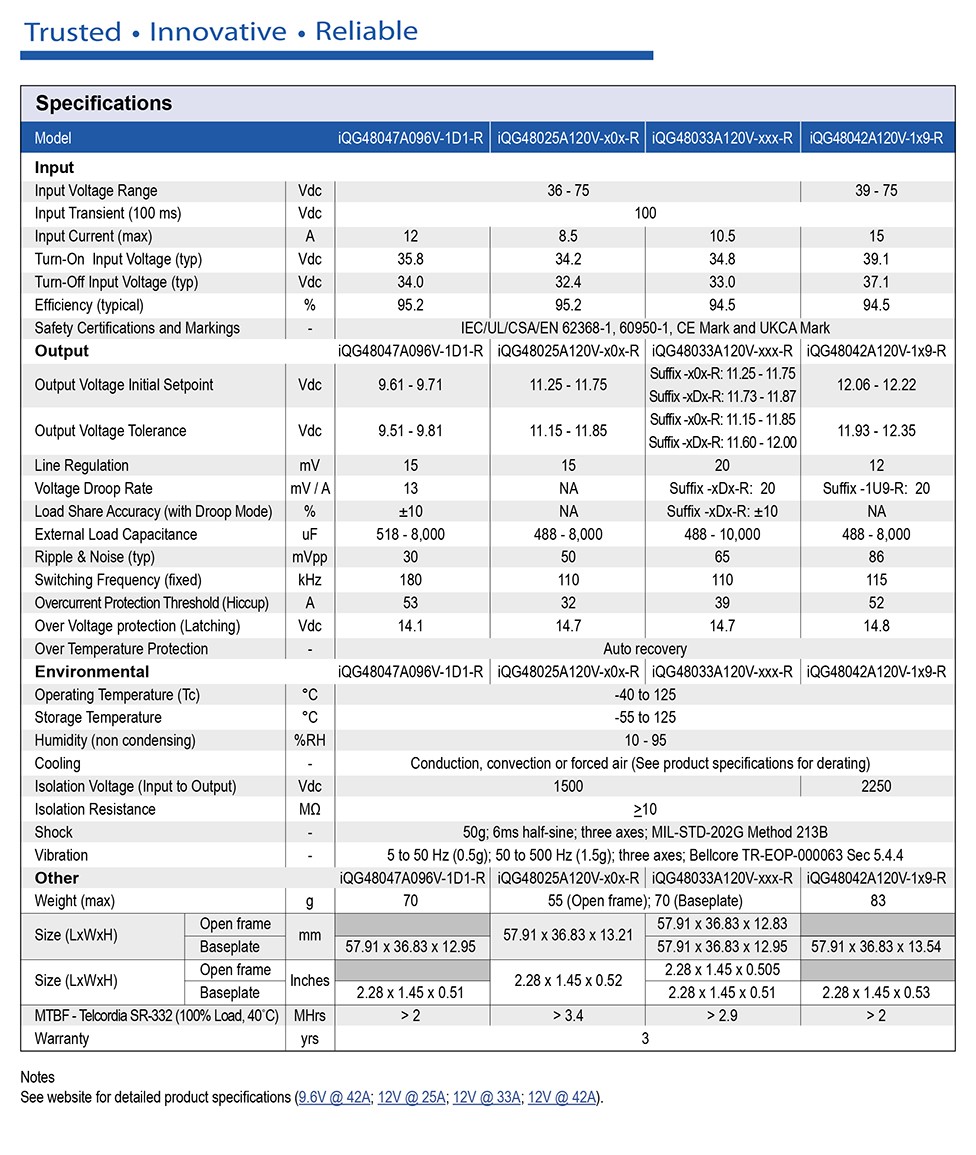

Product datasheet
For more information, please download
