Product Parameters

Two 8 * 8 dot arrays can be controlled using three SPI interfaces (MOSI CS SCK);

Compatible with any version of Raspberry Pi through direct insertion;

Can be controlled by a 51 microcontroller;

Driver chip MAX7219;

Dot matrix type 8 * 8 common shade red dot matrix;

Module size: 35 * 64 * 26.5mm

Product Functions

Usage method (reference):

Next, we will take the 51 microcontroller development board as an example to introduce the usage of the module. We have provided sample programs in our materials. In the program, we define the pins used as

Product Size

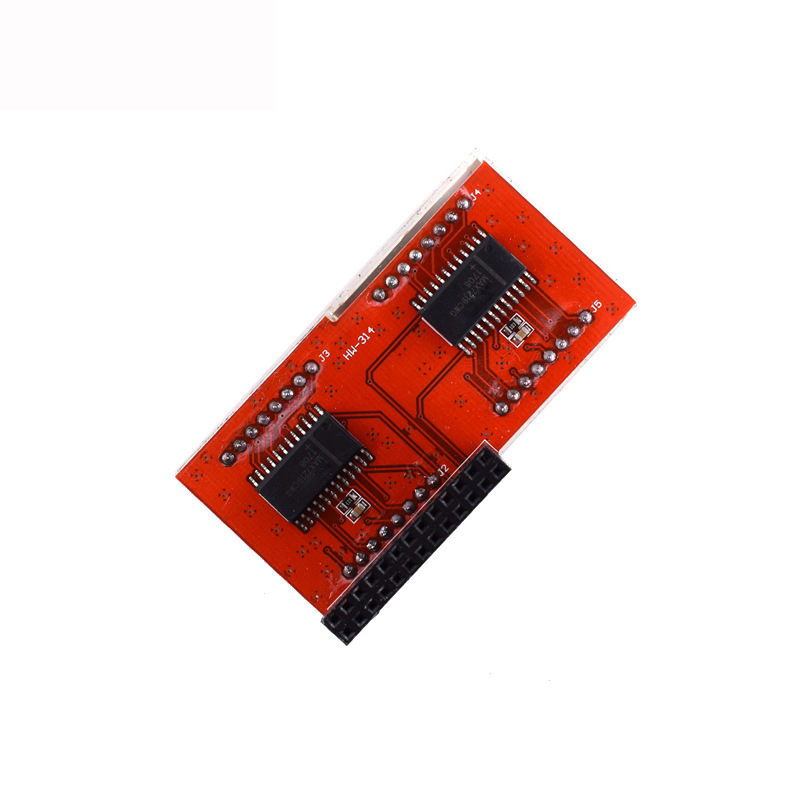

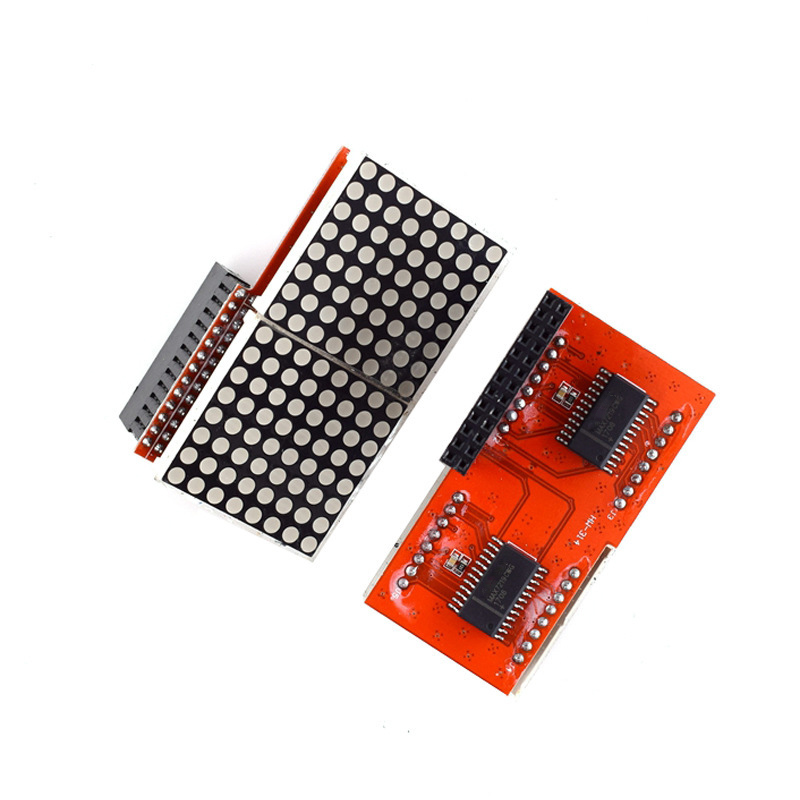

Product Show
