Product Parameters

Working voltage: 2.0V-5.5V

Low current consumption

Programmable data rate: 8SPS to 860SPS

I2C interface: pin optional address

4 single ended or 2 differential inputs (ADS1115)

Product Description

ADS1115 has a high-precision analog-to-digital converter with 16 bit resolution, which performs conversion operations at a rate of 860 sample data per second (SPS)

On board reference and oscillator, data is transmitted through an I2C compatible serial interface programmable gain amplifier to improve accuracy and convert analog signals to digital for data analysis

Product Application

Portable instrument consumer goods

Consumer goods

Battery monitoring

Battery monitoring temperature measurement

Factory Automation and Process Control

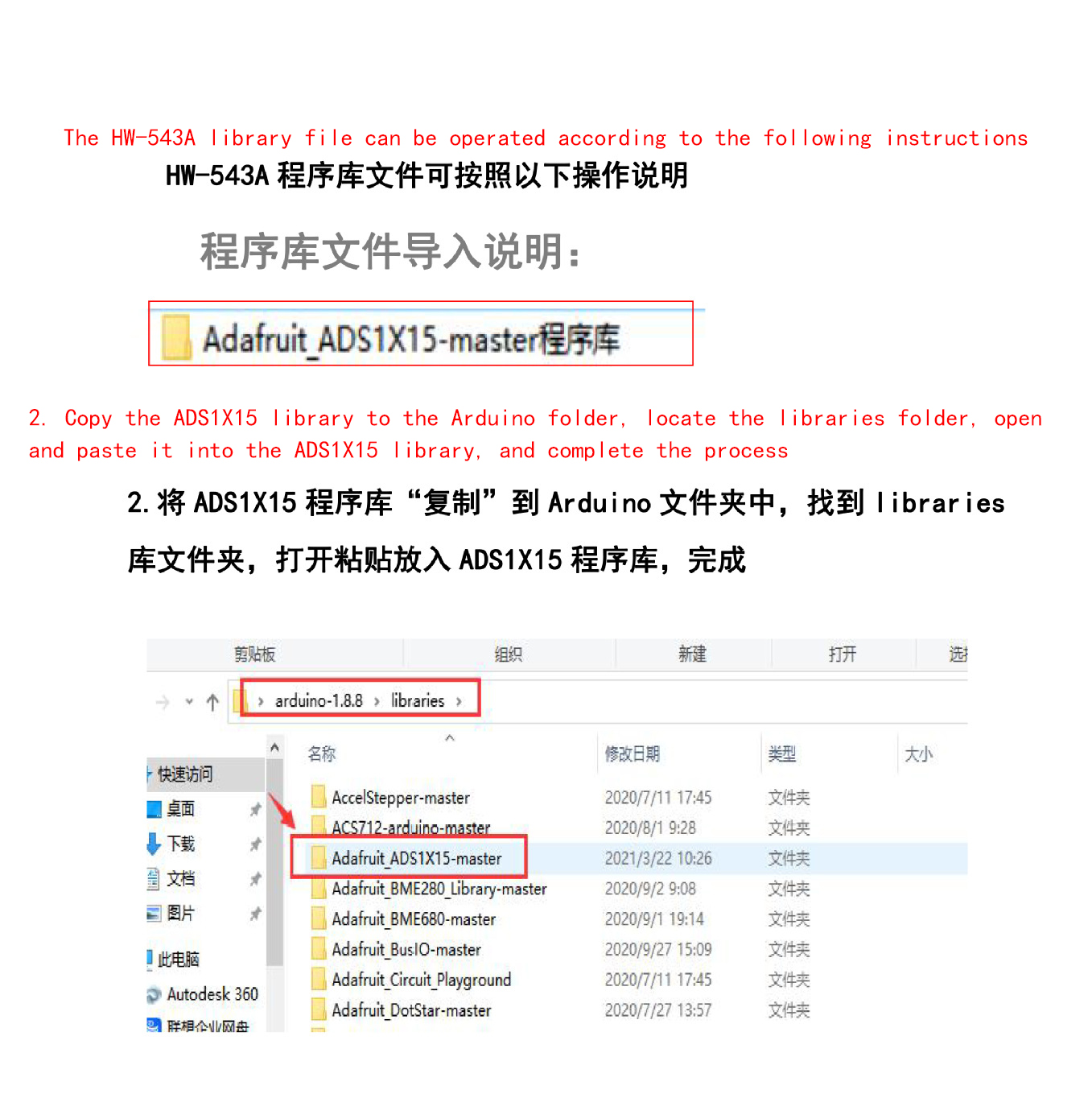

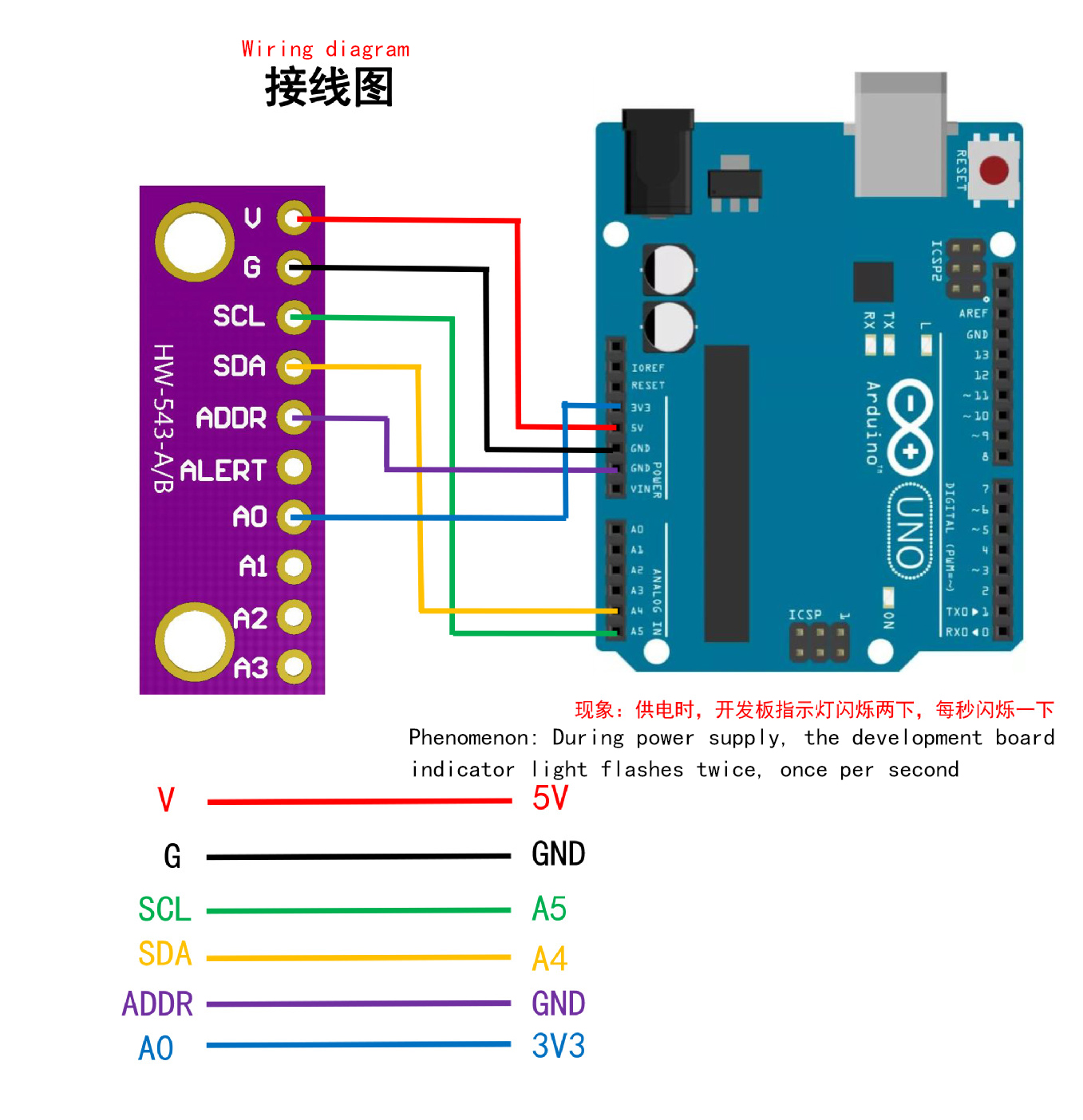

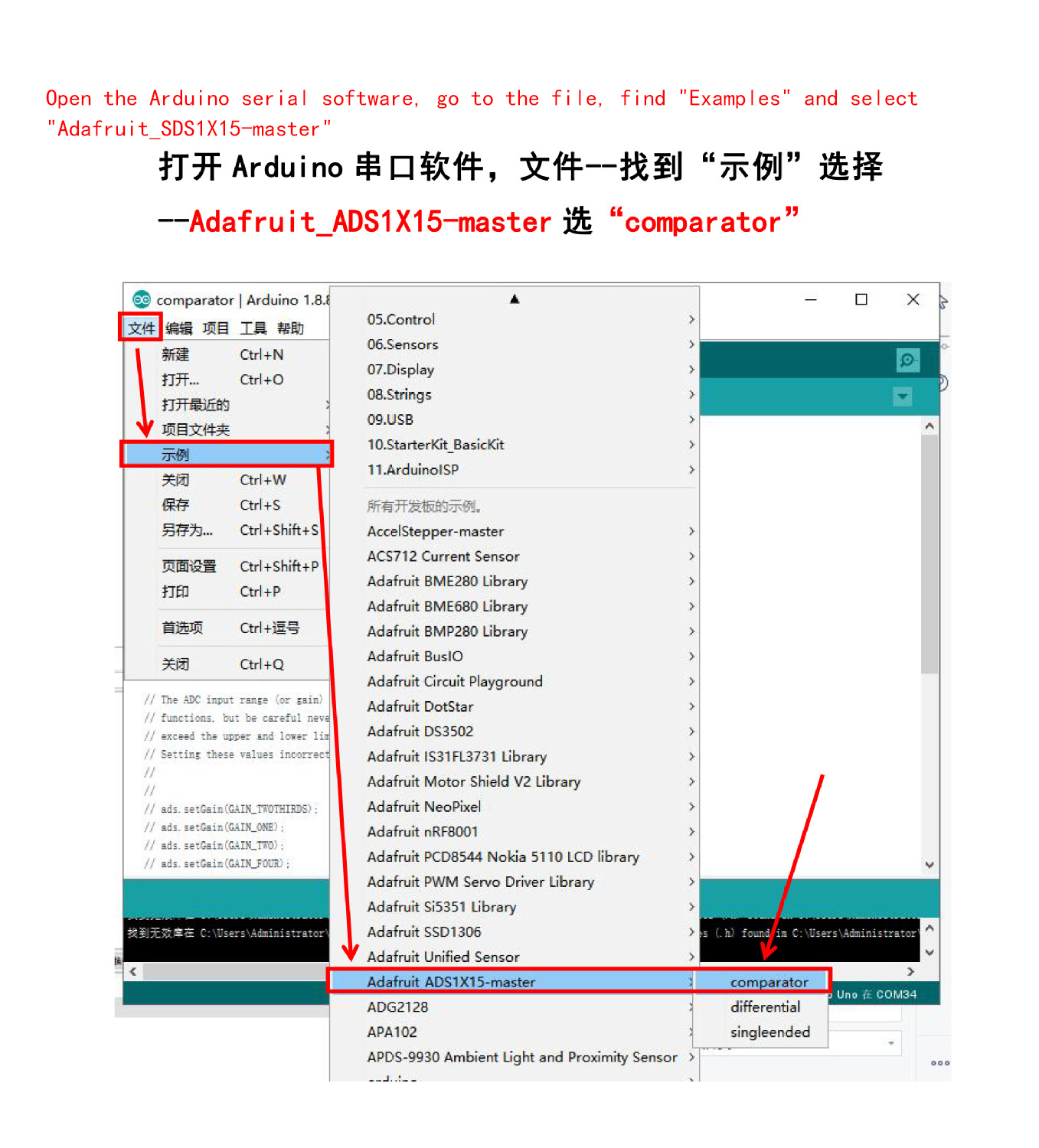

Product Functions

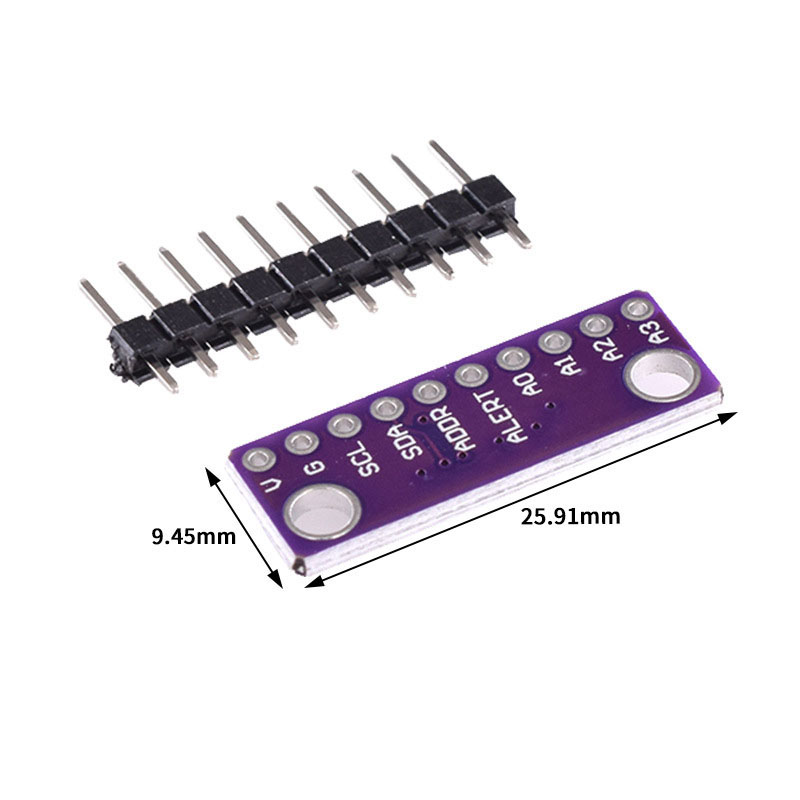

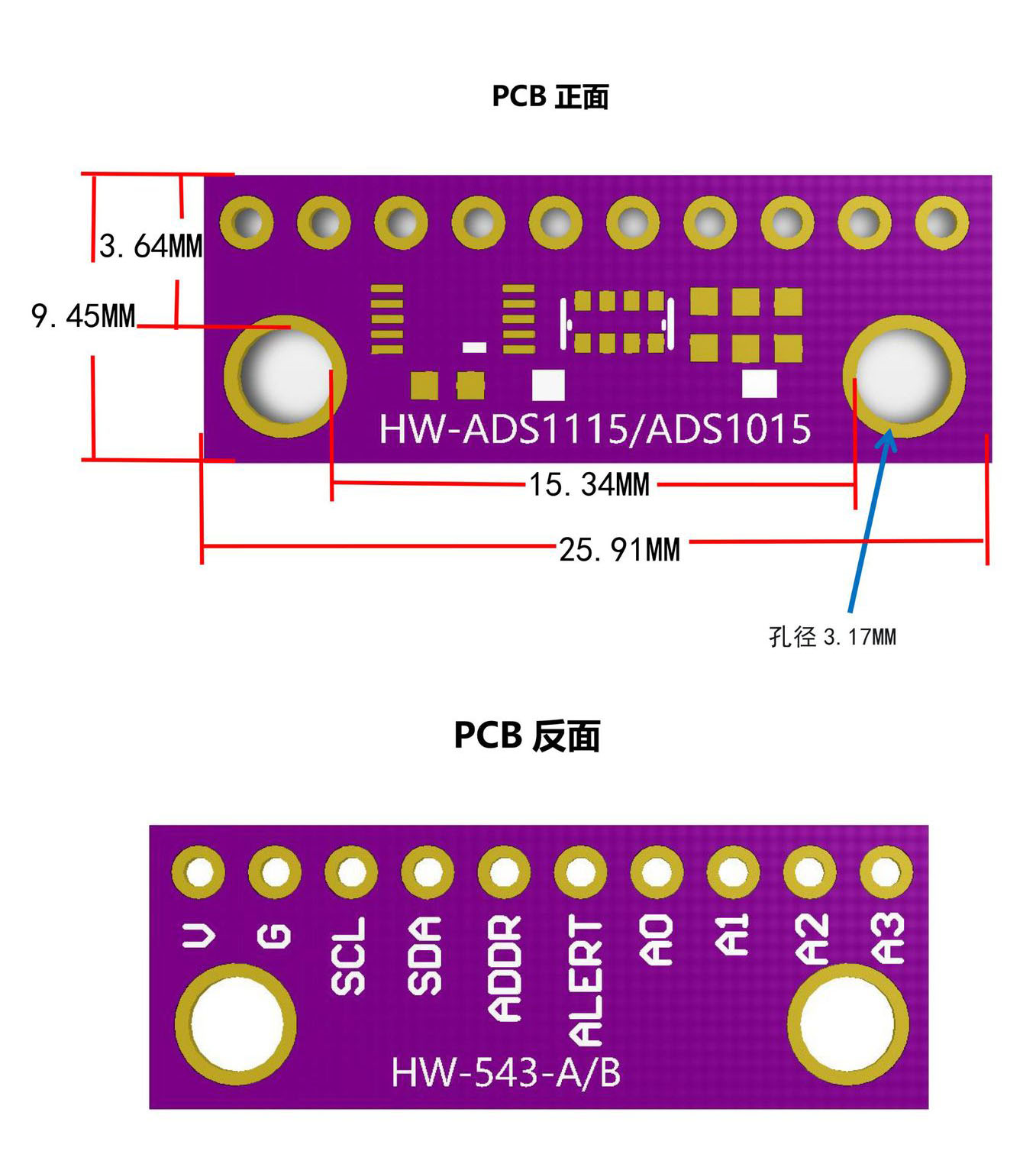

Product Size

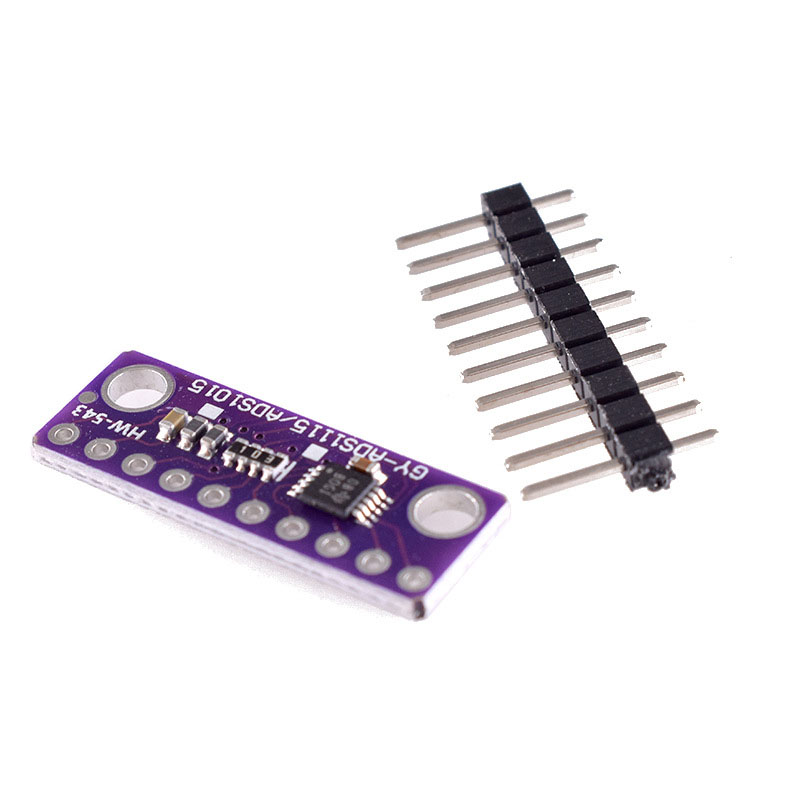

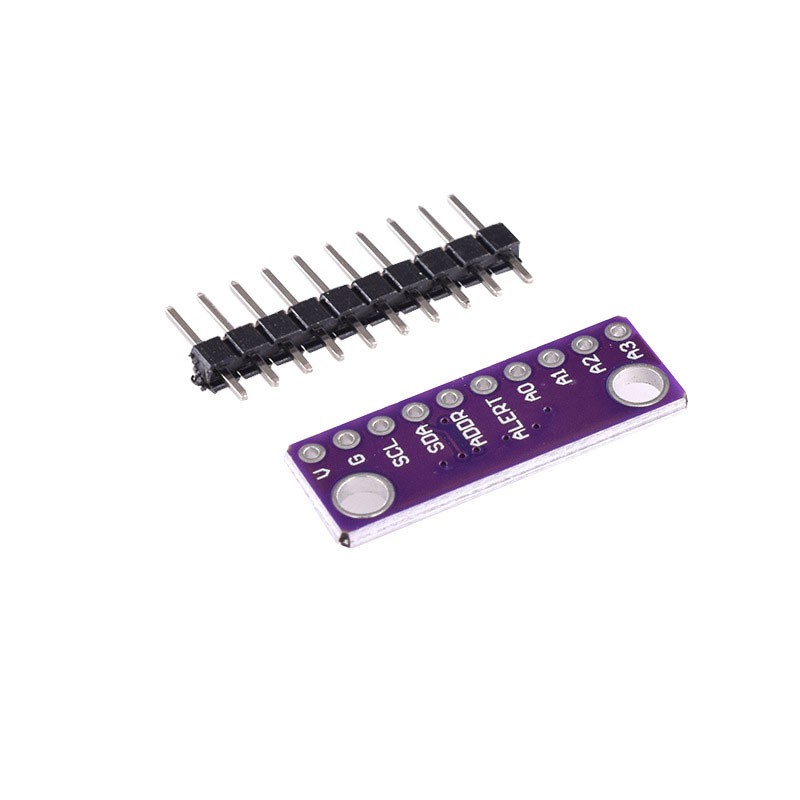

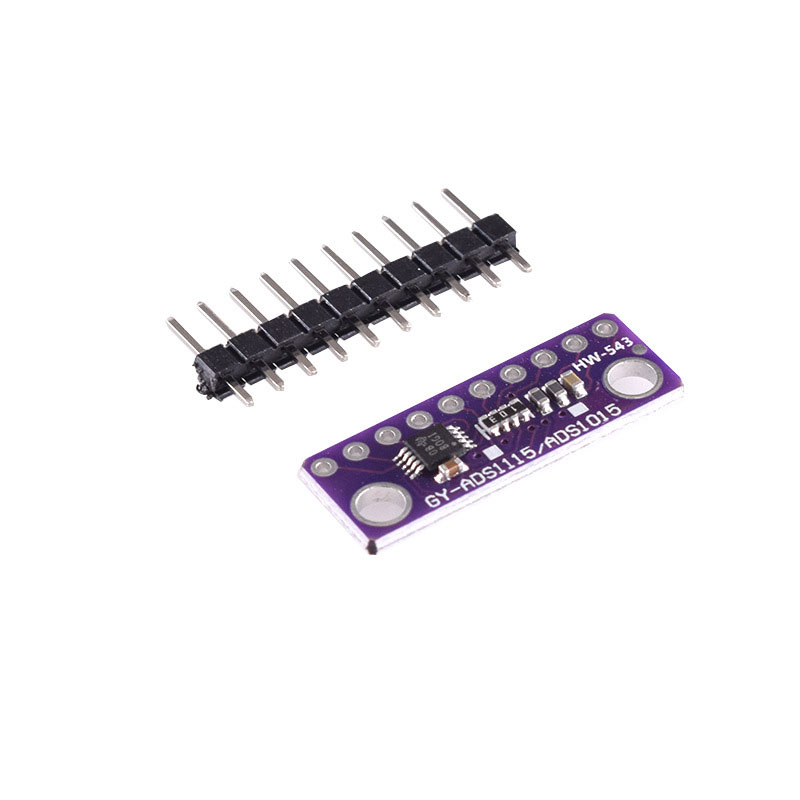

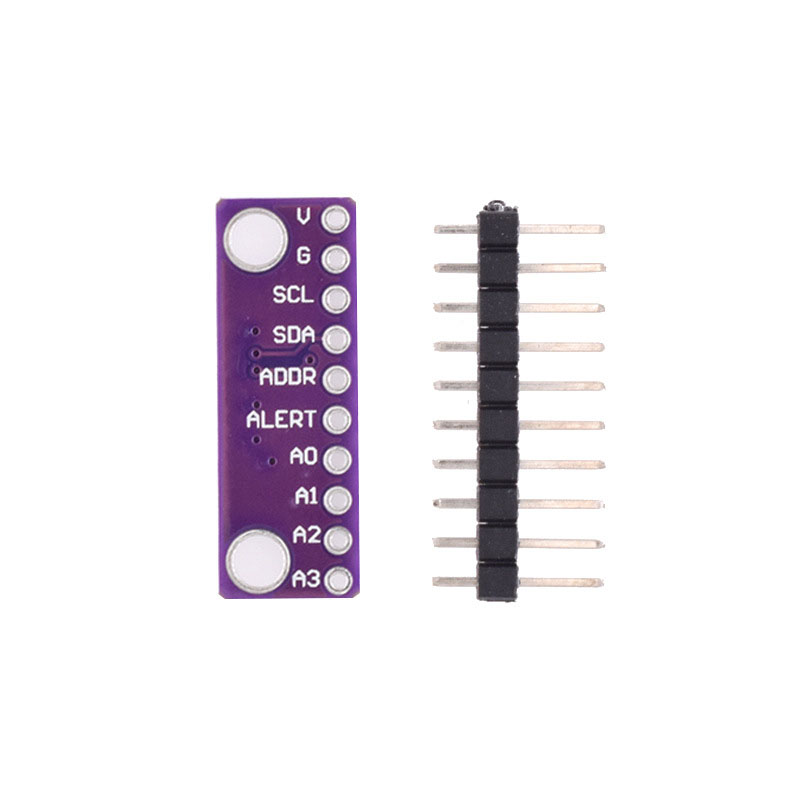

Product Show

Payment&Transportation

Official Certificate&Certificate

Multiple product supply

Company office environment

Warehouse Real Shot

Standard packaging

We also provide ：
