Product Details
|
High Quality DC 100V 10A Voltmeter Ammeter Blue + Red LED Amp Dual Digital Volt Meter Gauge Features 10A DC 0-100V 10A LED display Crisp and bright 0.3cm LED display, voltage and current value simultaneously in different colors: red for voltage, blue for current. Suitable for electric cars/motorcycles/battery monitoring or other voltage current measurement products Dimensions: 48 x 29 x 21 mm Termination: Wires Overview Precautions The current shunt is not provided. Unit will not work above 20mA without an external shunt. The meter with any current range above 20mA must be connected to an external shunt before it can be powered on, otherwise it will burn out. The INPUT power supply range of this meter is 4~30V (if out of this INPUT range, it will burn out) and the MEASUREMENT range is 0~100V. Technical Parameters Voltage measurement range: 0.0V-100V Current test range: 0-999mA, 0-10A, 0-50A, 0-100A (4 ranges are optional) Power supply range: DC4-30.0V Voltage error: ±0.1% Current error: ±1% External shunt specification: 75 milliohms <; 20mA (EXTERNAL SHUNT IS NOT INCLUDED) Refresh rate: ~ 300mS Display mode: double three-digit 0.28" LED digital display Lead length: 15cm Dimensions: 48 x 29 x 22 mm, length X width X thickness; Mounting hole: 46 x 27 mm Working temperature: -10~65C |
Product Description
| Specification | Value |
| PART# | DSN-VC288 |
| Display Type | LED |
| Number of Digits | 3.5 (x2) |
| Input | 0-99.9 VDC, 0-9.99 ADC |
| Input Voltage | 0 VDC to 100 VDC |
| Decimal Point | Fixed |
| Character Size | 0.28" |
| Dimensions | 1.89" x 1.14" |
| Max Panel Thickness | 0.08" |
| Product Type | DC Voltmeter and DC Ammeter |
| Additional Feature | Will not work above 20mA without an external shunt |

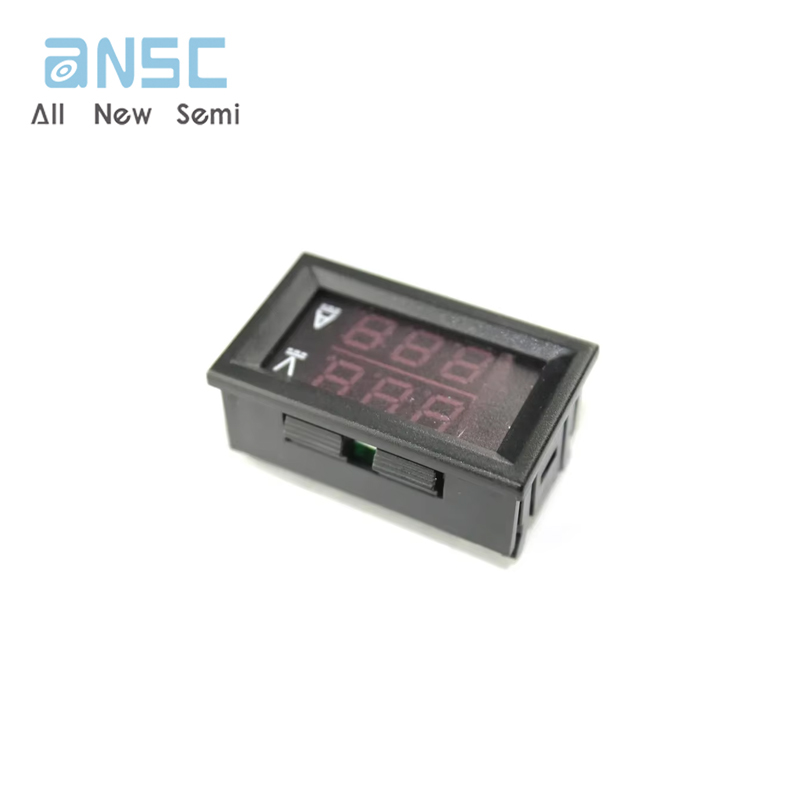

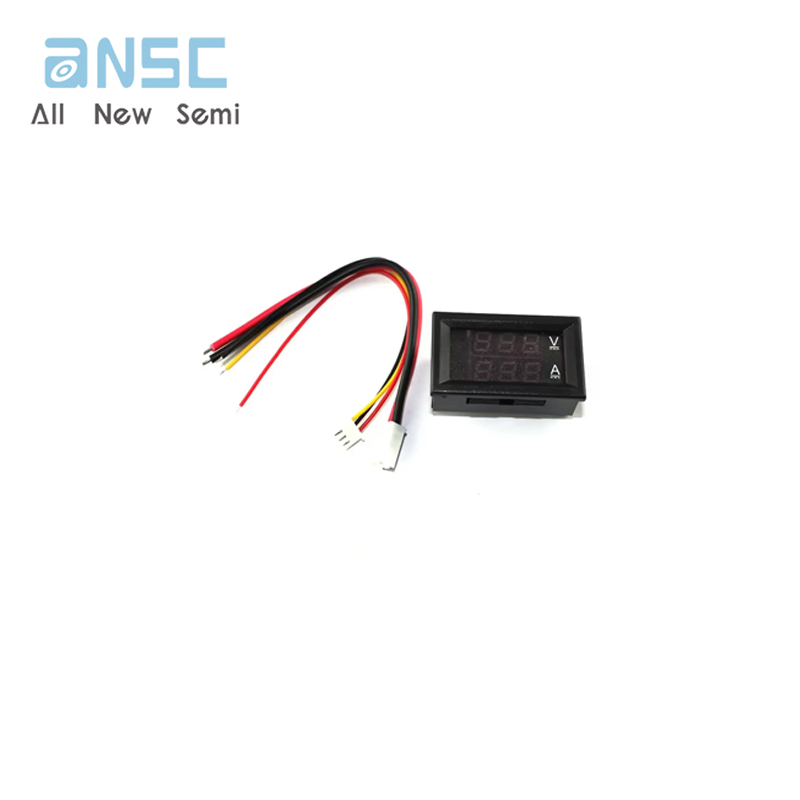

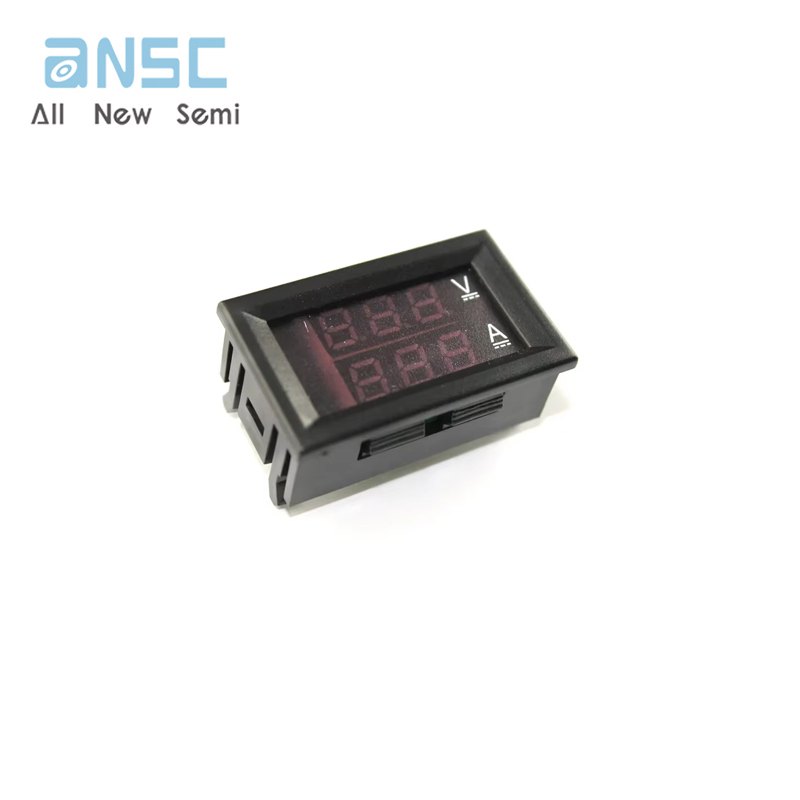

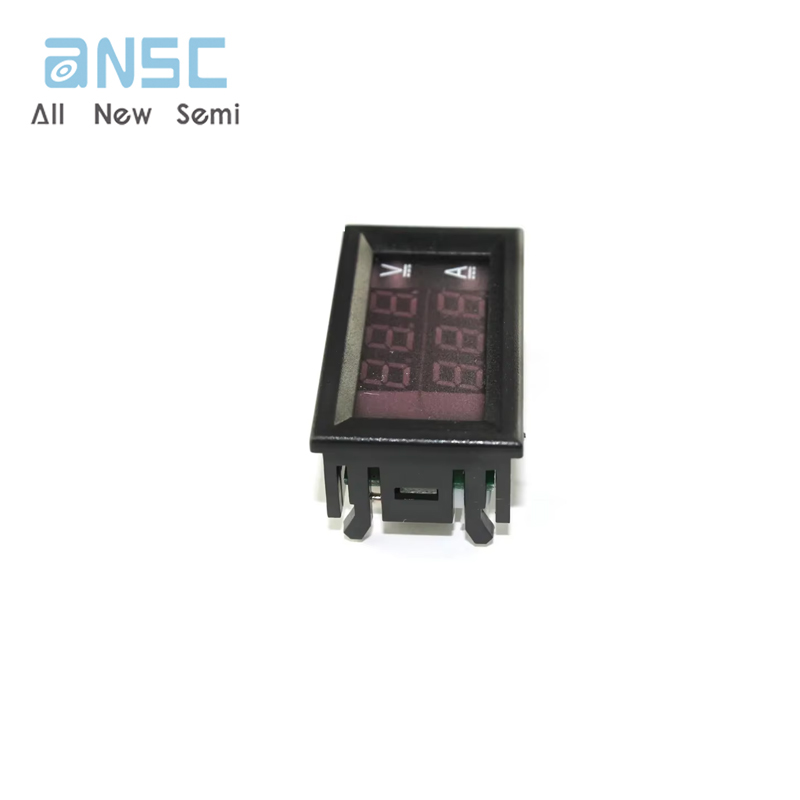

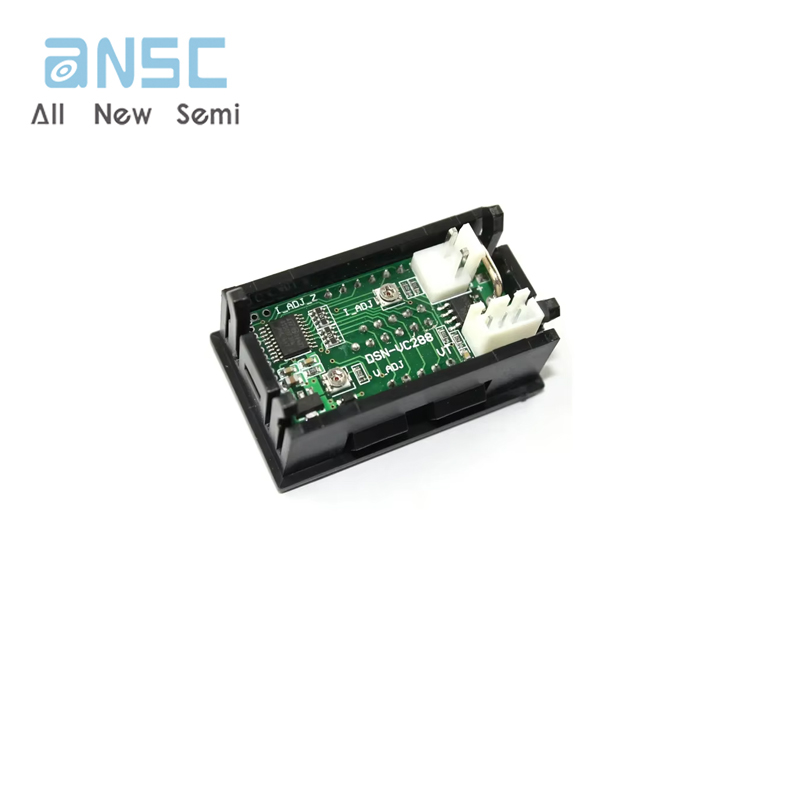

Actual image of the product
