Product Description

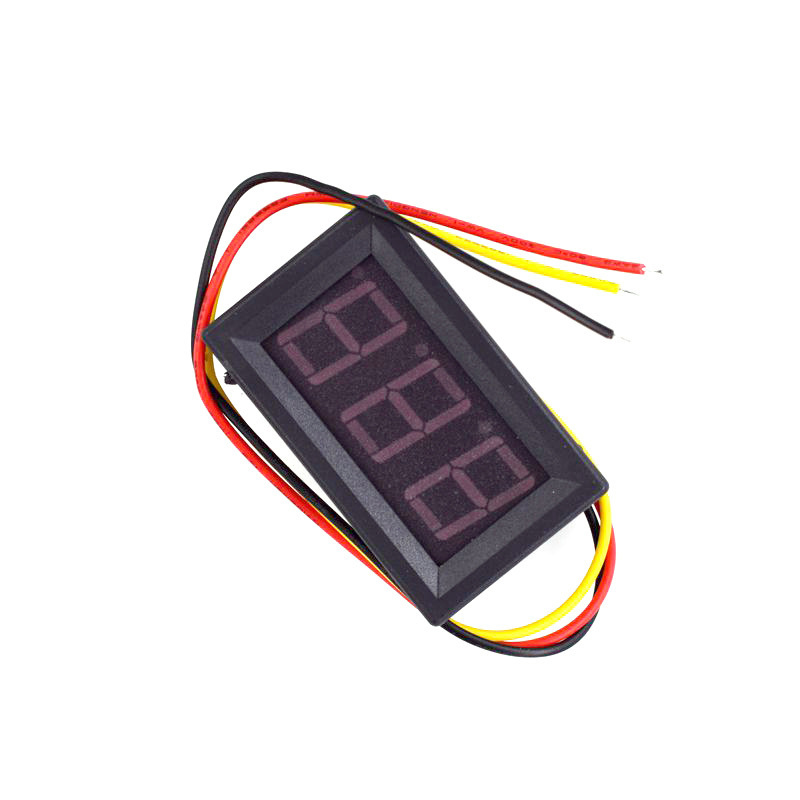

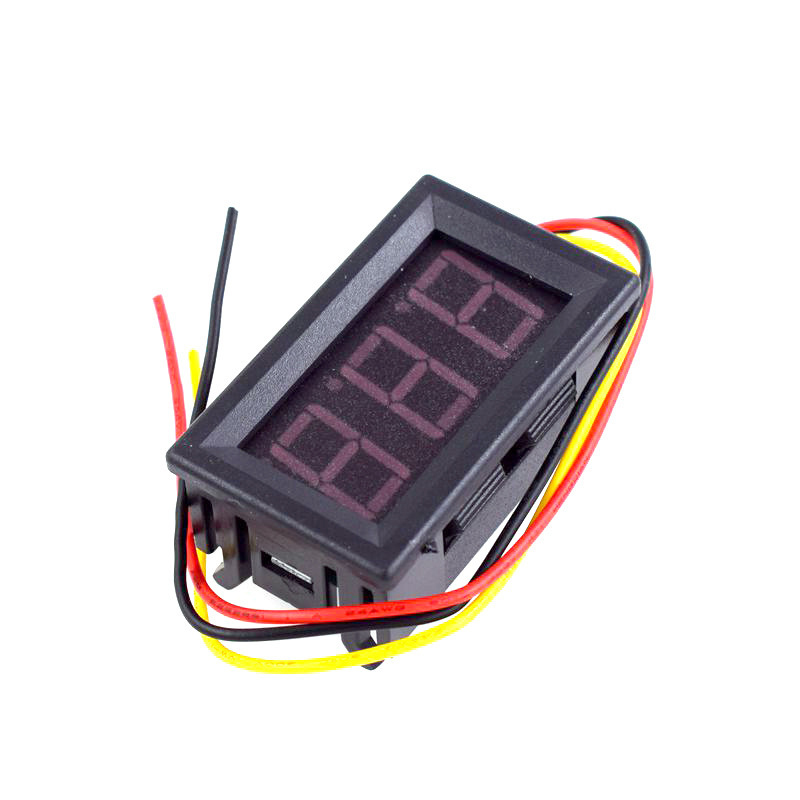

This voltmeter is compact in size and has a range of DCOV-100V. Additional auxiliary power supply is required, with a wide voltage range of up to 3-30V, which can operate at 5V, 9V, 12V, 24V, etc. If only the power supply voltmeter displays 0.00, no voltage stabilization is required. The power supply has reverse connection protection, which prevents overheating when connected in reverse. All display devices use high brightness LED digital tubes. It can be used to monitor battery voltage, timely grasp the battery voltage status, and can also be used for voltage measurement of other products.

Product Parameters

Measurement range: DC0V~100V

Screen: 0.56-inch LED screen

Display mode: Three digit 0.56 "LED digital tube

Display color: Red, Green, Blue optional

Power supply: DC 3V-30V (with anti reverse protection)

Current consumption: less than 20MA, generally 5-15MA

Product Functions

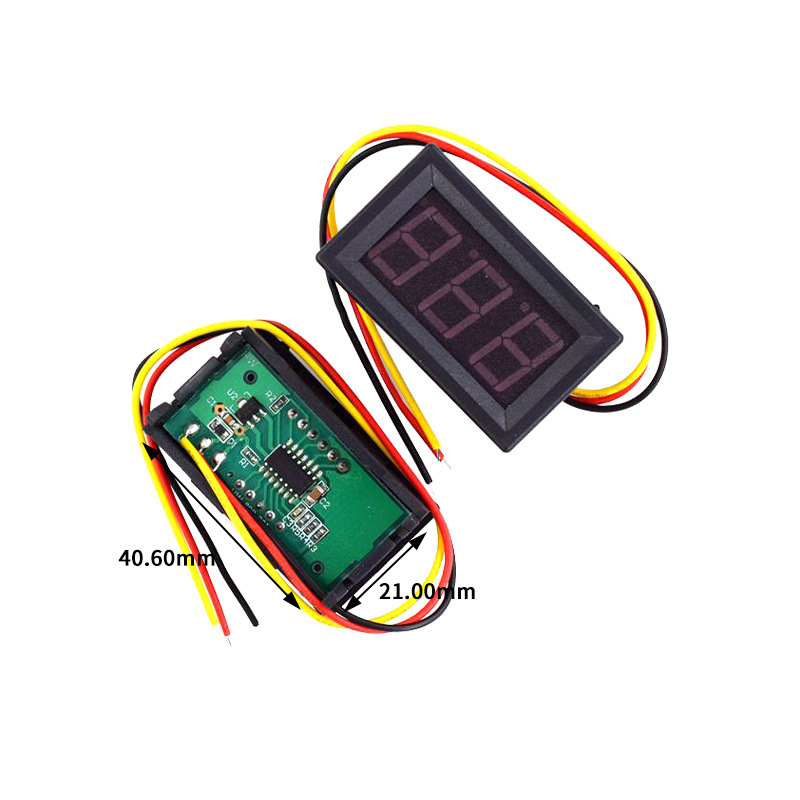

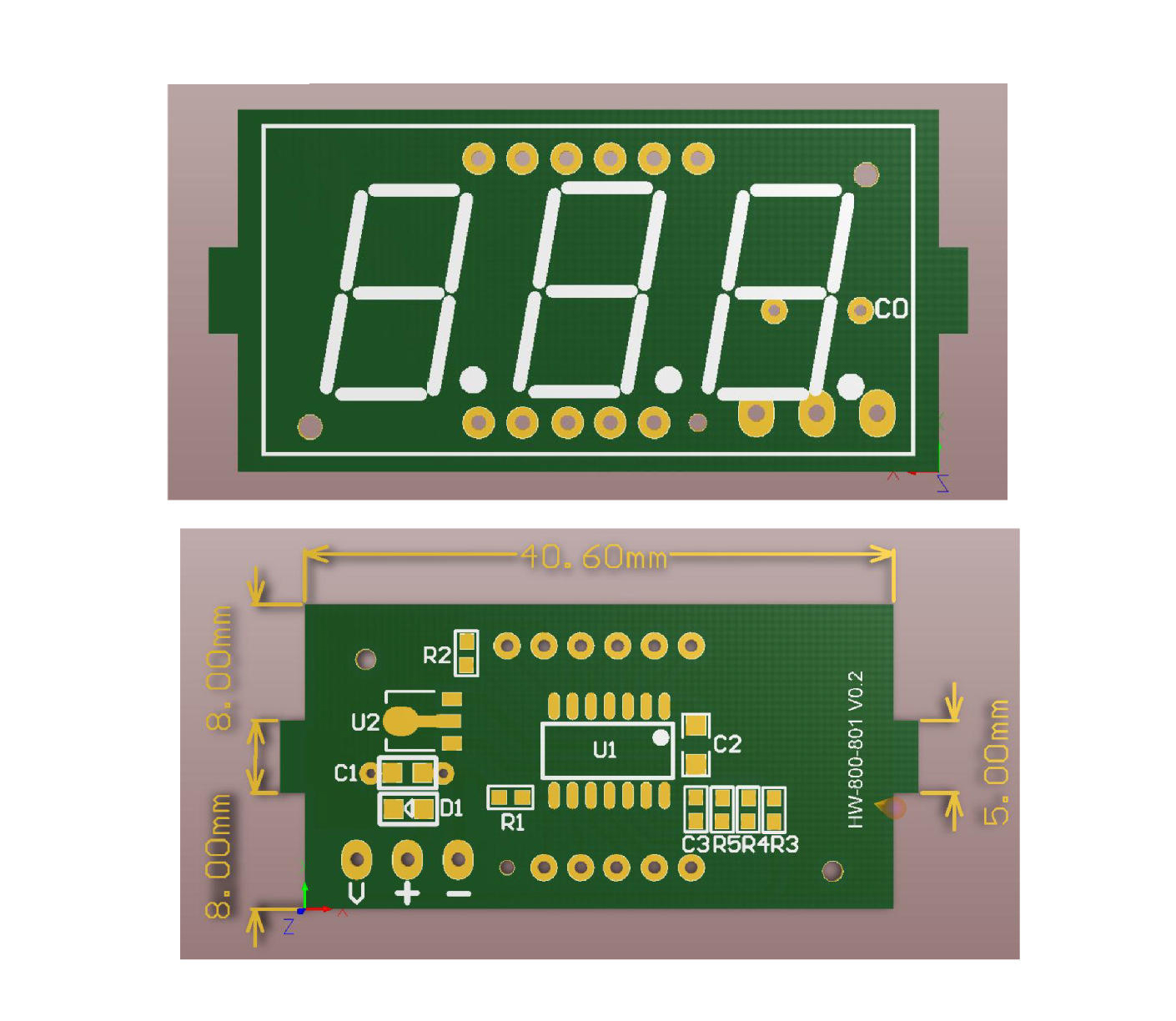

Product Size

Product Show

Payment&Transportation

Official Certificate&Certificate

Multiple product supply

Company office environment

Warehouse Real Shot

Standard packaging

We also provide ：
