Product Description

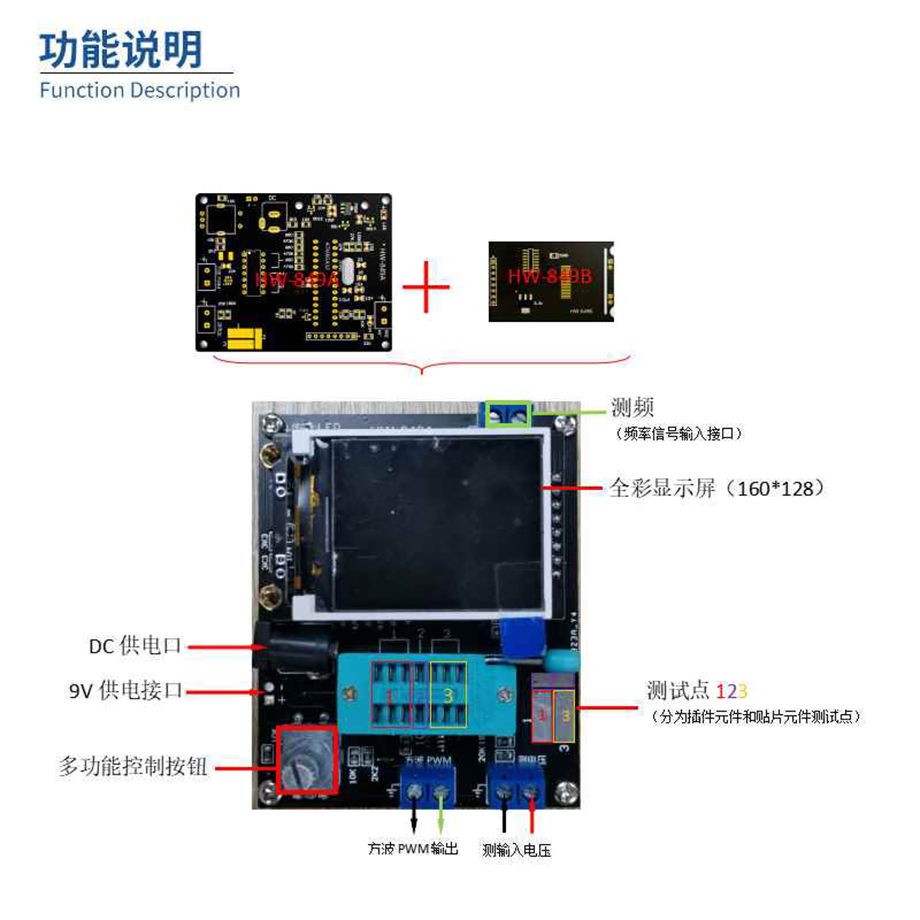

Function Description:
Switch off
Shut down
Transistor
Transistor testing. (Default startup mode)
Freguency
Frequency measurement.
f-Generator
Square wave generator
10-bit PWM
Pulse signal generator.
G+ ESP@TP1 : three
Online measurement of capacitance
1-?--3
Continuous measurement of resistance.
1-||-3
Continuous measurement of capacitance
DS18B20
Temperature testing.
C(uF)-correction
Correction of capacitance measurement.
IR_Decoder
Infrared decoding function.
IR_Encoder
Infrared encoding function.
DHT11
Temperature and humidity sensor.
SelfTest
Full function calibration.
Voltage
DC voltage measurement.
FrontColor
Set foreground scenery.
BackColor
Set the background color.
Show date
Display internal data of the instrument
Switch off
Shut down
Transistor
Transistor testing. (Default startup mode)
Freguency
Frequency measurement.
f-Generator
Square wave generator
10-bit PWM
Pulse signal generator.
G+ ESP@TP1 : three
Online measurement of capacitance
1-?--3
Continuous measurement of resistance.
1-||-3
Continuous measurement of capacitance
DS18B20
Temperature testing.
C(uF)-correction
Correction of capacitance measurement.
IR_Decoder
Infrared decoding function.
IR_Encoder
Infrared encoding function.
DHT11
Temperature and humidity sensor.
SelfTest
Full function calibration.
Voltage
DC voltage measurement.
FrontColor
Set foreground scenery.
BackColor
Set the background color.
Show date
Display internal data of the instrument
Product Parameters
Input voltage: 8V~12V
Input current: around 20MA
Interface: DC head power input power supply (8V~12V), pad connected battery power supply (9V)
Product Functions
Product Note
Before testing the capacitor, be sure to discharge it, otherwise it may damage the test pins.
When testing components soldered onto a circuit board, the power supply on the board must be disconnected, and residual voltage is not allowed on the testing equipment.

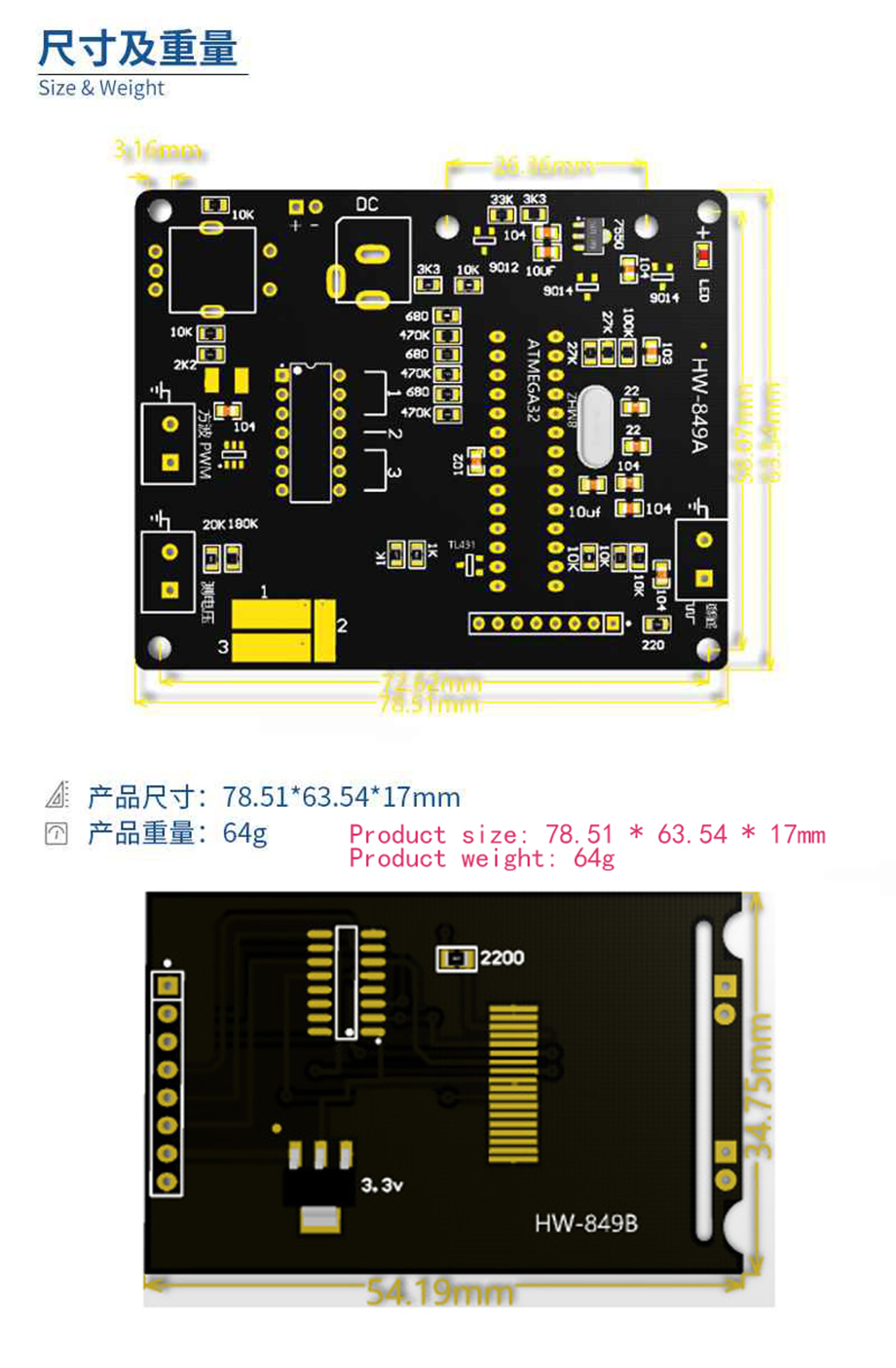

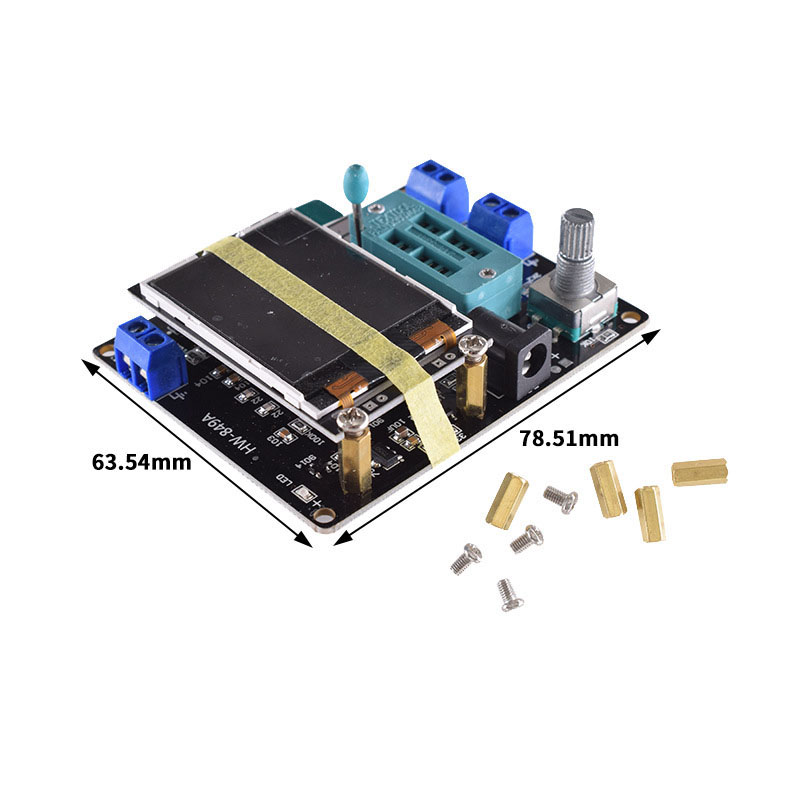

Product Size

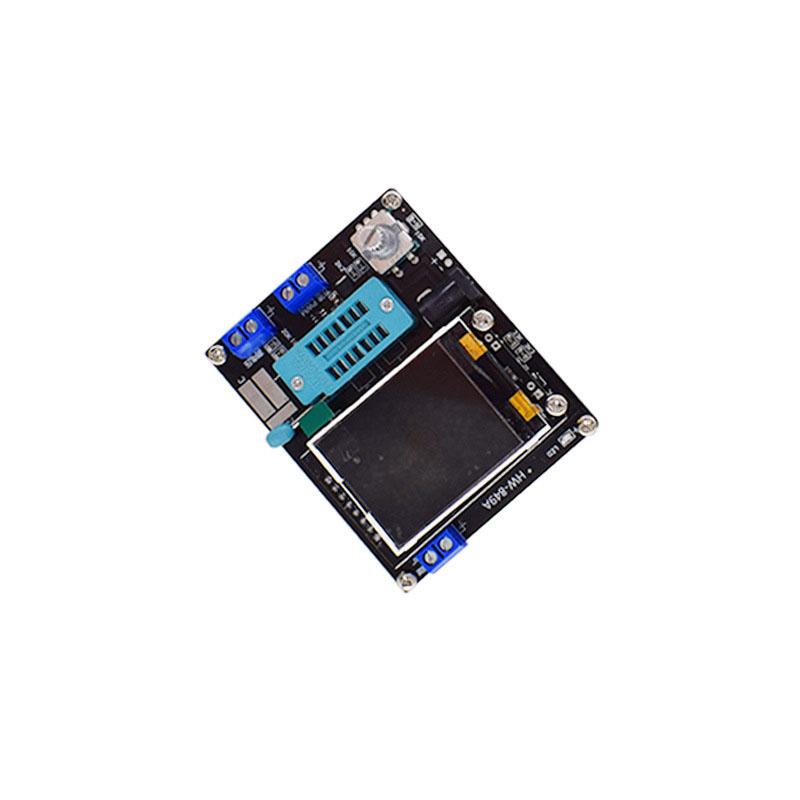

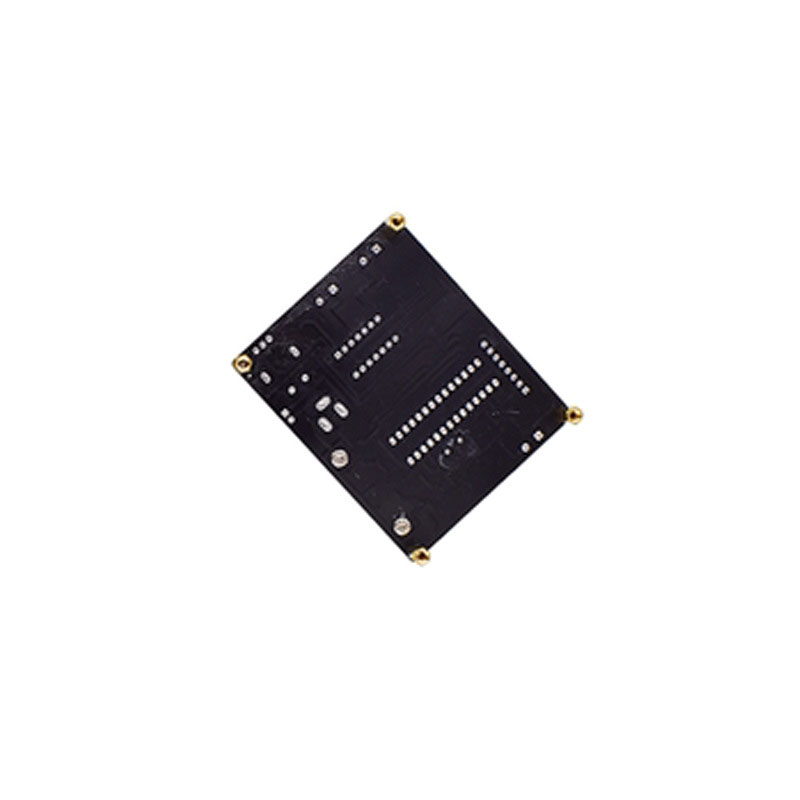

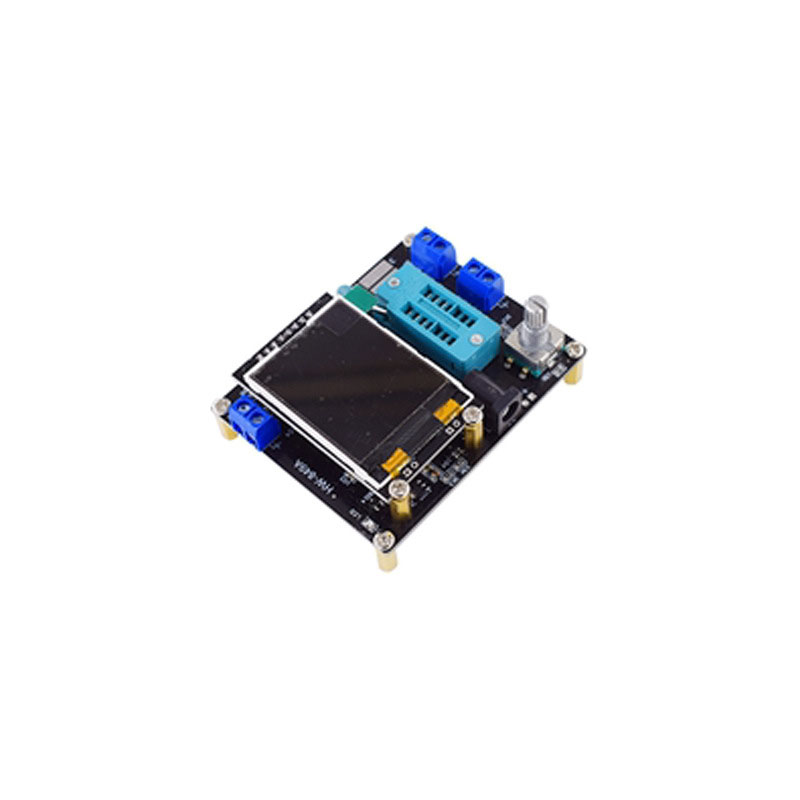

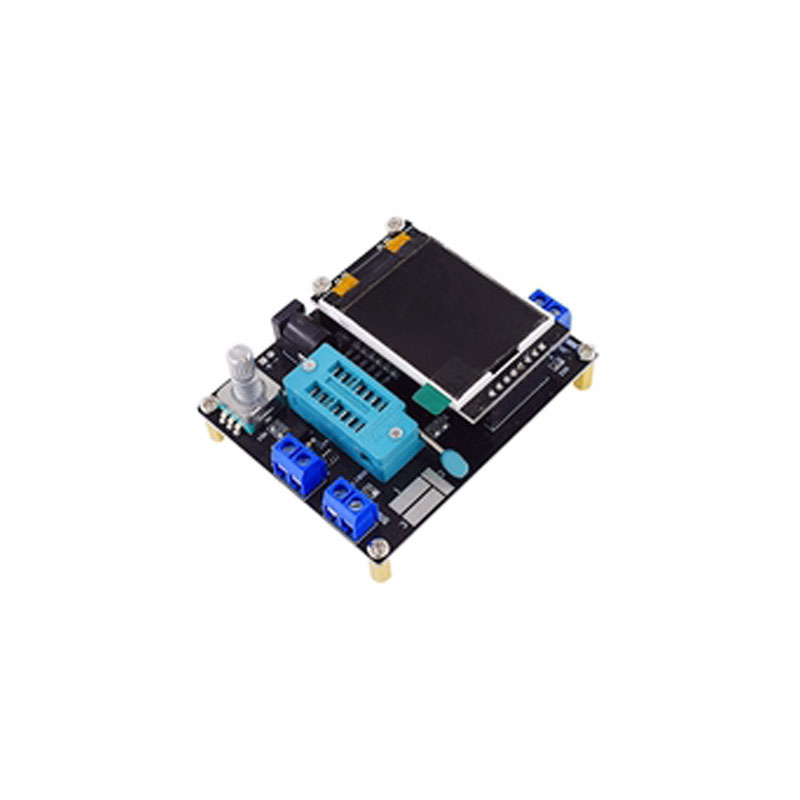

Product Show
