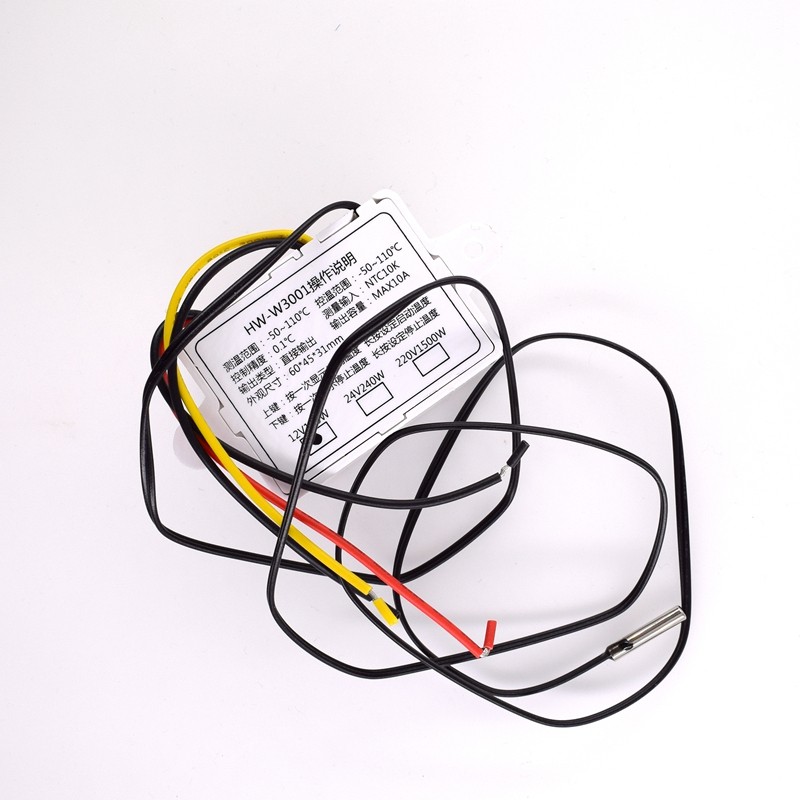

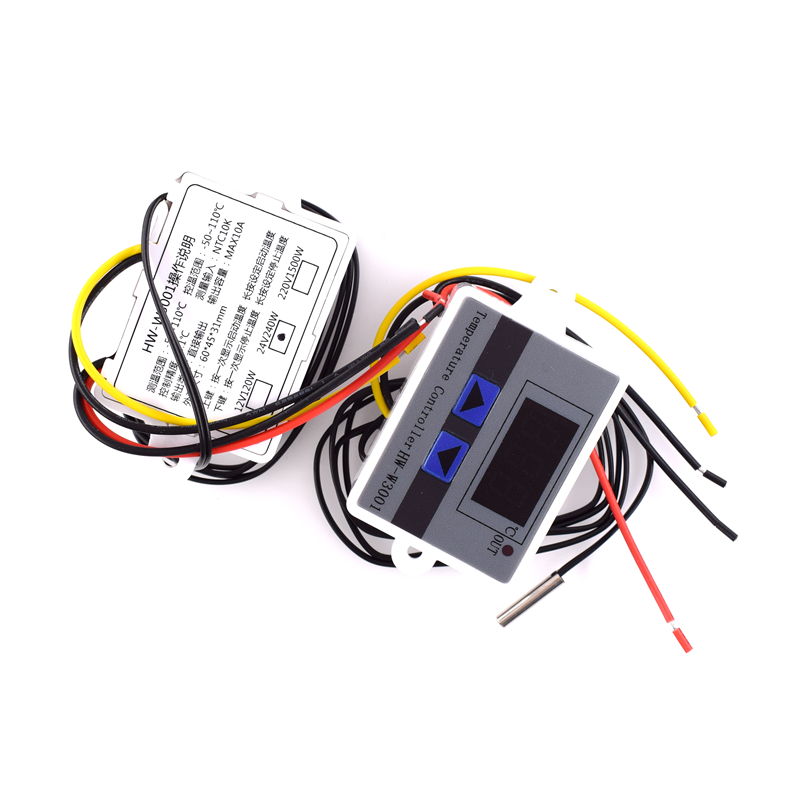

Product Parameters

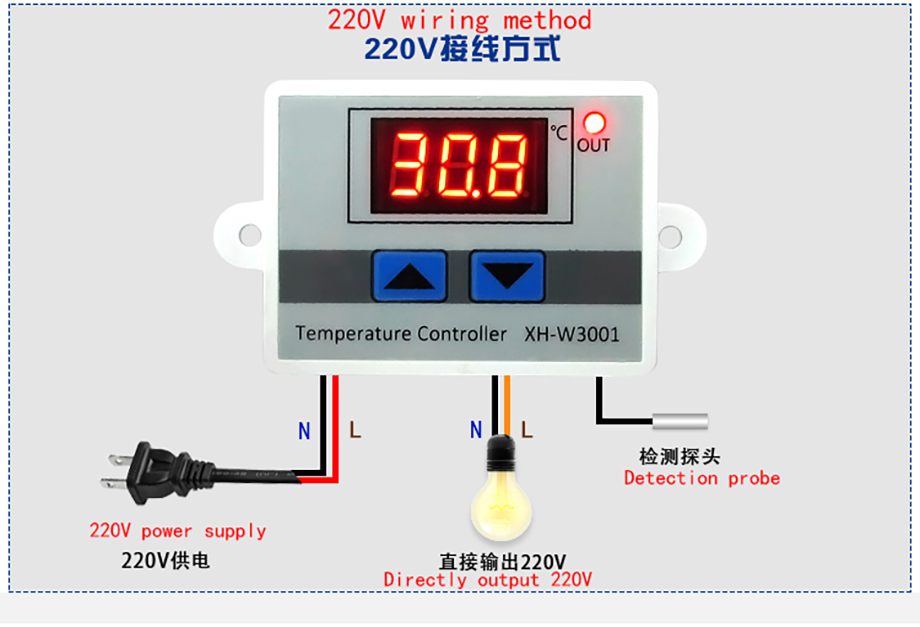

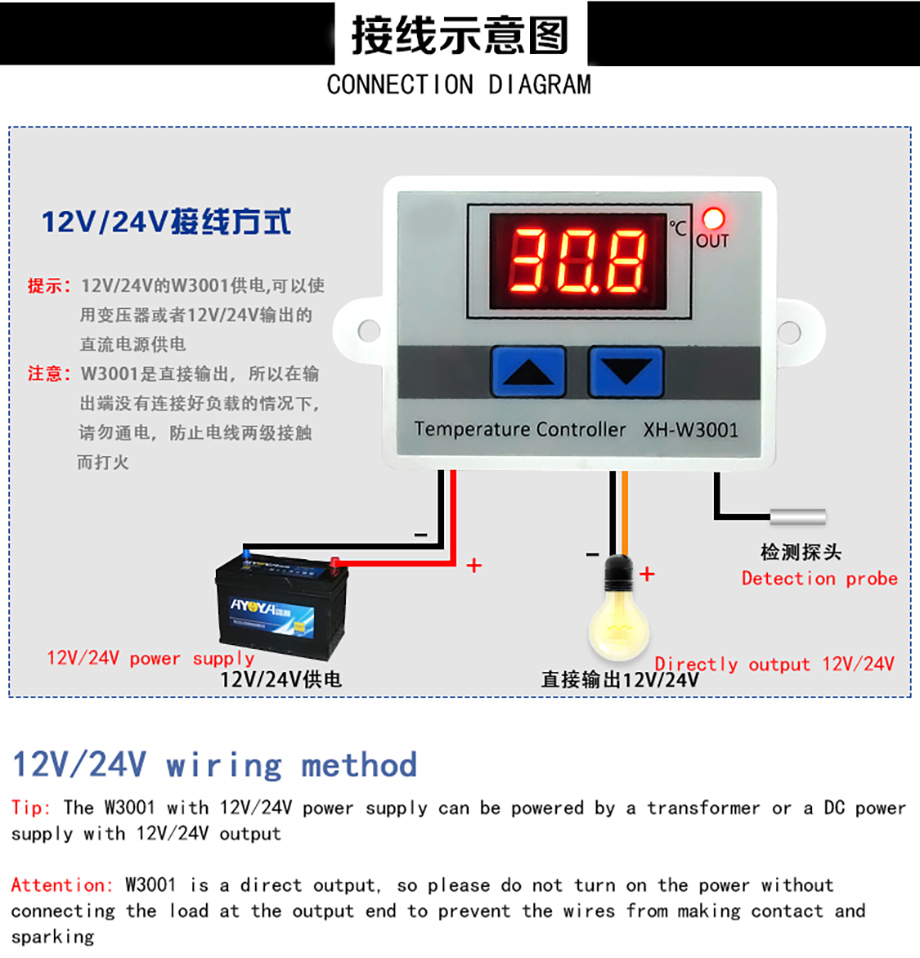

Working principle: Electronic thermostat

Input voltage: DC12V

Output power: 120W

Output type: Direct output

Output capacity: Maximum 10A

Temperature measurement range:- 50~110℃C

Temperature control range:- 50~110°C

Temperature measurement accuracy: ± 0.2 ° C

Temperature control accuracy: ± 0.1 ° C

Measurement input: NTC 10K L=1m waterproof probe

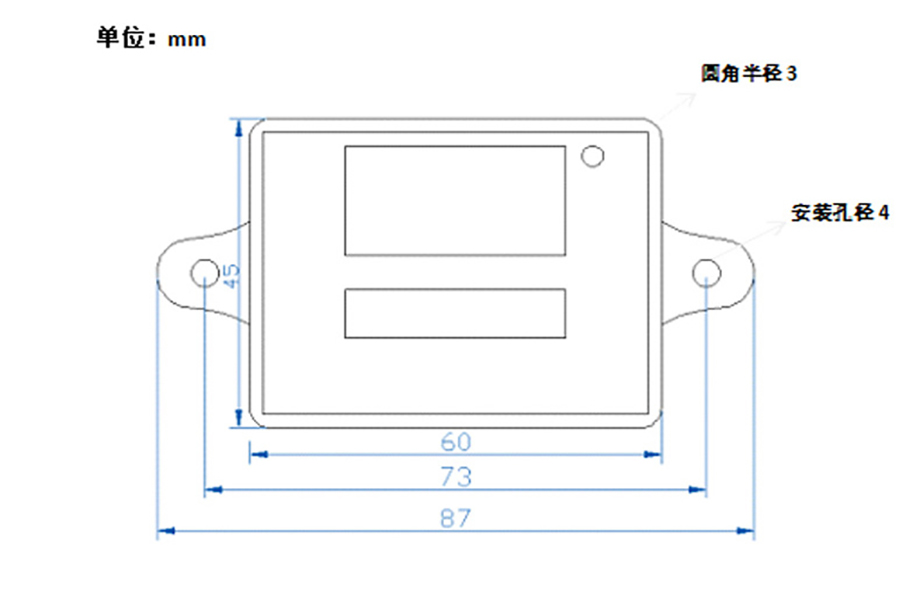

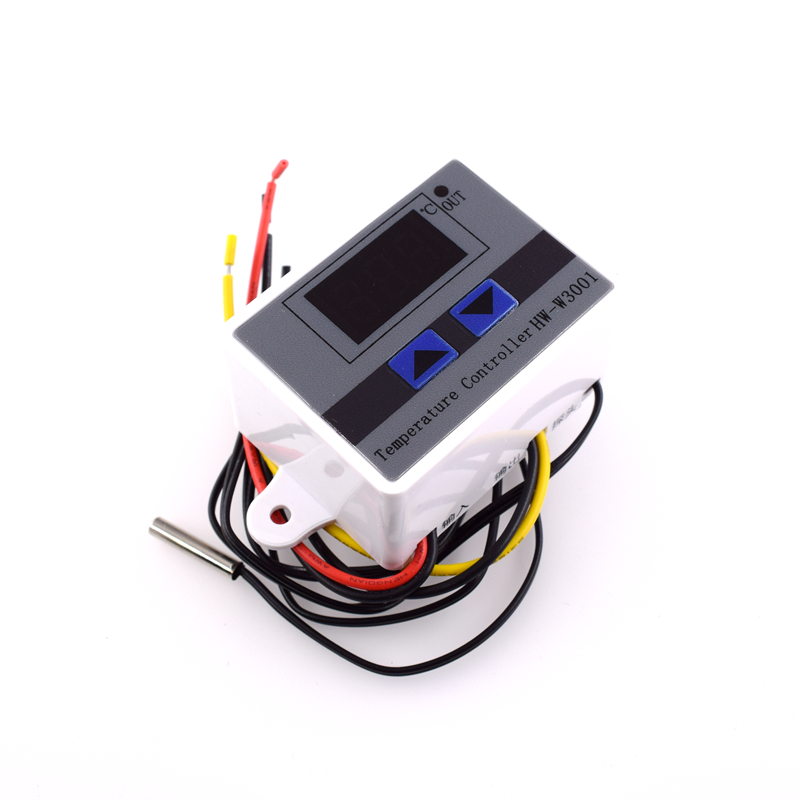

Installation hole spacing: 73MM (installation hole diameter 4MM)

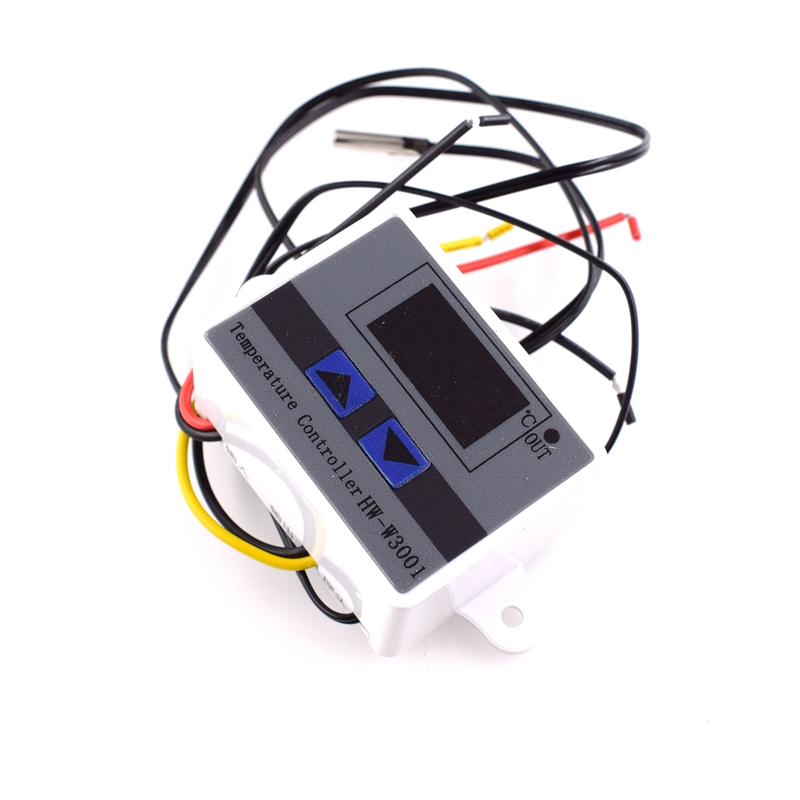

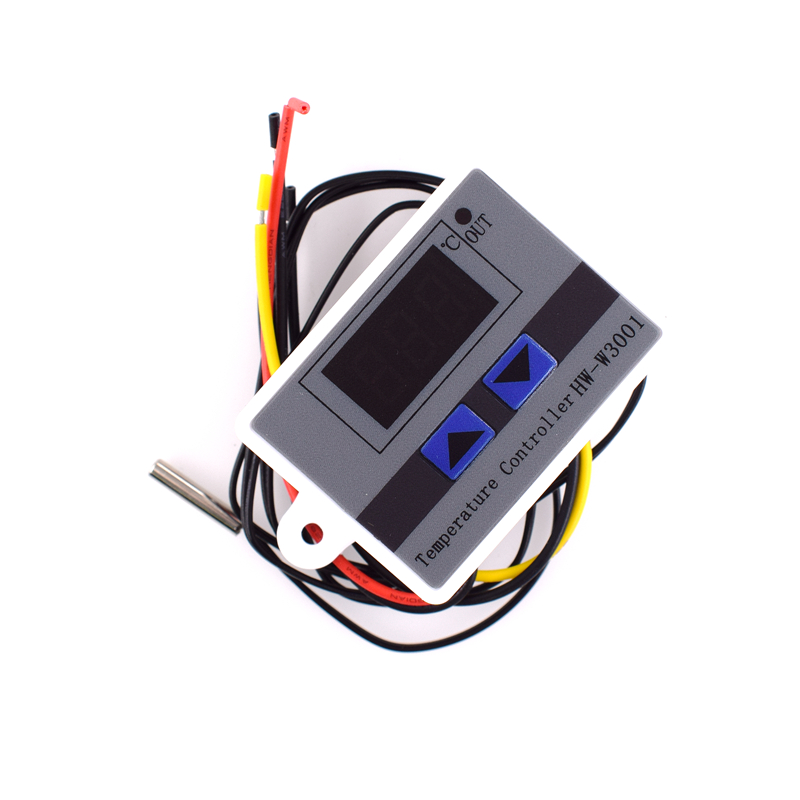

Product Overview

The module adopts a microcontroller control system and high-precision temperature control probe, with outstanding temperature control performance and accuracy. Simple control panel, wide temperature control range, independent judgment of heating and cooling modes, easy to set. Reserved opening position, can be directly installed and used or embedded on industrial control equipment panels, widely used in incubation fields, equipment chassis, air conditioning systems, temperature control protection and other fields.

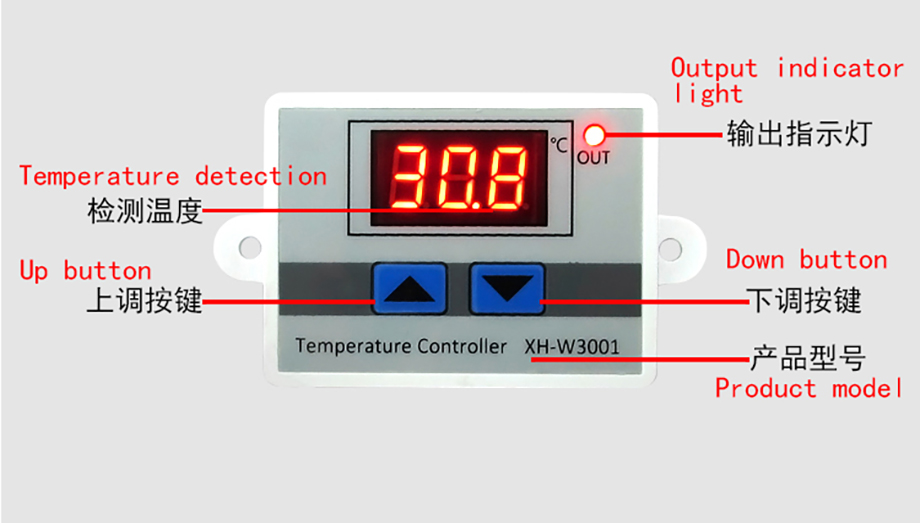

Operating instructions

(1) Set startup temperature: Press the up button once to display the startup temperature. Press and hold the up button for about 3 seconds, and the startup temperature number will flash. The desired temperature value can be set by pressing the up and down buttons

(2) Set stop temperature: Press the down button once to display the stop temperature. Press and hold the button for about 3 seconds, and the stop temperature number will flash. The desired temperature value can be set by pressing the up and down buttons

Product Functions

Working mode

(1) Heating mode

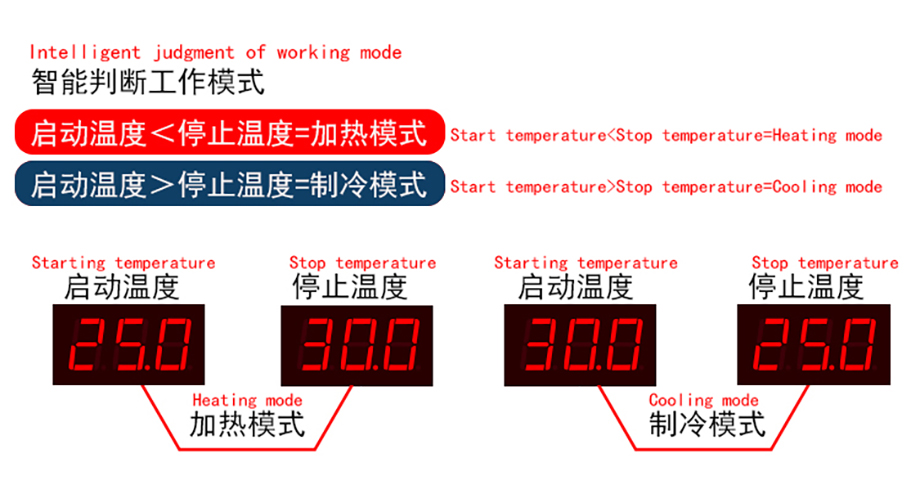

Start temperature<Stop temperature (the program automatically determines that the working mode is heating mode)

① Setting method:

Long press the up key, flash, and then use the up and down keys to set the startup temperature

Press and hold the key, flash it, and then use the up and down keys to set the stop temperature

② Use case:

Control the water heater, stop heating when the temperature reaches 50 ℃, and restart heating when the temperature returns to 40 ℃. The setting method is as follows

Ⅰ Determine the working mode as heating mode, start temperature<stop temperature stop

Ⅱ Press and hold the up button, and when the temperature value flashes, press the up and down buttons again to adjust the temperature. The starting temperature value is 40 ℃

Ⅲ Press and hold the key button for a long time. When the temperature value flashes, press the up and down keys again to adjust the temperature and stop it at 50 ℃

(2) Cooling mode

Start temperature>Stop temperature (the program automatically determines that the working mode is cooling mode)

① Setting method:

Long press the up key, flash, and then use the up and down keys to set the startup temperature

Press and hold the key, flash it, and then use the up and down keys to set the stop temperature

② Use case:

Control the cabinet radiator, stop dissipating heat when the temperature reaches 26 ℃, and restart the radiator when the temperature rises to 30 ℃. The setting method is as follows:

Determine the working mode as cooling mode, start temperature>stop temperature stop

Press and hold the up button, and when the temperature value flashes, press the up and down buttons again to adjust the temperature. The starting temperature value is 30 ℃

Press and hold the key button for a long time. When the temperature value flashes, press the up and down keys again to adjust the temperature and stop it at 26 ℃
