Module Introduction

This module adopts HID technology, foreign trade quality, no need for any drivers, and comes with an application program in the download material, plug and play. Supports WIN7, XP 32-bit, and 64 bit systems, making it easy and convenient to use. We provide application programs and C++secondary development library code. There is no VB code, but they are all DLL files. Therefore, whether it is possible to operate on VB requires friends who are familiar with VB to try it out themselves. Due to engineers pursuing further studies abroad, we are unable to provide you with technical support. Therefore, please review the information before taking photos,

Module Application

Home intelligent switch control, hotel intelligent switch, hotel intelligent electrical control, intelligent greenhouse, shopping mall intelligent switch, company factory intelligent switch, internet cafe timing management, karaoke timing control, Internet of Things, industrial control equipment, testing equipment power control, street lamp management, intelligent management, centralized power management, etc.

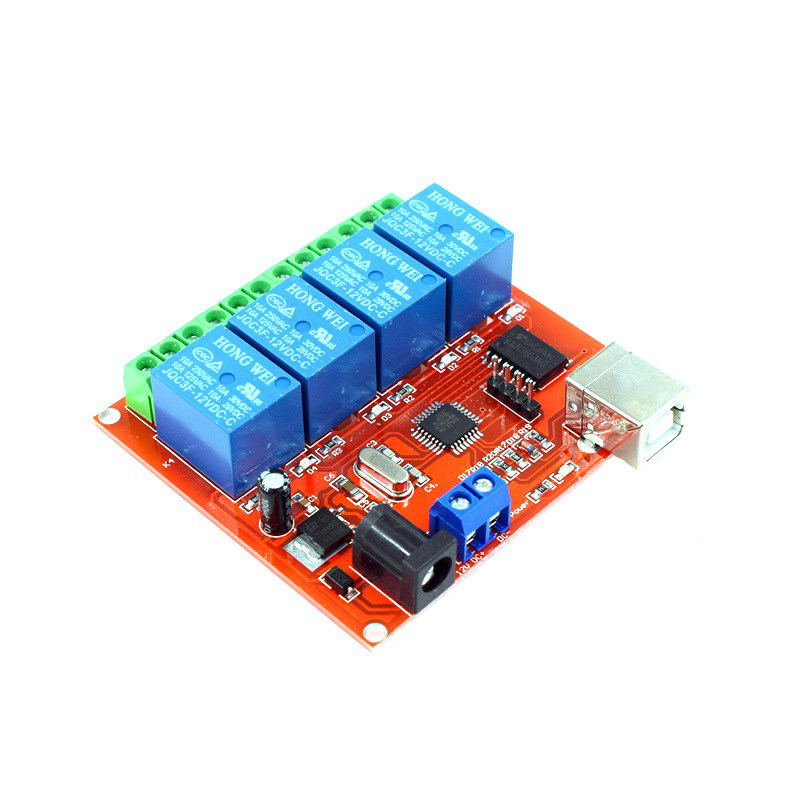

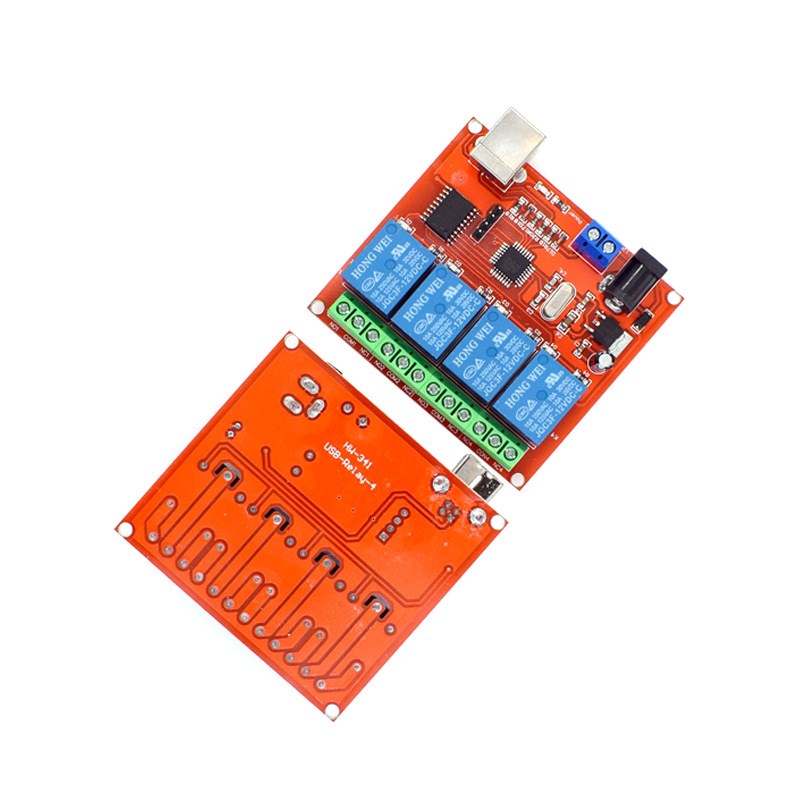

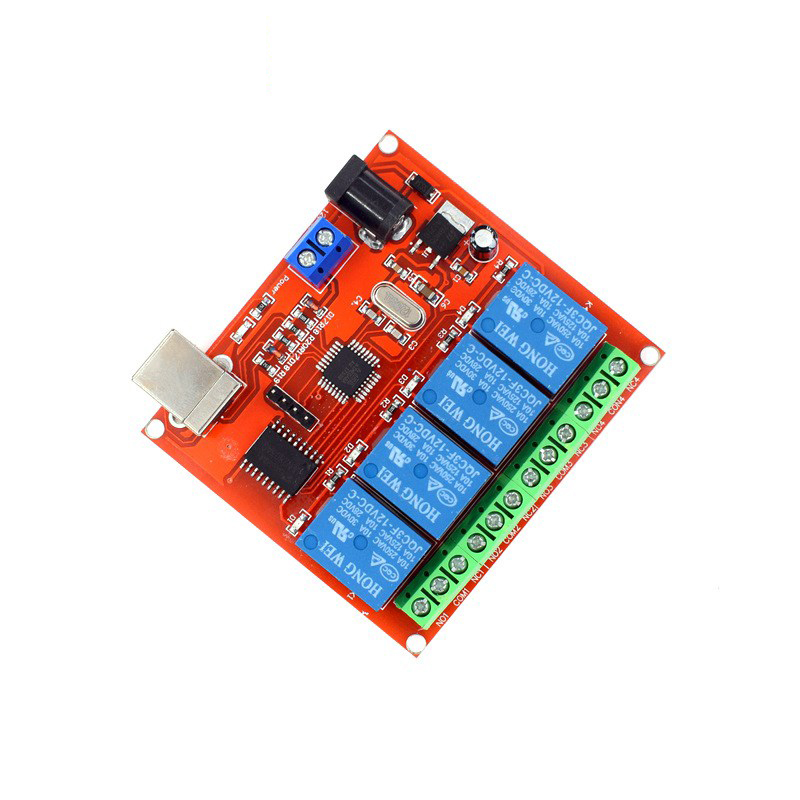

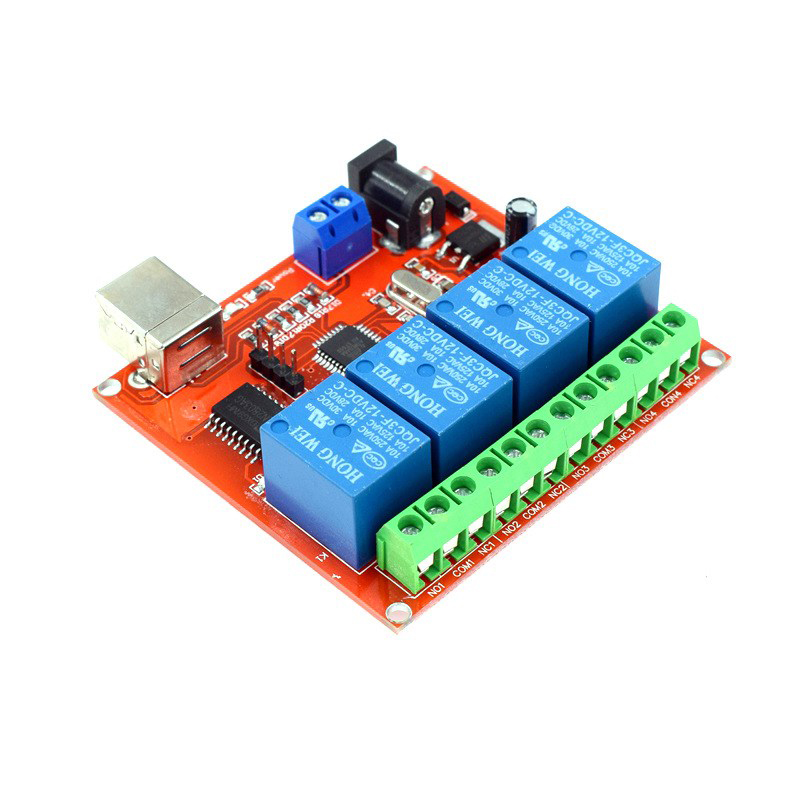

Module Description

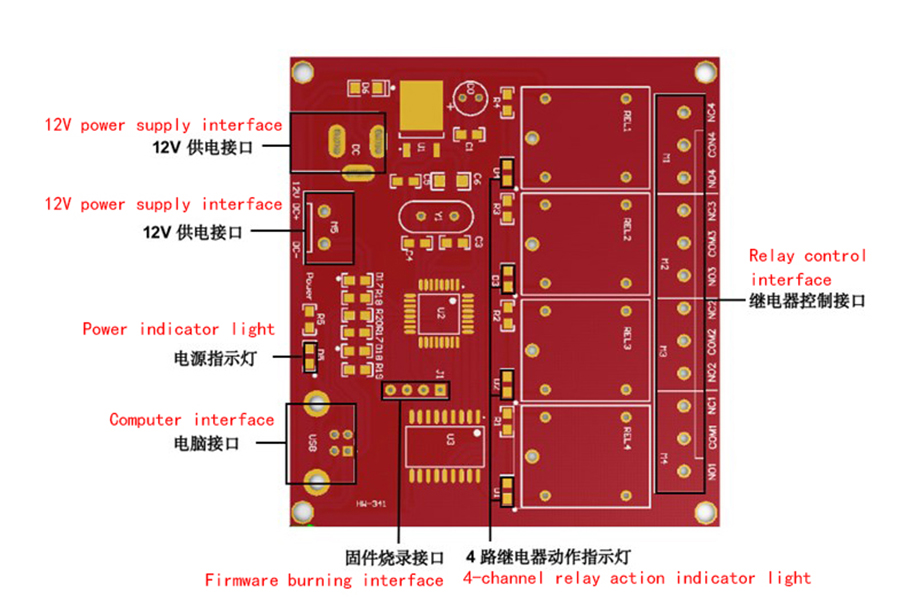

1. Onboard square USB interface, stable connection

2. Use imported high-performance USB control chips

3. Use dedicated relay driver chip ULN2803 for more stable relay operation

4. Use genuine Songle relays

5. Production of military grade PCB boards

6. Board power sockets and terminals, two convenient and flexible ways of connecting power sources. After connecting to the power supply, the relay can remain in the set state even if the computer is turned off or the USB is unplugged from the computer.

7. PCB size: 71.6mm * 65.3mm

8. Fixed hole size: 3mm, fixed hole center moment: 67.4mm * 61.3mm

Attention: Due to the characteristics of the USB protocol, this module is not suitable for use in areas with high electromagnetic interference! If you want to use it, please take electromagnetic shielding measures and purchase a high-quality USB data cable with electromagnetic shielding.

Product Parameters

• Input voltage: DC 12 V




• Input current: greater than 300mA




• Wiring method: NC/COM/NO




• Relay parameters:




• Can control up to AC 250V, 10A AC load and up to DC30V 10A DC load

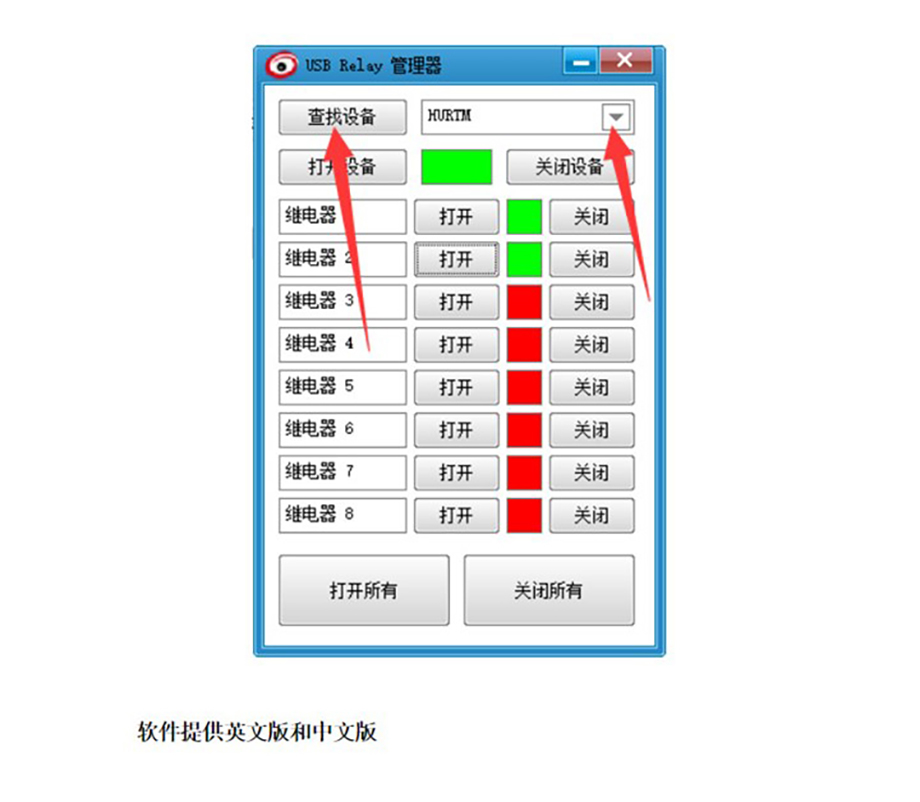

Chinese and English software interface:

1. Green indicates that the relay is closed, and red indicates that it is disconnected

2. After turning on the device, the software automatically obtains the current working status of the relay
