220V 500W dimming, voltage regulation, temperature regulation, speed control switch, infinitely variable speed control module, spare parts

M347

Model:M347

Manufacturer:ANSC/OEM

Package:module

Detail

Product Parameter


Rated power: P=U1; 500W=220V*2.27A


Model: 500W dimming speed controller; Speed control switch


Rated power: 500W


Suitable for dimming and speed regulation of AC motors, lamps, etc. with a power output of over 100W and below 500W; Can be used for exhaust fan speed regulation, light adjustment


Motor speed


Product Note

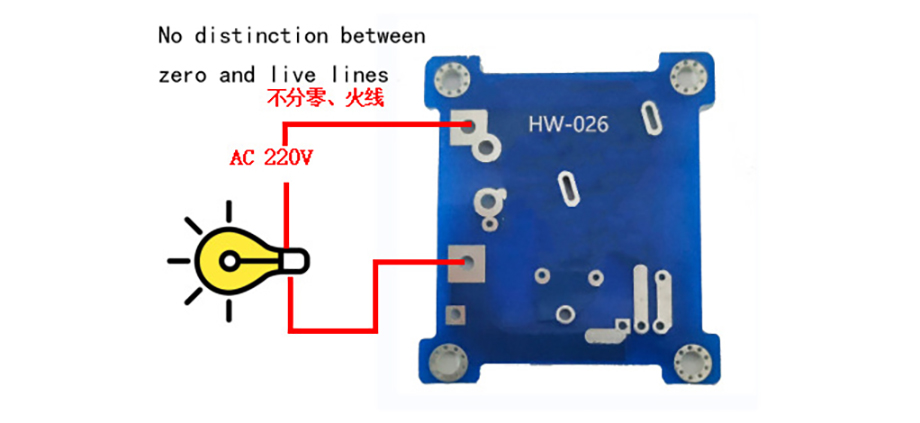

1. Pay attention to wiring according to the diagram and do not make mistakes;


2. This document only represents the editor's understanding and parameters of the product at the time of editing. Any changes in the future will not be notified separately;


3. There are many types of components in the loose parts, and if there are some small components missing from the package, we hope for your understanding;


4. Start welding the smaller components and then weld the larger ones. Weld the horizontal ones first and then the vertical ones;


5. Individual components such as resistors and capacitors are temporarily out of stock, and the seller will send components with nearby values to replace them. Due to different batches, the color and appearance of the components may not be the same as in the picture. We hope for your understanding.


Product Functions


The main purpose of this product production kit is for learning and use. Through continuous hands-on practice, it provides one's own knowledge and skills. Assembling involves certain risks and requires a certain level of electronic foundation, hands-on ability, and technical proficiency.

详情-02

元件名称数量
Number of component names
编号
Number
名称
Name
数量
Quantity
1PCB1
2导线
Wireway
2
3500K电位器
500K potentiometer
1
4电位器
potentiometer
1
52K电阻
2K resistor
1
6DB3 触发二极管
DB3 trigger diode
1
7630V104CBB 电容
630V104BBB capacitor
1
8BT136 可控硅 T0-220
BT136 thyristor T0-220
1
920*13*8 小散热片
20 * 13 * 8 small heat sink
1
10M3+6 螺丝+螺母
M3+6 screws+nuts
1

Finished product display:
