12V-72V electric vehicle battery, battery level meter display, DC digital display, lithium battery voltage meter/blue

M360

Model:M360

Manufacturer:ANSC/OEM

Package:module

Detail

Product Introduction


This power meter is suitable for use in 12V-72V electric vehicles and can also measure lithium batteries, polymer batteries, nickel hydrogen batteries. It can also be used for other electricity/voltage measurement purposes. Not suitable for: large trucks, cranes, and other high-power and high load vehicles!


Product Parameters


Voltage allowable error ± 1;


8 battery levels 10 25 40 50 60 75 90 fully charged


Working current 5-15 mA


Refresh speed is about 480MS per time


Display mode: Three digit 0.28 "LED digital tube


Display color red or blue


Lead length 20CM


Dimensions 48X29X22 MM, length X width X thickness


Installation hole 46X27 MM


Net weight 7.7G


Gross weight 13.8G


Working temperature -10 ° C~65 ° C


Product Functions


1. The dual display battery level and voltage are clear at a glance. Display more intuitively. Up 8 color bars display (2 red and 6 green) battery level. Downward voltmeter (displaying battery voltage), the decimal point of the voltmeter automatically shifts with higher accuracy.


2. Wide range of applications, including lithium battery packs, lead-acid batteries, car batteries, electric vehicle batteries, and other types of battery electric devices. The principle of voltage calculation and electric vehicle power display meter is the same.


3. The meter head automatically recognizes voltage and electricity levels, and has reverse connection protection function (reverse connection will not burn)

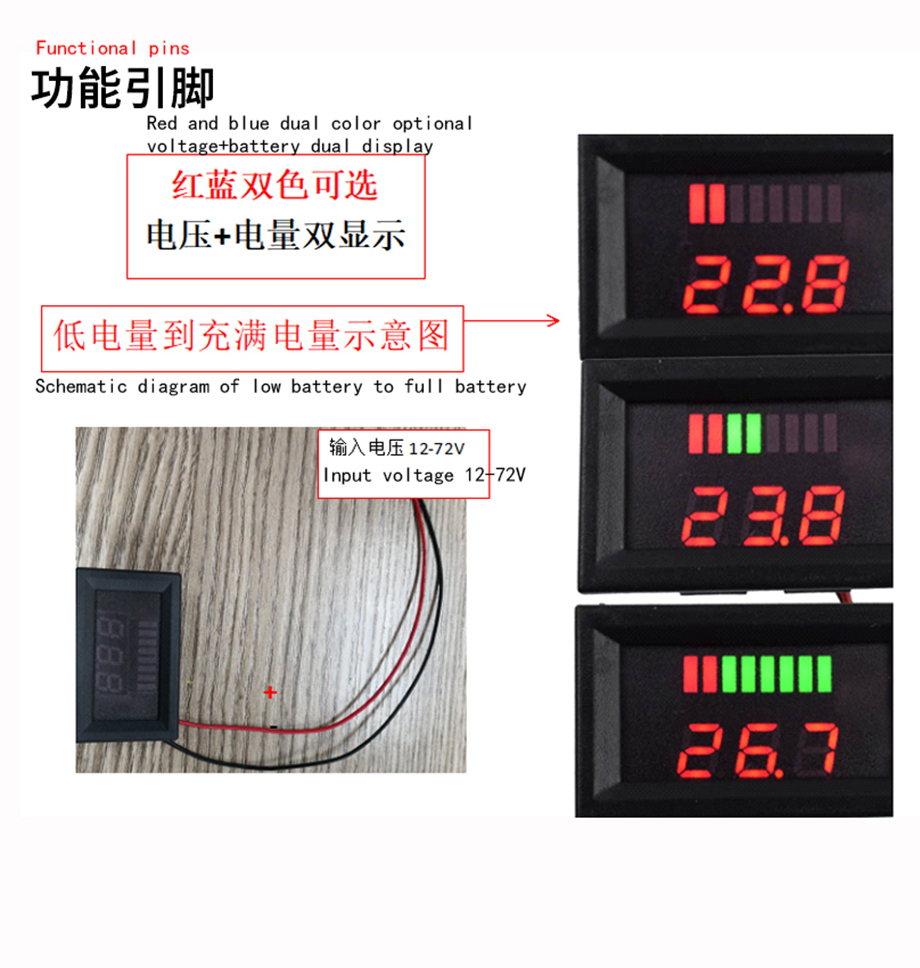

详情-03


Product Size

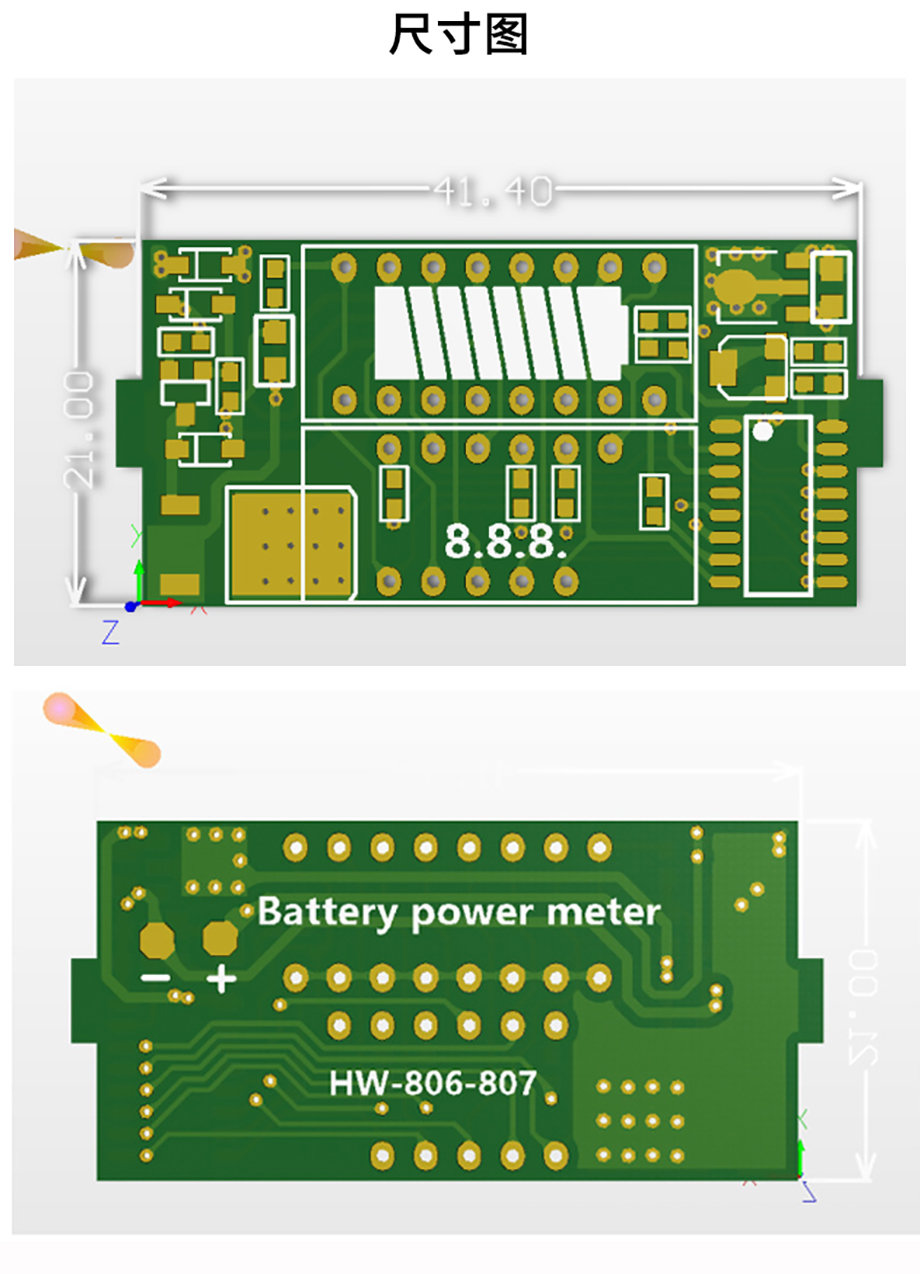

详情-04


Product Show

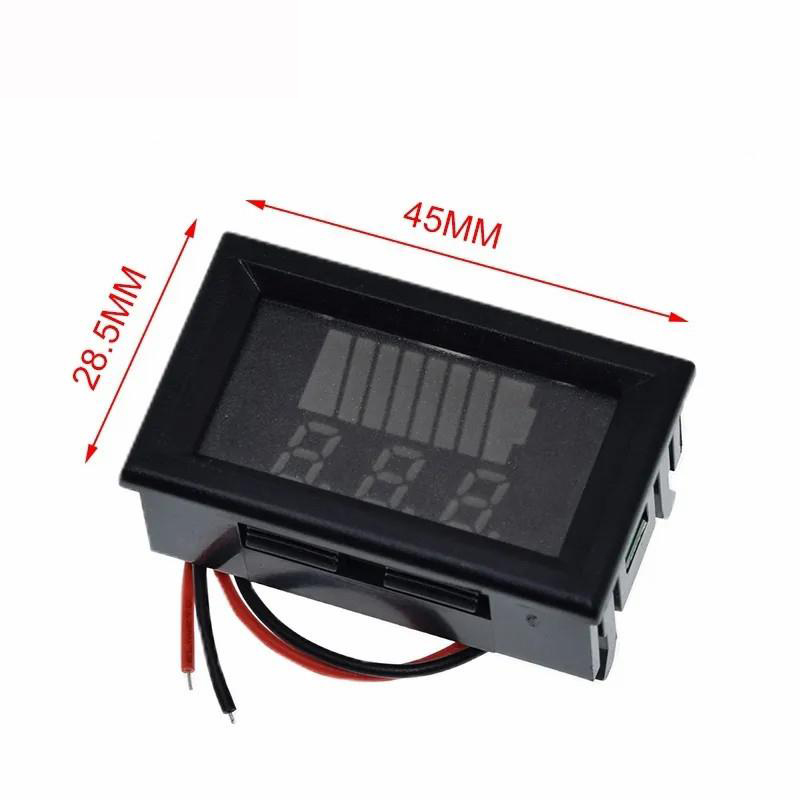

主图-00

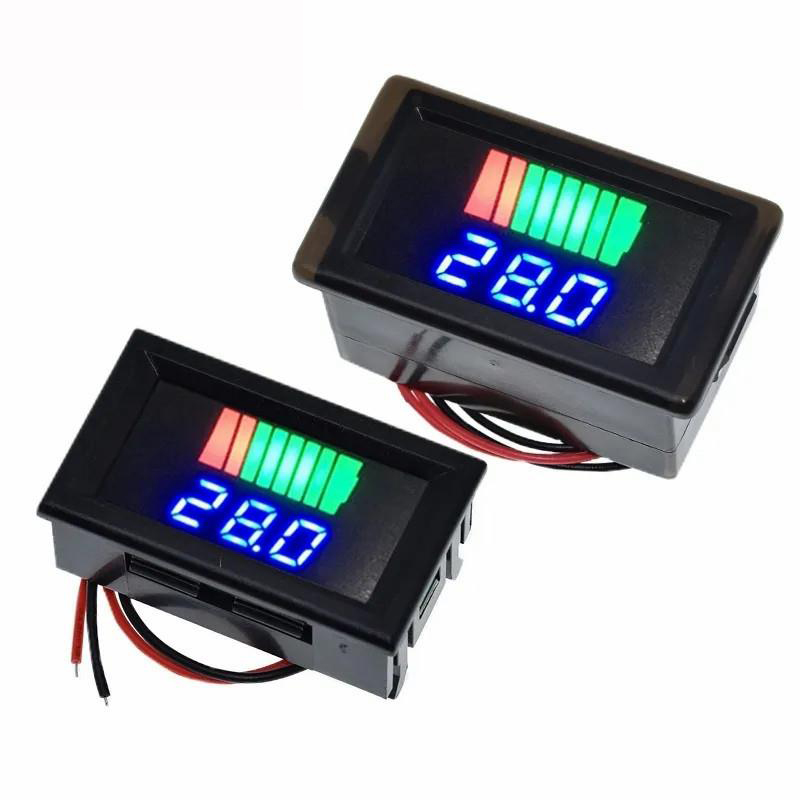

主图-02

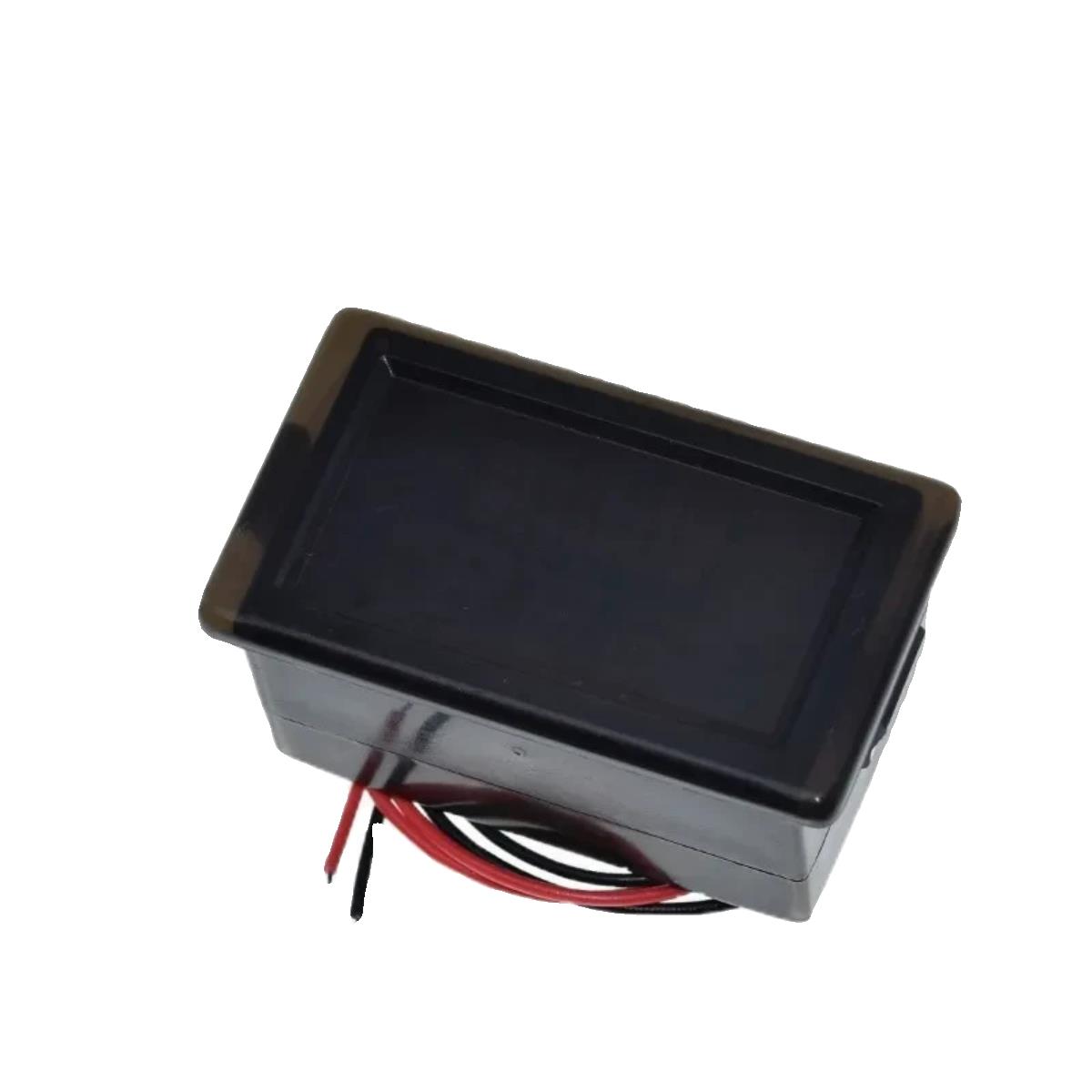

主图-04
