Product Descriptions

E106-470G27P2 module is a LoRa gateway RF module designed based on the SX1302 chip. It adopts the standard Mini PCI-e package, SPI interface, the module has built-in PA and LNA, and the half-duplex design is convenient for users to quickly develop LoRa gateway equipment.

SX1302 is a new generation LoRa gateway baseband chip launched by Semtech. It is equipped with front-end SX1250 and can support spreading factors SF5~SF12. Compared with the previous generation SX1301 gateway solution, it can support higher-speed data communication, while the power consumption is greatly reduced, the design is simplified, and the performance is significantly improved.

Product Features

 PCI Express Mini Card 1.2 standard interface;

 Sending current max 360mA, receiving current 60mA;

 I-PEX antenna interface, half-duplex communication;

 Standard SPI digital interface;

 Support 8 receiving channels, SF5~SF12 full solution, receiving sensitivity as low as -141dBm;

 Support 1 transmission channel, the maximum transmission power is 27dBm (typical value 26dBm);

 ISM band：EU433、CN470、EU868、US915.

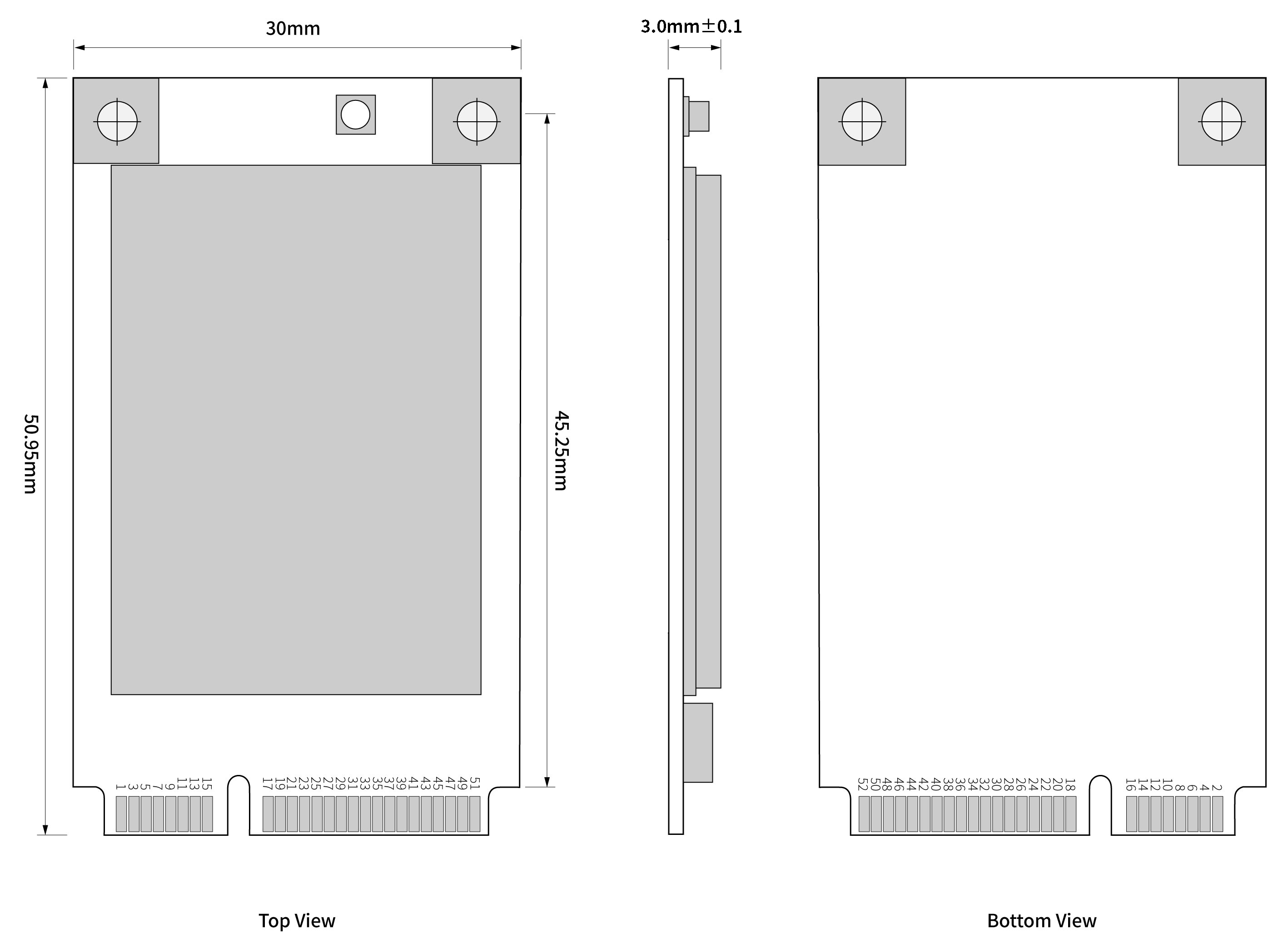

Specifications

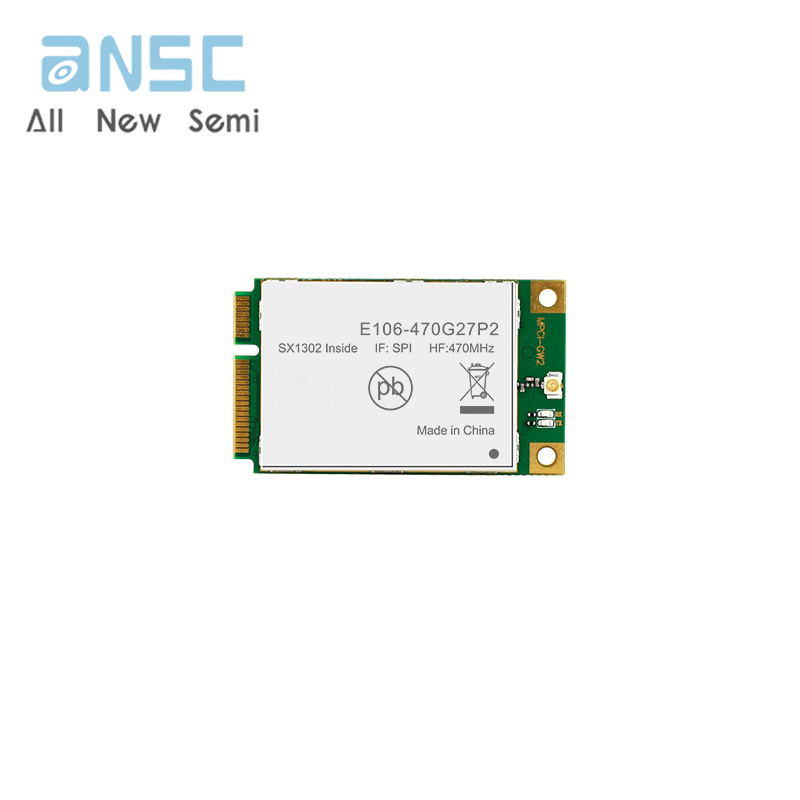

Actual product photos
