Product Descriptions
E103-W05A is a low-cost and cost-effective 100mW (20dBm) WiFi data transmission module. The WiFi module has a small size, an onboard PCB antenna, operates in the 2.4-2.483GHz frequency band, has low power consumption, and fast data stream transmission. The module can use a serial port for data transmission and reception, as well as AT command related parameter settings. Secondly, most of the AT commands in E103-W05 module are compatible with E103-W01 module.
Specifications
| Attribute | Attribute value | |
| ANSM-Part# | ANSM-E103-W05A | |
| Reference distance | 130M | Clear and open, 2.5 meters high |
| Operating frequency | 80MHz | - |
| Modulation | - | DSSS(DBPSK,DQPSK,CCK) and OFDM(BPSK,QPSK,16QAM,64QAM) |
| Package | DIP | - |
| Communication Interface | Serial port | 600bps～2.0Mbps |

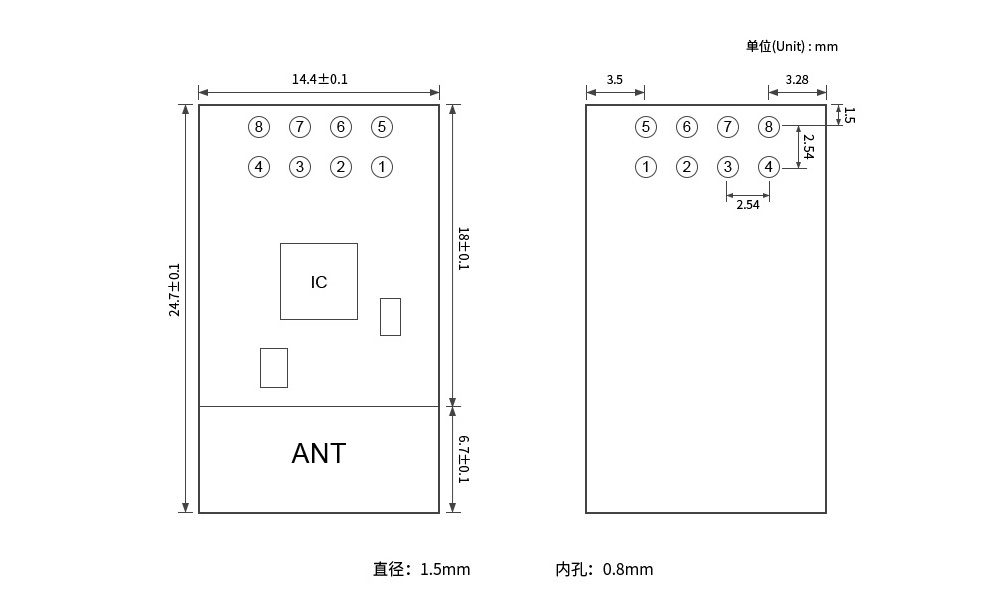

| Dimensions | 24.7*14.4*11.2mm（±0.2mm） | PCB onboard antenna + DIP |
| RF interface | PCB | The default PCB antenna, the equivalent impedance is about 50Ω |
| Weight | 1.20±0.1 | Unit：g |

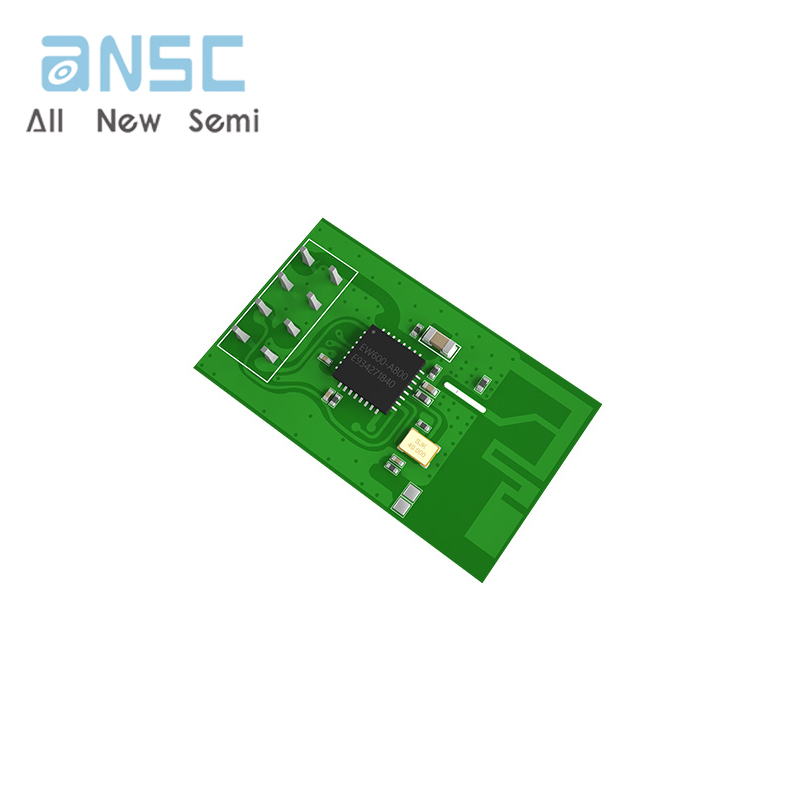

Actual product photos
