Product Descriptions

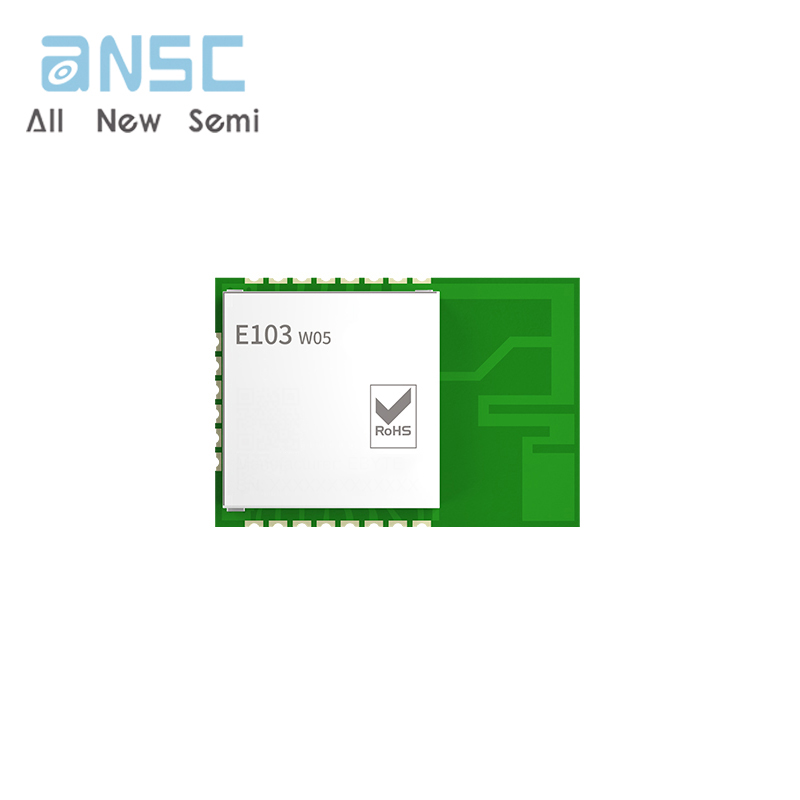

E103-W05 is a low-cost and cost-effective WiFi data transmission module with a power of 100mW (20dBm). It has a small size, onboard PCB antenna, operates in the 2.4-2.483GHz frequency band, low power consumption, and fast data transmission. The module can use a serial port for data transmission and reception, as well as AT command related parameter settings. The E103-W05 AT command is mostly compatible with the E103-W01 module, making it easy for both old and new users to use and fast to get started. It is a good data transmission partner in IoT applications.
Specifications
| Attribute | Attribute value | |
| ANSM-Part# | ANSM-E103-W05 | |
| RF chip | W600 | Beijing WinnerMicro |

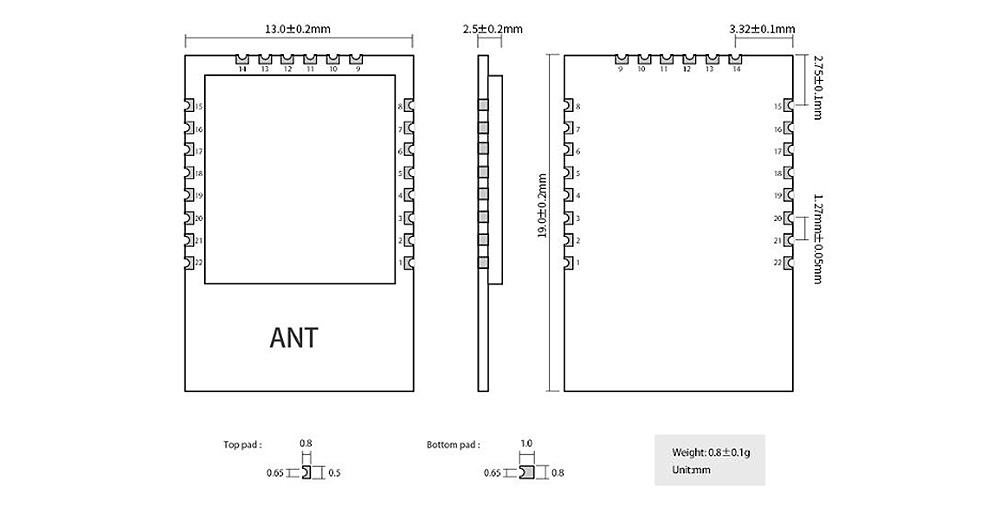

| Dimensions | 19*13*0.8mm | (L*W*H) |
| PCB process | 2 layers | Impedance debugging |
| Working frequency | 2.4~2.4835 GHz | - |
| Production Process | Immersion gold process, halfhole process, machine SMT | Wireless products must be machine-attachedto ensure batch consistency and reliability |
| Interface Type | 1.27mm | Stamp hole |
| Supply voltage | 3.0 ~ 3.6V DC | Voltage higher than 3.6V will causepermanent damage to the module |
| Communication level | 3.6(max) | The voltage difference should be less than0.3V to reduce power consumption |
| Tested range | 120m | open and clear sky, no obstacles, maximumpower, antenna height 1.6m |
| Transmit power | 20dBm | 100mW |
| AT support | Built-in intelligent processing | Can be read by AT command |
| Wi-Fi version | 802.11 b/g/n | - |
| CommunicationInterface | UART serial port | - |
| RF interface | PCB onboard antenna | 50Ω characteristic impedance |
| Operating temperature | -40 ~ +85℃ | Industrial grade |
| Working humidity | 10% ~ 90% | Relative humidity, no condensation |
| Storage temperature | -40 ~ +125℃ | Industrial grade |
| product weight | 0.8±0.1g | - |
