Product Descriptions
The E103-W01 wireless module is a WiFi module developed based on the ESP8266EX chip. The WiFi module integrates transparent transmission function, which is ready to use and supports serial port AT command set and server AT command set. Users can access the network through the serial port and also support AirKiss.
Specifications
| Attribute | Attribute value | |
| ANSM-Part# | ANSM-E103-W01 | |
| Working frequency | 2402~2483 MHz | Default: 2.4GHz |
| Transmitting power | 20 dBm | About 100mW |
| WiFi version | 802.11 b/g/n | |
| Test distance | 100meter | In open and clear air, with maximum power, 5dBi antenna gain, height of 2m |

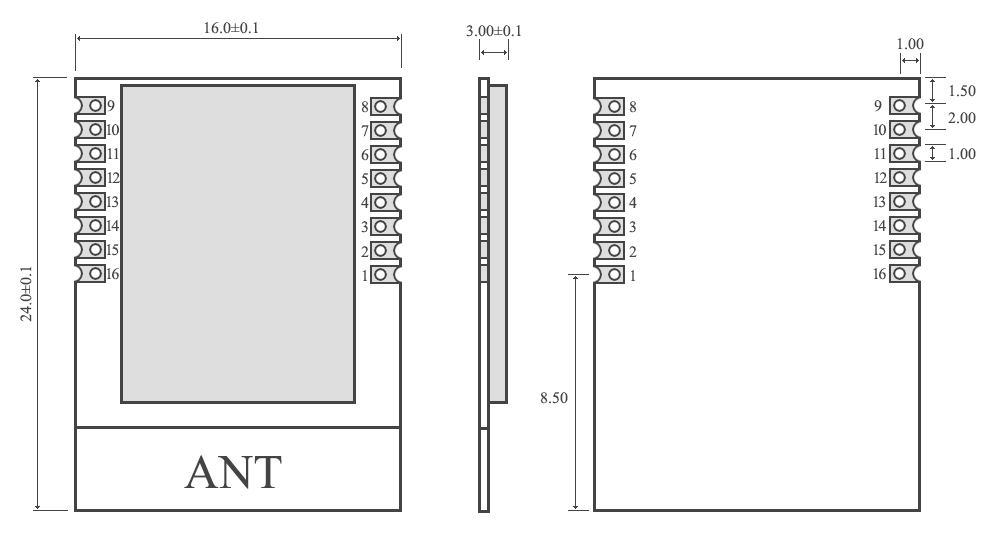

| Size | 16 * 24 mm | |
| Antenna type | PCB | 50Ω characteristic impedance |
| Communication interface | UART | |
| Package | SMD |

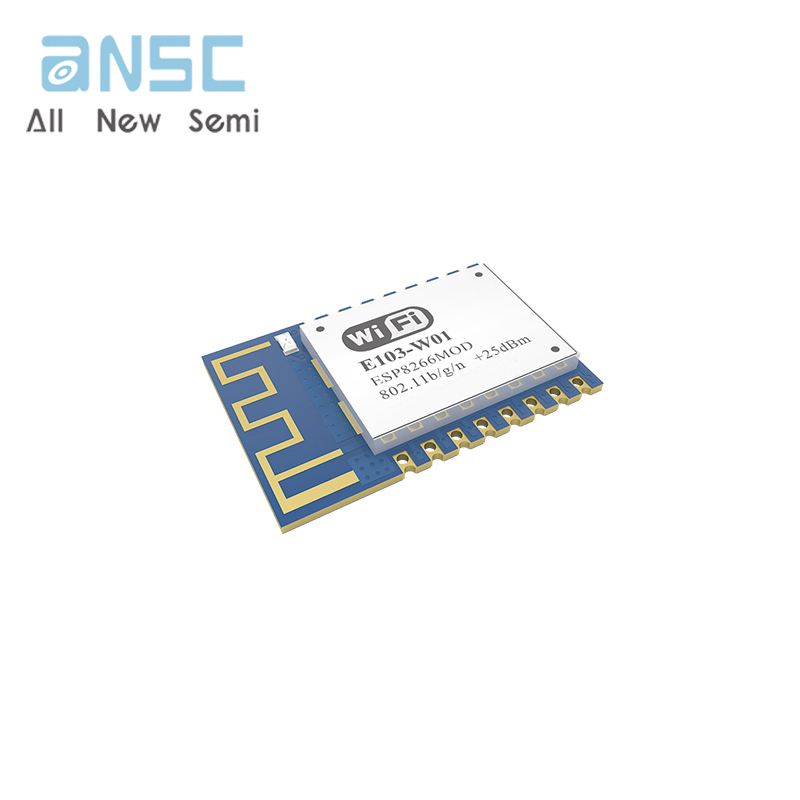

Actual product photos
Payment&Transportation
Official Certificate&Certificate
Multiple product supply
Company office environment
Warehouse Real Shot
Standard packaging
