Product Descriptions

The E180-Z5812 series is a ZIGBEE module designed and produced by Chengdu Ebyte based on TELINK TLSR8258 wireless SOC with small size, low power consumption, high reliability, working in the 2.4GHz frequency band. The chip comes with a 32-bit high-performance MCU up to 48Mhz , the transmit power can reach up to 12dBm, and its minimum cycle sleep current is 2uA.

TLSR8258 has great potential to become the wireless microcontroller of choice for future smart furniture, IoT transformation, and industrial automation. Its network characteristics comply with the ZIGBEE 3.0 standard and provides a complete application integration solution based on the IEEE802.15.4 standard ISM band. The product has been inspected and certified by a series of authoritative radio frequency instruments, and combined with many years of market experience and the actual needs of users in this industry, it integrates the extremely complex communication protocols of wireless products into the built-in SoC, supports serial port transparent transmission mode, and integrates quickly and easily. The self-organizing network function provides multiple configurable ADC, IO, and PWM interfaces, simplifying the complexity and greatly simplifying the complex development process of wireless products, allowing your products to be quickly put into the market at a lower cost.

Product Features

 Centralized network management: ZIGBEE 3.0 security standard centralized network access mechanism, data security and reliability;

 Supports ZCL standard protocol and configurable ZCL protocol specifications, and can simulate the access and control of tens of thousands of smart devices in hundreds of categories under the zigbee protocol. It can be connected to multiple smart home gateways and platforms without the need to customize firmware.

 It can support the access and control of multiple smart home terminal products (coordinator version only), and supports the access and control of hundreds of categories and tens of thousands of smart devices under the Zigbee protocol, without the need for specially customized firmware.

 Large capacity: 512K capacity flash, 64K capacity RAM, network nodes can be expanded to more than 100;

 Role switching: Users can use serial port commands to switch the device between the two types of terminal and dormant terminal (limited to terminal node version);

 Supports multiple network topologies: point-to-point, star network, MESH network;

 Network self-healing: If the intermediate node of the network is lost, other networks will automatically join or maintain the original network;

 Address search : Users can find the corresponding short address based on the MAC address of the node that has joined the network, and can also find the corresponding long address of each node in the network based on the node's short address.

 Network management: The coordinator version can manage the MAC addresses of all network nodes (routing nodes and terminal nodes), and add and delete nodes freely.

 Data security: Integrated ZIGBEE 3.0 secure communication standard, the network contains multi-level security keys;

 Serial port configuration: The module has built-in serial port instructions. Users can configure (view) the parameters and functions of the module through the serial port instructions.

 Network PAN_ID change: Any switching of network PAN_ID, the user can customize the PAN_ID to join the corresponding network or the PAN_ID will be automatically selected to join the network;

 PWM control: local/remote PWM control, 4 PWM channels for user selection;

 ADC control: local/remote ADC reading, 2 ADC channels for user selection;

 One-click baud rate recovery: If the user forgets or does not know the baud rate, this function can be used to restore the default baud rate to 115200.

 Serial port reception wake-up: supports the serial port reception wake-up function. When the module is in sleep state, it will wake up when it receives a frame of data less than or equal to 10 bytes. This data is a wake-up frame used to wake up the module and will not be treated as data. .

 Module reset: Users can reset the module through serial port commands.

 Restore factory settings: Users can restore the module to factory settings through serial port commands.

 Remote management and remote configuration: Users can use ZCL commands to remotely manage and remotely configure other devices in the network

Specifications

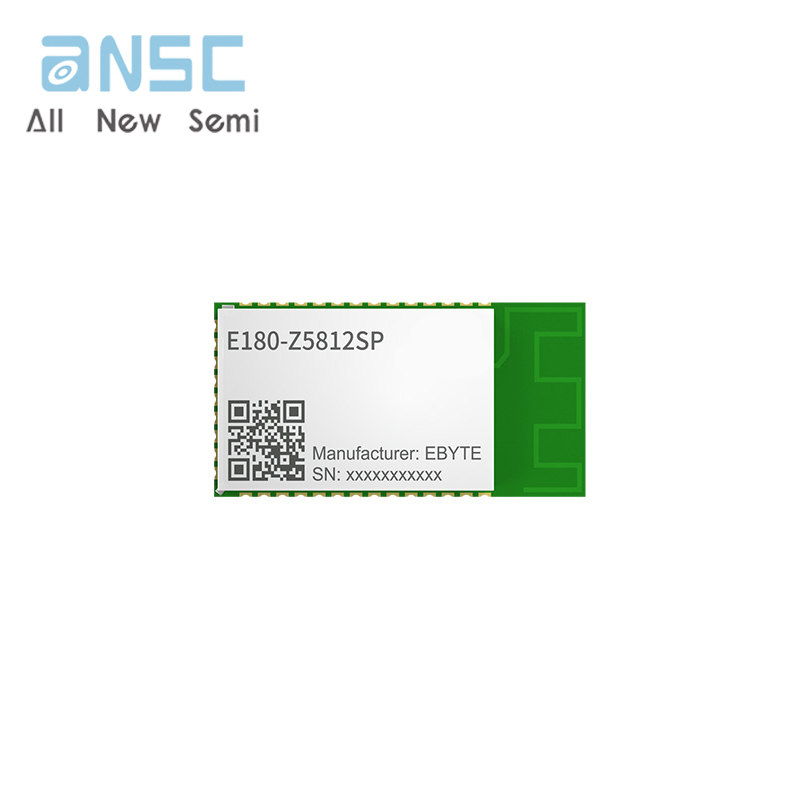

Actual product photos

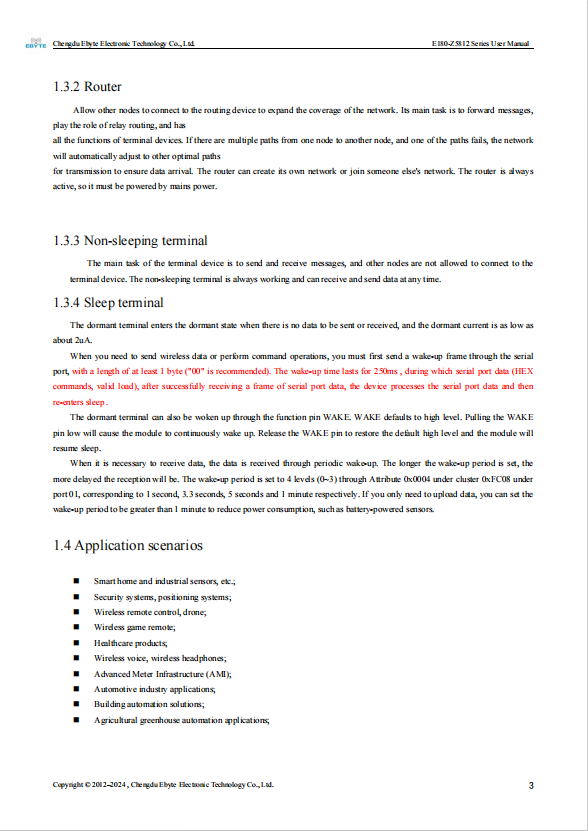

Product Data Book：

For more product information, please download the PDF
