Product Descriptions
E180-Z6907A is a small-sized, low-power, high reliability ZIGBEE module designed and produced based on TELINK TLSR8269 wireless SOC, operating in the 2.4GHz frequency band. The Zigbee module chip comes with a 32-bit high-performance MCU up to 48MHz, with a maximum transmission power of 7dBm.
Specifications
| Attribute | Attribute value | |
| ANSM-Part# | ANSM-E180-Z6907A | |
| Working frequency | 2405~2480MHz | Support ISM band |
| Max Tx power | 7 dBm | - |
| Air data rate | 250kbps | - |
| Distance for reference | 130m | Between two points (ZigBee network supports routing multi hop function, and the transmission distance can be extended by increasing the router). |

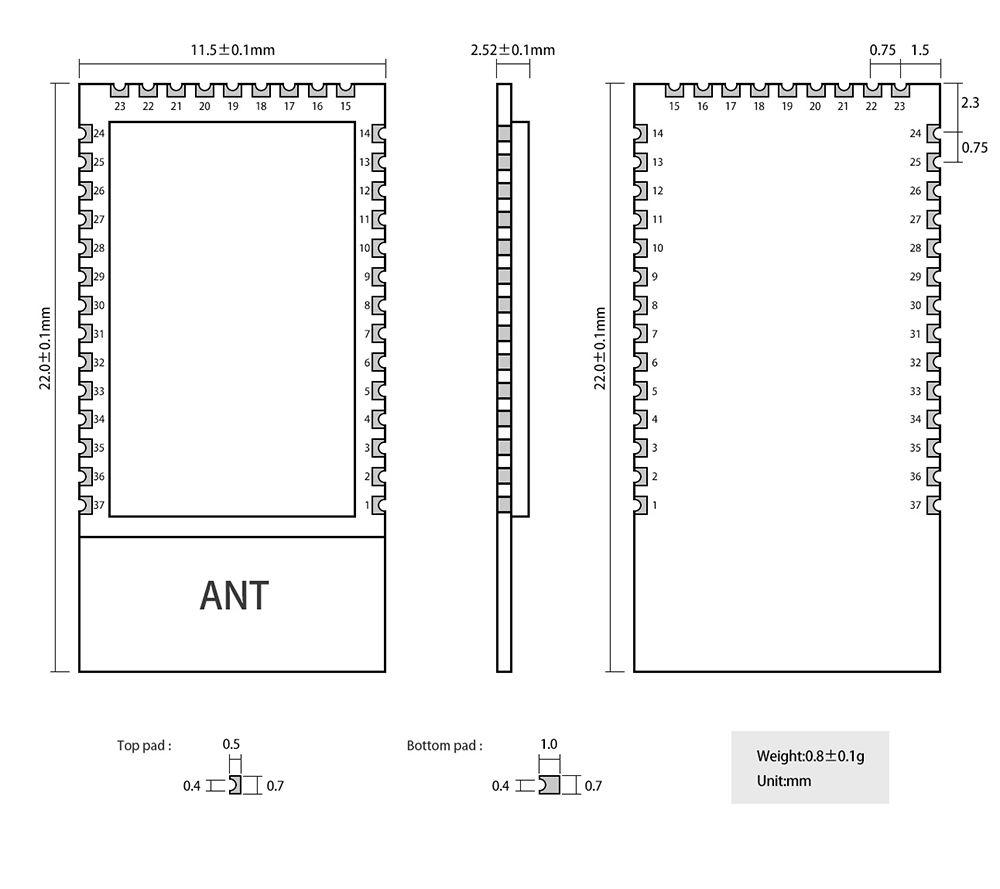

| Size | 11.5*22 mm | - |
| Antenna | PCB | 50 ohm impedance |
| Connector | 1.27mm | Stamp hole |
| Packing | SMD | - |
| IC | TELINK TLSR8269 | - |
| Protocol | Zigbee 3.0 | - |
| FLASH | 512KB | - |
| RAM | 32KB | - |
| Core | 32-bit MCU | - |

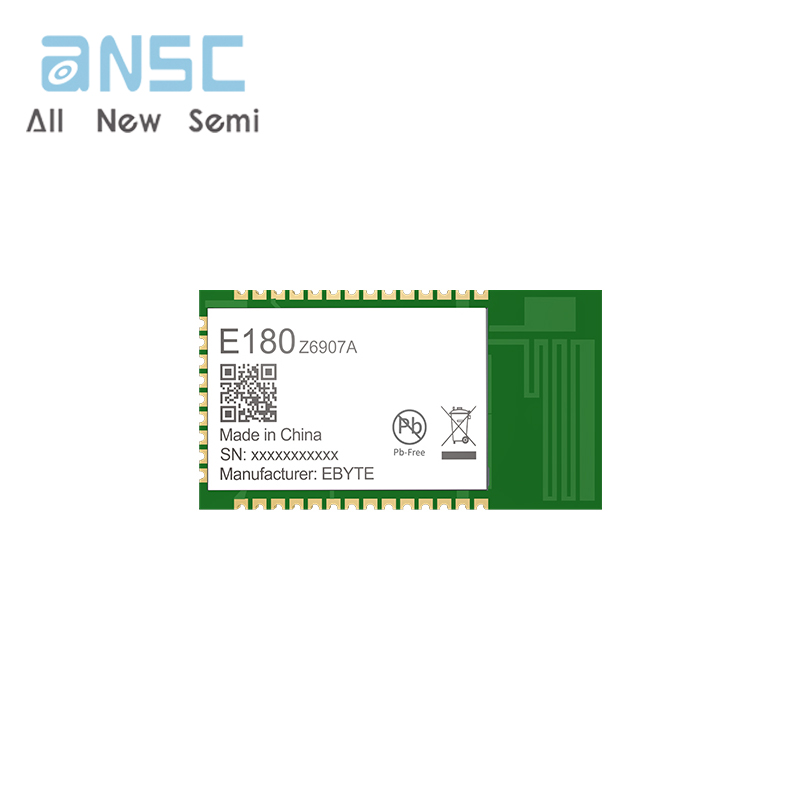

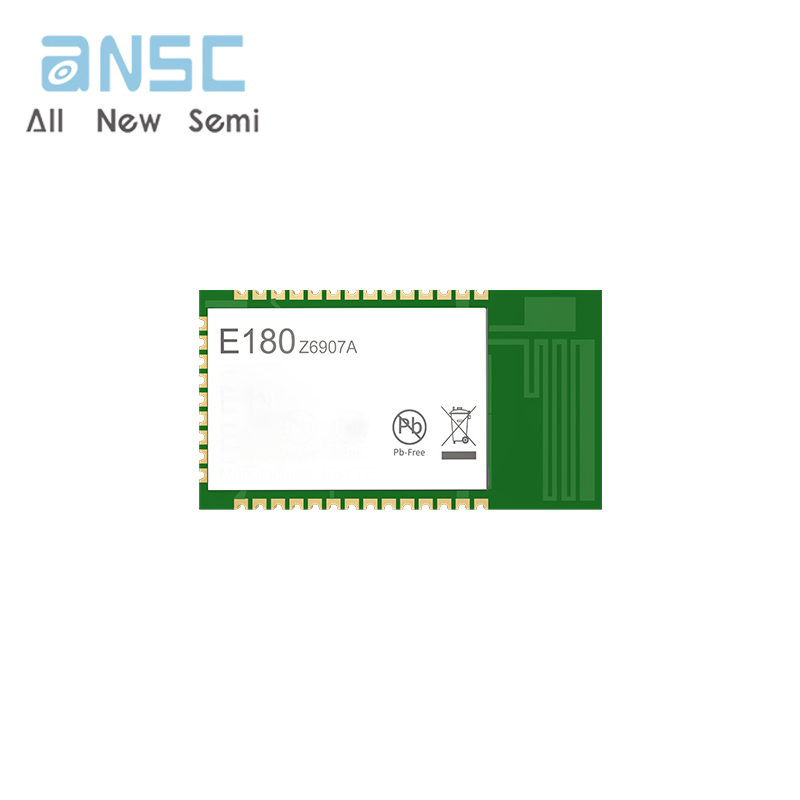

Actual product photos
