Product Descriptions

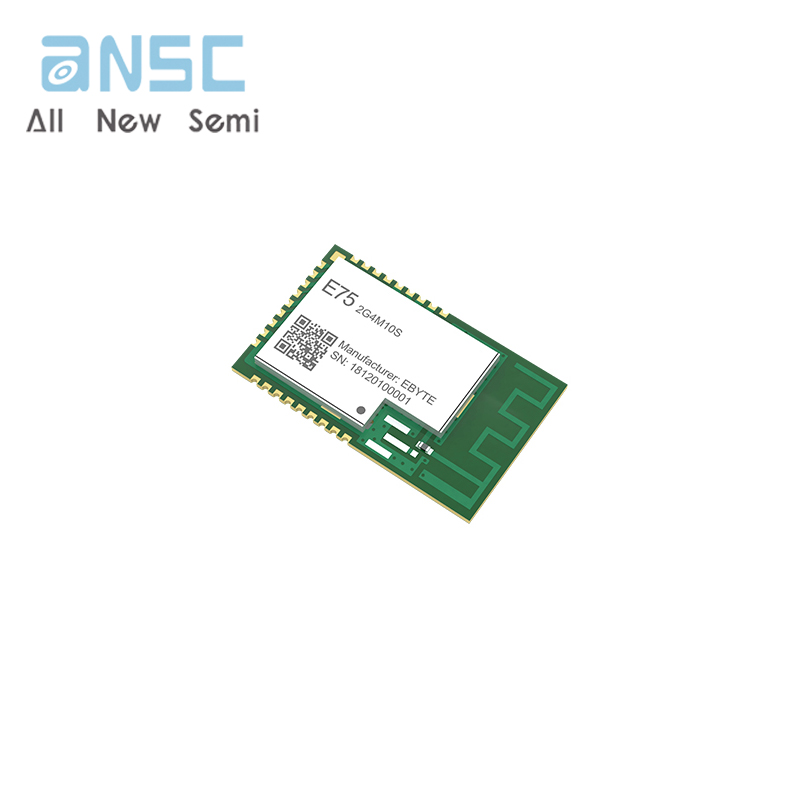

The E75 series ZigBee module is a low-power, high-performance ZigBee module developed based on the NXP JN516x chip. It provides a complete application integration solution based on the IEEE802.15.4 standard ISM (2.4-2.5GHz) frequency band. Supports protocols such as FastZigBee, ZNET, JenNet IP, ZigBee PRO, RF4CE, etc., and can be quickly applied to industrial control, industrial data collection, agricultural control, mining personnel positioning, smart homes, smart remote controllers, and other occasions.
Specifications
| Attribute | Attribute value | |
| ANSM-Part# | ANSM-E75-2G4M10S | |
| Working frequency | 2405~2480 MHz | ISM band |
| Transmitting power | 10 dBm | - |
| Receiving sensitivity | -96 dBm | - |
| Test distance | 500m | Clear and open area, antenna gain: 5 dBi, antenna height: 2.5m |
| IC | JN5169/QFN40 | - |
| FLASH | 512 KB | - |
| RAM | 32 KB | - |
| Core | 32bit RISC CPU | - |
| Size | 16 * 26 mm | - |
| Antenna type | PCB / IPEX | 50Ω Impedance |
| Protocol | Zigbee (Recommended) | ZNET, JenNet-IP, ZigBee-PRO, RF4CE |
| Package | SMD | - |
