Product Descriptions

E18-2G4U04B is a very small USB interface 2.4GHz band ZigBee protocol wireless packet

E18-2G4U04B uses the original imported CC2531 RF chip. The chip integrates 8051 single-chip microcomputer and wireless transceiver. The factory firmware supports TI Packet Sniffer software to carry out packet capture test. Packet Sniffer can be used to analyze the protocol quickly, and users can also do secondary development.

Product Features

 Communication distance tested is up to 200m;

 Maximum transmission power of 2.5mW, software multi-level adjustable；

 Built-in ZigBee protocol stack；

 Support direct drive of peripherals such as ADC, PWM, GPIO;

 Support UART transparent transmission, easy to use;

 Built-in 32.768kHz clock crystal oscillator;

 Support the global license-free ISM 2.4GHz band;

 Built-in low-power 8051 core processing;

 Rich resources, 256KB FLASH, 8KB RAM;

 Support 2.0V~3.6V/USB power supply, and the power supply above 3.3V can guarantee the best performance;

 Industrial grade standard design, support for long-term use in -40 to 85 °C;

 PCB antenna

Product Applications

 Home security alarm and remote keyless entry；

 Smart home and industrial sensors；

 Wireless alarm security system；

 Building automation solutions；

 Wireless industrial-grade remote control；

 Health care products；

 Advanced Meter Reading Architecture(AMI)；

 Automotive industry applications.

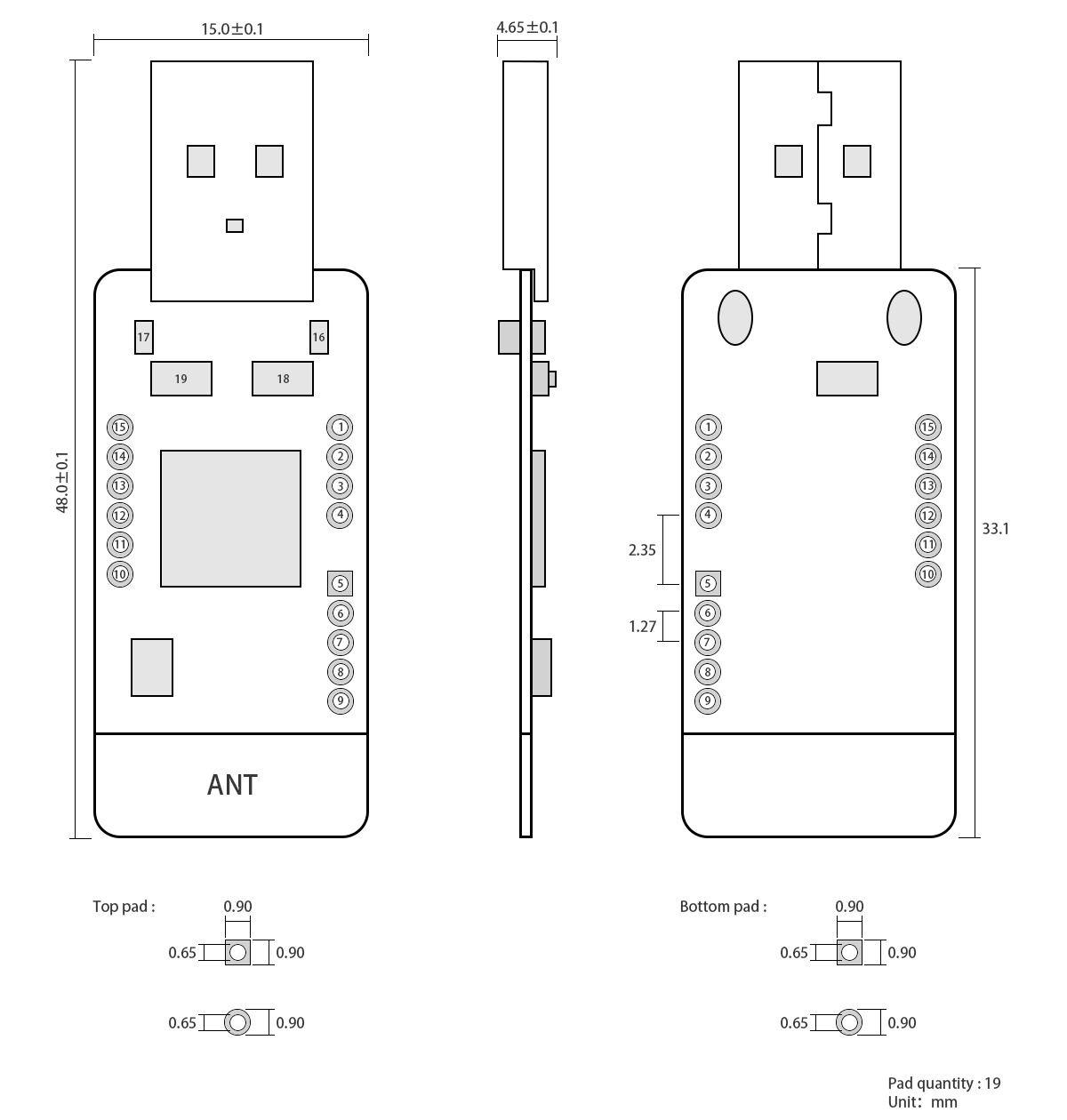

Specifications

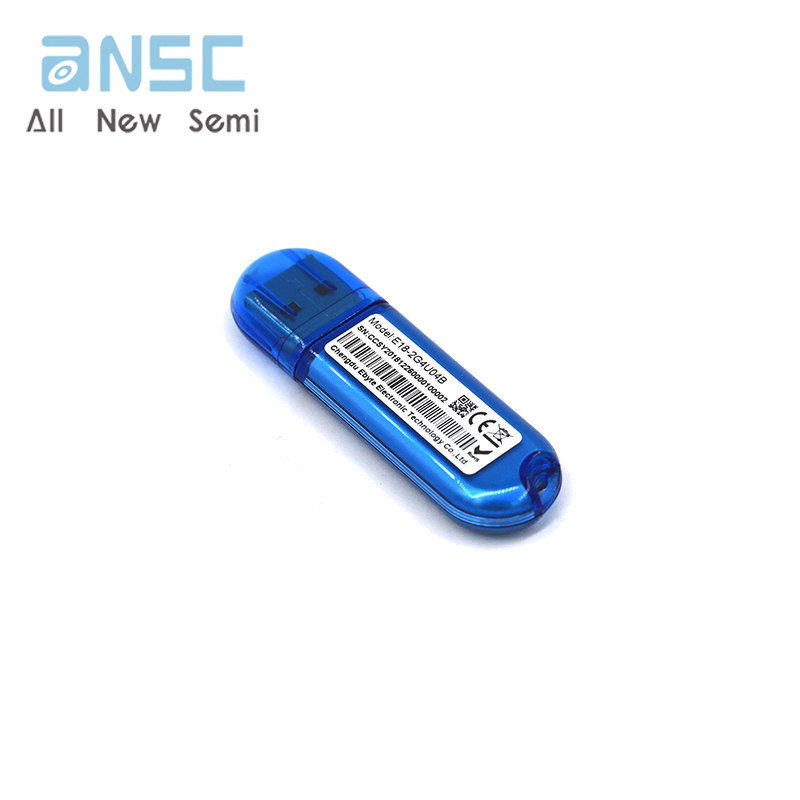

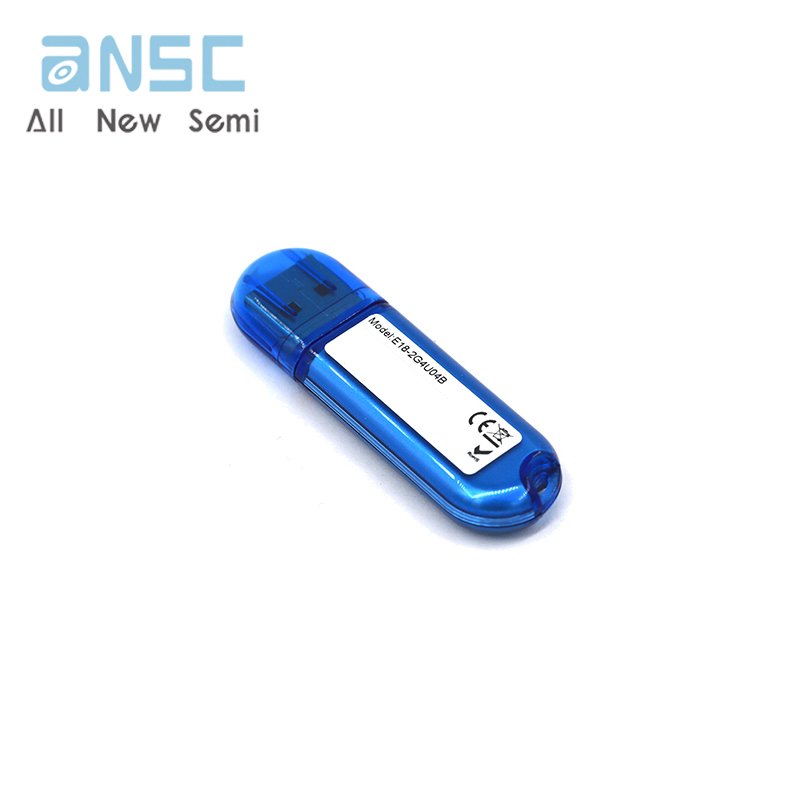

Actual product photos

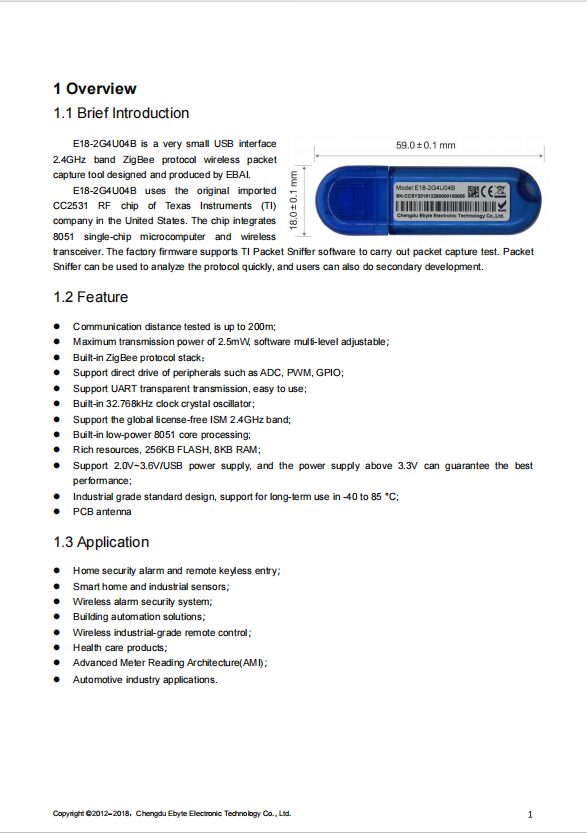

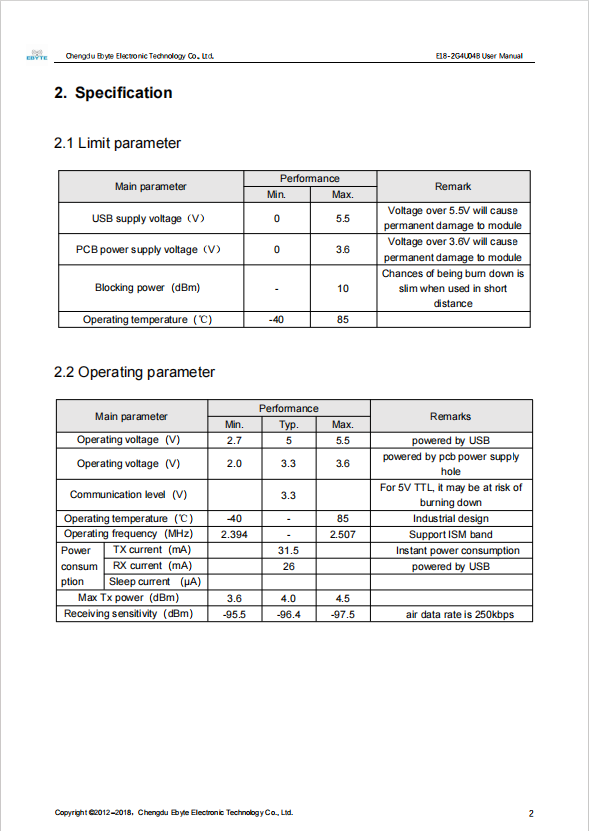

Product Data Book：

For more product information, please download the PDF
