Product Descriptions

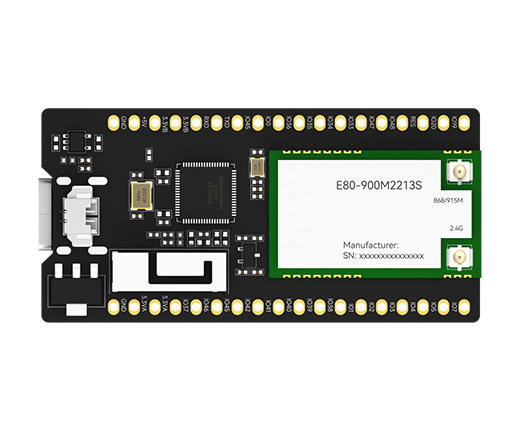

EoRa-HUB-400/900TB is an LR1121 development board consisting of E80 series modules (LR1121 module) and ESP32-S3. It has abundant external pins and a 0.96-inch OLED display screen, and provides three communication methods: LoRa, Wi Fi, and Bluetooth. This device has been widely used in the development of the Internet of Things and long-distance communication fields, especially in the application of SEMTECH One Channel Hub (LoRaWAN Single Channel Gateway) technology, which has been recognized by a large number of users.

Product Features

• Supports SEMTECH LoRaWAN One Channel Hub protocol and comes with firmware at the factory;

• E80-400M2213S: using LR1121 chip, supporting LoRa dual band 410~493MHz/2.4GHz, maximum output power+22dBm(SuB-GHz)/+13dBm(2.4GHz)；

• E80-900M2213S: Equipped with LR1121 chip, supports LoRa dual band 850~930MHz/2.4GHz, maximum output power +22dBm(SuB-GHz)/+13dBm(2.4GHz)；

• ESP32-S3FH4R2 is equipped with Xtensa ®  32-bit LX7 dual core processor with a clock speed of up to 240MHz, integrated with 4MB FLASH and 2MB PSRAM on-chip;

• Supports both Wi Fi and low-power Bluetooth, with a maximum output power of+21dBm for WIFI and+20dBm for BLE, sharing one antenna;

• Wi Fi: Supports IEEE 802.11b/g/n protocol, supports 20MHz and 40MHz bandwidth, supports 1T1R mode, and has a data rate of up to 150Mbps;

• Wi Fi: Supports Infrastructure BSS Station mode, SoftAP mode, and Station+SoftAP mode;

• Wi Fi: Supports 802.11 mc FTM and can provide high-precision indoor positioning services;

• Bluetooth LE: Supports speeds of 125Kbps, 500 Kbps, 1Mbps, and 2Mbp;

• Bluetooth LE: Supports Bluetooth 5 and Bluetooth mesh;

• Support 0.96-inch OLED display screen;

• Supports lithium battery power supply/charging, with a designed rated charging current of 500mA;

• Tpye-C interface, using USB 2.0 protocol.

Product Applications

• Smart home (real-time monitoring and reporting of various sensors and civilian meters to the cloud);

• Industrial Internet of Things and asset tracking (factory equipment monitoring, real-time control and monitoring of industrial valves and meters, and reporting to the cloud);

• Smart agriculture and environmental monitoring (real-time monitoring and reporting of various sensors such as soil moisture and temperature sensors to the cloud);

• Smart cities and public facilities (real-time monitoring of street lights, reporting of abnormal status of security alarm systems to the cloud);

• Healthcare and wearable devices (remote monitoring, drug tracking and traceability information reporting to the cloud);

• Energy and public utilities (intelligent meter reading, energy pipeline monitoring and reporting to the cloud);

• Warehouse and logistics management (goods positioning, inventory management, and logistics scheduling information reporting to the cloud).
