Product Descriptions

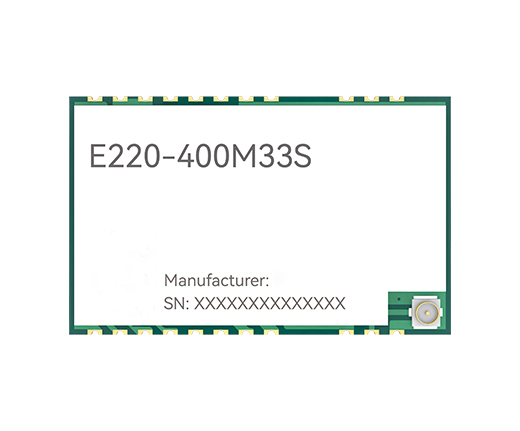

E220-400M33S is independently developed based on the new generation LoRaTM RF chip LLCC68 produced by Semtech, with a maximum power of 2W and suitable for 433/470MHz surface mount LoRaTM wireless modules. It uses an industrial grade high-precision 32MHz crystal oscillator.

Due to the use of imported LLCC68 as the module core, a power amplifier (PA) and a low-noise amplifier (LNA) are built in on the original basis, which not only achieves a maximum transmission power of 2W but also further improves the receiving sensitivity. The overall communication stability is significantly improved compared to products without power amplifiers and low-noise amplifiers. Compared with the previous generation LoRaTM transceiver, the anti-interference performance and communication distance have been improved, further widening the gap with products using FSK and GFSK modulation methods. This product can cover a wide frequency range of 410~493MHz.

As this module is a pure hardware RF transceiver module, it requires the use of MCU drivers or specialized SPI debugging tools.

Product Features

• Compared with the SX1276 module, the LLCC68 module has significant advantages in lower power consumption, faster speed, and longer distance;

• The measured distance can reach 16km;

• Built in PA+LNA, greatly improving communication distance and stability;

• Maximum transmission power of 2W, software multi-level adjustable;

• Support global license free ISM 433/470MHz frequency bands;

• Supports data transmission rates of 1.76k~62.5kbps in LoRaTM mode;

• Supports a maximum data transmission rate of 300kbps in FSK mode;

• FIFO has a large capacity and supports 256Byte data caching;

• Support spreading factors SF5, SF6, SF7, SF8, SF9, SF10, SF11.

• Supports power supply of 3~5.5V, with optimal performance guaranteed for power supply greater than 5V;

• Dual antenna options (IPE/stamp hole) are available for customer secondary development and integration.

Product Applications

• Home security alarm and remote keyless entry;

• Smart home and industrial sensors, etc;

• Wireless alarm security system;

• Building automation solutions;

• Wireless industrial grade remote control;

• Healthcare products;

• Applications in the automotive industry, etc.

Specifications
