Product Descriptions

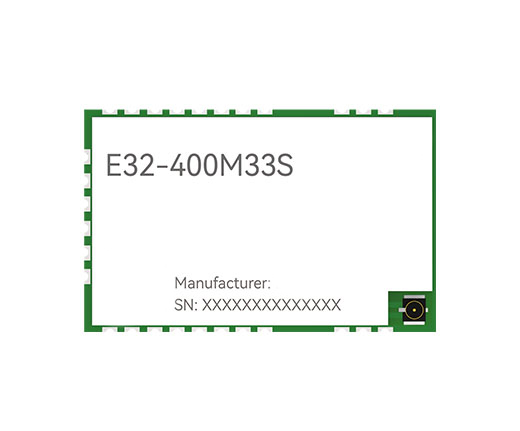

E32-400M33S is a self-developed 410~493MHz surface mount LoRaTM wireless module based on SX1278, with a maximum transmission power of 2W.

Due to the use of the original imported SX1278 as the module core, a power amplifier (PA) and a low-noise amplifier (LNA) are built in on the original basis, which not only achieves a maximum transmission power of 1W but also further improves the receiving sensitivity. The overall communication stability is significantly improved compared to products without power amplifiers and low-noise amplifiers. Due to its advanced LoRaTM modulation technology, its anti-interference performance and communication distance far exceed those of current FSK and GFSK modulation methods. This module is mainly designed for smart homes, wireless meter reading, scientific research and healthcare, as well as long-distance wireless communication devices.

Due to RF performance and component selection following industrial grade standards. As this module is a pure RF transceiver module, it requires the use of MCU drivers or specialized SPI debugging tools.

Product Features

• Under ideal conditions, the communication distance can reach 16km;

• Maximum transmission power of 2000mW, software multi-level adjustable;

• Support global license free ISM 410-493MHz frequency band;

• Supports multiple modulation modes, LoRaTM/FSK/GFSK/MSK/GMSK/OOK；

• Supports data transmission rates ranging from 0.018k to 37.5kbps in LoRaTM mode;

• Supports a maximum data transmission rate of 300kbps in FSK mode;

• FIFO has a large capacity and supports 256Byte data caching;

• Supports 3.3-5.5V power supply, with power supply greater than 5V ensuring optimal emission performance;

• Industrial standard design, supporting long-term use at -40~+85 ℃;

• Stamp holes are convenient for users' secondary development and integration.

Product Applications

• Home security alarm and remote keyless entry;

• Smart home and industrial sensors, etc;

• Wireless alarm security system;

• Building automation solutions;

• Wireless industrial grade remote control;

• Healthcare products;

• Advanced Meter Reading Architecture (AMI);

Specifications
